Omnium Bikes

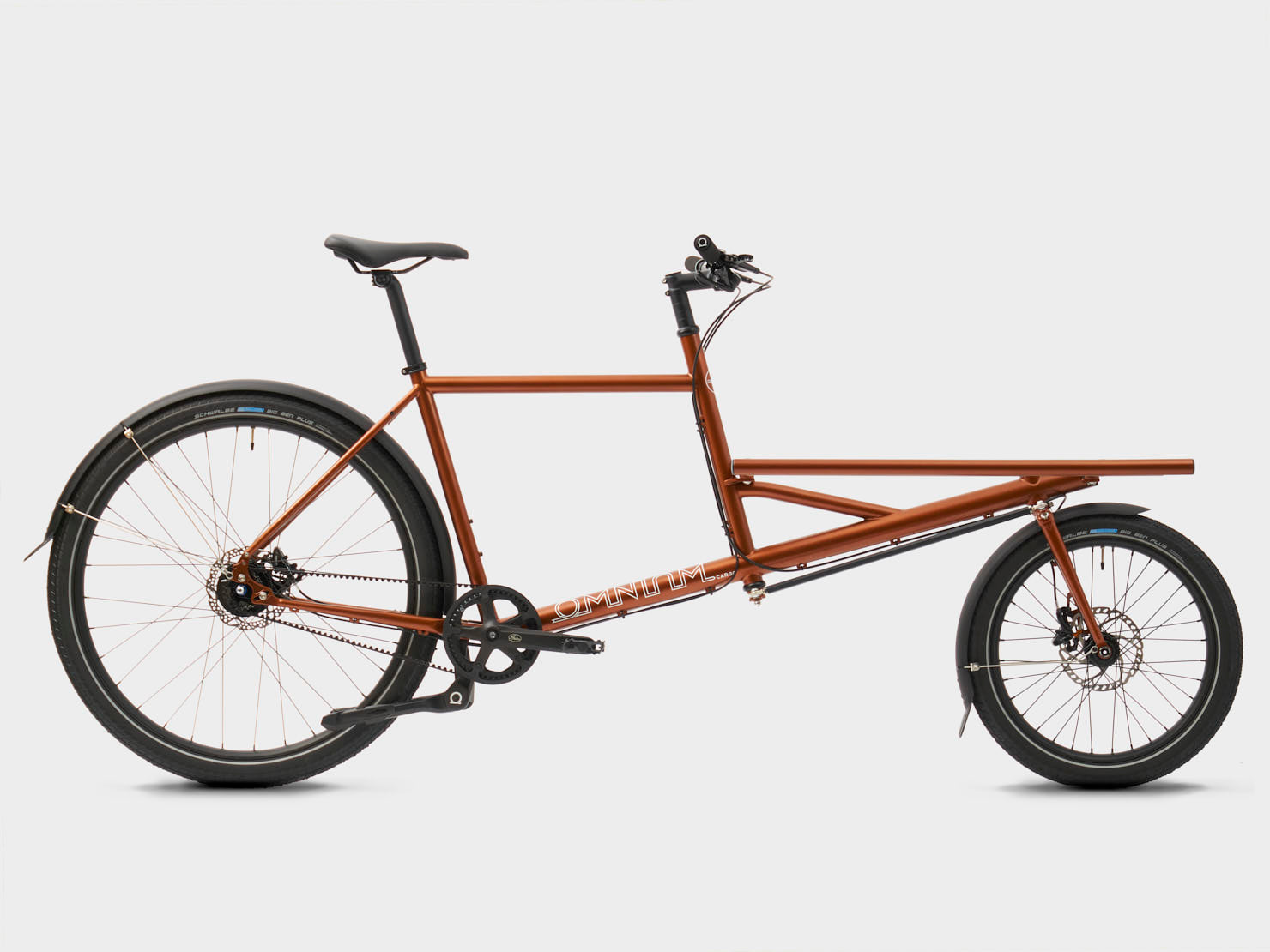

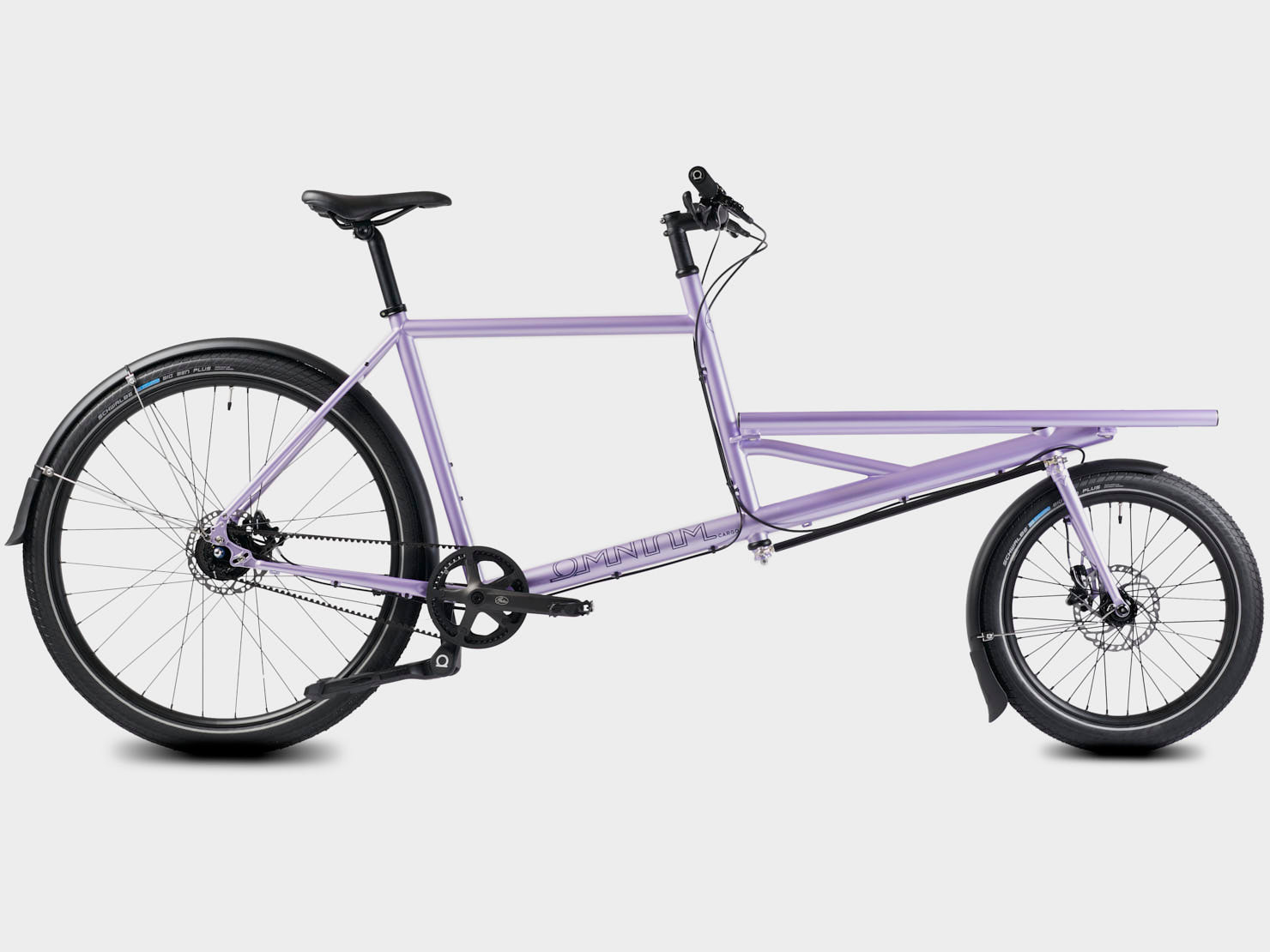

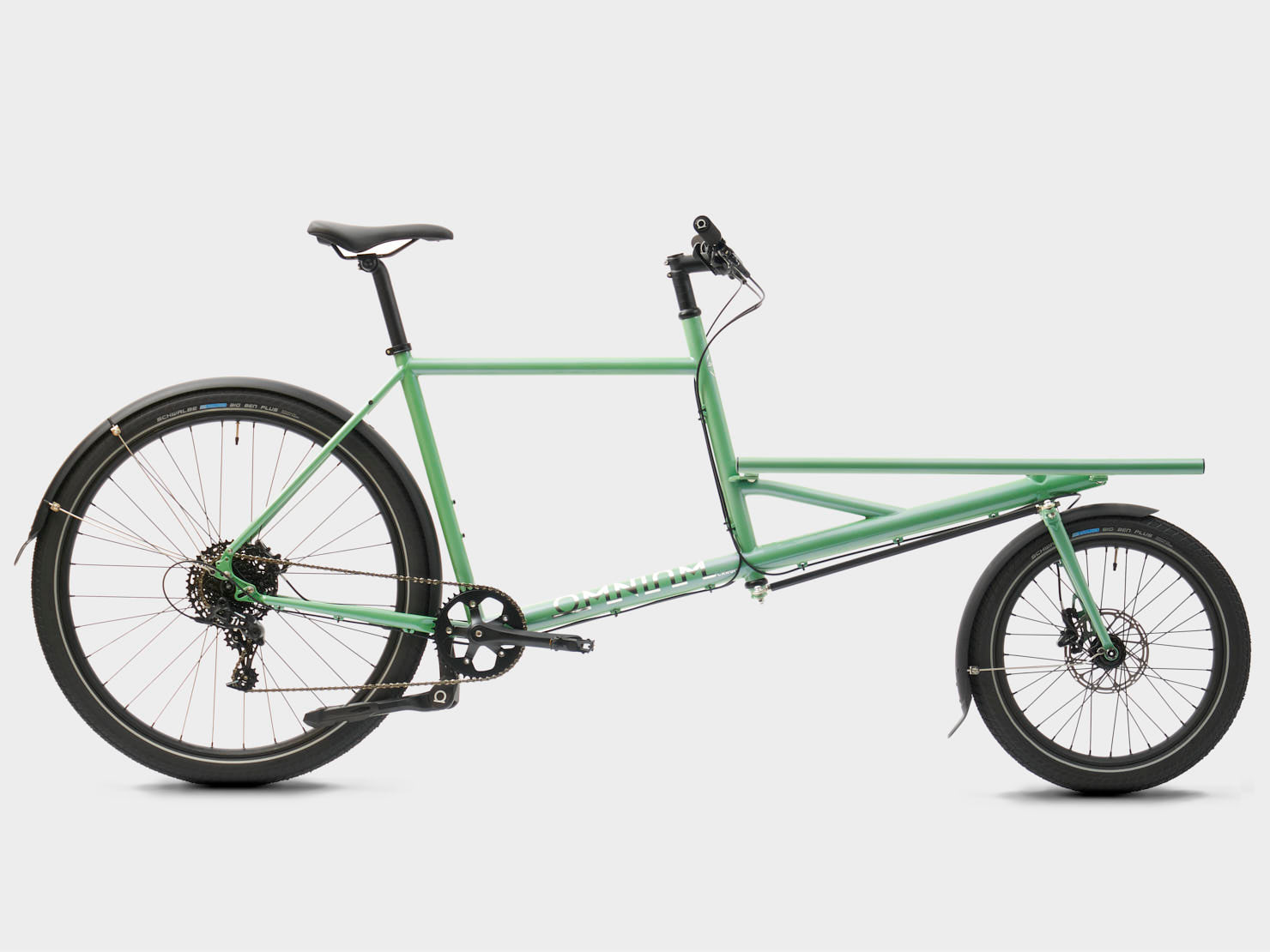

Omnium Cargo V3 Complete Bike

Regular price €3.315,00 EUR
Tax included. Shipping calculated at checkout.

Color: Pirate Black
Size

Read Omnium Cargo V3 Complete Bike buying conditions

Estimated Shipping Widget will be displayed here!

The Cargo V3 everybody! The same fast and light Omnium as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.

The adjustable rocker dropouts allow you to run a variety of drivetrain options (sorry not simultaneously), ranging from external gears with a derailleur to internal gears and belt drive! Heck you can even run it fixed if you’re that type of nut! The swappable inserts allow you to chose between thru axle and quick release depending on your rear hub spacing and gear component choice. Maybe even carry a spare set to easily replace a broken gear hanger if need be.

The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease.

The best part is, it rides like a normal bike when unloaded, due to its clever construction and familiar geometry.

The Cargo is also the model with the longest wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.

Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.

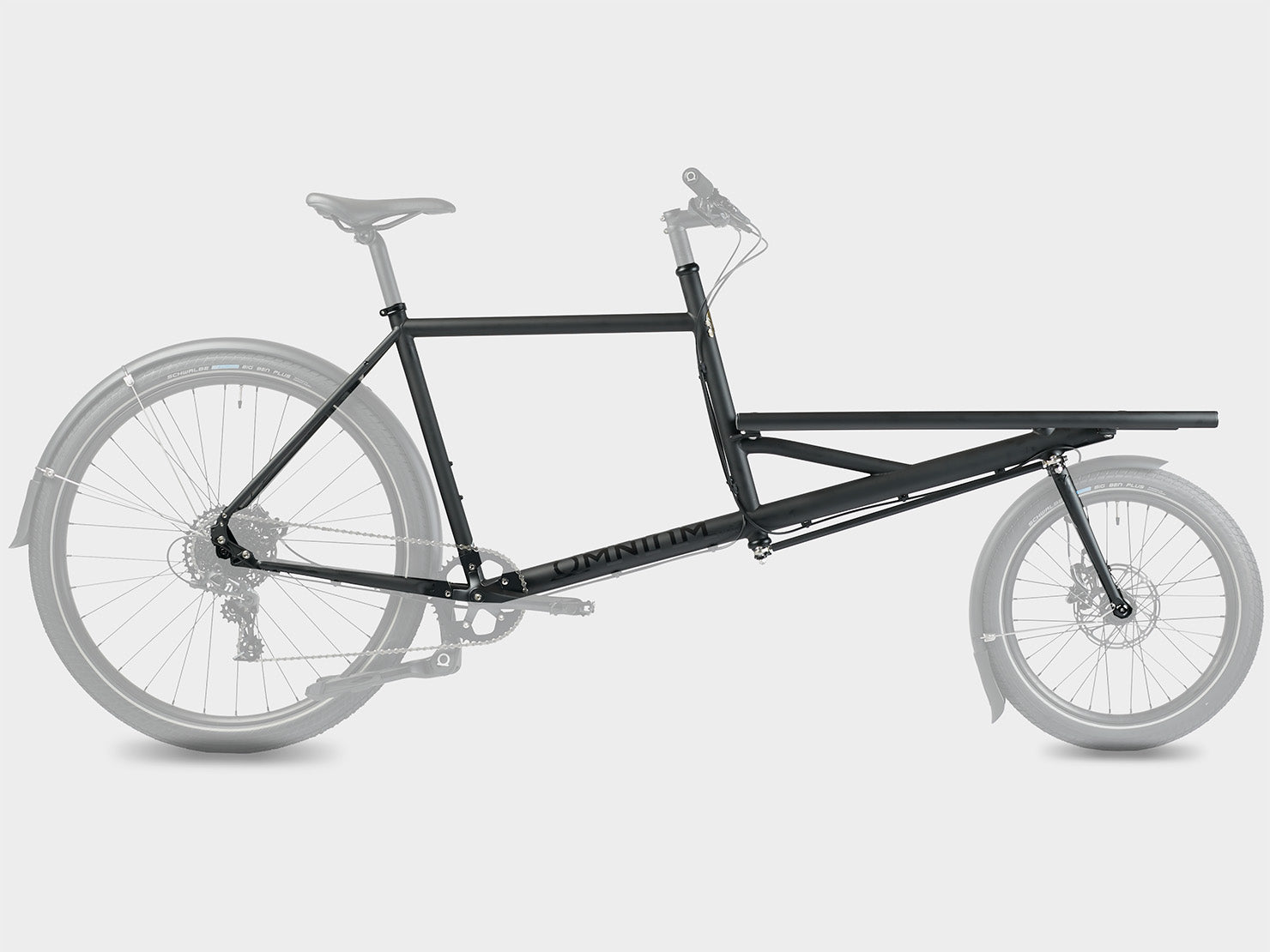

Frame Specifications



Frame material Double-Butted Chromoly Steel Frame
5 Sizes XS, S, M, L, XL
Standard Rack Weight 1320g +/-
Rack dimensions 83cm x 50cm
Seat post diameter 31.6 mm
Seat post clamp size 34.0 mm
Rear Wheel TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Front Wheel 406, 15 x 100 mm spacing, disc only
Tyre clearance, front 55mm with mudguards
Tyre clearance, rear 55mm with mudguards
Thru Axle Rear 12×142, 172mm long, 19mm thread length, 1.75mm pitch
Thru Axle Front 15×100, 125mm long, 17mm thread length, 1.5mm pitch
Fork headset 1 1/8″ Threaded Integrated with locking cap
Steerer headset 1 1/8″ Ahead
Bottom Bracket BSA 68mm
Q-Factor/Stance 145mm
Gears For 1x rear derailleur gear system
Standard Rack Weight 1320g +/-
Rack dimensions 83cm x 50cm
Rack bolt size M15 x 15mm
Weight Complete Medium bike weighs 20kg
Maximum loading weight on front rack 85 kg
Maximum total loading weight incl. rider 175 kg



Components List Sram Apex 11

Choose SRAM Apex 11 for its smooth, reliable shifting and lightweight performance, perfect for diverse terrains. Paired with Level TL brakes, you get superior stopping power, precise modulation, and enhanced control. This combination ensures a balanced, high-performance ride ideal for both road and off-road cycling enthusiasts.

Brakes Sram Level TL, IS mount, 160mm rotor front and rear
Gears Sram Apex 11 SPD, Sram PG-1130 11-42 cassette, KMC 11 Spd Chain EPT
Stem 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black | Multiple choices in bike builder
Seatpost 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
Grips Omnium lock-on, black, foam
Crankset Driveline, 42t, CNC Narrow Wide Chainring |
Bottom Bracket FSA, Square Taper, 68mm BSA |
Headset/s VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
Saddle Omnium Standard Saddle
Tyres Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
Wheels Omnium By DT Swiss Cargo Wheelset
Kickstand Omnium, cast aluminium twin-leg
Pedals Cast metal platform, black
Mudguards WiFi 60mm wide matte black
