The Omnium CXC stands for Cyclo Cross City, and does just that. Commute, gravel, cyclocross, world tour, or alleycat – the CXC will work for you.
With 700x45c tire clearance and triple cage fork mounts, this thing is even adventure ready! Adjustable dropouts let you run singlespeed, fixed, Internal gear hub, or a derailleur. It‘s now also belt drive compatible!
We could go on about possibilities, but in short the CXC is a true Swiss Army knife. There is nothing more versatile.
Design

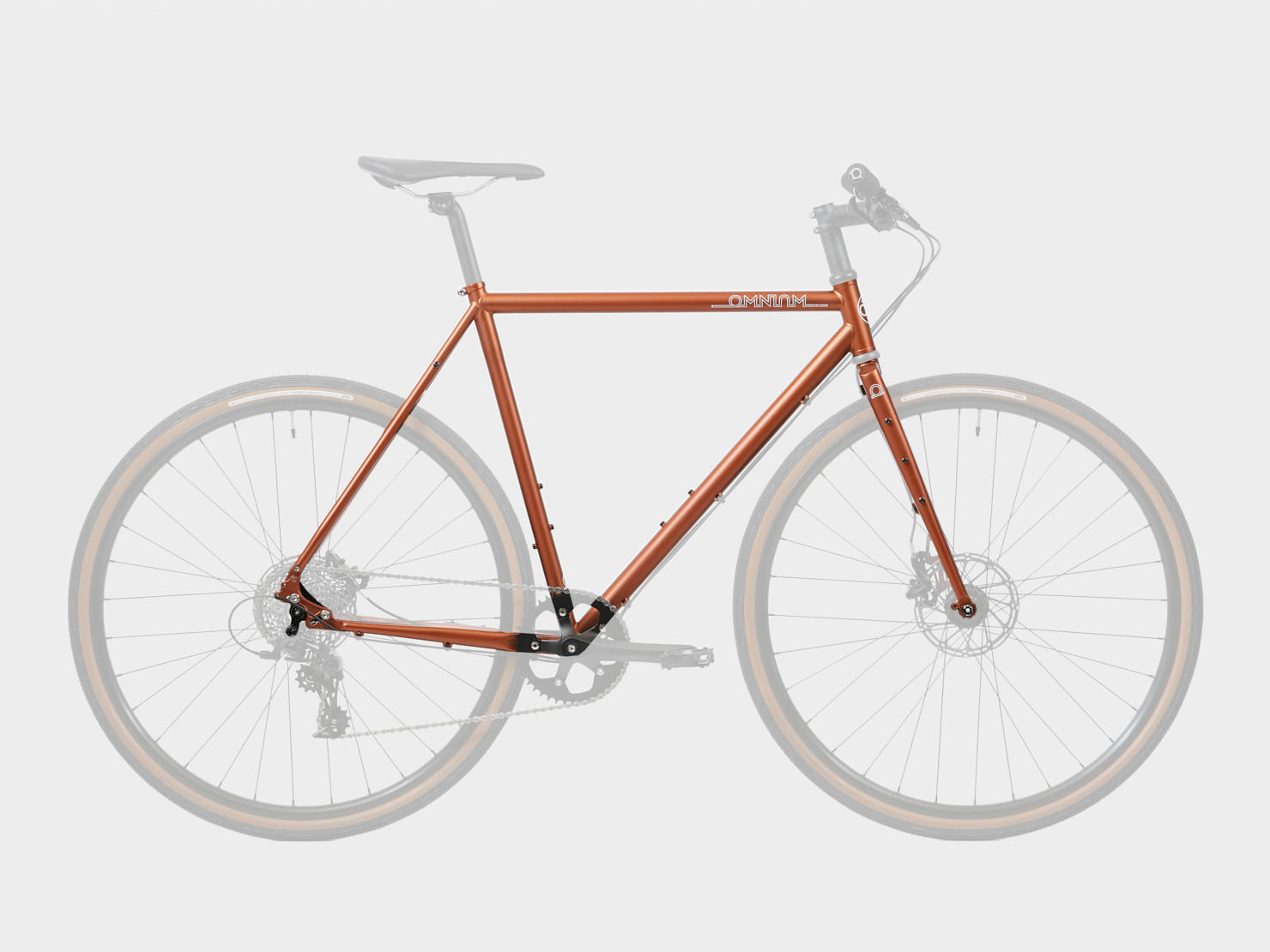

Frame Kit includes: Frame, fork, axles and seat post binder. Headset not included.
The new fork now features a segmented design, significantly reducing fork judder and flex under braking. It also has triple cage mounts on the fork legs for all your bikepacking needs.
Frame Specifications
| 6 Sizes | XS (51), S (53), M(56), L (59), XL (62), XXL (64) |
| Material | Double-Butted Chromoly Steel Frame & Fork |
| Gears | For 1x rear derailleur gear system |
| Seat post diameter: | 27.2mm |
| Rear Wheel: | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front Wheel: | 622, 12 x 100mm spacing, disc only |
| Tyre clearance, front: | 45mm clearance with mudguards |
| Tyre clearance, rear: | 45mm clearance with mudguards (50mm chainstay clearence) |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
| Thru Axle Front | 12×100, 125mm, 17mm thread length, 1.5mm Pitch |
| Headset: | 1 1/8″ Ahead |
| Bottom Bracket: | 68mm BSA |
| Brake Mounts: | IS brake mount front and rear, for minimum 160mm and max 180 rotors |
| Q-Factor | 145mm |
| Recommended maximum loading weight including rider: | 100 kg |
| Framekit weight(Large); Including Fork, Drop Outs & Axles | 3,7 kg |

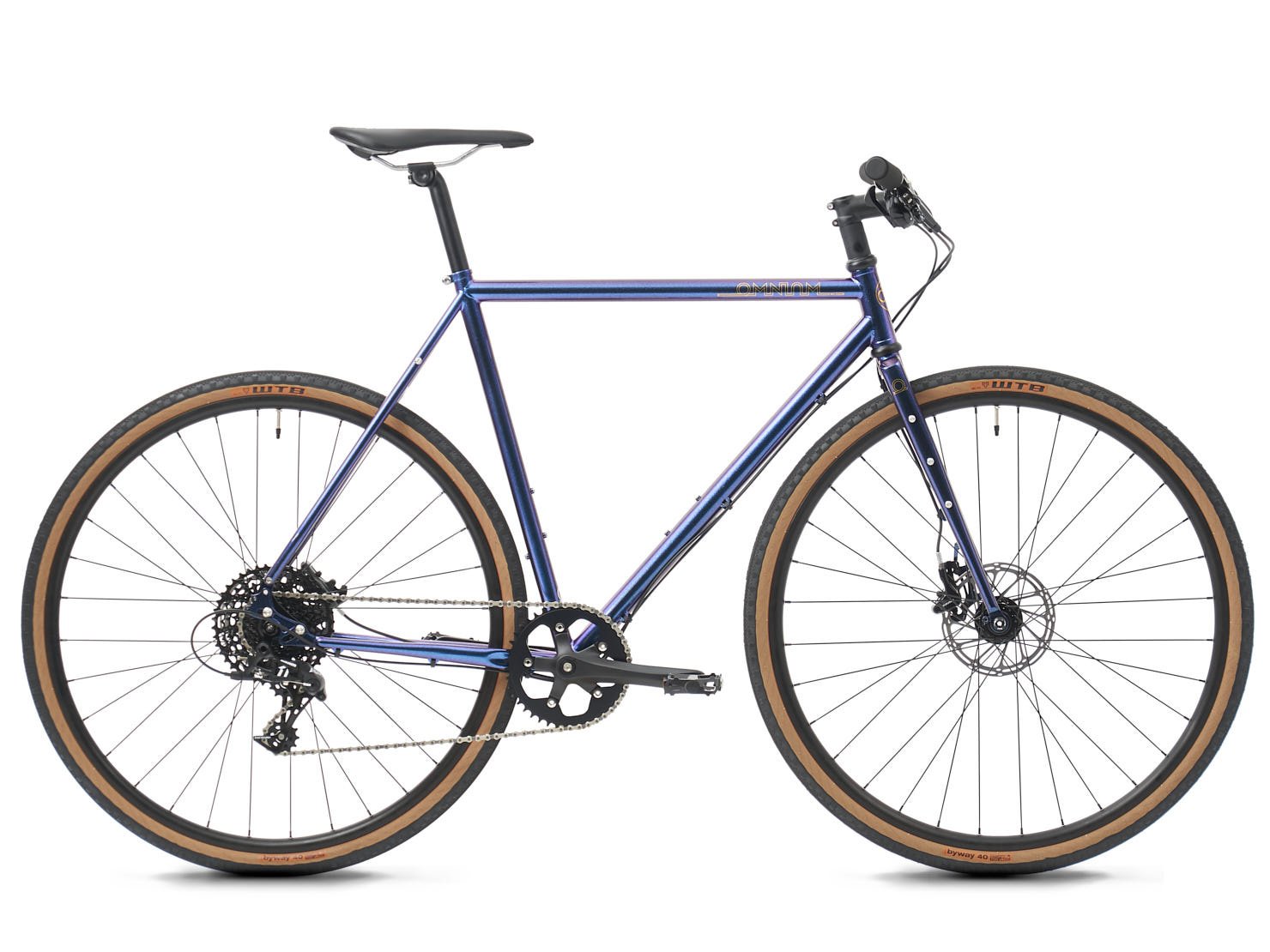

Component List CXC Singlespeed
| Brakes | Sram Level TL, IS mount, 160mm rotor front and rear |
| Singlespeed | Sram PC830 chain & 15t SS adaptor |
| Stem | 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black |
| Handlebar | 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black |
| Seatpost | 27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black |
| Grips | Omnium lock-on, black, foam |
| Crankset | Driveline, 42t, CNC Narrow Wide Chainring |
| Bottom Bracket | FSA, Square Taper, 68mm BSA |
| Headset/s | VP Components, sealed bearings, 1-1/8″ |
| Saddle | Velo, leather, Chro-mo |
| Tyres | Depending on availability |
| Wheels | DT Swiss G1800 front and rear – HG Driver |
| Pedals | Cast metal platform, black |
