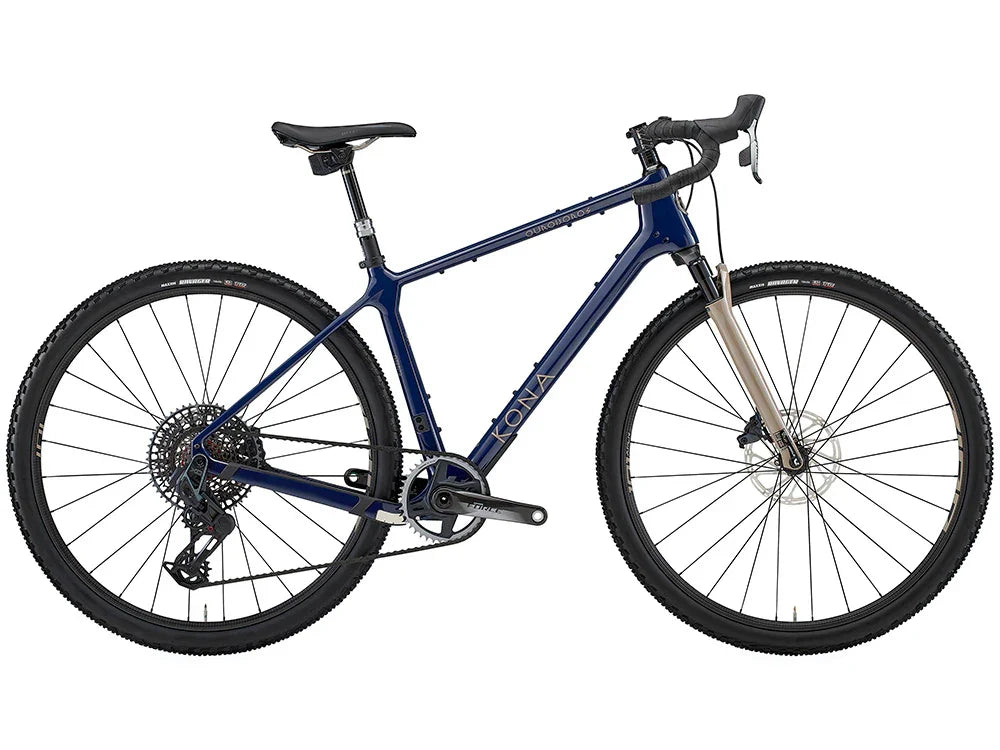

Kona Ouroboros Supreme

Unmatched in ride quality and capability, the Supreme lives up to its name by turning every head it passes – beckoning to those who want nothing holding them back. Remote shifting and dropper? Check. Carbon wheels? Check. 40mm of high-performance front suspension? Oh yeah. You read that right.

SPECIFICATIONS

Frame Material	Kona Carbon
Sizes	48, 50, 52,54, 56, 58
Rear Shock	n/a
Fork	RockShox Rudy Ultimate XPLR, Charger Race Day, 40mm travel, tapered, 100 x 12
Crankarms	SRAM Force 1 DUB Wide
Chainrings	SRAM Force 1 Wide 40t X-Sync, direct mount
B/B	SRAM Press-Fit 86.5 DUB Wide
Pedals	n/a
Chain	SRAM X0 Eagle Transmission Flattop
Cassette	SRAM XO Eagle Transmission 10-52t, XD
Chainguide	n/a
F/D	n/a
R/D	SRAM XO Eagle Transmission
Shifters	SRAM Force ETAP AXS
Brake Calipers	SRAM Force Hydraulic
Front Brake Rotor	SRAM Centerline Centerlock 180mm
Rear Brake Rotor	SRAM Centerline Centerlock 180mm
Brake Levers	SRAM Force ETAP AXS
Headset	FSA Orbit No. 57, ZS 44/56
Handlebar	Ritchey Venturemax WCS/Venturemax XL WCS, 24-degree flare, 4.6-degree backsweep, 48-50: 460mm; 52-54: 480mm; 56: 500mm; 58: 520mm
Stem	Ritchey Trail WCS, 0-degree, 48-52: 45mm; 54-58: 60mm
Seatpost	RockShox Reverb AXS 31.6mm, 48-50: 100mm travel; 52-58: 125mm travel
Seat Clamp	Kona 34.9mm
Grips	Smanie Elite bar tape
Saddle	WTB Volt Medium Stainless Fusion
Front Hub	Zipp 101 XPLR
Rear Hub	Zipp 101 XPLR
Spokes	Zipp 101 XPLR
Rims	Zipp 101 XPLR, 27mm internal width, tubeless, carbon, with tubeless tape
Front Tire	Maxxis Ravager 700 x 50mm TR EXO
Rear Tire	Maxxis Ravager 700 x 50mm TR EXO
Paint Color	Gloss Midnight w/ RS Kwiqsand Decals
Extras	batteries



GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	410	410	455	455	500	535
2	TT Length	532	547	559	578	595	616
3	Reach	372	377	382	386	391	396
4	Stack	566	581	598	616	636	666
5	Standover	725	730	769	777	814	848
6	HT Angle	68.7	68.7	68.7	68.7	68.7	68.7
7	HT Length	116	132	148	172	193	225
8	ST Angle	74.2	73.7	73.2	72.7	72.2	71.7
9	CS Length	445	445	445	445	445	445
10	BB Drop	69	69	69	66	66	66
11	BB Height	296	296	296	299	299	299
12	Wheelbase	1060	1071	1082	1096	1108	1124
13	Front Center	624	635	646	659	671	687
14	Fork Length	435	435	435	435	435	435
15	Fork Offset	51	51	51	51	51	51

All specifications are subject to change without notice.
