Marin Headlands 3 - 2026

ADVENTURE ON AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING

GRAVEL RIDING

Fully loaded bike-packing, fast and light off-road adventures, gravel and CX racing… or simply exploring your favorite tracks and trails. The Headlands is a high-tech, high-spec carbon fiber gravel and adventure bike that’s made to be lightning-fast, confidence-inspiring and super comfortable on all surfaces.

We’ve taken our own unidirectional carbon fiber frame, added mountain bike-inspired geometry, loads of tire clearance and a whole heap of mounting points for gear and fenders to create a super versatile, super capable all-terrain dart of a bike. Go 700c with room for up to 45mm tires or 650b up to 47mm.

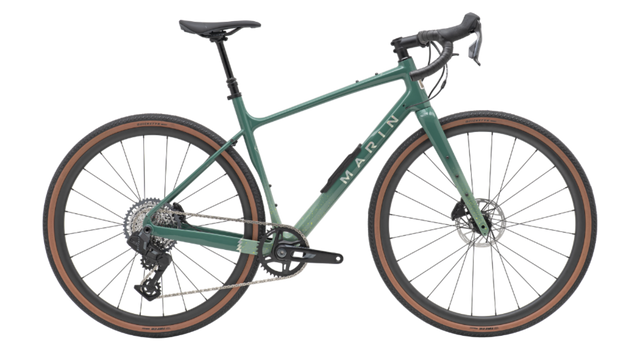

The Headlands 2 is our no-compromise, top-spec, top-performance gravel and adventure bike.

Gravel-specific SRAM Apex 12-speed drivetrain, 45mm Vee Tire Co tires and Marin wheels and finishing kit all add up to a whole mountain of fun and adventure. Last but not least, we’ve added a TranzX dropper seat post to really push you and your Headlands’ limits on the trails.

Specifications
Frame Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, UDH Dropout, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Bear Box Downtube Storage
Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Rim Novatec, G24 Carbon, 24mm Internal, 24 Hole, Tubeless Compatible
Hub Rear Forged Aluminum Alloy, Disc, 24H
Hub Front Forged Aluminum Alloy, Disc, 24H, XD Driver
Spokes Nipples Double Butted Stainless
Tires Vee Tire Co., Quikstyk, 700x45,Folding Bead, Tubeless Compatible
Derailleur Rear SRAM Rival XPLR, 13-Speed
Derailleur Front -
Shift Lever SRAM Rival XPLR, Wireless
Crankset SRAM Rival XPLR, 40T
Bottom Bracket SRAM DUB BSA
Chain SRAM Rival 13-Speed
Cassette SRAM CS-XG-1351, 10-46T
Brakes Front SRAM Rival XPLR Flat-Mount Hydraulic Disc, 160mm Rotor
Brakes Rear SRAM Rival XPLR Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers SRAM Rival XPLR w/ Inegrated Shifter
Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Stem Marin 3D Forged Alloy
Grips Marin Shock Absorbing Tape
Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm
Saddle Marin Beyond Road Concept Elite
Pedals -
Extras Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
