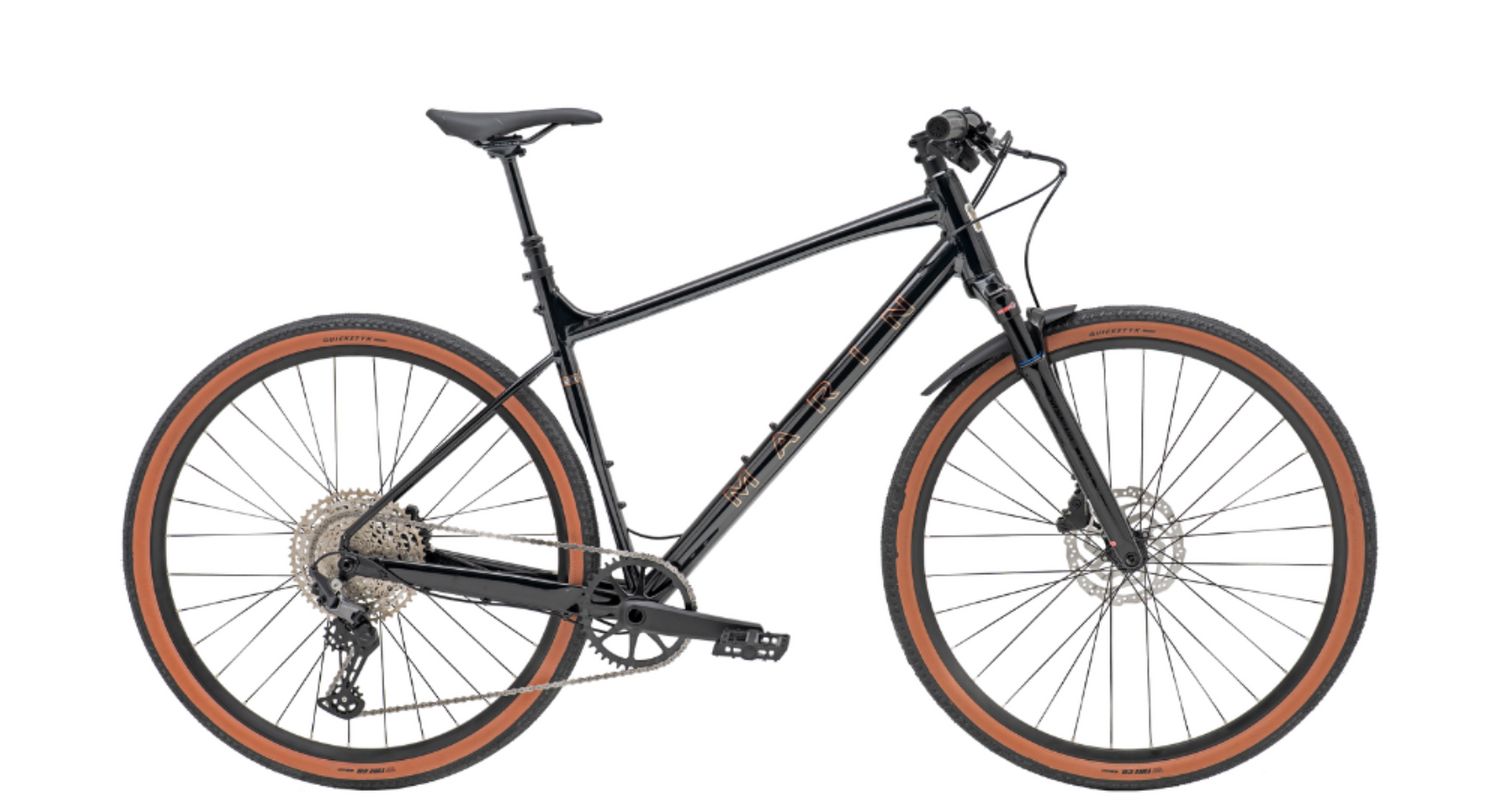

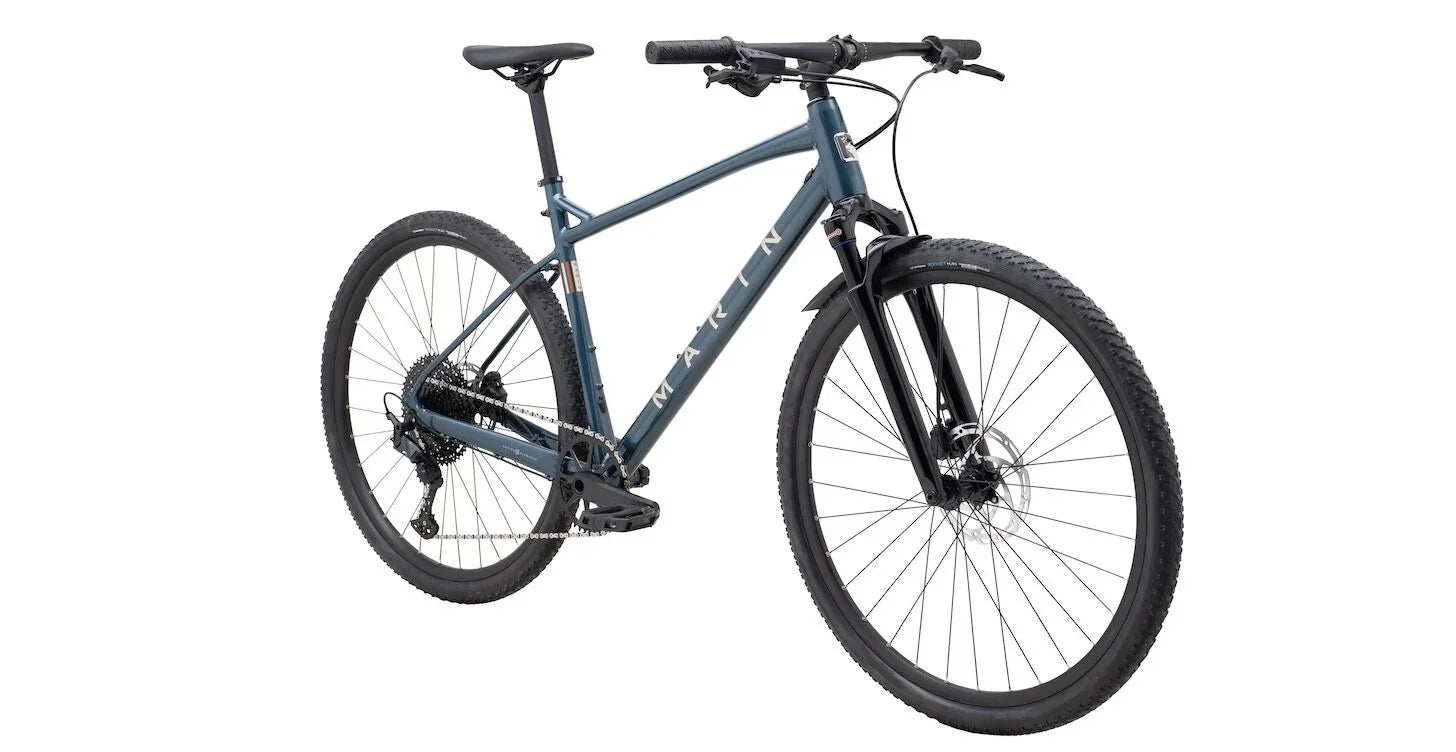

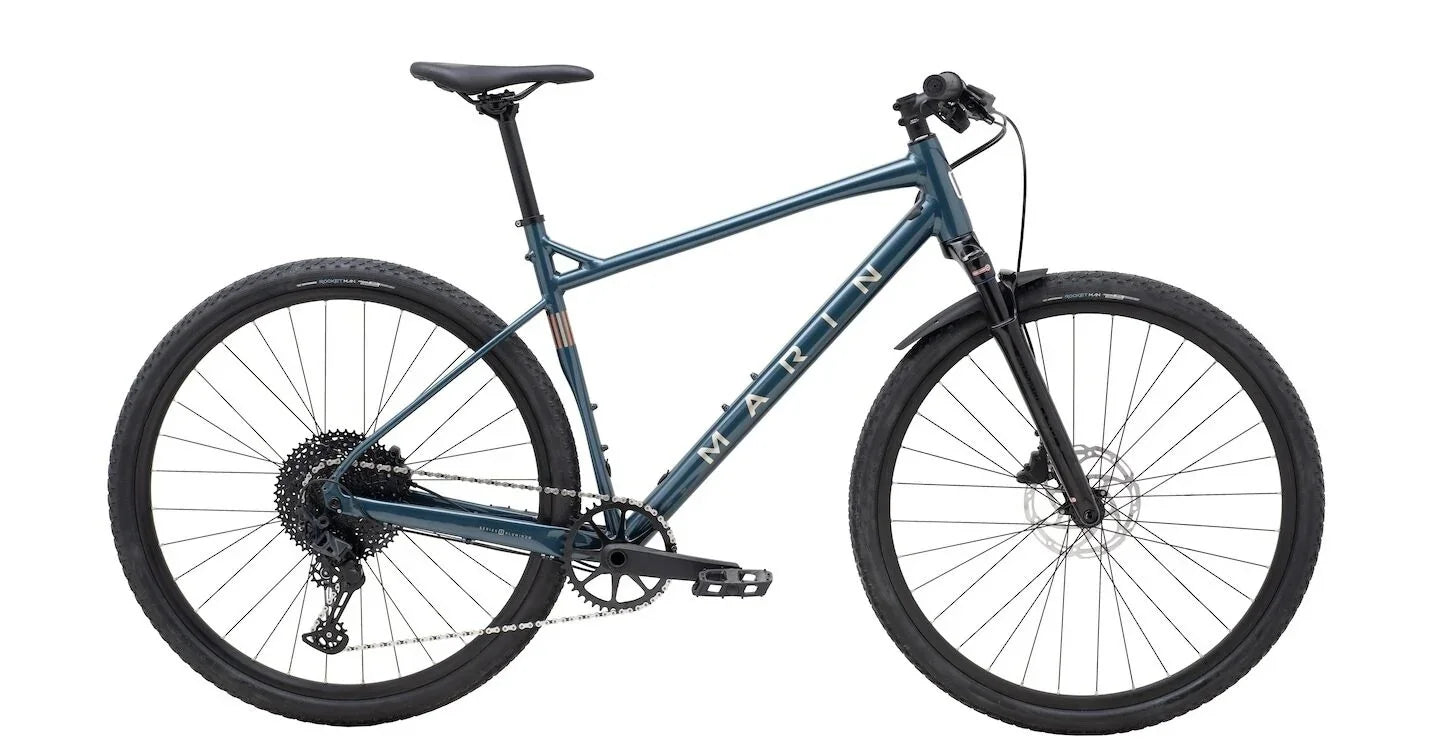

Marin DSX FS - 2025

Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.

Specifications
Frame Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
Rims Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hub, Forged Aluminum, 142x12mm, Disc Specific, 32H
Hub, Front Forged Aluminum, 100x12mm, Disc, 32H
Spoke, Nipples 14g Black Stainless Steel
Tires Vee Tire Co. Rocket Man, 700Cx44mm
Derailleur, Rear Shimano SLX, RD7100, 12-Speed
Derailleur, Front -
Shift Lever Shimano Deore, SLM6100, 12-Speed
Crankset Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket Sealed Outboard Bearing
Chain KMC X12
Cassette SunRace, 12-Speed, 11-51T
Brake, Front Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Brake, Rear Brake Levers Tektro Hydraulic
Handlebar Marin Mini Riser
Stem Marin 3D Forged Alloy
Grips Marin MTB
Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost Marin Alloy
Saddle Marin DSX
Pedals Nylon Platform
Extras Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
