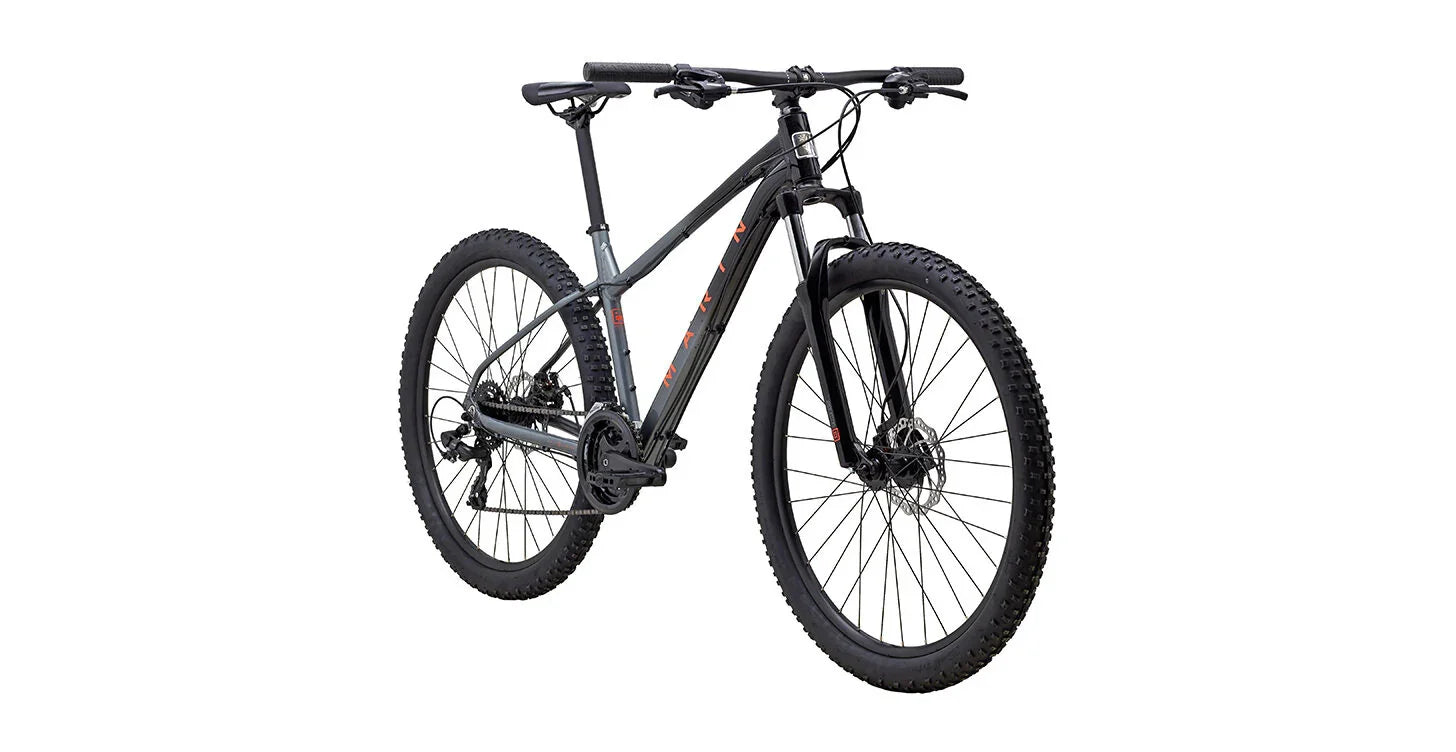

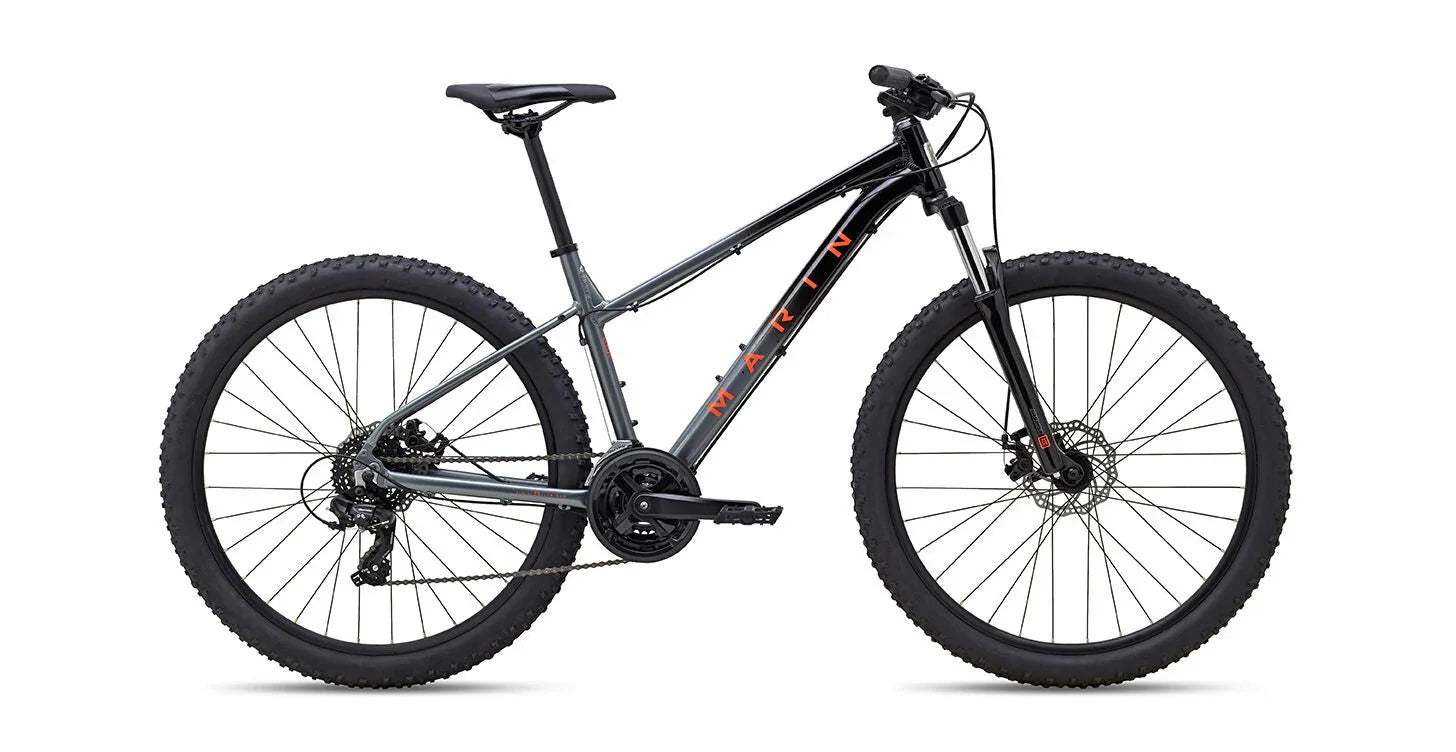

Marin Wildcat Trail 1 - 2023

RECREATIONAL MOUNTAIN BIKING

ENTRY-LEVEL RIDERS

FITNESS DIRT ROAD RIDING

The Wildcat Trail family crosses boundaries between Trail and Sport mountain bikes, with the Wildcat Trail 5 and Wildcat Trail 3 designed for the female hardtail enthusiast looking for a full featured trail mountain bike, and the Wildcat 1 positioned for the recreational mountain bikers.

SPECIFICATIONS

FRAME Series 1 6061 Aluminum, Women's Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
FRONT SUSPENSION SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset
RIMS Marin, Double Wall Alloy
HUB, REAR Forged Alloy, Disc, 32H
HUB, FRONT Forged Alloy, Disc, 32H
SPOKE, NIPPLES Black Stainless Steel
TIRES MTB, 27.5x2.25"
DERAILLEUR, REAR Shimano Tourney, 7-Speed
DERAILLEUR, FRONT Shimano FD-TY500
SHIFT LEVER Shimano Tourney 3x7-Speed
CRANKSET Alloy Crank, Steel Chainrings, 42/34/24T
BOTTOM BRACKET Sealed Cartridge Bearings, Square Taper
CHAIN KMC Z8
CASSETTE SunRace 7-Speed, 11-34T
BRAKE, FRONT Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
BRAKE, REAR Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
BRAKE LEVERS Shimano w/ Integrated Shifters
HANDLEBAR Marin 31.8 Riser, 12mm Rise, 740mm Width
STEM Marin Alloy, 31.8mm Clamp, 45mm
GRIPS Marin Dual Density
HEADSET FSA No.10-P
SEATPOST Marin Alloy, 27.2mm
SADDLE Marin MTB
PEDALS Nylon Platform
