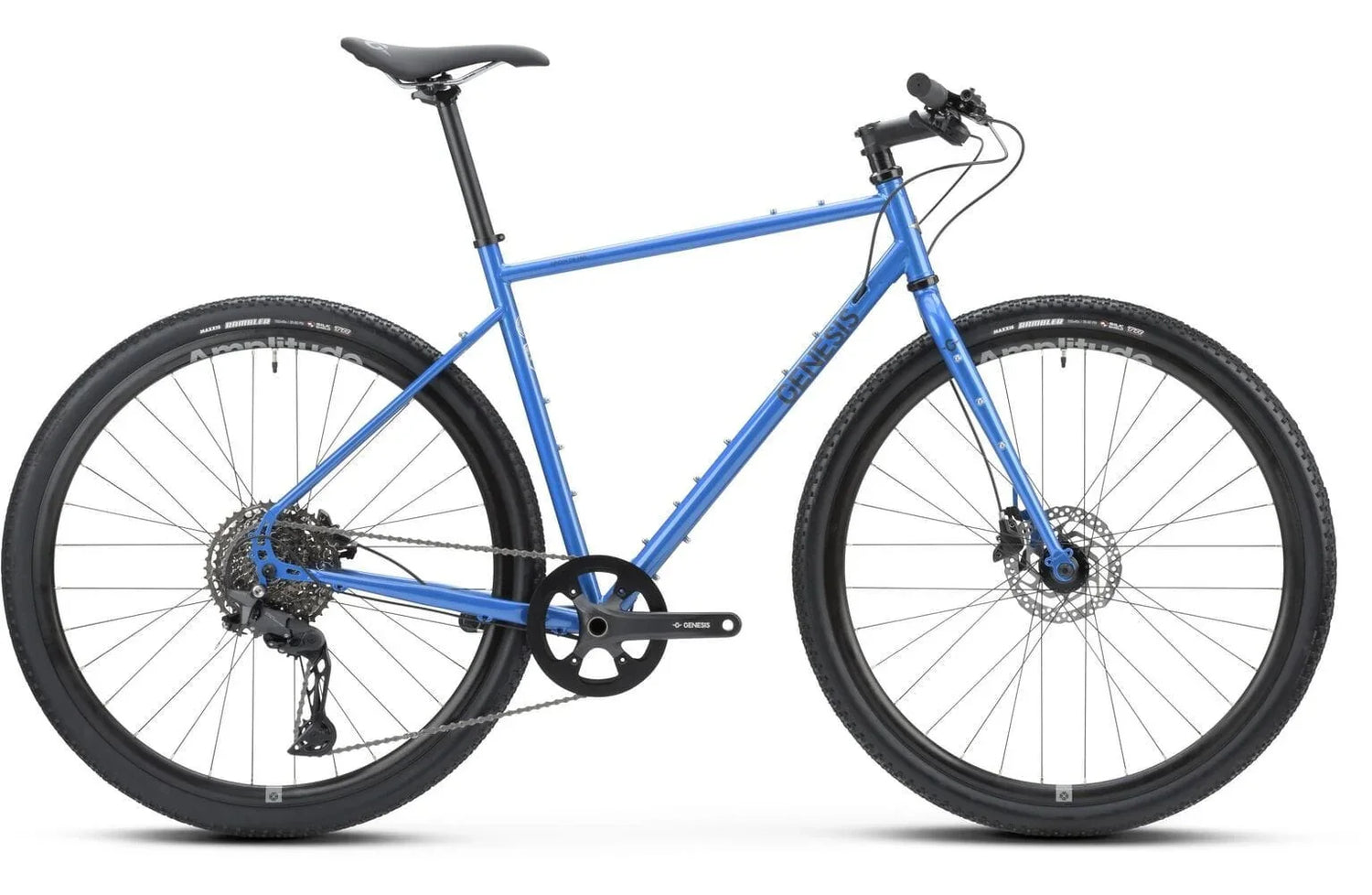

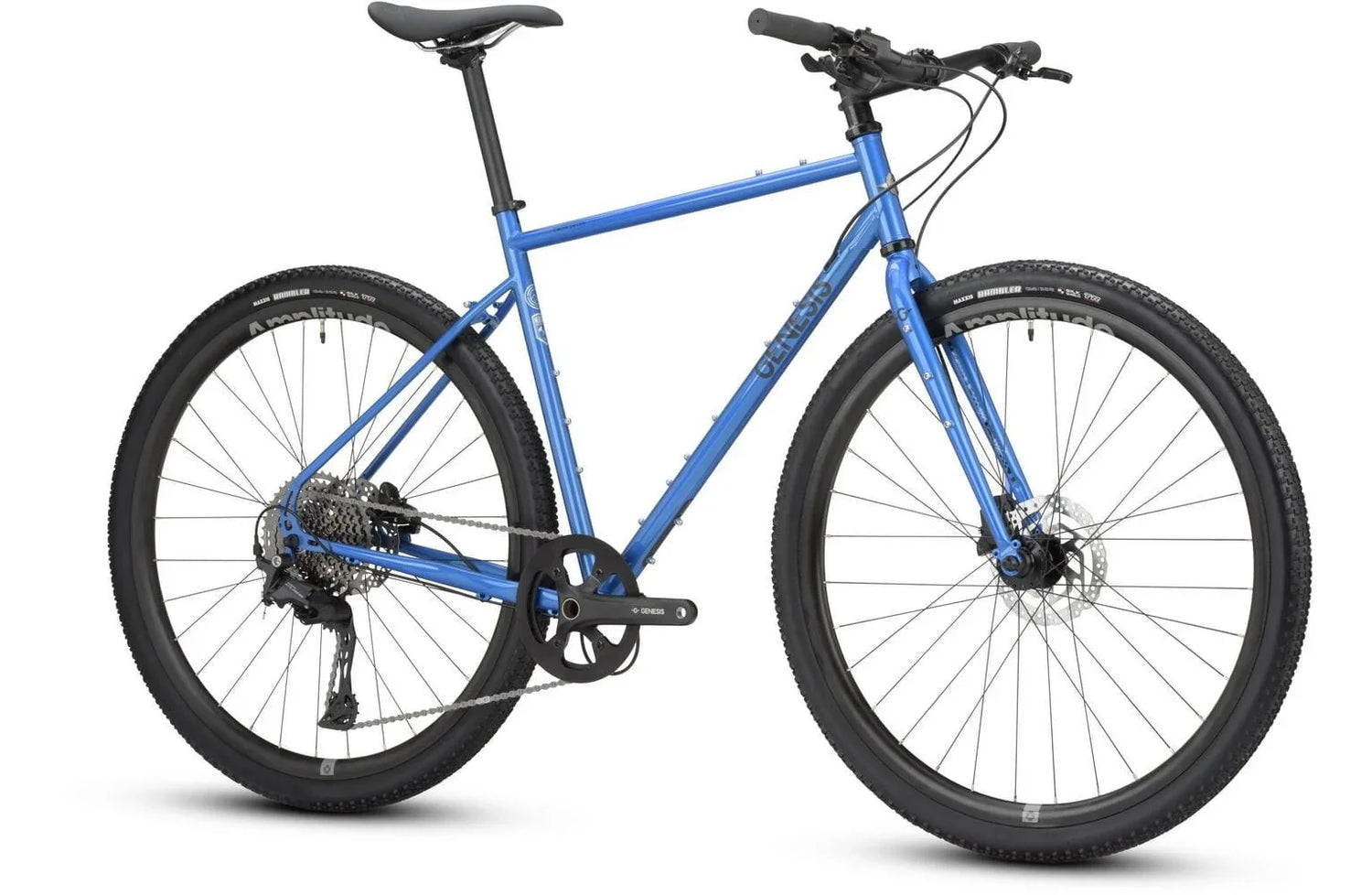

Genesis Croix De Fer 20 Flat Bar - 2025
Sale price
€1.35360
Regular price
€1.64900
Unit price
/
Unavailable
Price includes VAT. Shipping calculated at checkout.
🔥 Get Ready for Summer SALE – ends in
In stock – Ships from warehouse
Genesis Croix De Fer 20 Flat Bar - 2025
Sale price
€1.35360
Regular price
€1.64900
Unit price
/
Unavailable
Flat Out
Like a regular Croix De Fer, but flatter!
Not everyone wants a drop handlebar. If you prefer the additional comfort and control of a flat handlebar on your gravel bike or spend more time ripping around town than you do ticking off epic gravel routes, the Croix De Fer 20 Flat Bar is well equipped to tackle any surface.

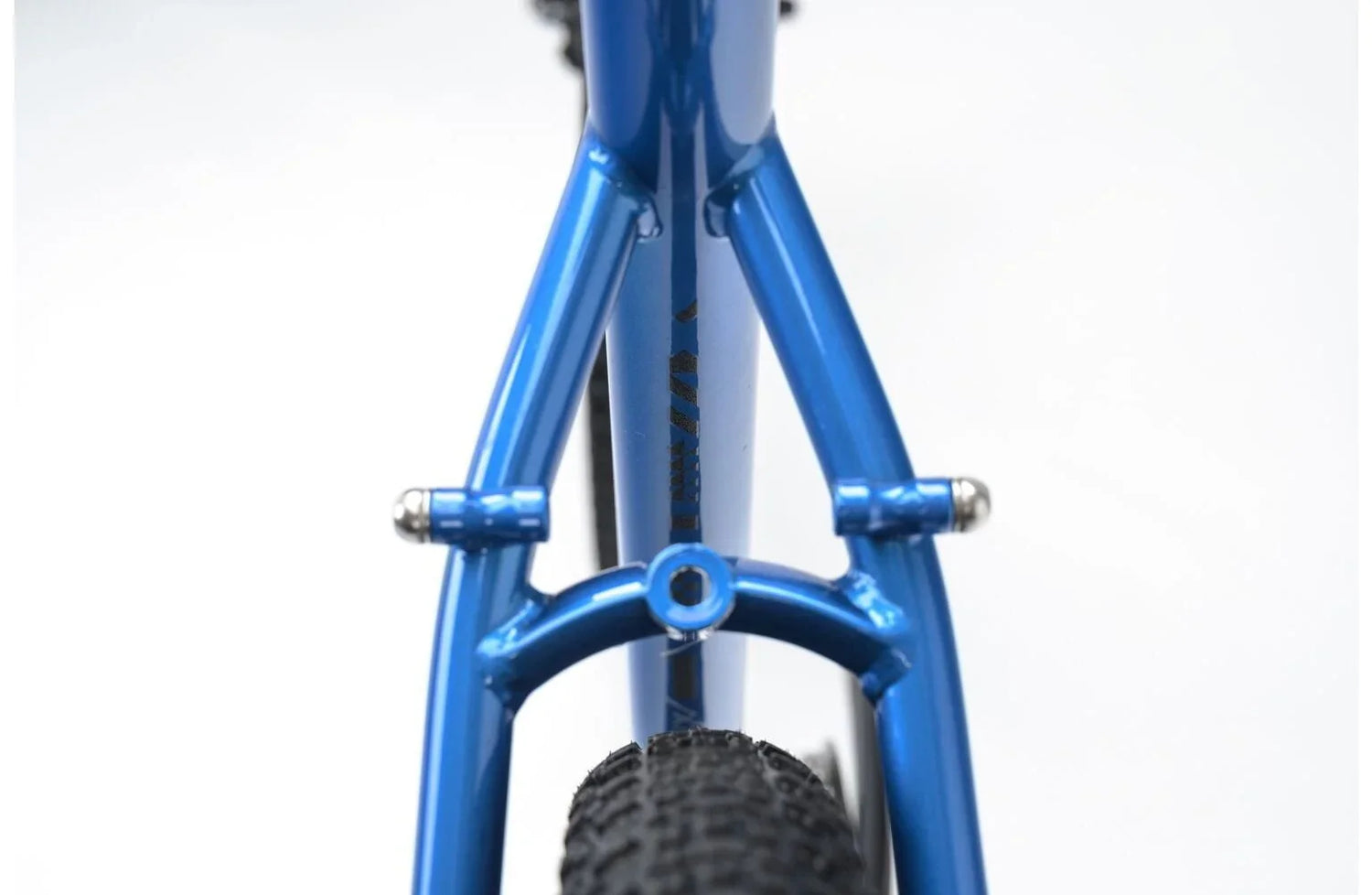

Frame & Fork

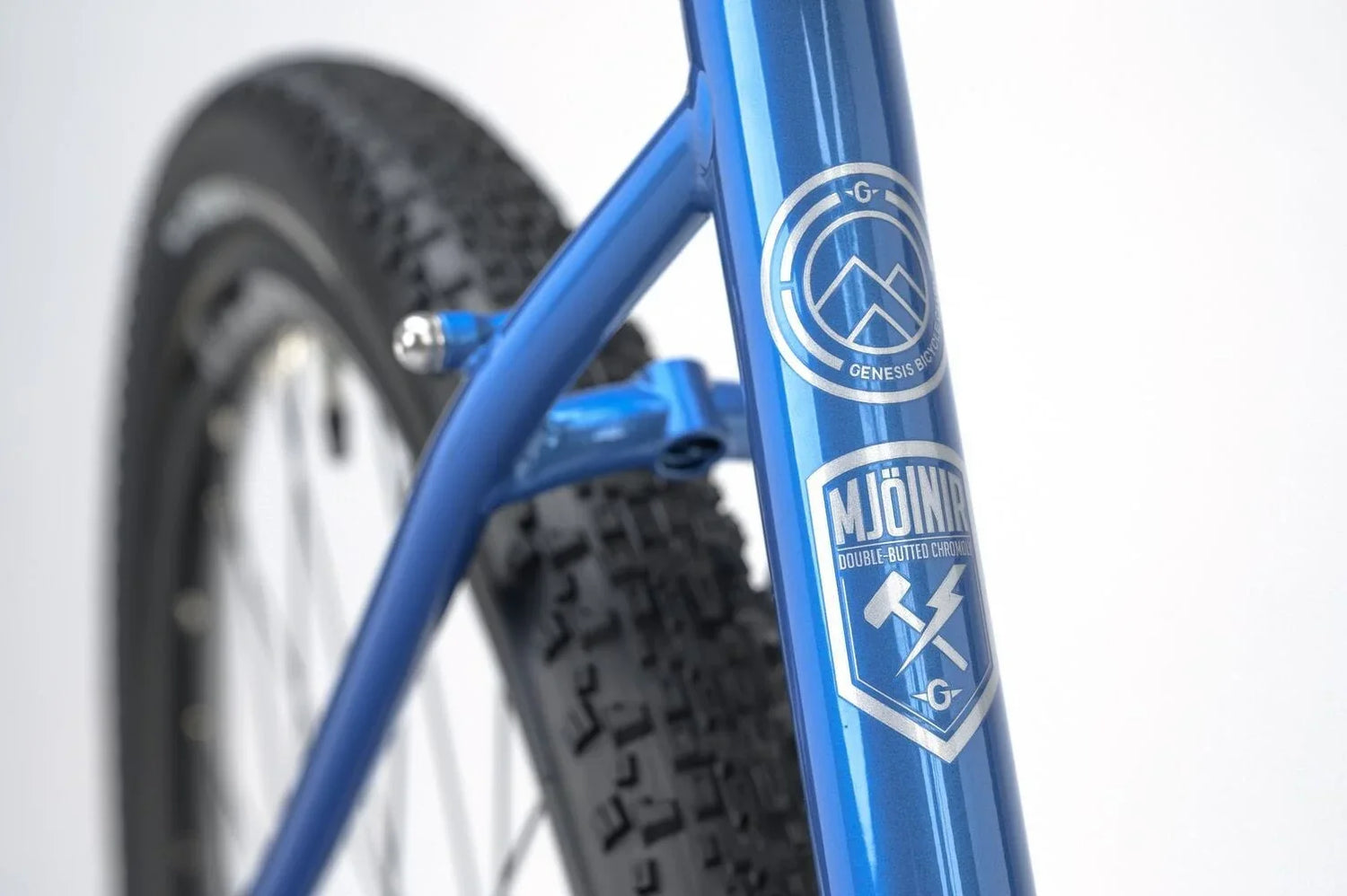

- Genesis Mjolnir Chromoly Tubing

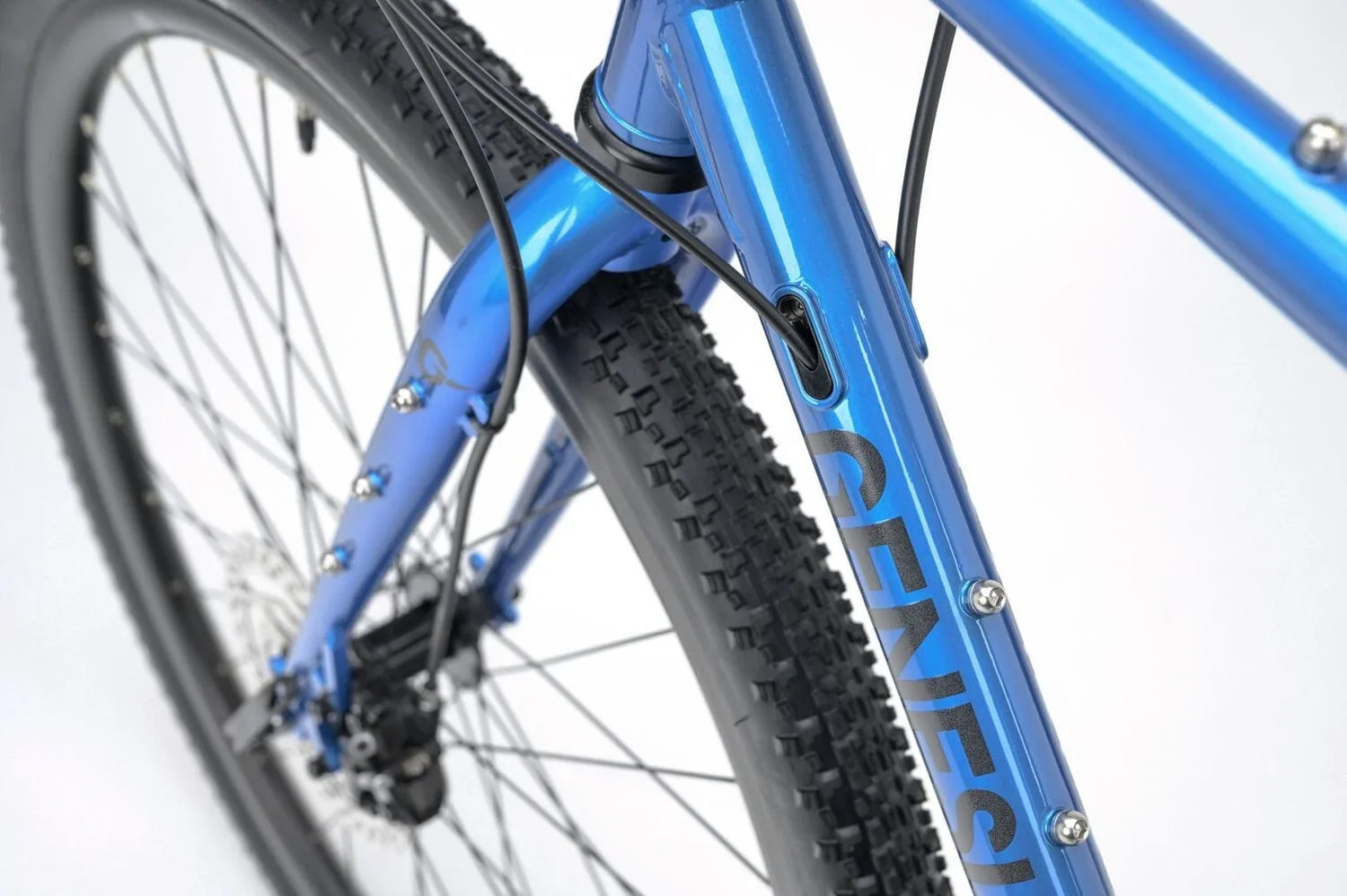

- Amplitude G100 Chromoly Fork

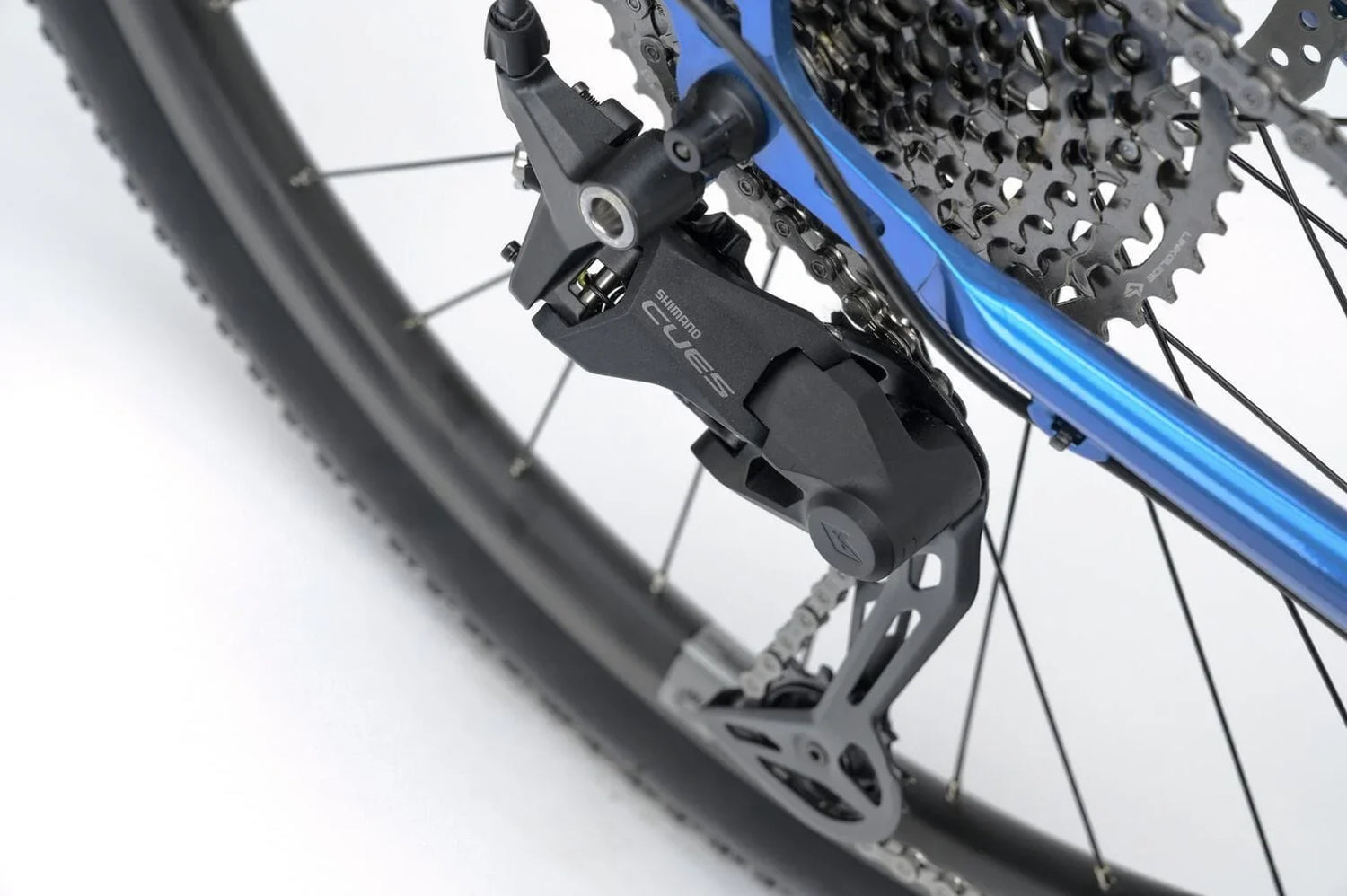

Drivetrain
- Shimano CUES U6000
- 1 x 11-speed

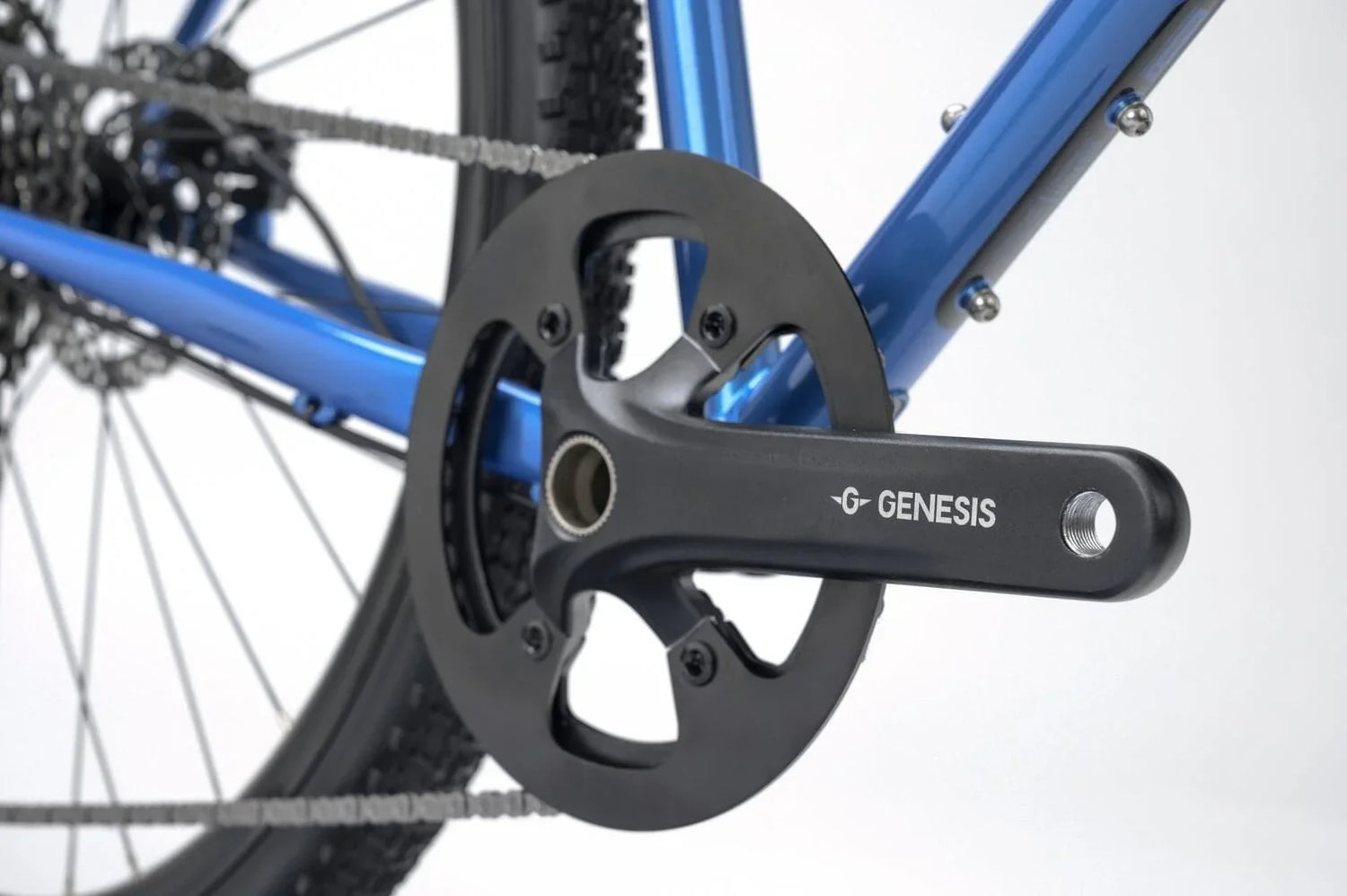

- 42T Chainring
- 11-45T Cassette
Components

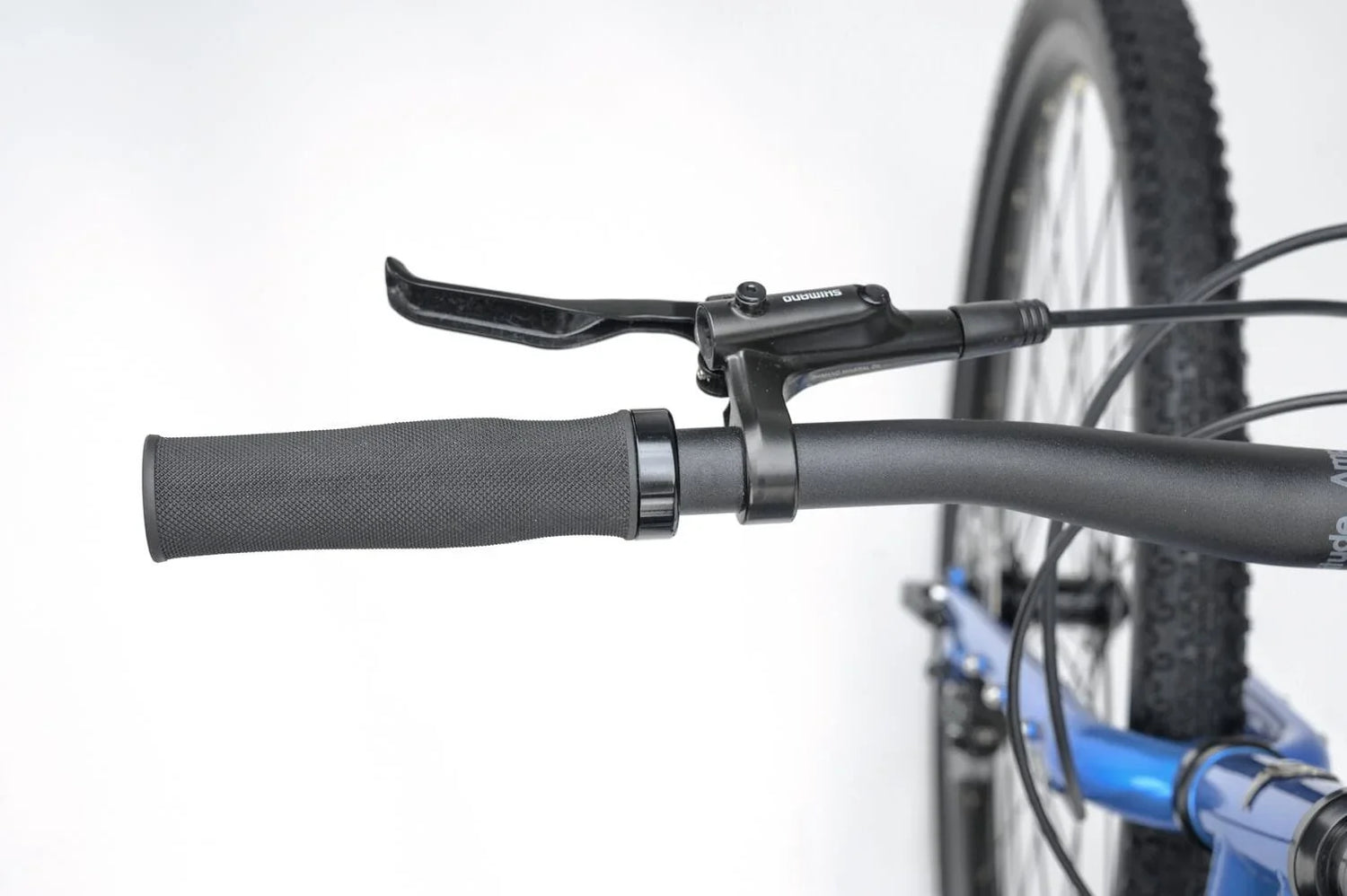

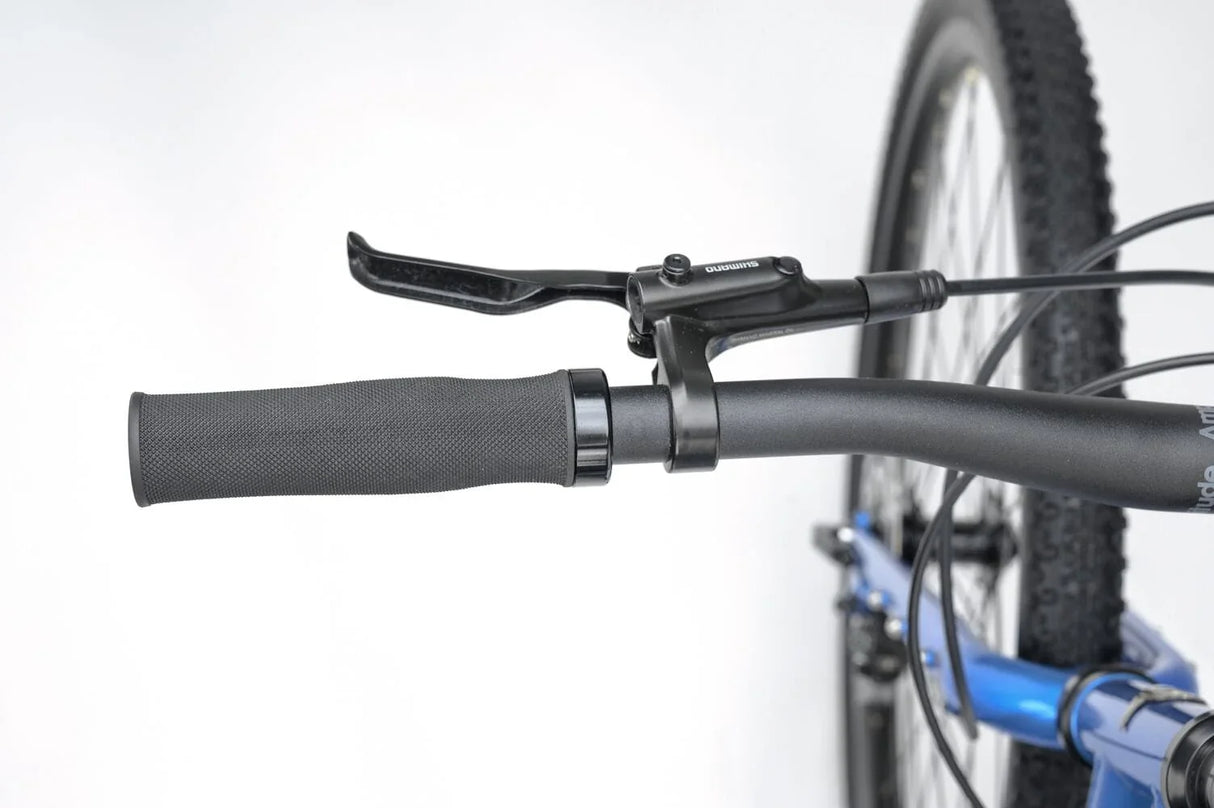

- Amplitude F100 Flat Handlebar
- Amplitude G100 Stem & Seatpost
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Six-Bolt Rotor Mounts
- QR Front & Rear

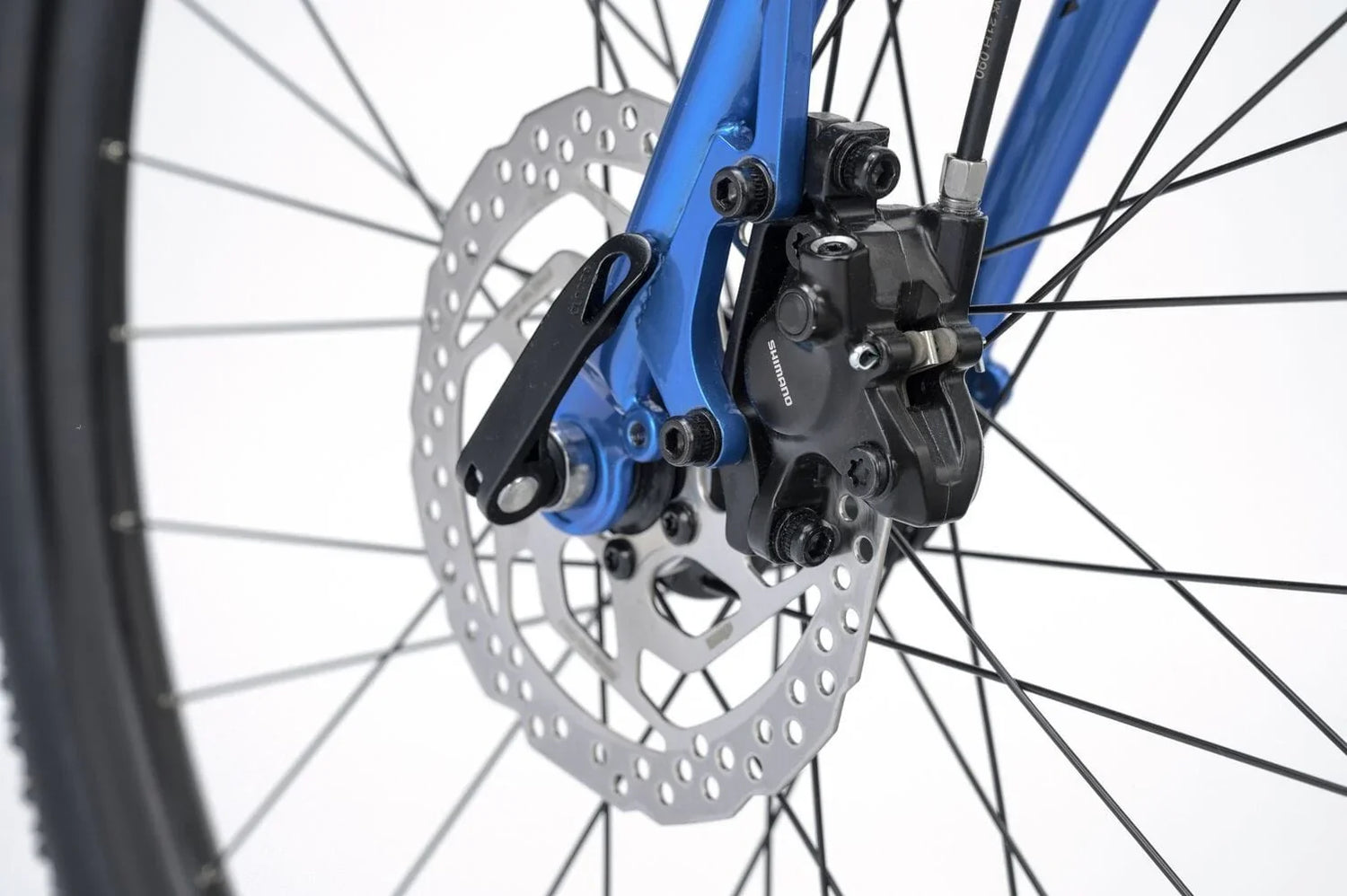

Brakes

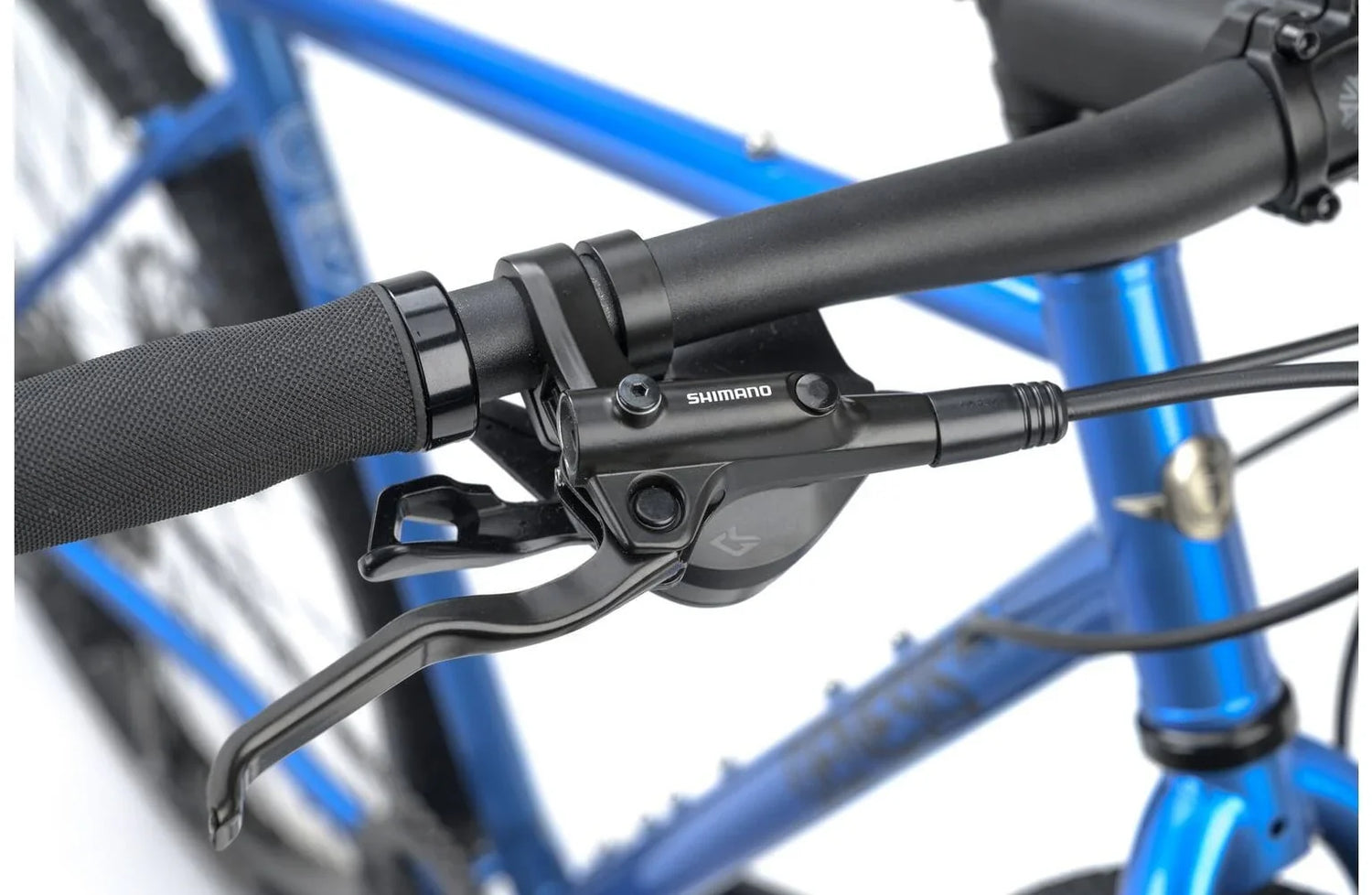

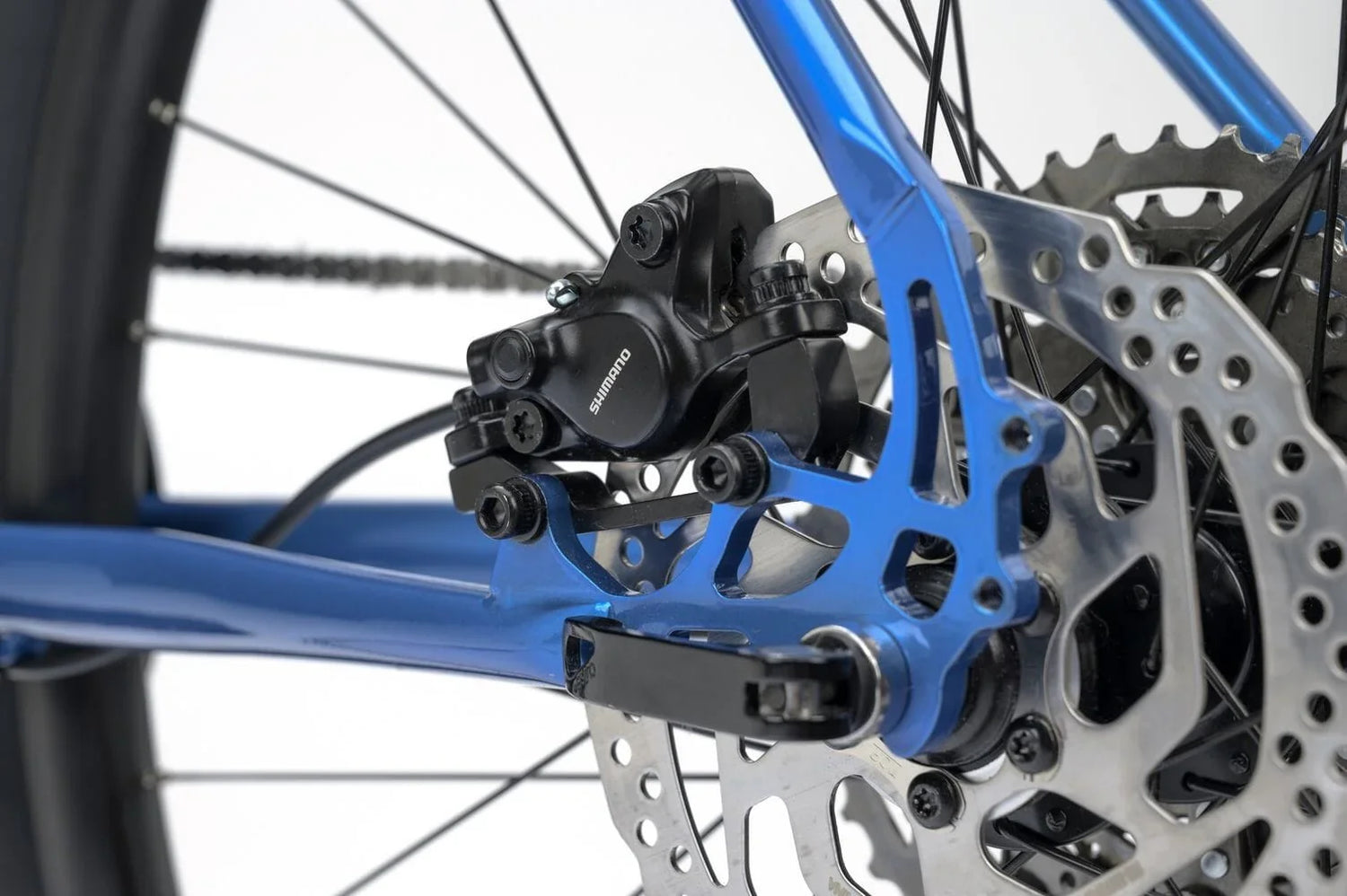

- Shimano MT-200 Hydraulic Disc
- 160mm Rotors Front & Rear
Tyres

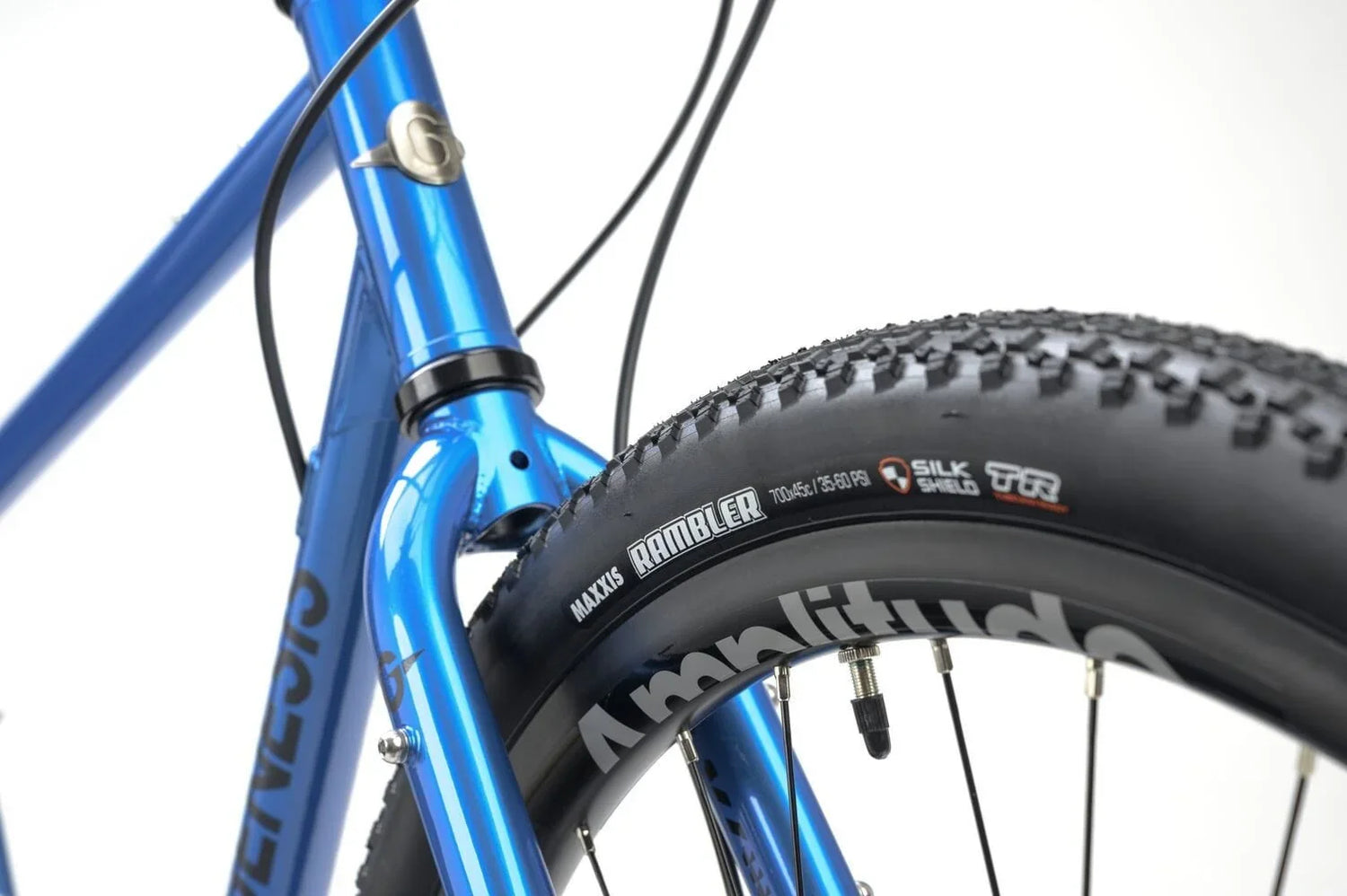

- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
| Frame Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Effective Reach | 465 | 475 | 485 | 495 | 505 |
| Seat Tube | 470 | 490 | 530 | 560 | 590 |
| Top Tube | 553 | 557 | 558 | 574 | 589 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Stack | 552 | 566 | 585 | 604 | 623 |
| Head Tube | 100 | 115 | 135 | 155 | 175 |
| Head Angle | 71 | 71 | 71 | 71 | 71 |
| Seat Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Chainstay | 435 | 435 | 435 | 435 | 435 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Wheel Base | 1042 | 1046 | 1043 | 1059 | 1076 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Standover | 734 | 752 | 778 | 802 | 826 |
| Stem Length | 70 | 80 | 100 | 100 | 100 |
| Handle Bar Width | 640 | 660 | 660 | 680 | 680 |
