Genesis Croix De Fer 30 - 2026
Genesis Croix De Fer 30 - 2026
30 is the new 40
The chosen one, the go-to, the quintessential Croix de Fer.The 30 takes all of the Croix de Fer DNA, mixes it with contemporary design evolution and pairs it with exemplary specification choices to create an exceptional adventure bicycle. A true do-it-all machine.

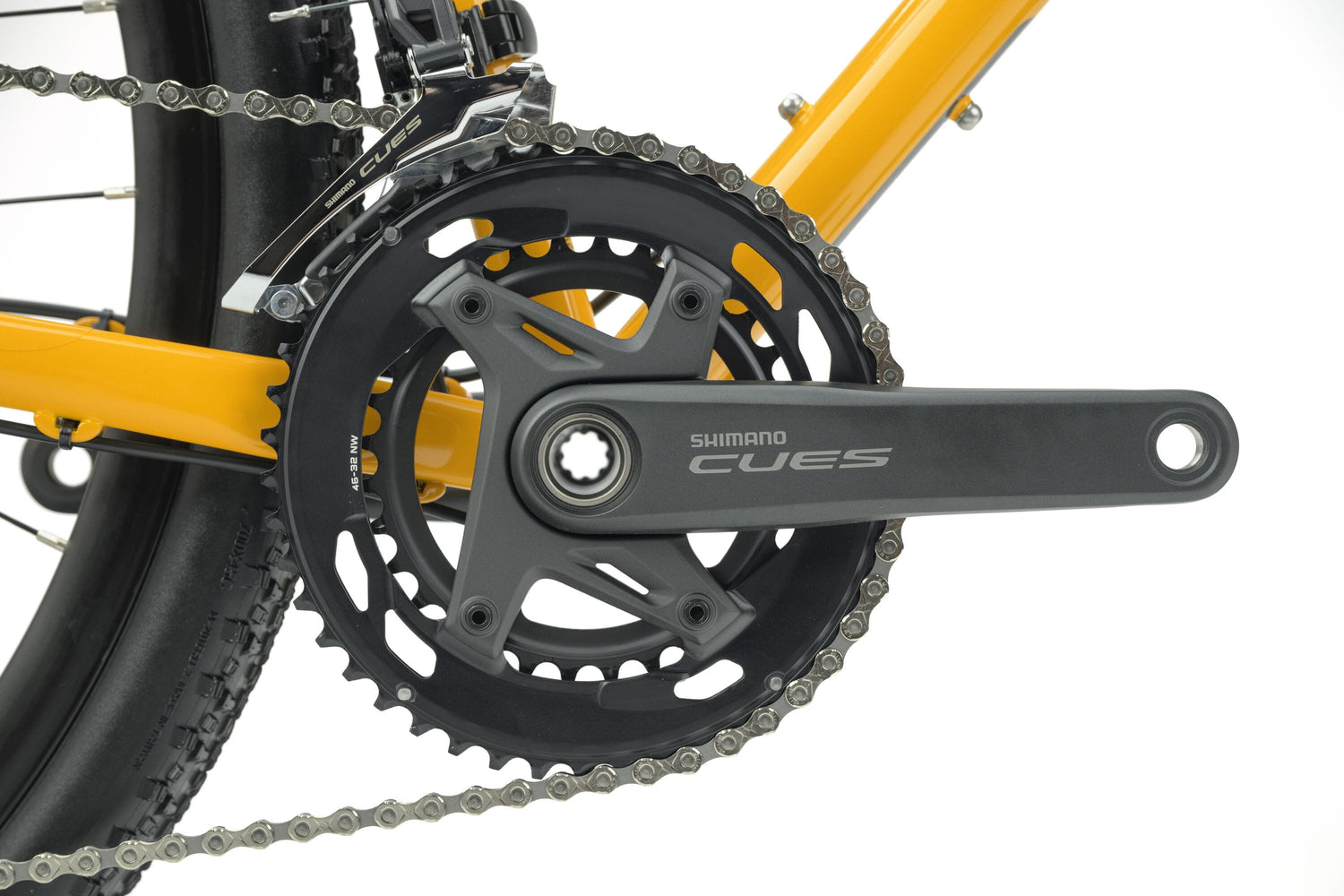

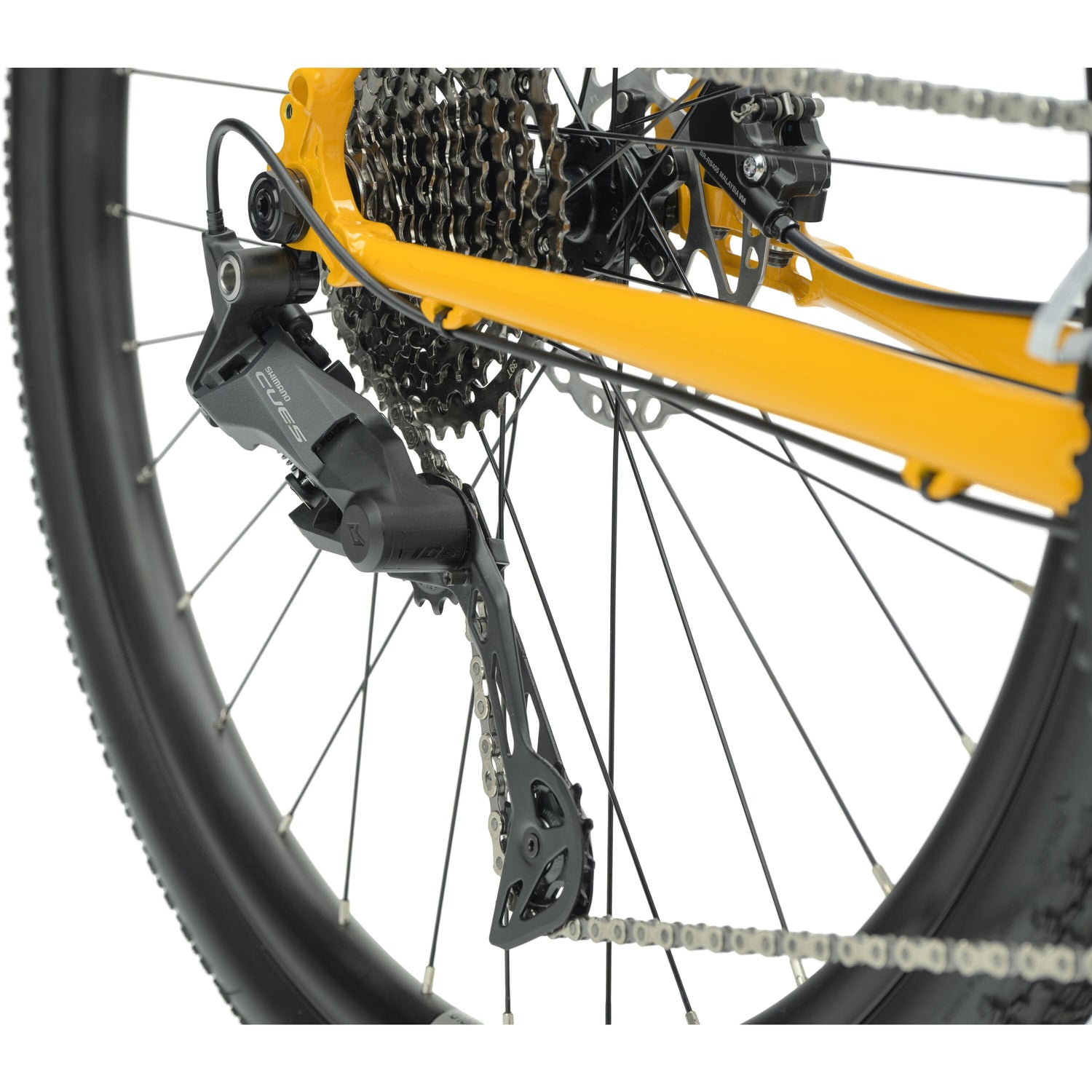

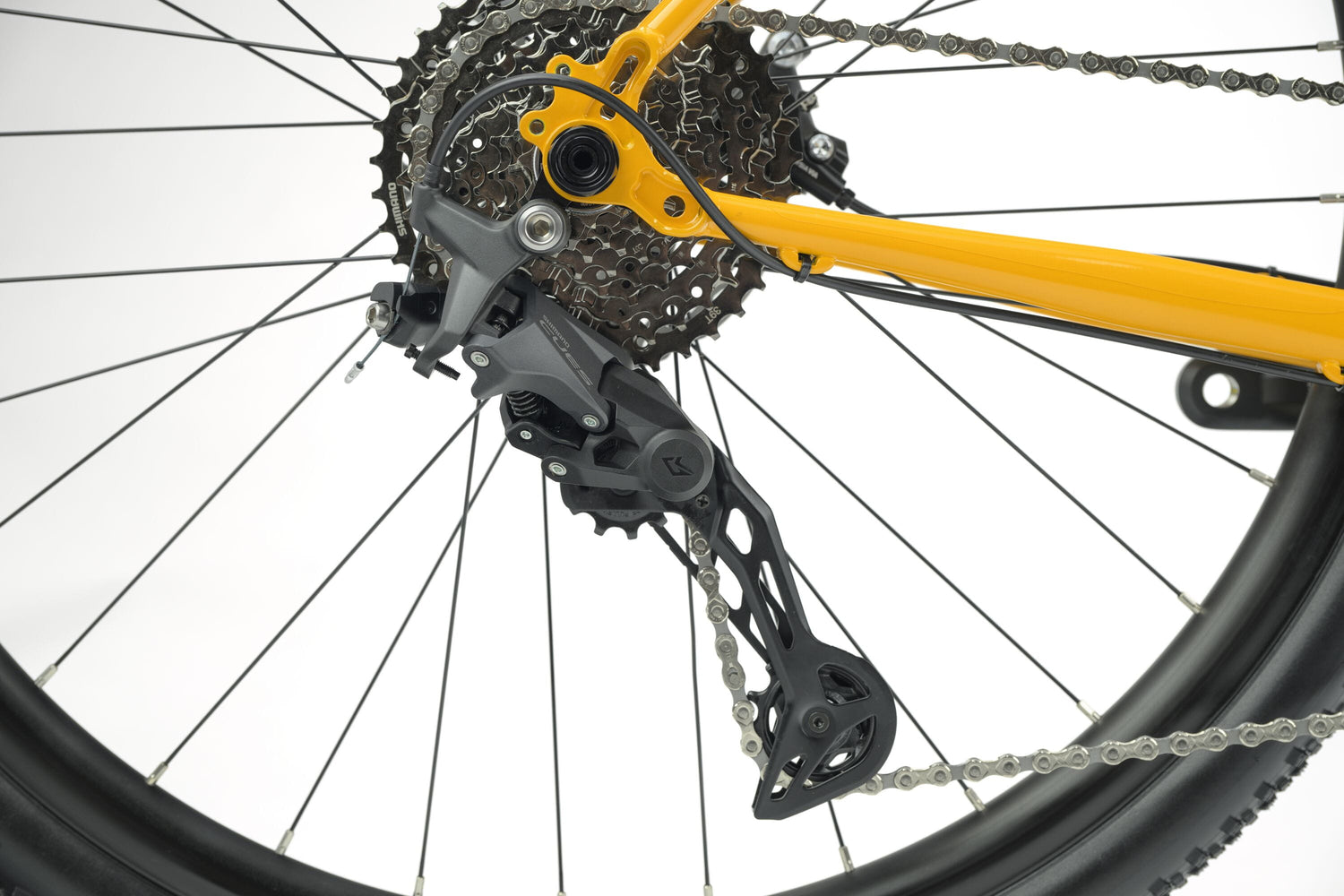

Shimano CUES
A complete Shimano CUES 2x10-speed drivetrain provides a large range of gearing making the Croix de Fer 30 as versatile as possible. No matter the surface, gradient or conditions, the gear ratio won't be the problem...
30 Goes Hydraulic
The Croix de Fer 30 comes fitted with Shimano CUES hydraulic disc brakes paired with 160mm rotors front and rear. Ultimate stopping power for maximum confidence.

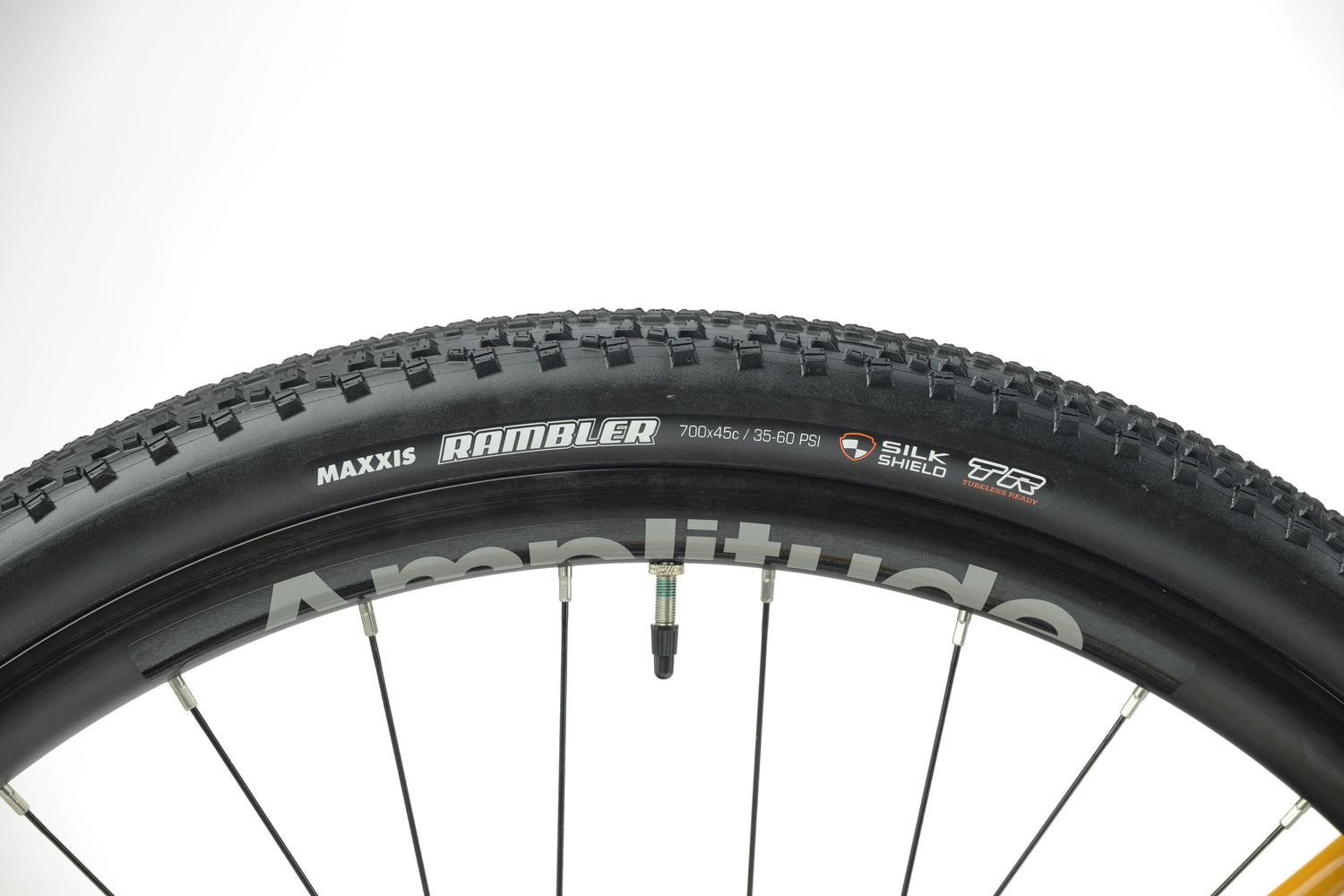

When I Say Tube, You Say Less
Maxxis Rambler tubeless ready 45mm tyres paired with the 26mm internal rim width of the Amplitude G100 wheelset provide a fast and comfortable ride in all conditions.

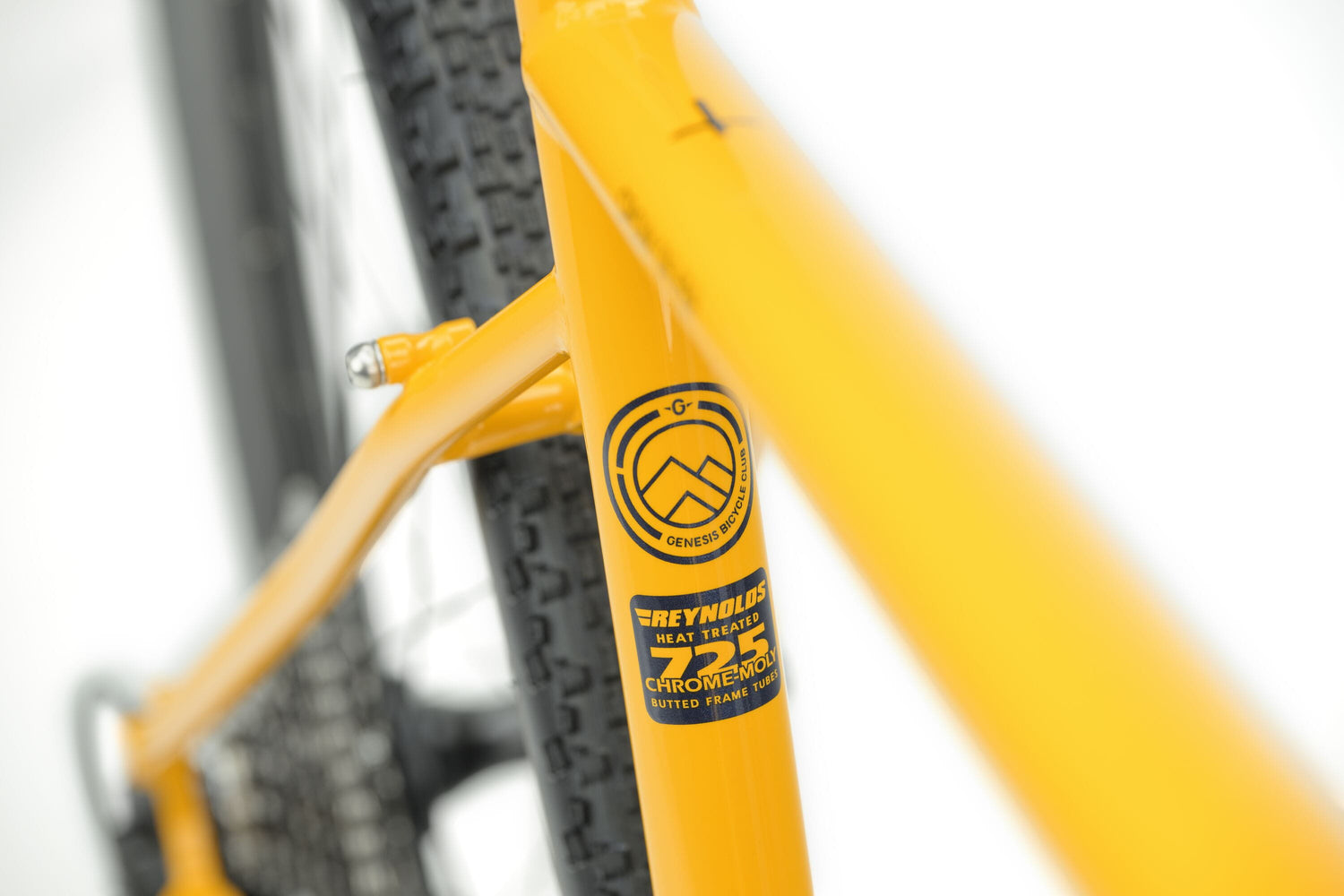

Reyt Good Steel
The Reynolds 725 Chromoly tubeset allows us to use thinner tubes whilst maintaining strength for a lighter frame and livelier ride feel.
Specifications
Frame & Fork
- Reynolds 725 Chromoly Tubing
- Amplitude G100 Chromoly Fork
Drivetrain
- Shimano CUES U6000
- 2 x 10-speed
- 46/32T Chainrings
- 11-39T Cassette
Components
- Amplitude G100 Finishing Kit
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Centre-Lock Rotor Mounts
- 100 x 12mm Front
- 142 x 12mm Rear
Brakes
- Shimano CUES Hydraulic Discs
- 160mm Rotors Front & Rear
Tyres
- Maxxis Rambler 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| Frame Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Effective Reach | 465 | 475 | 485 | 495 | 505 |
| Seat Tube | 470 | 490 | 530 | 560 | 590 |
| Top Tube | 553 | 557 | 558 | 574 | 589 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Stack | 552 | 566 | 585 | 604 | 623 |
| Head Tube | 100 | 115 | 135 | 155 | 175 |
| Head Angle | 71 | 71 | 71 | 71 | 71 |
| Seat Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Chainstay | 435 | 435 | 435 | 435 | 435 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Wheel Base | 1042 | 1046 | 1043 | 1059 | 1076 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Standover | 741 | 759 | 785 | 809 | 833 |
| Stem Length | 70 | 80 | 100 | 100 | 100 |
| Handle Bar Width | 420 | 440 | 440 | 460 | 460 |
