Haro Rivette Carbon Top Shelf - 2025
Haro Rivette Carbon Top Shelf - 2025 - Matte Black / Teal / 48cm is backordered and will ship as soon as it is back in stock.
Estimated Shipping Widget will be displayed here!
FEATURES
- UCI-certified carbon frame and fork with tapered steerer tube in custom size-specific carbon layups. Designed to work exclusively with electronic groupsets.
- Shimano Dura-Ace Di2 with size-specific crank lengths.
- Shimano Dura-Ace hydraulic disc brakes with 160mm rotors.
- Vision Carbon Metron 45 SL tubeless clincher wheelset. Valves, tape and sealant included.
- Vittoria Corsa Pro tubeless-ready tires, 700x30c with tan sidewalls. *Max tire width 700x36c.
- Headset for internal cable routing.
- Custom bar tape to match frame graphics.
- Designed around a Universal Derailleur Hanger (UDH).

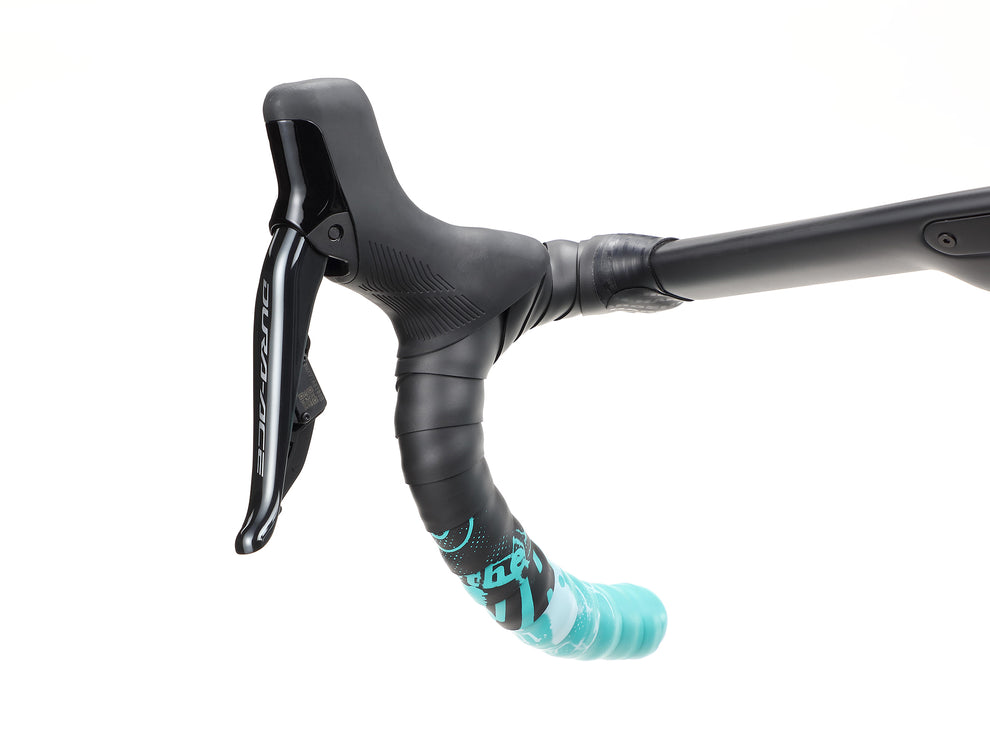

- Size-specific BLKTEC R8 one-piece combined bar and stem with computer mount.
FRAMESET
Frame Haro Rivette Carbon Frame
Fork Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer

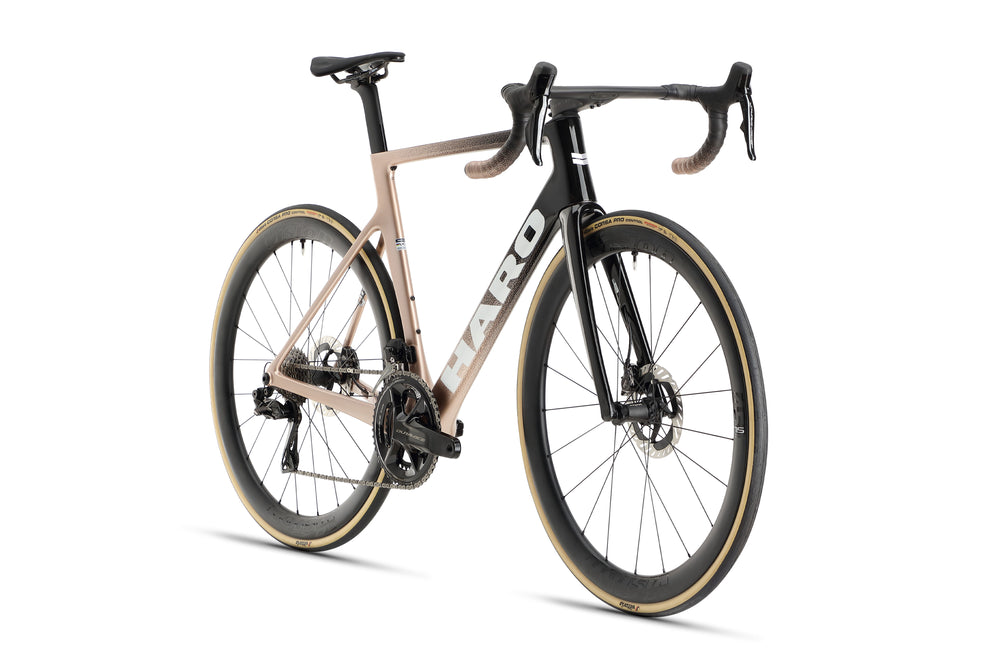

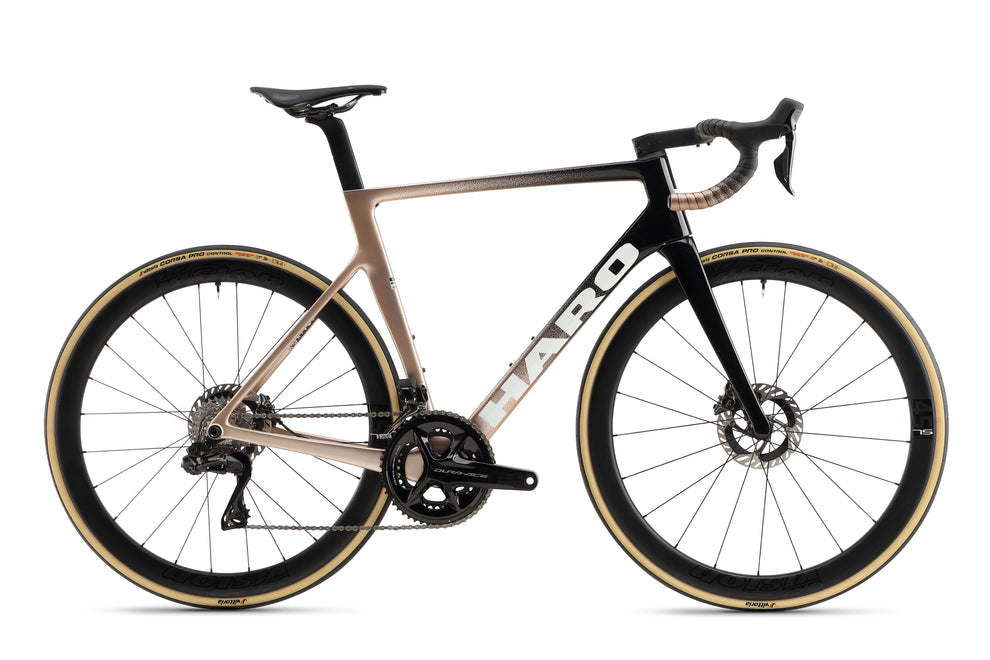

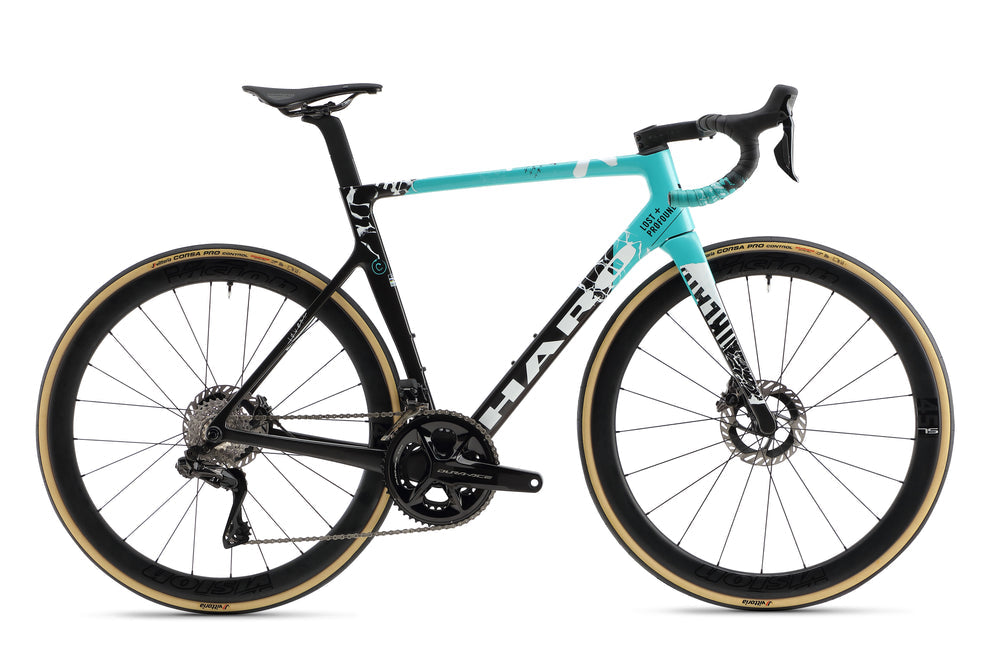

Colors Matte Black / Teal, Gloss Rose / Gold
Weight 16.18 lbs 7.34 kg, (56cm)
DRIVETRAIN

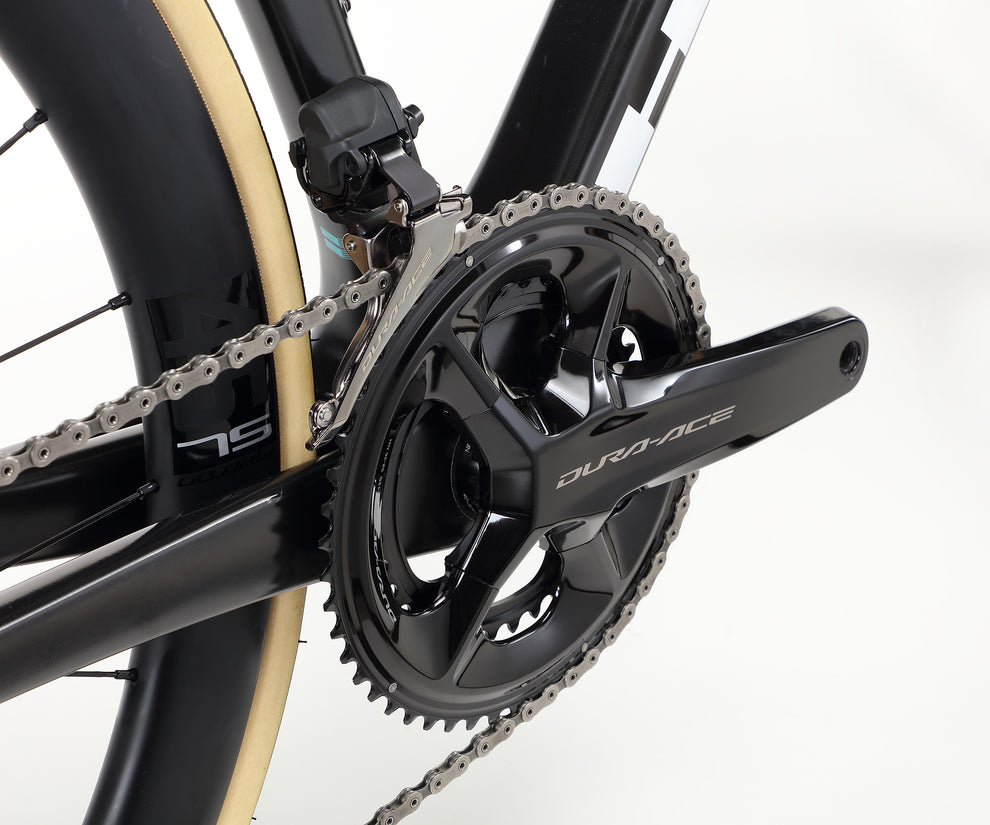

Cranks Shimano Dura-Ace 52-36T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm
Pedals
Chain Shimano HG 12spd, CN-M9100
Bottom Bracket T47, 76.75mm, ø24
Front Derailleur Shimano Dura-Ace Di2, FD-R9250

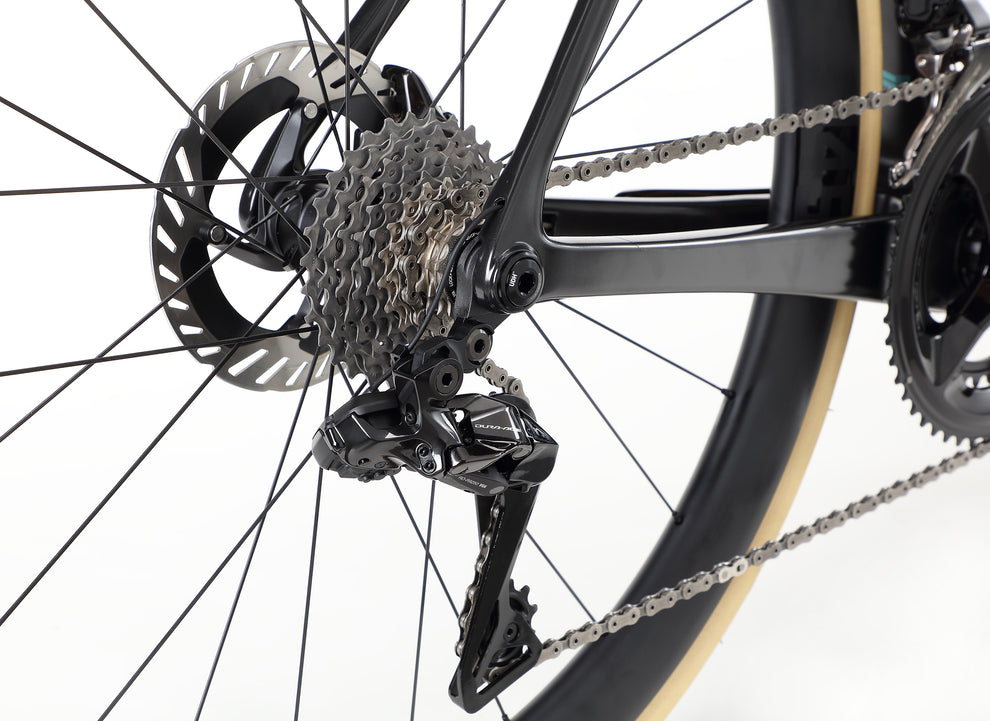

Rear Derailleur Shimano Dura-Ace Di2, RD-R9250
Derailleur Shifter Shimano Dura-Ace Di2, ST-R9270
Freewheel/Cassette Shimano Dura-Ace, 11-30T CS-R9200
WHEELS

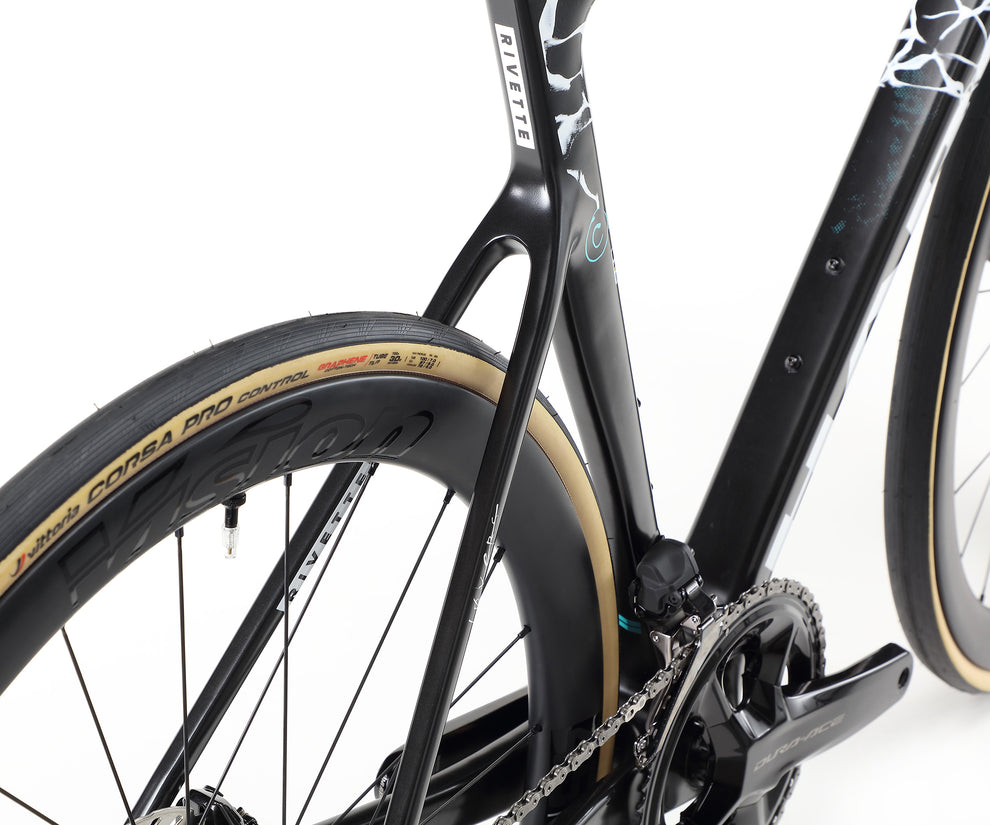

Tires Vittoria Corsa Pro 30-622 fold TLR (tubeless ready) G2.0 700x30c.
Wheels/Rims Vision Carbon 45 SL tubeless clincher wheelset. Valves, tape and sealant included.
BRAKING SYSTEM

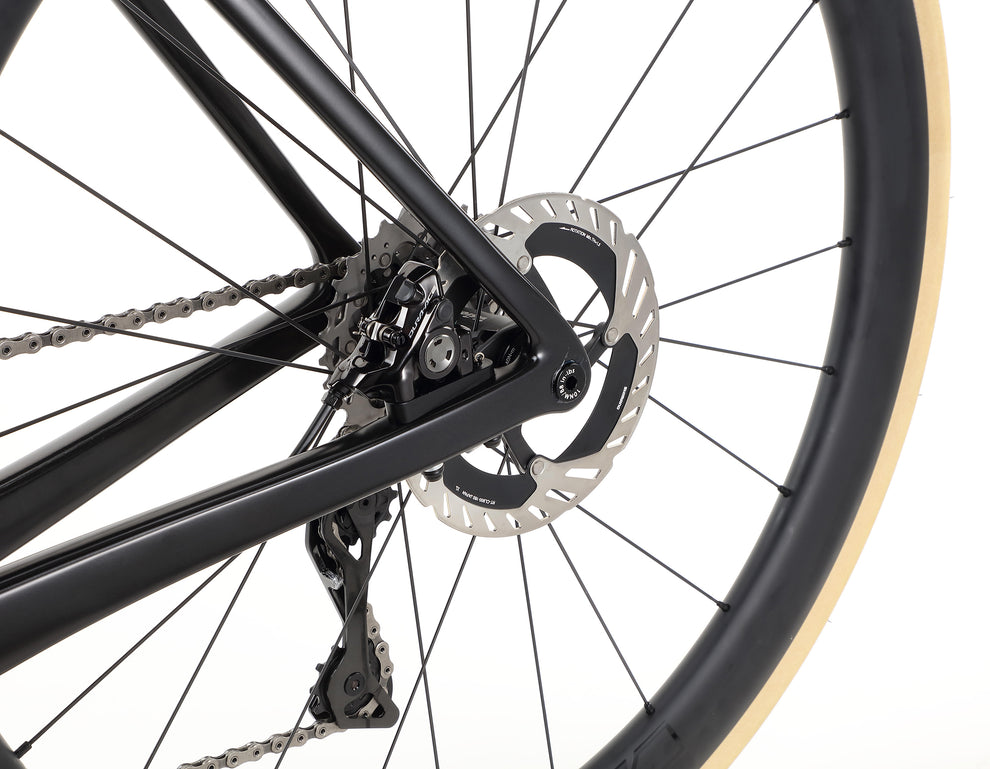

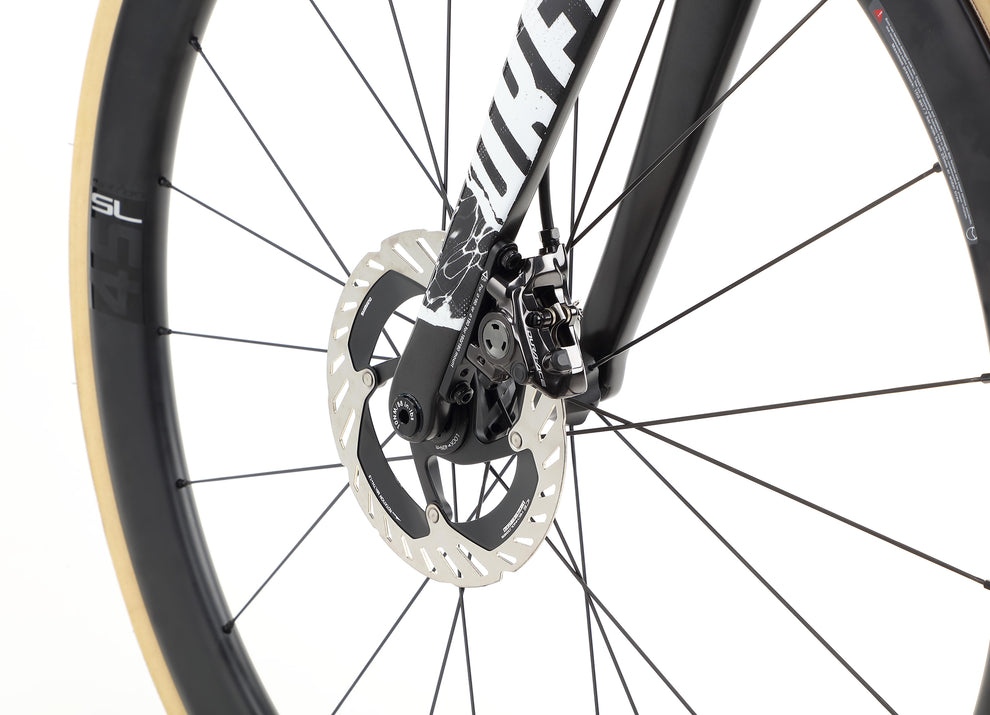

Brakes Shimano DURA-ACE Hydraulic Disc Brakes with 160mm Center Lock Rotors
Brake Levers Shimano DURA-ACE Di2
OTHER COMPONENTS
Grips/Tape Ciclovation Advanced, Leather touch, 3mm Thick
Handlebar BLKTEC R8 Carbon Bar Stem Combo, 48cm, 90mm/38cm; 51cm, 100mm/38cm; 54cm, 100mm/40cm; 56cm, 110mm/40cm; 58cm, 110mm/42cm; 61cm, 120mm/42cm
Stem Integrated w/handlebar
Headset Token A-Box Headset with internal cable routing

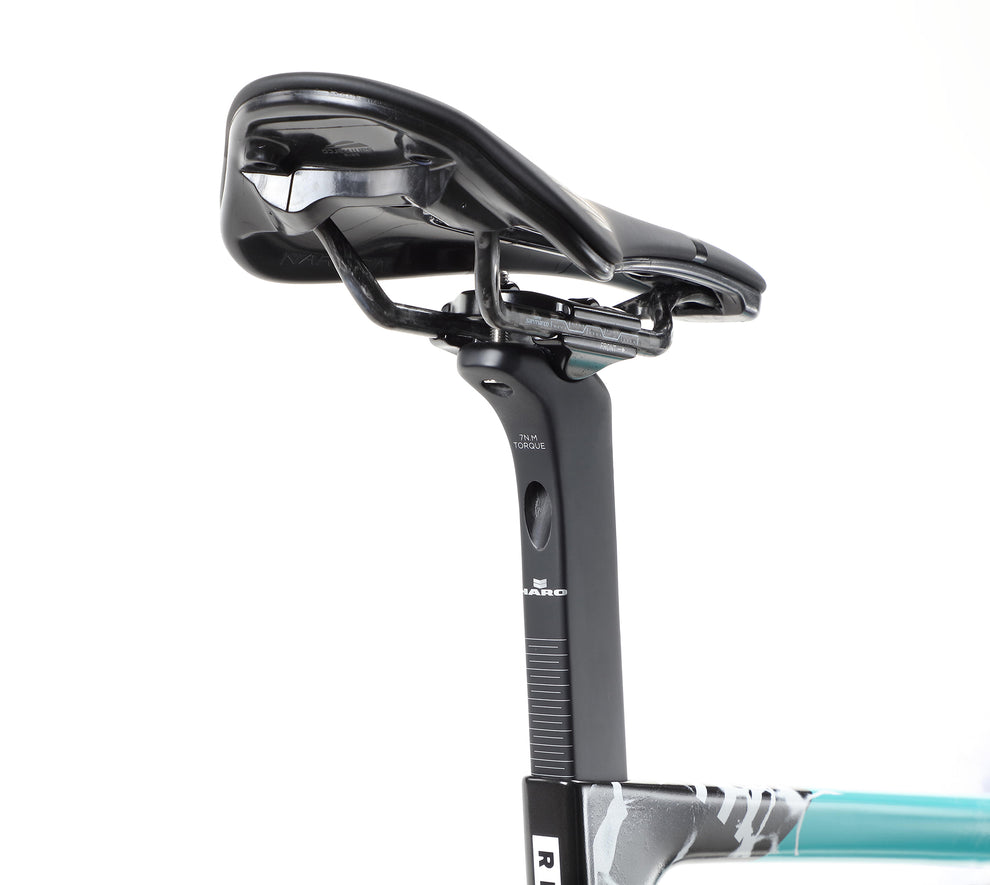

Saddle Selle San Marco Shortfit 2.0 Open-Fit Carbon FX
Seat Post Haro Rivette Carbon Aero; 275mm for 48/51/54 / 375mm for 56/58/61
Seat Clamp Internal
Extras Computer mount. Tubeless valves, tapes and sealant included.
Size | Inches | CM |
---|---|---|
48 | 5'1" - 5'4" | 153 - 163 |
51 | 5'4" - 5'7" | 163 - 170 |
54 | 5'7" - 5'9" | 170 - 175 |
56 | 5'9" - 5'11" | 175 - 180 |
58 | 5'11" - 6'2" | 180 - 188 |
61 | 6'2" - 6'5" | 188 - 196 |
