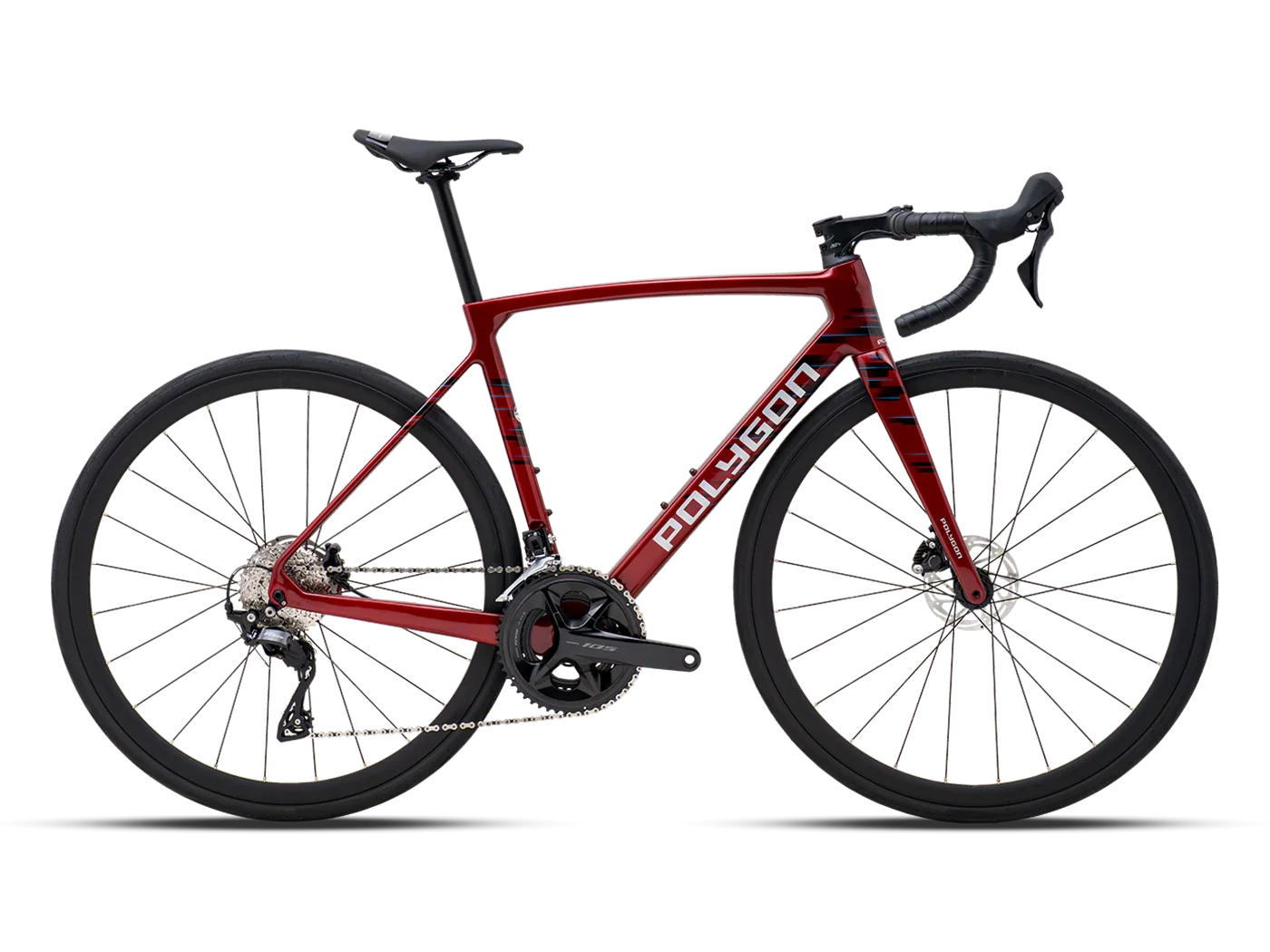

Polygon Strattos S7D
Cheers to the riders who just cannot get enough! Our all-rounder whiz, Strattos Carbon is designed to accompany its rider on every ride – converting even the final stretch of the longest rides to be just as joyful as the start of any fresh new day. Get ready to hike new mountains and break your personal bests, because this bike will make you perform your best for longer.
Features
- Boosted pedaling efficiency - A bicycle has long been touted as the most efficient form of transport, and this bike makes this more apt than ever. The all-new Strattos directly converts each watt of your effort to acceleration with a downtube that is 16% stiffer.
- Compliance where it matters - The old myth of compromise between performance and comfort, busted. The new Strattos comes with a specialized seat stay design that absorbs road vibration without reducing stiffness, ensuring that its rider can continually perform without getting fatigued. Along with its Hydraulic Disc Brake for optimum brake performance.
- Minimized air drag - From a sleek tubing design to clean cable routings and integrated seat clamp, the new Strattos is designed to cut through the air and save you watts.
- UCI-certified carbon frame and fork for optimum performance
Specifications
Frameset ACX ALL-ROUND UCI APPROVED
Fork ACX ALL-ROUND UCI APPROVED
Frame Color RED
Decal Color BLACK
Drivetrain
Shifter SHIMANO 105 ST-R7120, 2x12-SPEED DUAL CONTROL LEVER
Rear Derailleur SHIMANO 105 RD-R7100-SS DIRECT ATTACH
Crank SHIMANO 105 FC-R7100 50/34T
Cassette SHIMANO 105 CS-R7101 11-34T
Chain KMC X12
BB SHIMANO BB-RS500-PB, PRESSFIT BB86
Cockpit
Saddle FLUX2, CR-MO ø 7mm
Handlestem POLYGON XPERT ALLOY, EXT: 90mm (XXS, XS, S) / 100mm (M, L) / 110mm (XL, XXL), BB: 31.8mm, R/D: 10degree
Seatpost POLYGON XPERT ALLOY, DxL: 27.2 x 350mm
Heaadset INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Handlebar POLYGON XPERT ALLOY, W: 400mm (XXS, XS, S) / 420mm (M, L) / 440mm (XL, XXL), BB: 31.8mm, R/D: 125mm, B/R: 70mm
Wheel & Tire
Wheel Set POLYGON RD6 DISC
Tire SCHWALBE ONE 700x28C
Rim 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY
Hub F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS
Brake
Brake Lever SHIMANO 105 ST-R7120
Brake Caliper SHIMANO 105 BR-R7170 HYDRAULIC
Rotor TRP TR-29 140mm 6-BOLTS
Geometry & Size
| XXS | XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Height (cm) | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 | 185-195 |
| Seat Tube Length (A) | 439.1 | 454.2 | 474.2 | 500 | 524.7 | 554.3 | 584.2 |
| Seat Tube Angle (B) | 75 | 75 | 74.5 | 74 | 73.5 | 73 | 73 |
| Effective Seat Tube Angle (C) | 75 | 75 | 74.5 | 74 | 73.5 | 73 | 73 |
| Head Tube Length (D) | 90 | 90 | 105 | 130 | 155 | 185 | 215 |
| Head Tube Angle (E) | 71.5 | 72 | 72.5 | 73 | 73 | 73 | 73 |
| Effective Top Tube (F) | 505 | 515 | 525 | 540 | 555 | 570 | 590 |
| Bb Height (G) | 271.5 | 271.5 | 271.5 | 274 | 274 | 276.5 | 276.5 |
| Bb Offset (H) | 72.5 | 72.5 | 72.5 | 70 | 70 | 67.5 | 67.5 |
| Chainstay Length (I) | 415 | 415 | 415 | 415 | 415 | 417 | 417 |
| Wheelbase (J) | 969.7 | 975.6 | 977.3 | 984.9 | 995 | 1007.9 | 1027.8 |
| Frame Reach (K) | 372.9 | 382.5 | 383.4 | 386.9 | 389.8 | 391.5 | 402.8 |
| Frame Stack (L) | 493.2 | 494.7 | 510.7 | 533.9 | 557.7 | 583.8 | 612.4 |
| Standover Height (M) | 717.13 | 729.43 | 748.69 | 775.85 | 801.17 | 832.25 | 862.17 |
