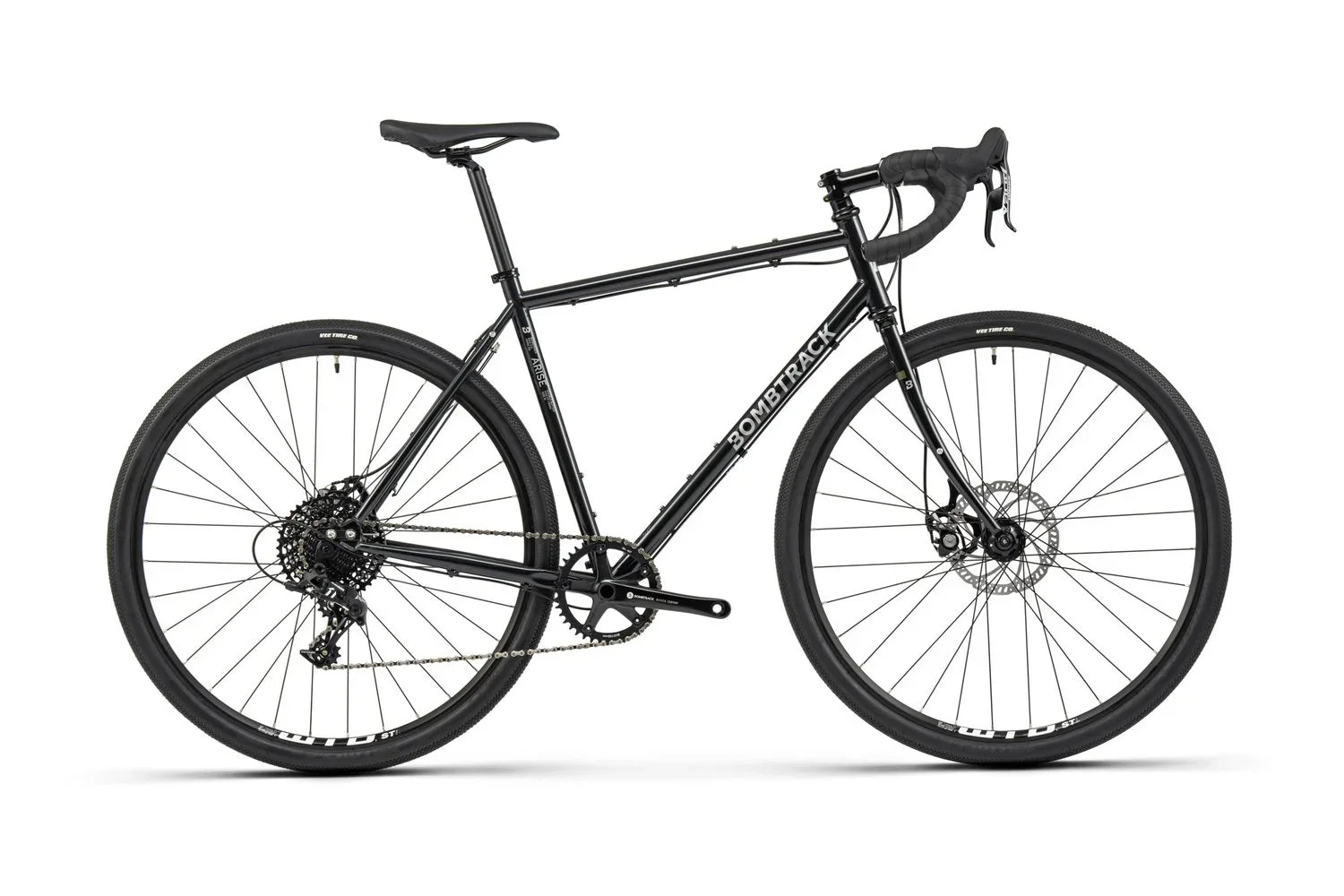

Bombtrack Arise SG Apex - 2024

For a bicycle that’s both accomplished and ambitious, look no further than the Arise SG Apex. Levelling up on the Arise SG’s capabilities, this bike comes fitted with Sram Apex 1x11 drop-bar dual control levers and a clutched rear derailleur with a generous 11-speed 11 – 42T cassette. Internal light cable routing, along with frame and fork rack and fender mounts, equips the Arise SG Apex to take you far beyond the horizon. WTB ST tubeless-ready rims complete the build with durable, reliable hoops that are size-matched across the range to ensure a proper fit without compromising geometry.

TECHNICAL SPECIFICATIONS:

Color 1 Glossy Cobalt Green
Frame 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
Fork 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing
Handlebar BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Grips BOMBTRACK COMMAND bar tape
Stem BOMBTRACK MEANDER forged aluminium stem, -6°
Headset NECO H282 sealed external aheadset, 1.1/8''
Levers SRAM Apex double tap mechanic
Shifter SRAM Apex double tap 1 x 11
Brakes TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors
Crankset BOMBTRACK TAF19 aluminium crank, 24 mm spindle
BB BSA sealed BB, external cups
Pedals -
Chain KMC X11 chain, 1/2'' x 11/128'', 114L
Chainring BOMBTRACK RIDGE aluminium chainring, narrow-wide, 40 T
Cassette SRAM PG-1130 11-speed, 11 - 42 T
Front derailleur -
Rear derailleur SRAM APEX 1, clutch, long cage
Front hub BOMBTRACK ARC sealed hub, 6-bolt disc
Rear hub BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Through axle 12 x 100 mm / 12 x 142 mm
Front rim WTB ST i19 double wall, TCS 2.0, 32h
Rear rim WTB ST i19 double wall, TCS 2.0, 32h
Saddle BOMBTRACK FUZZ
Seat post BOMBTRACK BEECH 27.2 mm x 315 mm
Seat clamp BOMBTRACK PRIME 29.8 mm
Front tire XS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622
Rear tire XS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622
Fender -
Rack -
Kickstand -
Light -
Weight 12.25 kg (size M)
Weight frameset 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight 120 kg incl. luggage
ASTM riding condition 2
