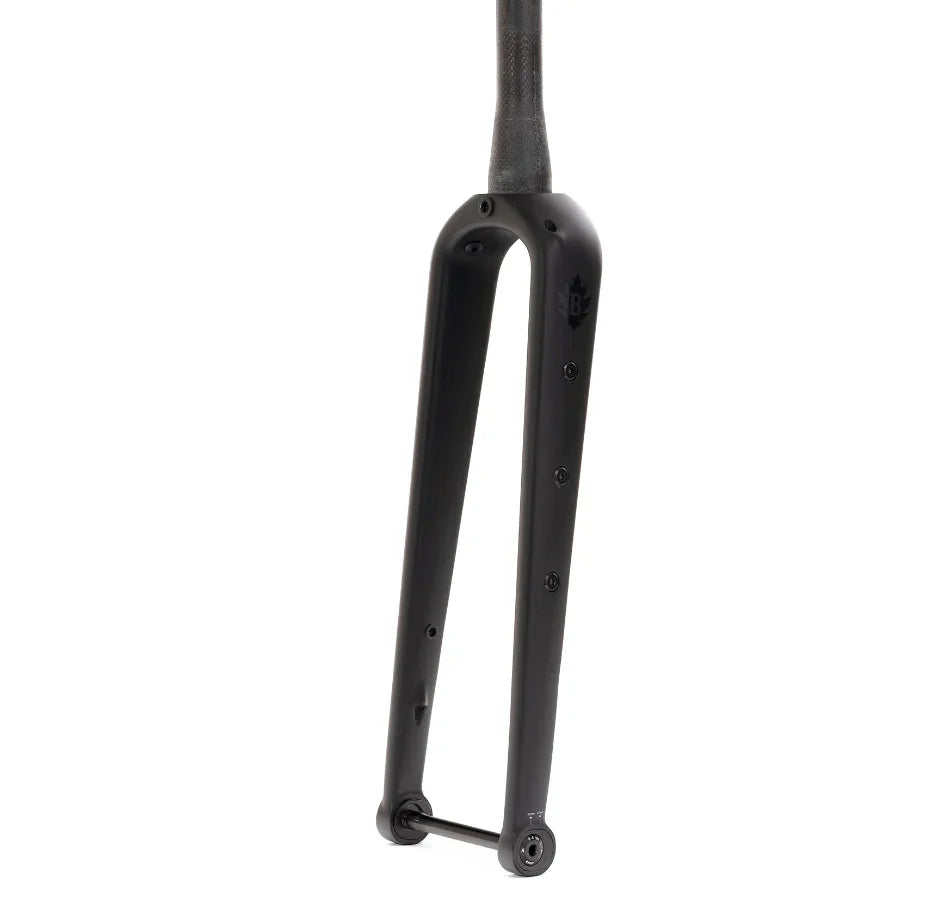

Brother Cycles Carbon Gravel Fork V2

We developed the new Brother Carbon Gravel Fork as the perfect pairing for our Mehteh frameset, however it can be purchased separately as an upgrade for a wide range of other gravel bikes. For 2022 we updated the fork with improved triple cage mounts on both fork blades, internal Dynamo routing and a flip-chip dropout to allow you to adjust the rake of the fork. We have also increased the clearance to allow you to run large volume tyres up to 650b x 2.2″ / 700c x 50

Material: Toray T700
Axle-to-crown – 398mm
Offset – 47/52mm
Steerer – 300mm, tapered 1 1/8 – 1 1/2″
Tyre Clearance – 700c x 50, 650b x 56
Hub Spacing – 100mm
Weight (uncut) – 550g (excluding axle)
Brake compatibility – Flat mount, max 160mm rotor
Triple Cage Mounts – Max. load 1kg per bolt (total 3kg per fork blade). Not compatible with front racks
Mudguard mounts, dynamo light mount and internal cable routing
Axle Spec – 100x12mm M12x1.5Px120mm (axle included)
