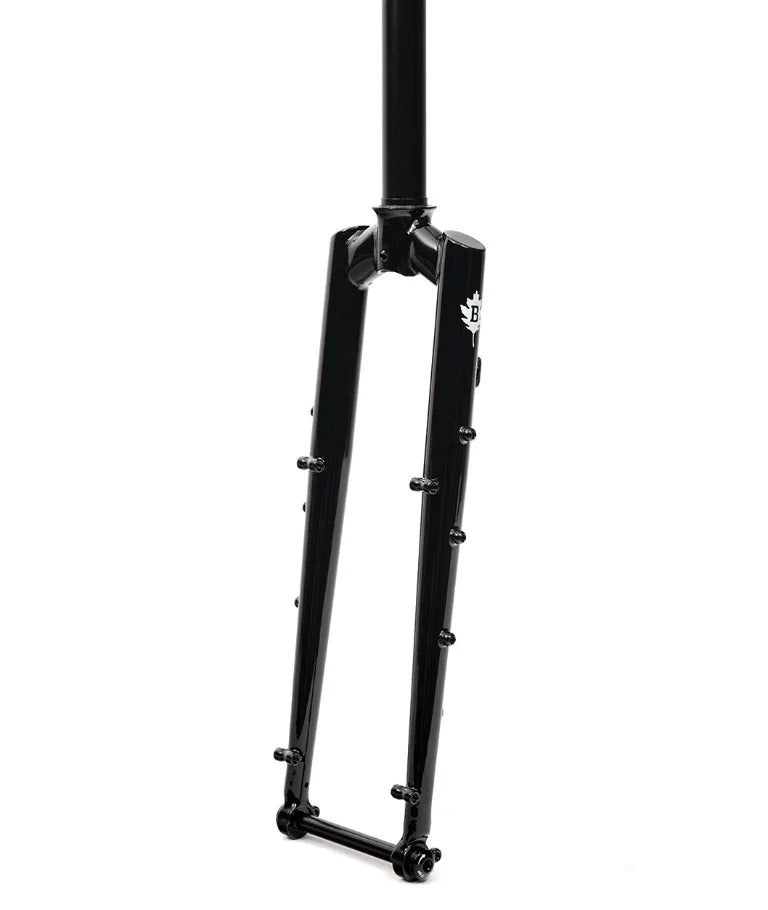

Brother Cycles Steel Gravel Fork

We developed the Brother Steel Gravel Fork as a great pairing for our Mehteh frameset – an alternative to the Carbon Gravel Fork which comes as standard with the frame. The robust and more forgiving nature of steel make these a great option for those less focused on weight and more on utility, they provide fantastic damping on rough terrain and can carry significantly heavier loads.

Although designed with the Mehteh in mind, this fork can be purchased separately as an upgrade for a wide range of other gravel bikes. The fork has clearance for large volume tyres up to 650b x 2.4″, mudguard eyelets, triple cage mounts, rando rack mount and is compatible with lowrider racks and panniers.

Note: when using with the Mehteh we recommend the use of a ZS44/30 internal lower headset cup to maintain the intended frame geometry.

Axle-to-crown – 408mm
Offset – 45mm
Steerer – 300mm, 1 1/8″
Tyre Clearance – 700 x 50c, 650b x 2.4″
Hub Spacing – 100mm
Weight (uncut) – 1.2kg
Brake compatibility – Flat mount, max 160mm rotor
Axle Spec – 100x12mm M12x1.5Px125mm (axle included)
