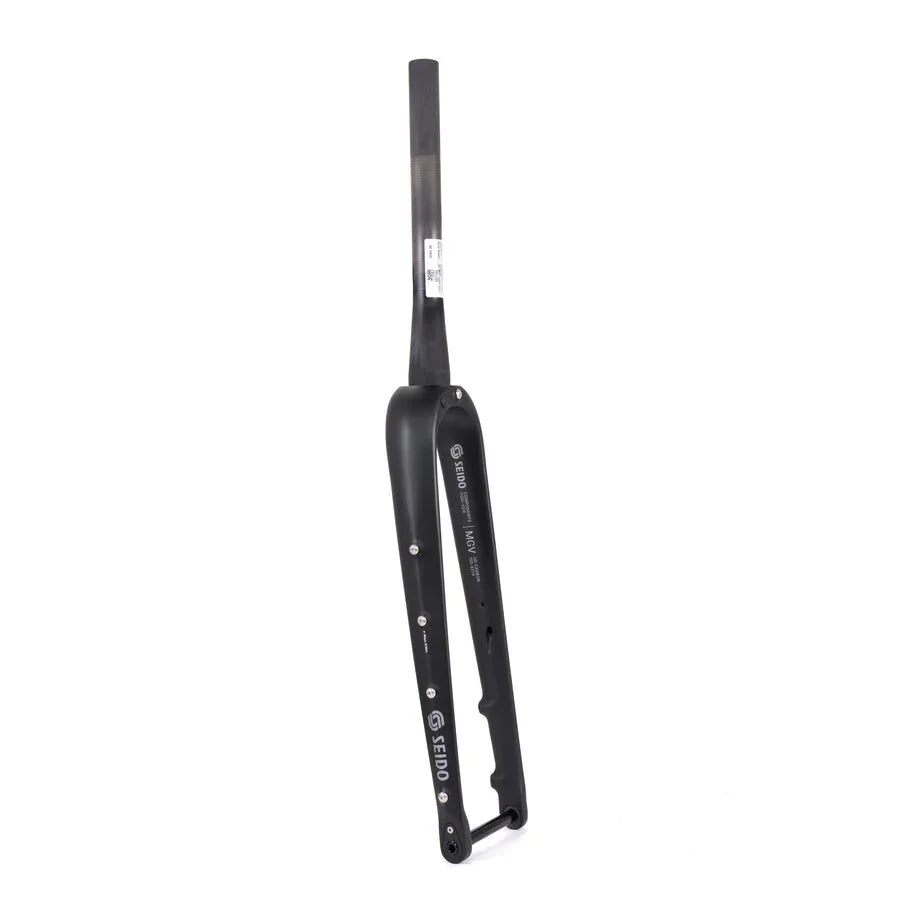

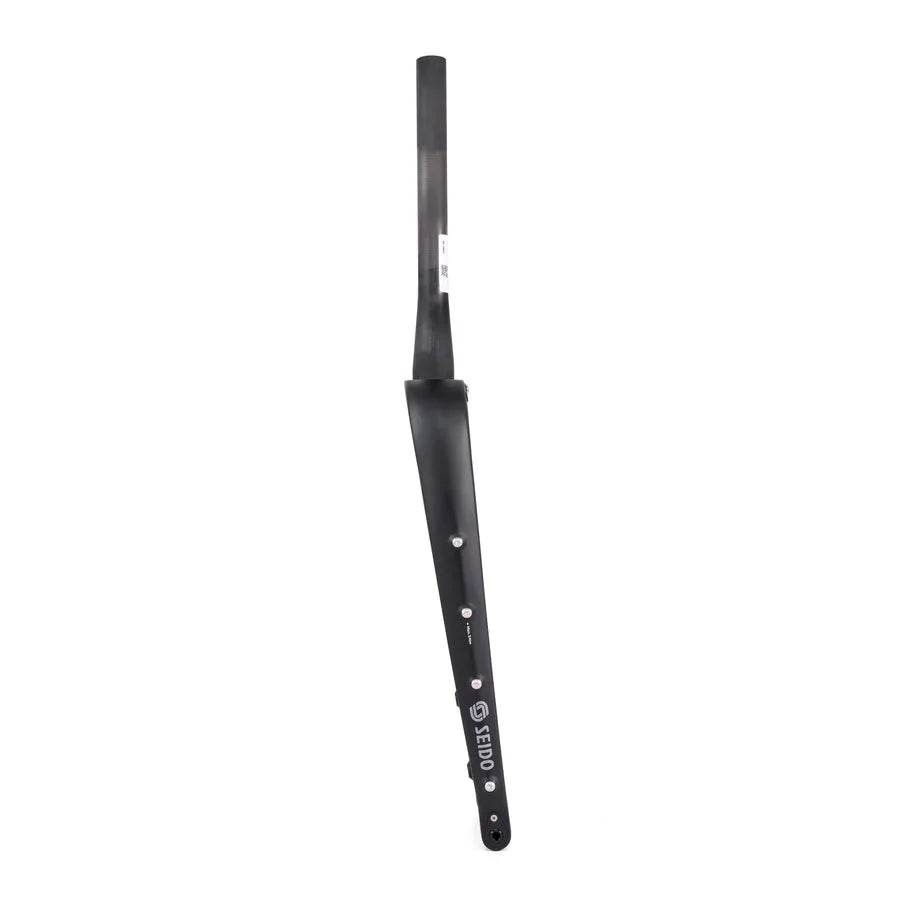

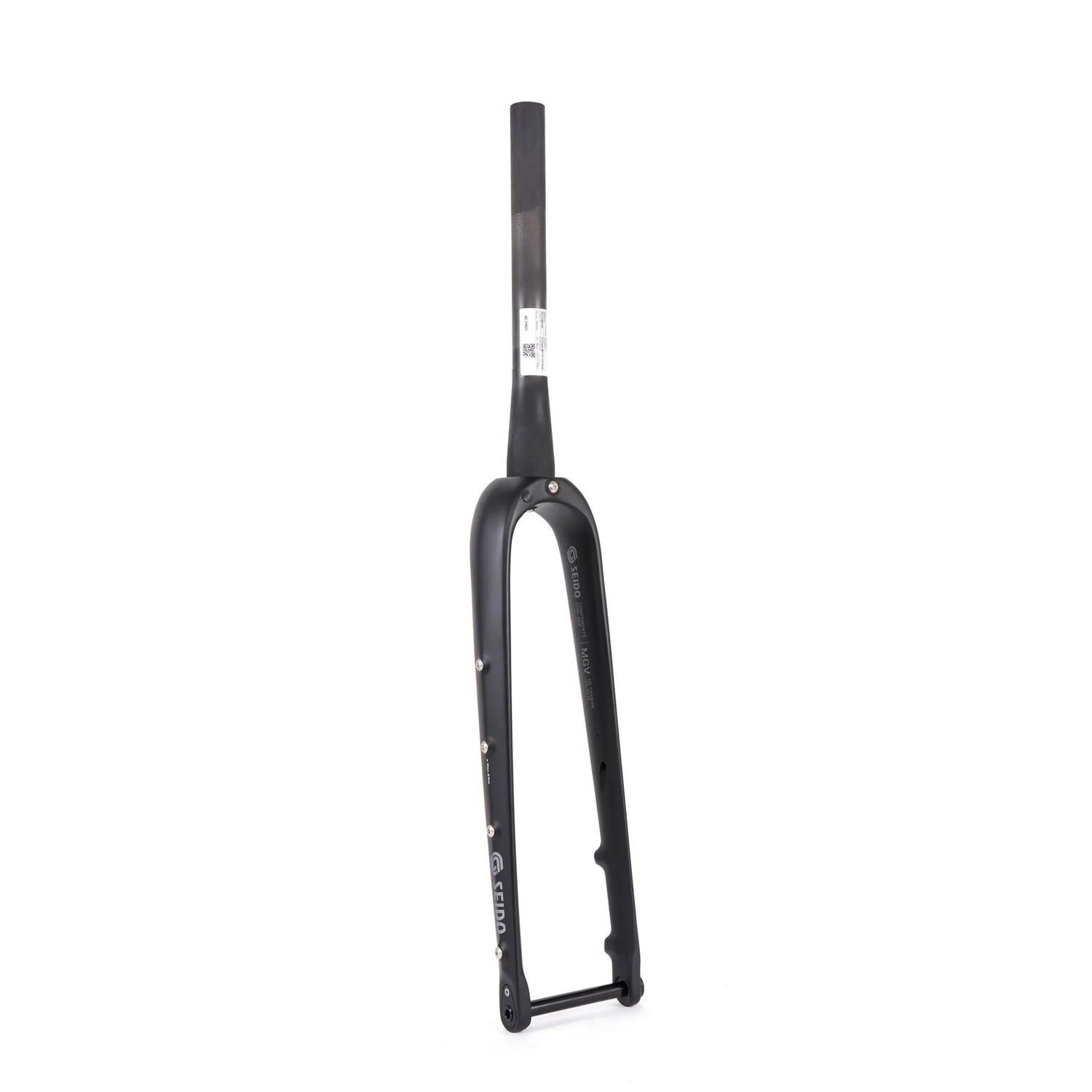

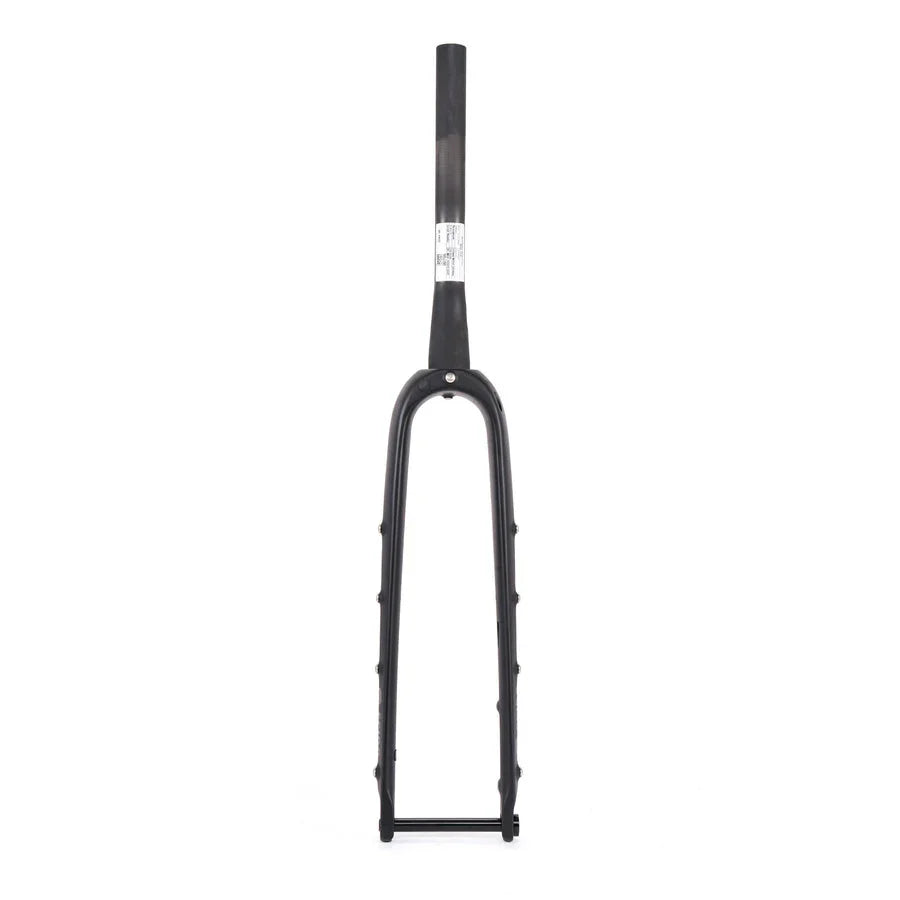

With the experience we gathered from our popular Bombtrack EXT V1 and V2 forks, and the collective feedback from our customers, we have developed a new gravel/ adventure fork from the ground up. A lot of time and effort went into its development; we carefully chose every detail and feature according to what we learnt from riders’ needs and expectations. From this, we proudly created a carbon gravel and adventure fork which is our most feature-packed to date.
Taking a fresh look at the manufacturing methods of carbon forks, we were able to use innovative new techniques which enabled us to create a lightweight fork with the capacity to carry a Low-Rider pannier rack and 20kg of luggage. This feature alone makes the MGV a unique piece of kit, but with a maximum tire clearance of 29 x 2.25, it sets itself apart from the rest of the field and performs like no other.
COLOR
Black
MATERIAL
Full UD carbon fiber
STEERER
Tapered, 1-1/8" - 1-1/2", 300 mm Length
S.H.I.S. DIMENSIONS
28.6 | 40
OFFSET
53 mm
AXLE TO CROWN
410 mm
HUB SPACING
100 mm
BRAKE
Flat Mount 160, rotor size 160 - 180 mm

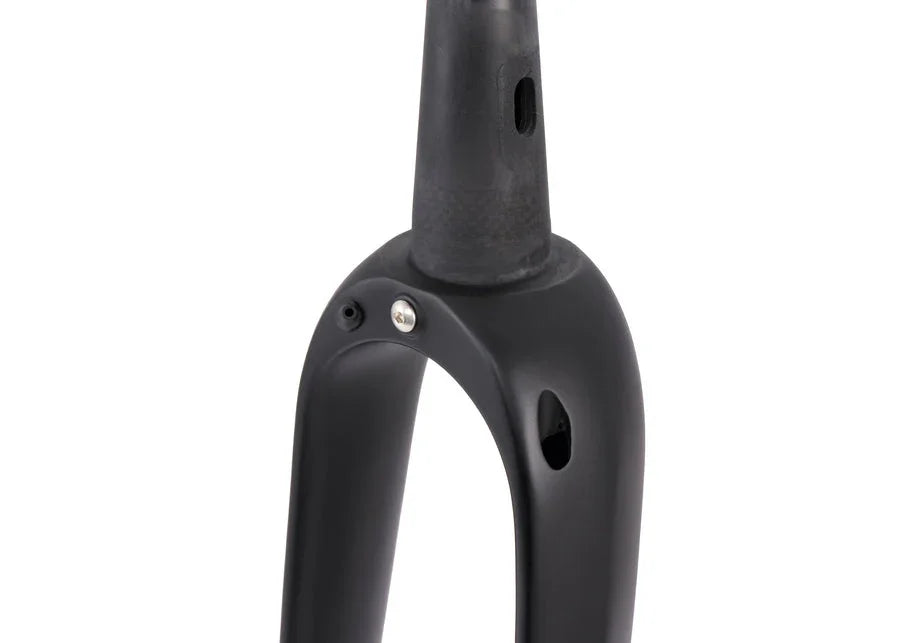

INTERNAL ROUTING
Brake hose / Dynamo cable
MOUNTS
Triple Cage / Head light / Mudguards / Lowrider rack
INCLUDED

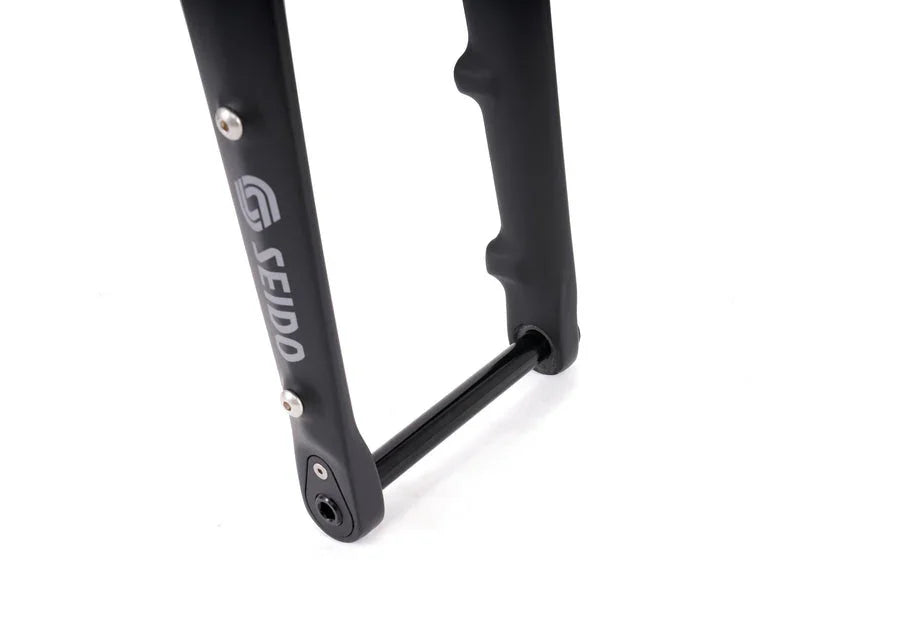

Through-Axle, Expander, Cable port plugs
WEIGHT
530 g (w/o through axle, w/o bolts, uncut steerer)
TIRE CLEARANCE
58 - 622 (29" x 2.25") / 64 - 584 (27.5" x 2.5")
EXTRA INFO
Ready for fully internal cable routing.
Lowrider compatible.
Steerer Tube ID: 23.6mm
ASTM RIDING CONDITION
2
THROUGH-AXLE TYPE
12x100 mm
TA TOTAL LENGTH (CLOSED)
120 mm
TA DIAMETER
12 mm
TA THREADING DIAMETER X PITCH
M12 x 1.5
MIN. THREAD LENGTH
14 mm
