Polygon Xtrada 5
⏳ Hurry Up! Deal Valid For
Polygon Xtrada 5 - Small / 27.5" is backordered and will ship as soon as it is back in stock.
Estimated Shipping Widget will be displayed here!
"Riding with Xtrada, feels like running as a wolf," they said. As an XC bike should be, Xtrada is born to run the game with you. Impeccably versatile, effortlessly fast, and obsessively comfortable. The Xtrada is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure.
Features
- Perfectly fits the rider for an efficient ride and optimum riding experience with Wheel Fit Size System
- Better acceleration and cornering with short chainstay
- Accompanied with suspension fork to smooth out the ride on rough terrains.
- Steady handling with Tapered Headtube
Specifications
Frameset ALX XC TRAIL

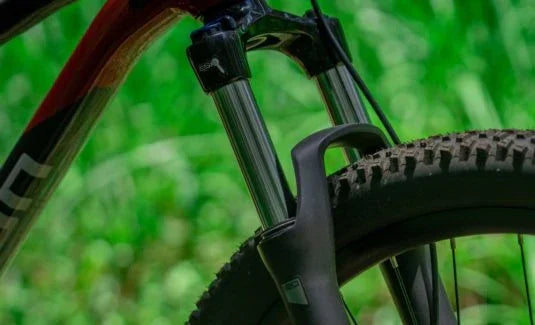

Fork SR SUNTOUR XCM-HLO 120mm (27.5" & 29") TRAVEL
Frame Color CHARLESTON - QUICK SLIVER
Decal Color QUICK SILVER
Drivetrain
Shifter SHIMANO DEORE SL-M5100-L & SL-M4100-R, 2x10-SPEED TRIGGER
Rear Derailleur SHIMANO DEORE RD-M4120-SGS DIRECT ATTACH
Pedal PP FLAT PEDAL W/ REFLECTOR
Crank PROWHEEL VORTEX 551-TT BOOST 36/22T, 170mm (S, M) / 175mm (L, XL)
BB SHIMANO 2-PIECE CRANKSET BSA THREADED 73mm

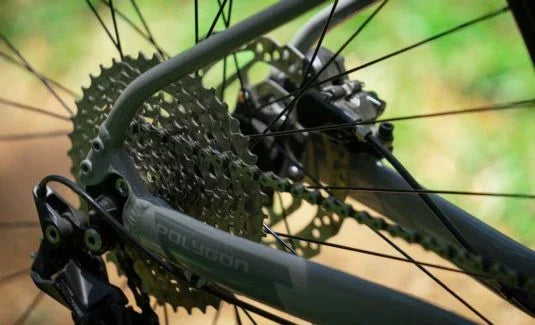

Cassette SHIMANO DEORE CS-M4100 11-42T
Chain KMC X-10
Cockpit
Saddle ENTITY VOID, STEEL ø 7mm
Handlestem ENTITY SPORT ALLOY, EXT: 45mm, BAR BORE: 31.8mm, RISE/DROP: 3degree
Seatpost ENTITY XPERT ALLOY, DXL: 27.2 x 350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR

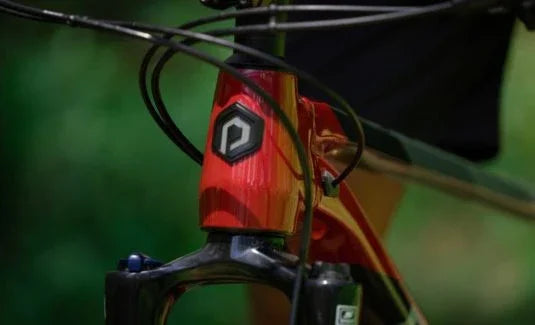

Heaadset ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/40
Handlebar ENTITY SPORT ALLOY, W: 760mm, BAR BORE: 31.8mm, RISE/DROP: 12mm, BEND: 6degree
Wheel & Tire

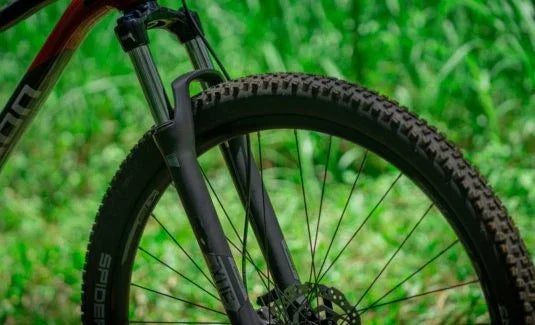

Wheel Set ENTITY XL2 DISC
Tire PERFORMANCE TIRE 27.5"X2.25" / 29"X2.25"
Hub F: ALLOY QRx100mm 32H 6-BOLTS / R: ALLOY QRx141mm 32H 6-BOLTS
Wheel Size 27.5" / 29"
Brake
Brake Lever TEKTRO HD-M275 HYDRAULIC DISC BRAKES
Brake Caliper TEKTRO HD-M275 HYDRAULIC DISC BRAKES
Rotor TEKTRO TR160-24 160mm 6-BOLTS
Geometry & Size
| S (27.5″) | M (27.5″) | L (27.5″) | M (29″) | L (29″) | XL (29”) | |
|---|---|---|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 172-185 | 162-175 | 172-185 | 182-195 |
| Seat Tube Length (A) | 385 | 425 | 460 | 425 | 460 | 500 |
| Seat Tube Angle (B) | 75 | 75 | 75 | 75 | 75 | 75 |
| Effective Seat Tube Angle (C) | 75 | 75 | 75 | 75 | 75 | 75 |
| Head Tube Length (D) | 95 | 100 | 105 | 95 | 100 | 105 |
| Head Tube Angle (E) | 67 | 67 | 67 | 67 | 67 | 67 |
| Effective Top Tube (F) | 569 | 590 | 612 | 598 | 619 | 640 |
| Bb Height (G) | 310 | 310 | 310 | 309 | 309 | 309 |
| Bb Offset (H) | 45 | 45 | 45 | 65 | 65 | 65 |
| Chainstay Length (I) | 425 | 425 | 425 | 435 | 435 | 435 |
| Wheelbase (J) | 1106 | 1128 | 1150 | 1147 | 1169 | 1191 |
| Frame Reach (K) | 410 | 430 | 450 | 430 | 450 | 470 |
| Frame Stack (L) | 593.8 | 5993 | 603 | 629.3 | 633.2 | 637.8 |
| Standover Height (M) | 663 | 697 | 726 | 693 | 715 | 751 |
