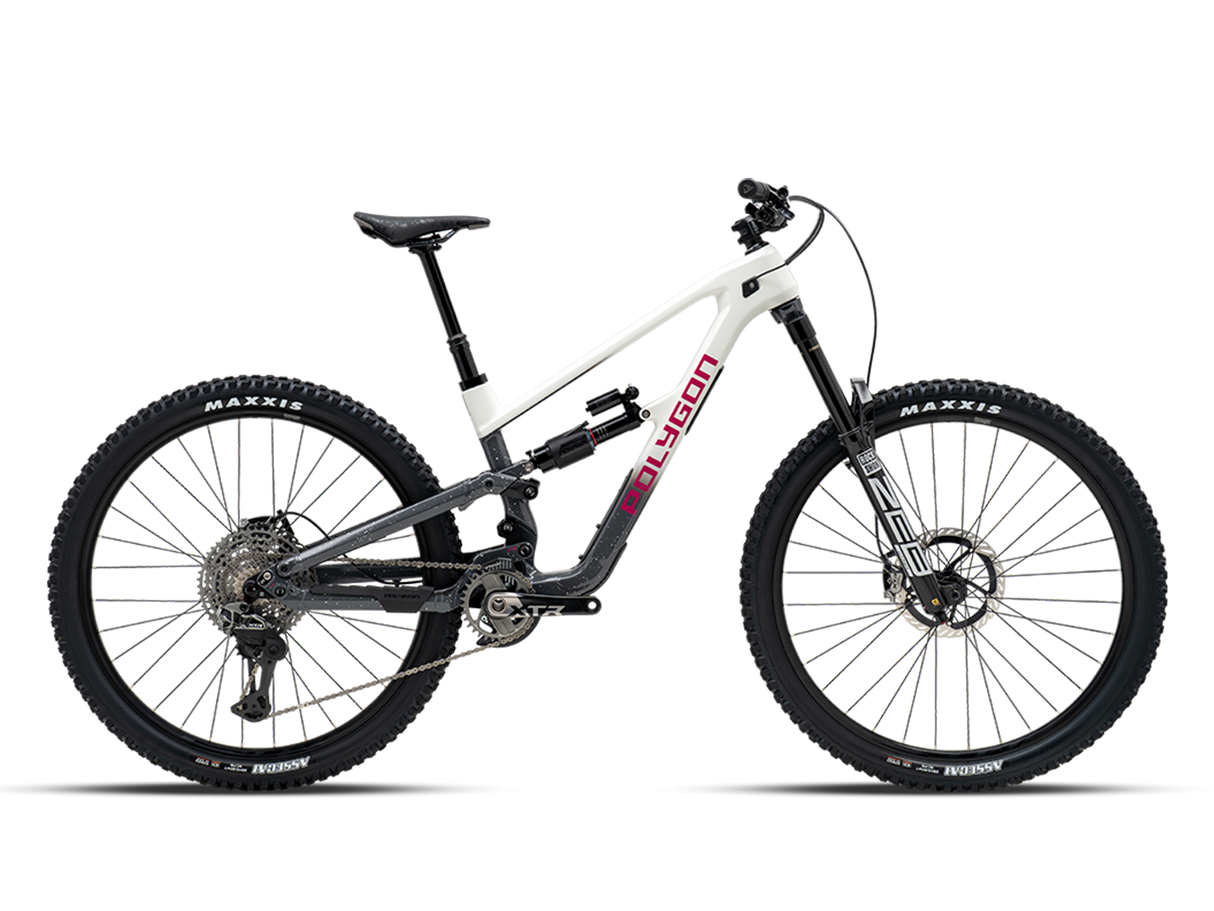

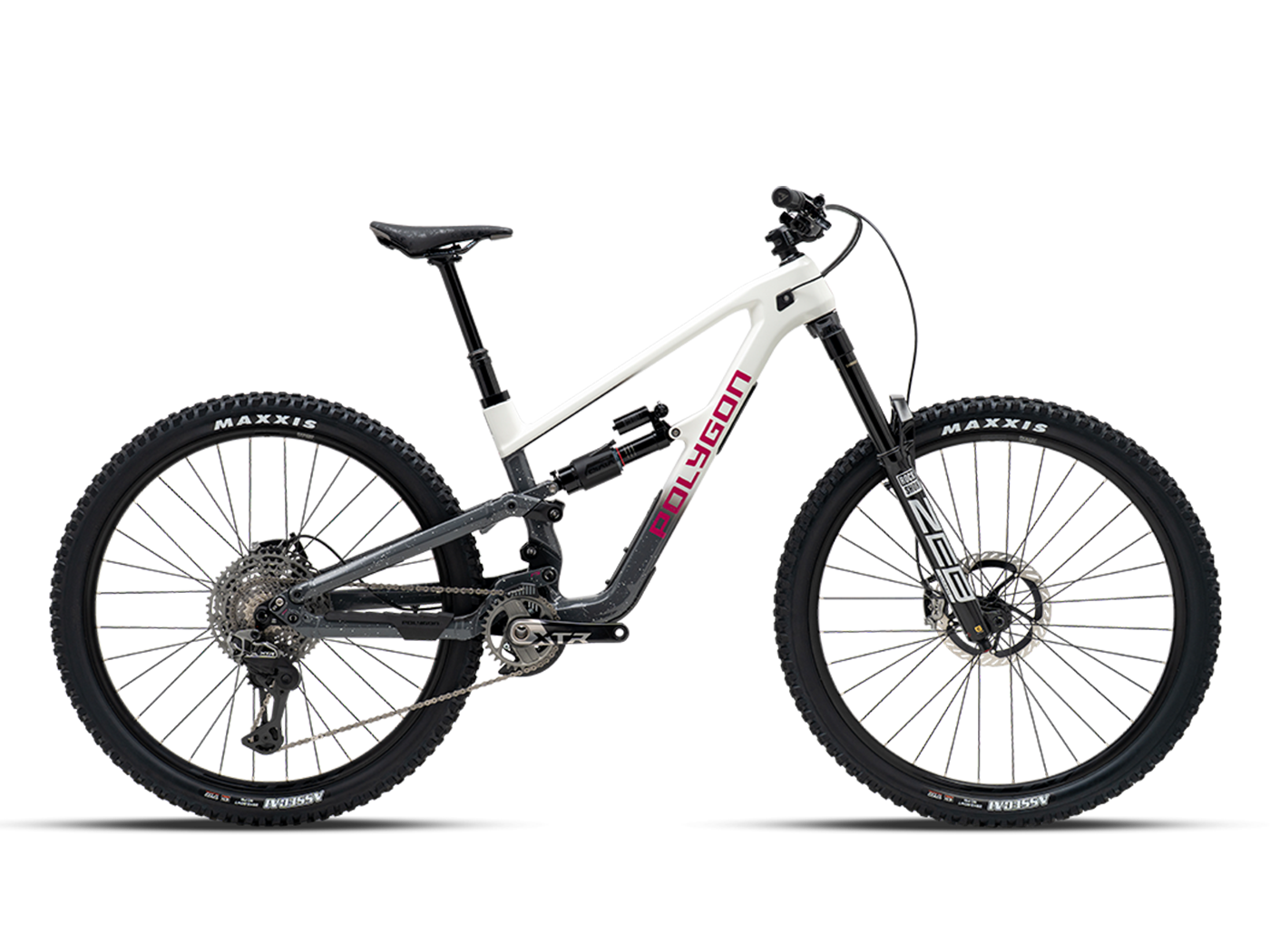

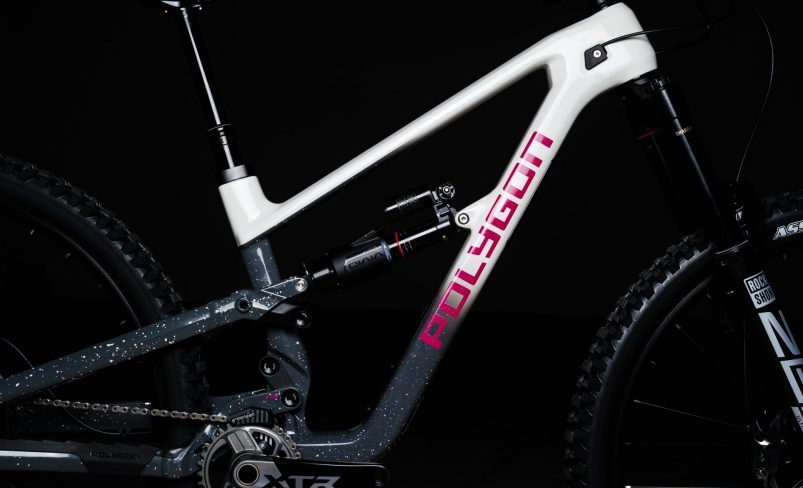

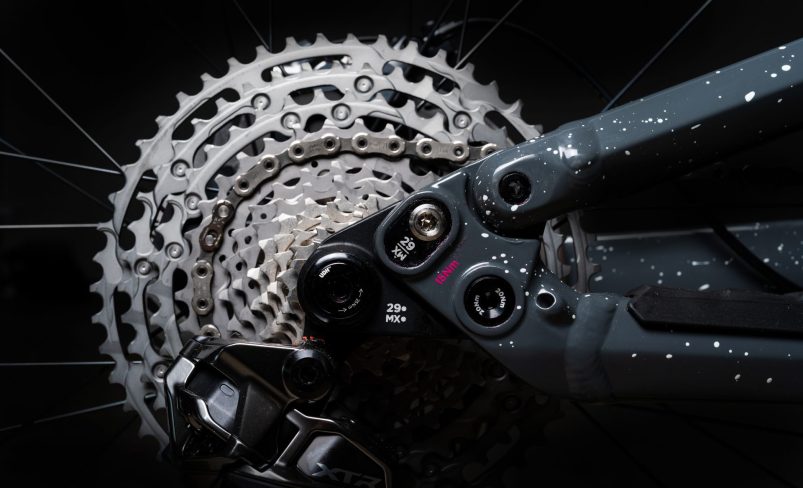

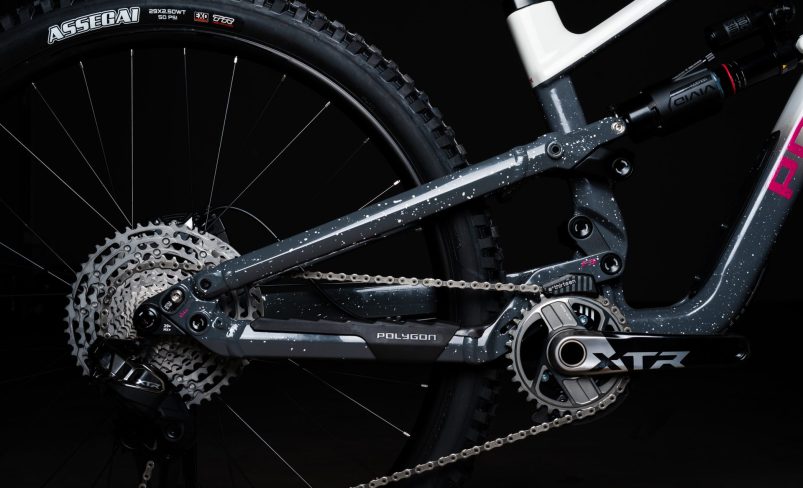

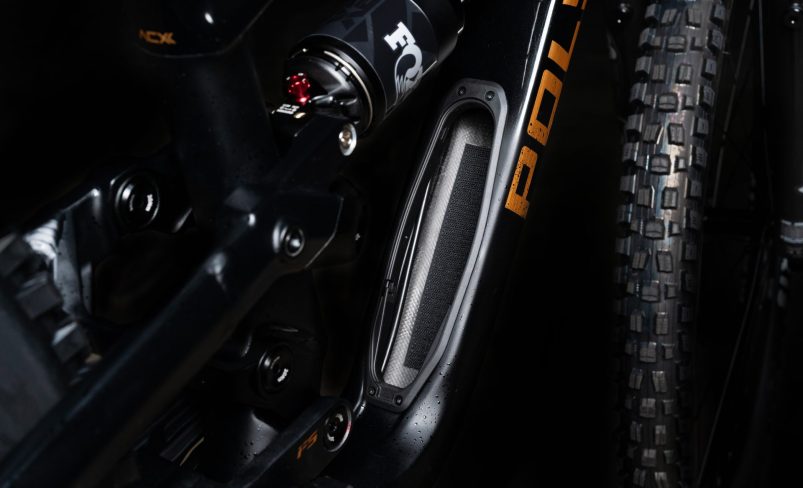

The new design features a carbon front triangle, giving the bike a noticeably lighter feel on both the trails and the scales. Its stiffer front end makes it more responsive and fun to ride. With a slack 63.5° head angle, compact 435mm chainstays, and grippy 29x2.5” tires, the Collosus N9 delivered the sweet spot of stability and agility. Our innovative Independent Floating Suspension System is engineered to control wheel path and anti-squat independently to the leverage curve, ensuring optimal performance across varied terrain. The second-generation Collosus N lets riders switch between MX and 29” wheels while maintaining geometry - at just a flip of a switch. Our proprietary PolyPocket system keeps your essentials secure and within reach. It features an insert bag with Velcro backing for a rattle-free fit, a stopper to keep it from sliding toward the BB, and integrated cable guides for a clean look.
Frameset ALX AM/ENDURO 170mm TRAVEL
Fork ROCKSHOX ZEB ULTIMATE, 170mm TRAVEL
Rear Shock ROCKSHOX VIVID SELECT+, E2E: 230x65mm
Frame Color OFF WHITE GREY
Decal Color BURGUNDY BLACK
Shifter SHIMANO XTR DI2 SW-M9250 I-SPEC EV, 1x12-SPEED
Crank SHIMANO XTR FC-M9220, 32T
Cassette SHIMANO XTR CS-M9200 10-51T
Rear Derailleur SHIMANO XTR DI2 RD-M9250
Chain SHIMANO XTR CN-M9100
Pedal ALLOY FLAT W/ REPLACEABLE PIN
Seatpost TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL)
Handlebar RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree
Handlestem RACE FACE AEFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0degree
Headset FSA NO.57E W/ SEALED BEARING ZS 44/28.6 | ZS 56/40
Wheel Set POLYGON MT6 TUBELESS READY
Tire MAXXIS ASSEGAI 29"x2.5" (622-63)
Rim ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY
Hub F: SHIMANO XT HB-M8110-B BOOST 15x110mm 32H CL / R: SHIMANO DEORE XT FH-M8110-B BOOST 12x148mm 32H CL FOR MICRO SPLINE
Spokes F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE
Brake Lever SHIMANO XTR BL-M9220
Brake Caliper SHIMANO XTR BL-M9220
Rotor SHIMANO CL-900, 203mm
The specifications, colors, parts, and availability of the products can be subjects to alter without prior notification.
|
S |
M |
L |
XL |
| Height (cm) |
155-165 |
165-175 |
175-185 |
185-195 |
| Seat Tube Length (A) |
390 |
399 |
415 |
430 |
| Seat Tube Angle (B) |
70 |
70 |
70 |
70 |
| Effective Seat Tube Angle (C) |
77 |
76 |
77 |
77 |
| Head Tube Length (D) |
100 |
105 |
110 |
120 |
| Head Tube Angle (E) |
63.5 |
63.5 |
63.5 |
63.5 |
| Effective Top Tube (F) |
583.6 |
604.6 |
626.4 |
646.7 |
| Bb Height (G) |
353 |
353 |
353 |
353 |
| Bb Offset (H) |
27 |
27 |
27 |
27 |
| Chainstay Length (I) |
434 |
434 |
433 |
435 |
| Wheelbase (J) |
1221.7 |
1244 |
1266.2 |
1290.7 |
| Frame Reach (K) |
440 |
460 |
480 |
500 |
| Frame Stack (L) |
625.5 |
630 |
634.5 |
643.4 |
| Standover Height (M) |
710 |
716 |
717 |
720 |
