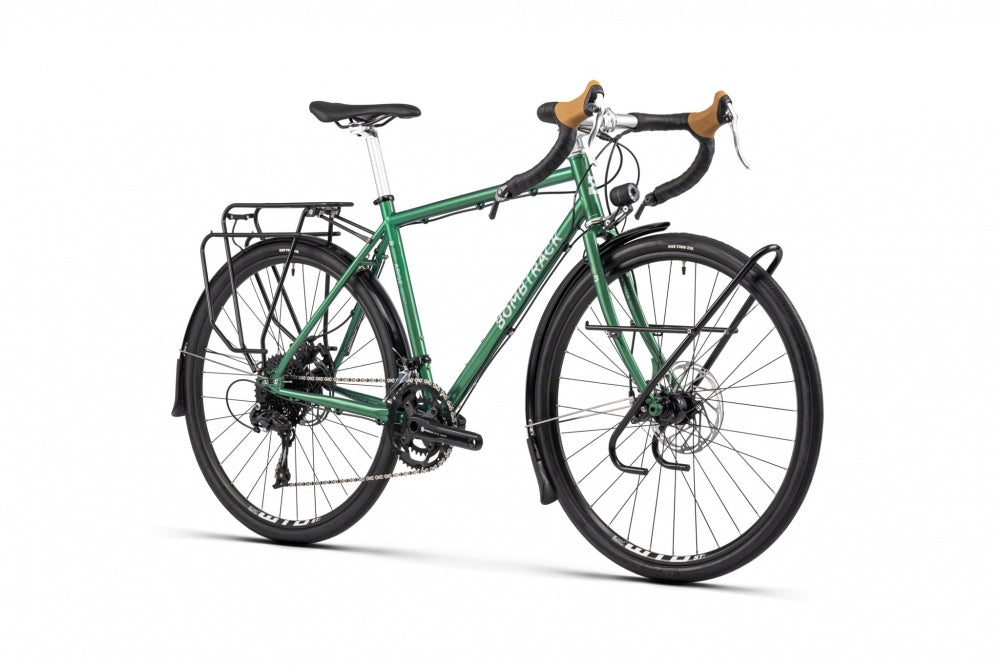

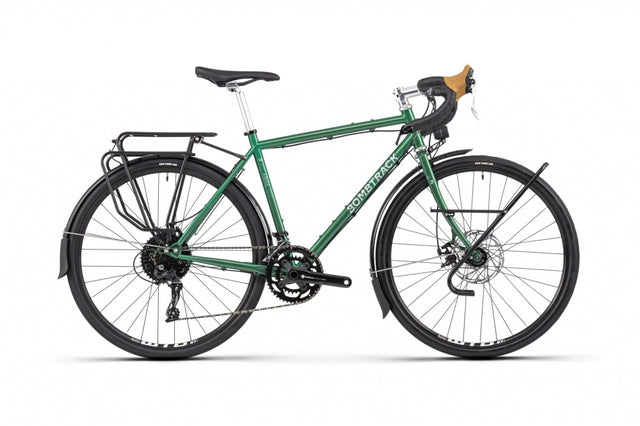

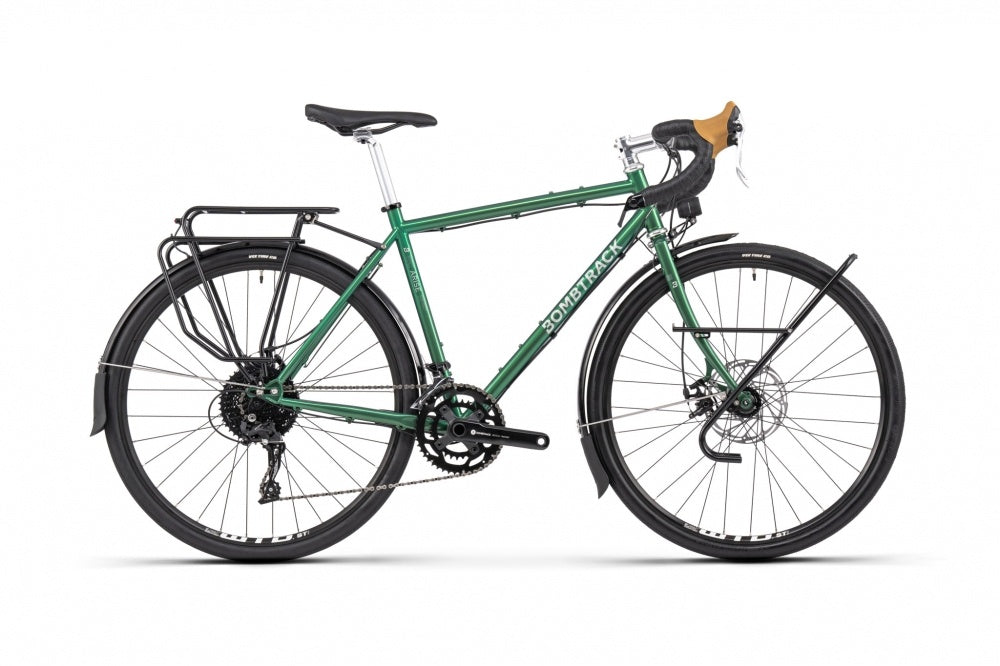

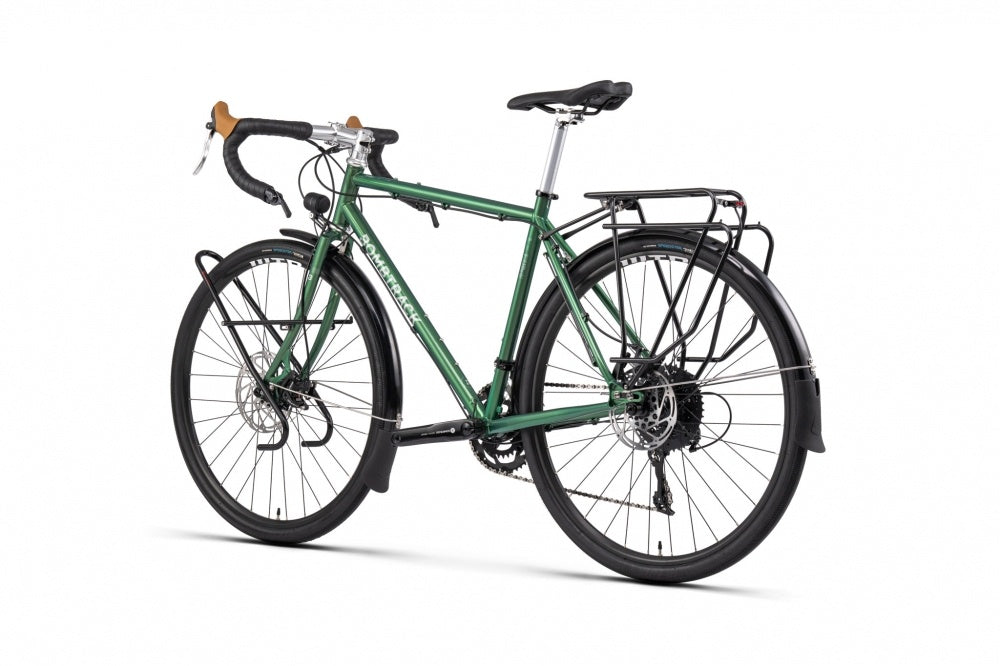

Bombtrack Arise Tour - 2024

If the wilderness beckons, the Arise Tour won’t stand in your way with its twin Tubus racks, mudguards and Supernova dynamo lights. Regardless of load, the Ames sub-compact 30 / 46T crankset and generous 11 – 42T cassette mean you’ll always have enough gears to tackle those steeper gradients. For a modern touch, flared bars allow for added packing space as well as sturdier handling while riding on the drops. For touring purists, bar-end shifters give you peace of mind over more complicated combination shifters.

TECHNICAL SPECIFICATIONS:

Color 1 Glossy Navy Blue

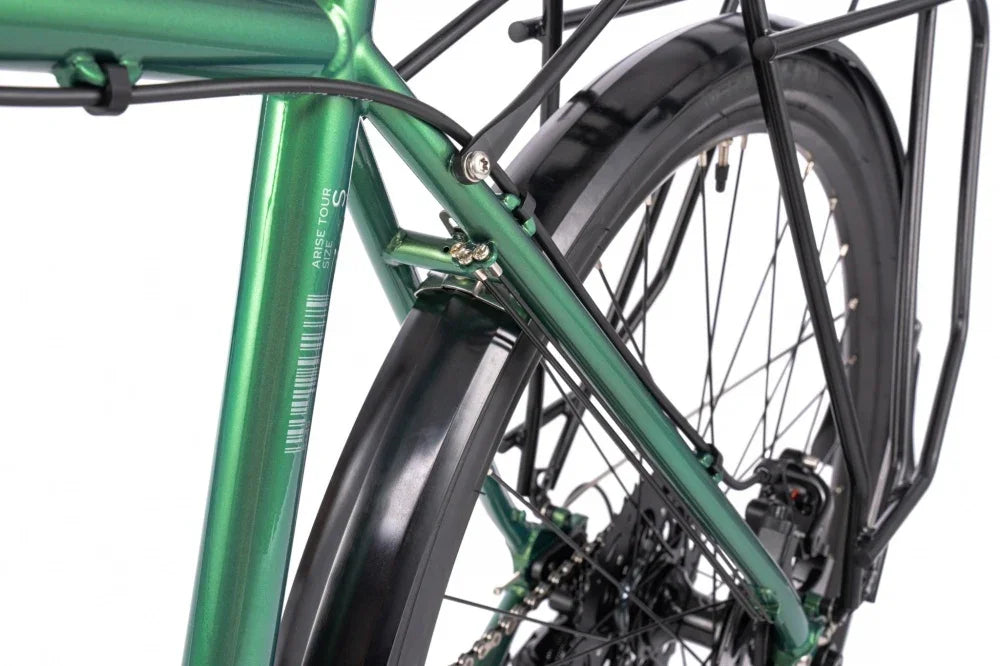

Frame 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
Fork 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing

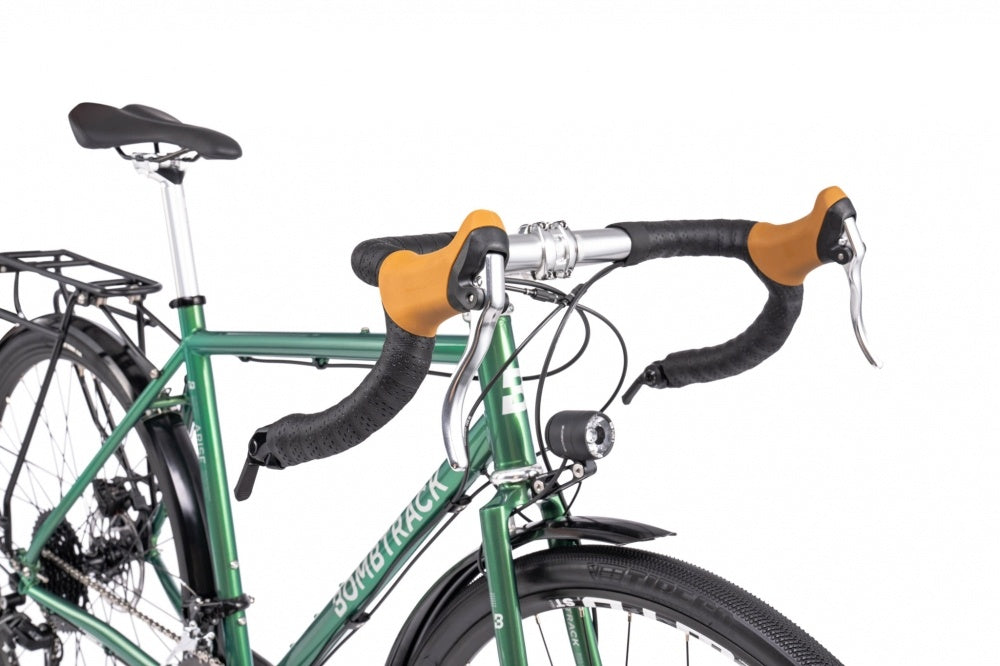

Handlebar BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Grips BOMBTRACK ESCAPE bar tape
Stem BOMBTRACK ROAM forged aluminium stem, -7°
Headset NECO H282 sealed external aheadset, 1.1/8''
Levers TEKTRO RL-340 brake levers

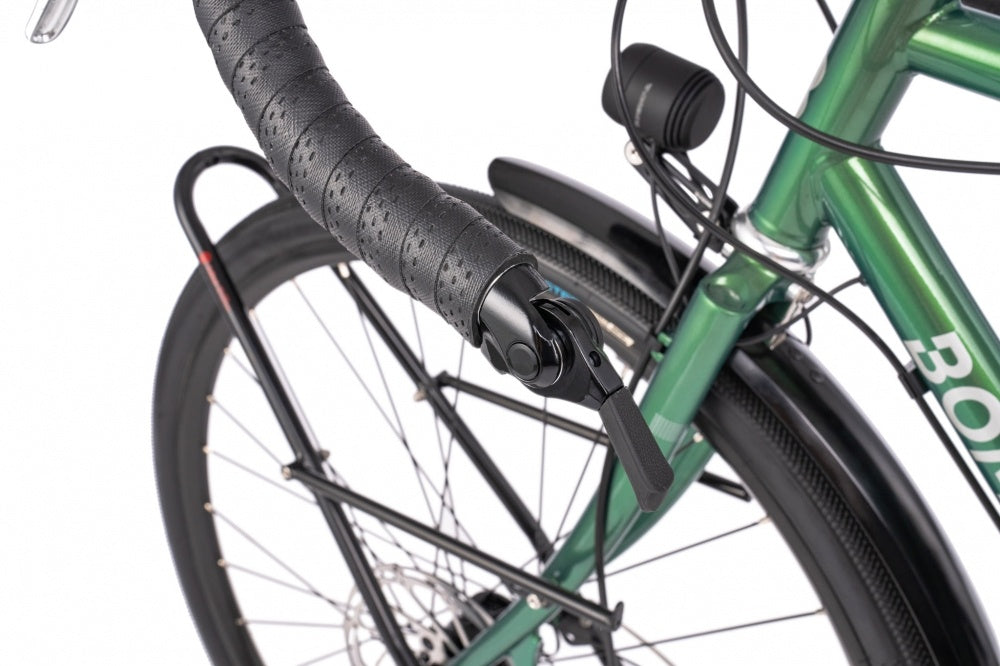

Shifter MICROSHIFT BS-M10 bar end shifter 2 x 10
Brakes TRP SPYRE C post mount mechanic disc brakes with 160 mm rotors
Crankset BOMBTRACK AMES forged aluminium crank, 24 mm spindle
BB BSA sealed BB, external cups
Pedals -
Chain KMC X10 chain, 1/2'' x 11/128'', 114L
Chainring Steel, subcompact, 46 / 30 T
Cassette MICROSHIFT CS-H103 10-speed, 11 - 42 T
Front derailleur MICROSHIFT FD-R552-B

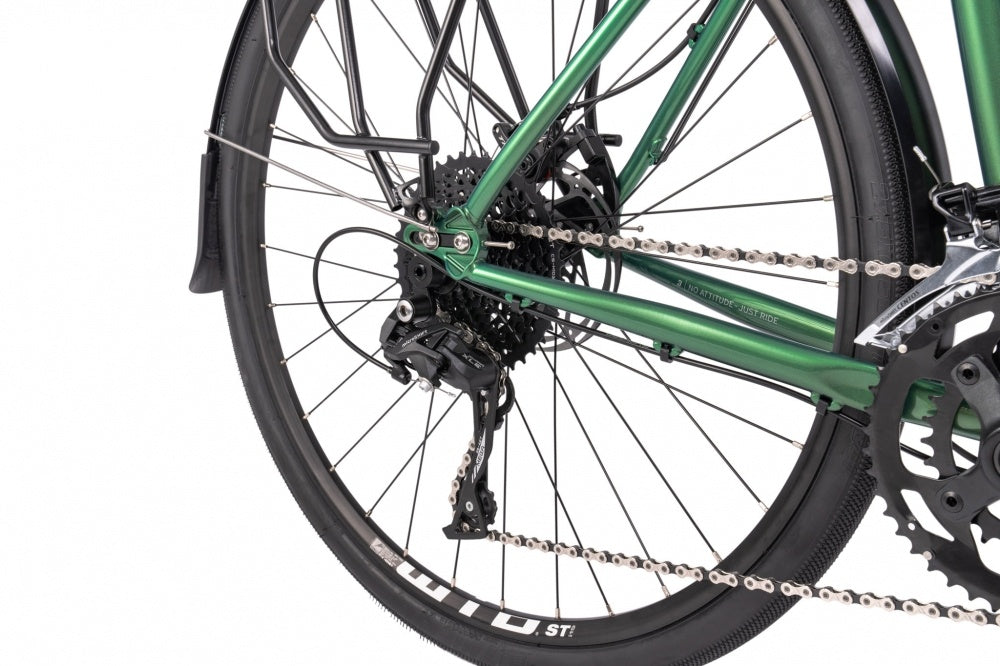

Rear derailleur MICROSHIFT RD-M62L, long cage
Front hub KT dynamo hub, 6-bolt disc
Rear hub BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Through axle 12 x 100 mm / 12 x 142 mm
Front rim WTB ST i19 double wall, TCS 2.0, 32h
Rear rim WTB ST i19 double wall, TCS 2.0, 32h
Saddle BOMBTRACK FUZZ
Seat post BOMBTRACK BEECH 27.2 mm x 315 mm
Seat clamp BOMBTRACK ORIGIN 29.8 mm
Front tire XS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622
Rear tire XS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622
Fender BOMBTRACK PIPE plastic fender, 50 mm

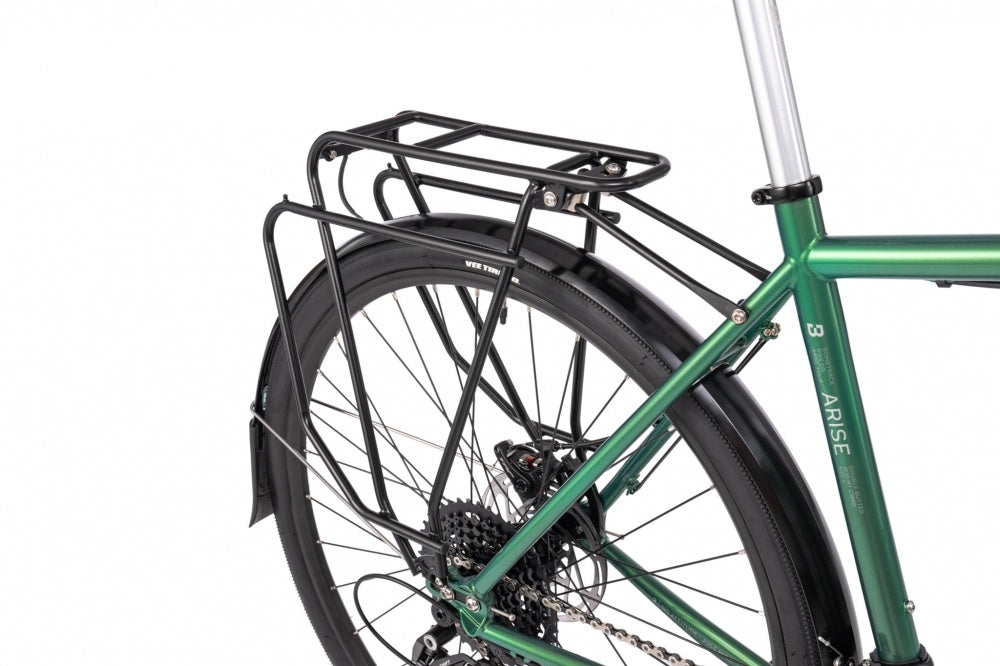

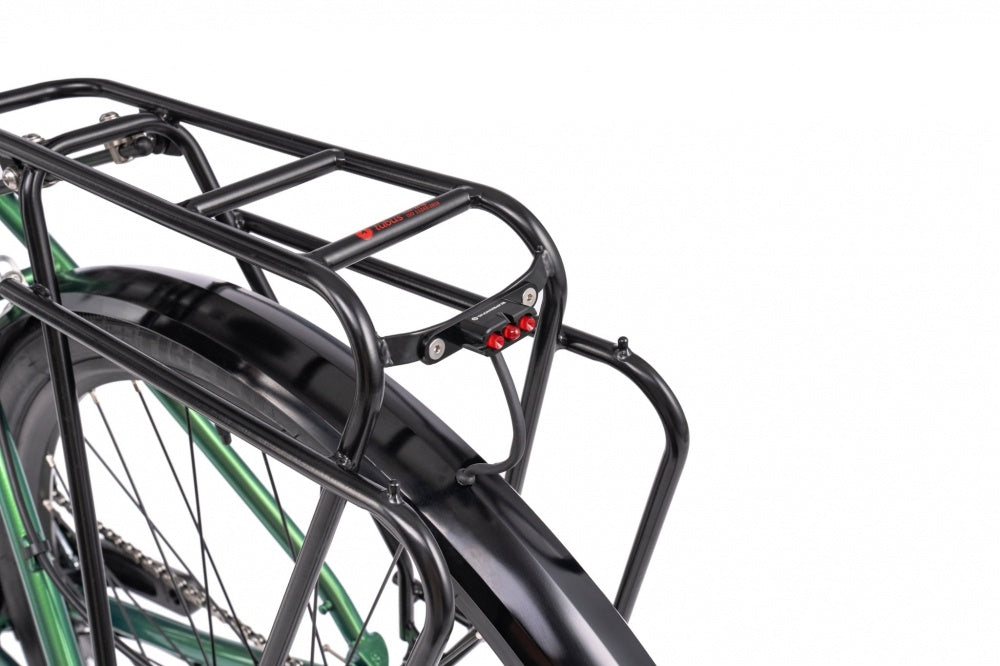

Rack TUBUS TARA front, LOGO EVO rear
Kickstand -

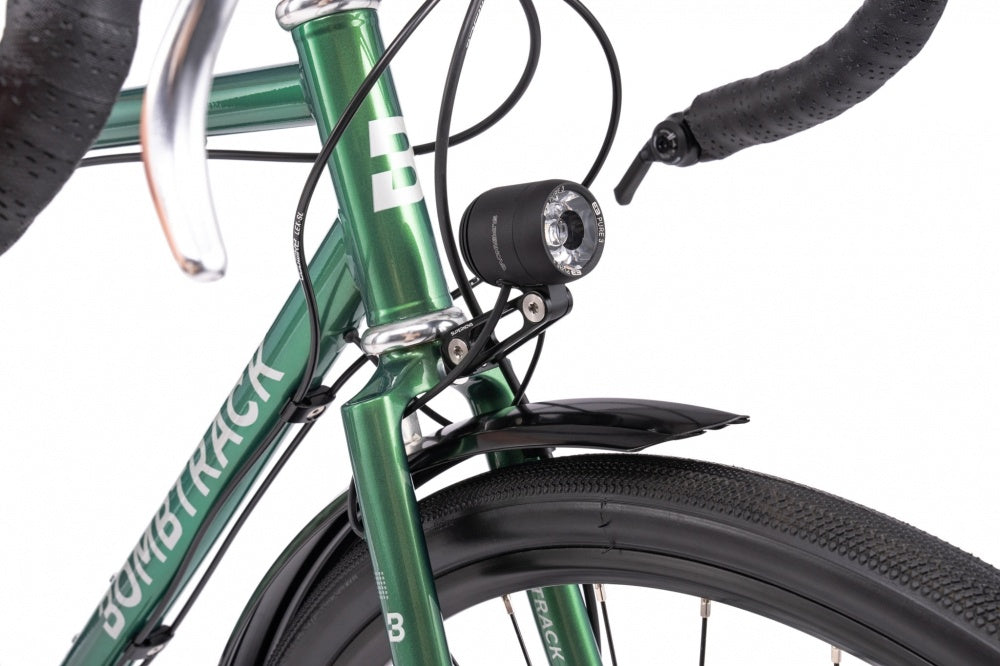

Light SUPERNOVA E3 PURE 3 front, E3 TAIL LIGHT 2 rear
Weight 14.7 kg (size M)
Weight frameset 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight 130 kg incl. luggage
ASTM riding condition 2
