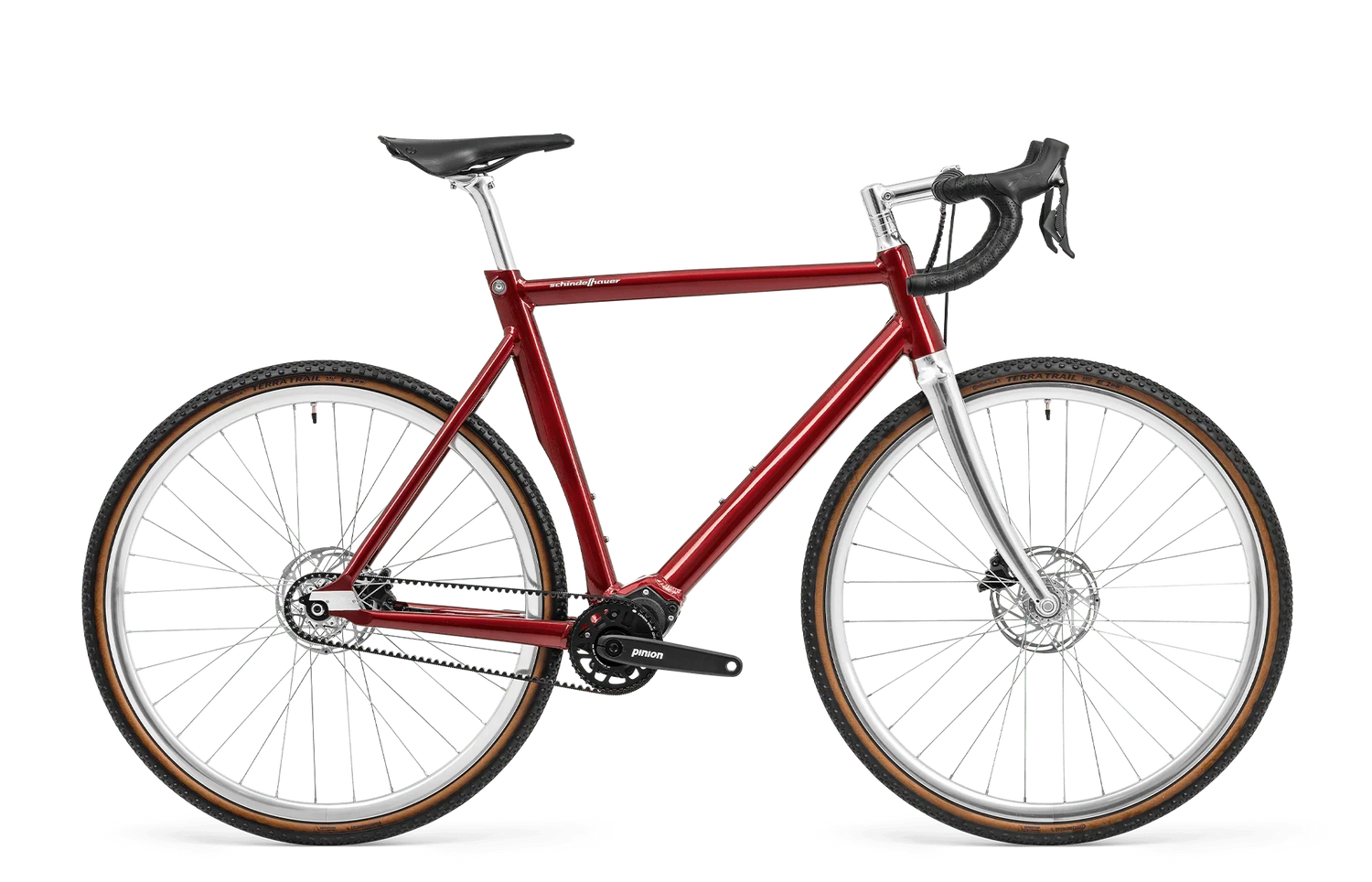

Schindelhauer Wilhelm P-Line

Sporty, individually designed and technically innovative - Wilhelm is our top model. At its heart is the Pinion gearbox. As the current reference in terms of gears, the P-Line is available with a maximum of 18 evenly graduated gears at a total transmission ratio of up to 636%. Alternatively, Wilhelm can be configured with the C-Line in a lightweight magnesium housing, which is available with 6, 9 or 12 gears. With the Pinion gearbox, each gear conveys the directness of a singlespeed transmission. The central position of the gearbox ensures that the bike is optimally balanced. High-quality hydraulic disc brakes, fine Brooks leather saddles and a finely toothed rear hub meet the highest quality standards.

Wilhelm can be fully customised according to customers’ requests.

• Pinion P-Line: 9-, 12- and 18-speed

• made to order and fully customisable
• low bottom bracket, long top tube and head tube for a sporty riding position also suitable for touring
• hydraulic disc brakes
• internal cable routing

• FRAME Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, Pinion bracket
• FORK Aluminium fork (tapered), 15mm through-axle, for flat mount disc brakes
• HEADSET Tange Seiki - integrated, 1 1/8-1.5
• POWER TRANSMISSION Gates Carbon Drive - CDX, front 39T, rear 28T, belt 111T
• GEAR SHIFT Pinion gear box P-Line 9-/12-/18-speed
• CRANK SET Pinion
• BOTTOM BRACKET Pinion
• PEDALS Schindelhauer - Urban Pedal, aluminium, CNC machined
• STEM Schindelhauer
• HANDLEBAR Satori - Noirette, aluminium
• SADDLE Brooks - Swallow Classic (P-Line), Brooks - B17 (C-Line)
• SEATPOST Schindelhauer
• GRIPS Schindelhauer - ergo leather grips
• WHEELS Schindelhauer high flange front hub disc, Schindelhauer – rear hub disc (fine toothed), Alexrims – CXD26 rims with eyelets, Sapim – Race spokes, 3-cross and 3-cross laced
• BRAKES Shimano - Alfine S7000 disc brake (hydraulic), 160mm
• TYRES Continental - GP Urban Classic 35-622
• WEIGHT 12.0 kg / 12.3 kg / 12.6 kg
• MAX. TOTAL WEIGHT 120 kg (bike + rider + luggage)
• MUDGUARDS mudguard mounting possible
• PANNIER RACK front- and rear pannier rack mounting possible
• LIGHTING optional

The Manufacturer Reserves The Right to Make Minor Changes To Features Without Prior Notice!
