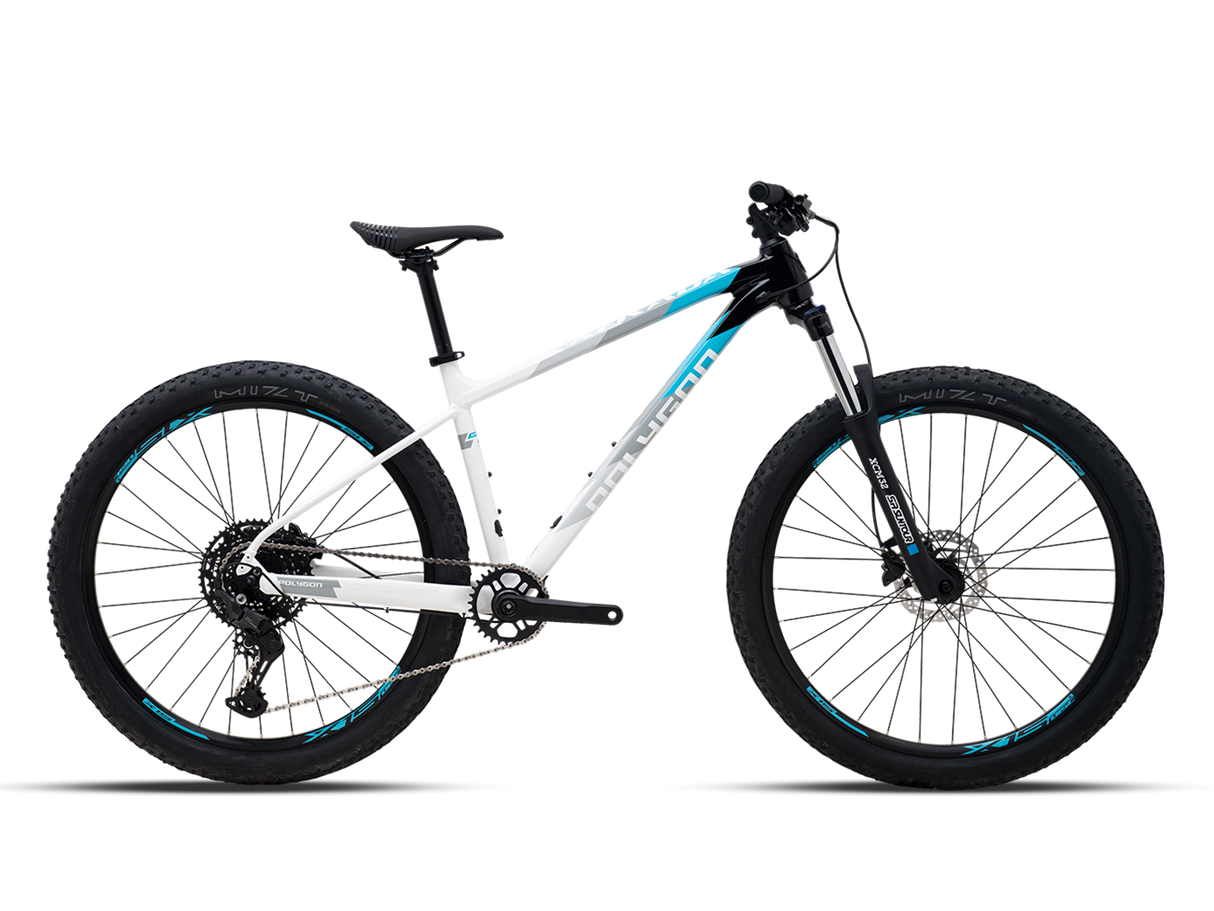

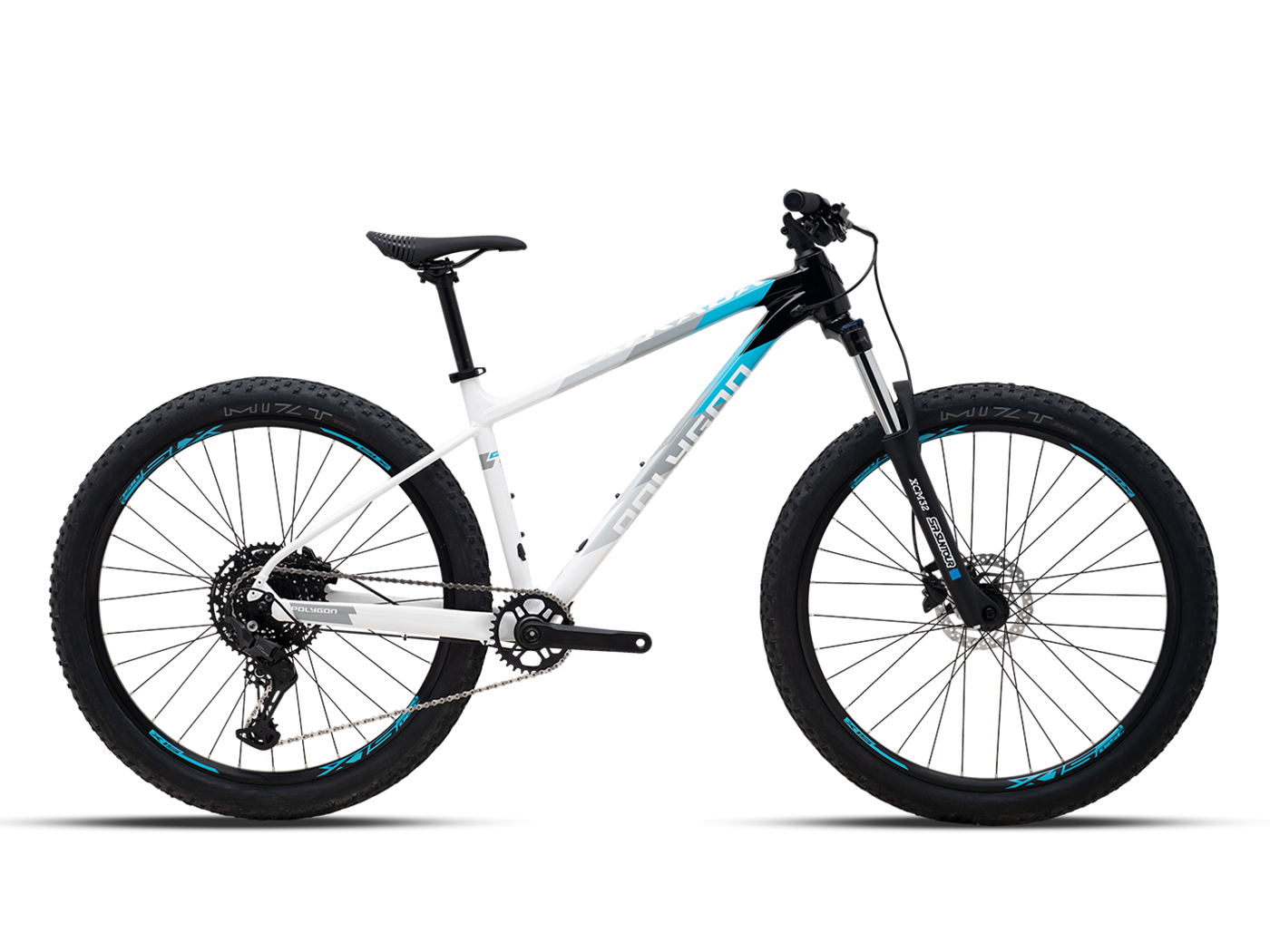

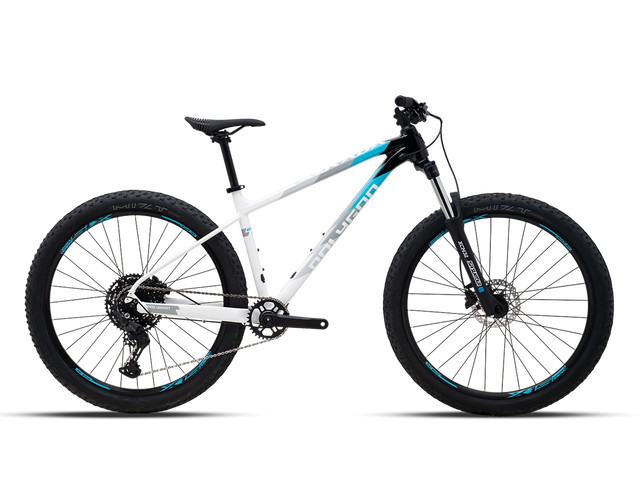

Polygon Xtrada 5

"Riding with Xtrada, feels like running as a wolf," they said. As an XC bike should be, Xtrada is born to run the game with you. Impeccably versatile, effortlessly fast, and obsessively comfortable. The Xtrada is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure.

Features

Perfectly fits the rider for an efficient ride and optimum riding experience with Wheel Fit Size System
Better acceleration and cornering with short chainstay
Accompanied with suspension fork to smooth out the ride on rough terrains
Steady handling with Tapered Headtube

Specifications

Frameset
ALX XC TRAIL

Fork
SR SUNTOUR XCM-HLO 120mm (27.5" & 29") TRAVEL

Rear Shock
-

Frame Color
WHITE BLACK

Decal Color
WHITE



Drivetrain

Shifter
SHIMANO 10 SPEED TRIGGER

Crank
PROWHEEL 32T 170mm

Cassette
SHIMANO 10 SPEED

Rear Derailleur
SHIMANO 10 SPEED, DIRECT ATTACH

BB
SHIMANO 2-PIECE CRANKSET BSA THREADED 73mm

Chain
KMC CHAIN

Pedal
PP FLAT PEDAL W/ REFLECTOR

Cockpit

Saddle
POLYGON, STEEL ø 7mm

Seatpost
POLYGON XPERT ALLOY, DXL: 27.2 x 350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR

Handlebar
POLYGON SPORT ALLOY, W: 760mm, BAR BORE: 31.8mm, RISE/DROP: 12mm, BEND: 6degree

Handlestem
POLYGON SPORT ALLOY, EXT: 45mm, BAR BORE: 31.8mm, RISE/DROP: 3degree

Headset
ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/40



Wheel & Tire

Wheel Set
ALLOY WHEELS

Wheel Size
27.5" / 29"

Tire
PERFORMANCE TIRE 27.5"X2.25" / 29"X2.25"

Rim
ALLOY DOUBLE WALL H:19mm W: 23mm 584 32H FOR TYRE 584-68/622-68



Brake

Brake Lever
HYDRAULIC DISC LEVER

Brake Caliper
HYDRAULIC DISC BRAKES

Rotor
160mm

	S (27.5″)	M (27.5″)	L (27.5″)	M (29″)	L (29″)	XL (29”)
Height (cm)	155-165	165-175	175-185	165-175	175-185	185-195
Seat Tube Length (A)	385	425	460	425	460	500
Seat Tube Angle (B)	75	75	75	75	75	75
Effective Seat Tube Angle (C)	75	75	75	75	75	75
Head Tube Length (D)	95	100	105	95	100	105
Head Tube Angle (E)	67	67	67	67	67	67
Effective Top Tube (F)	569	590	612	598	619	640
Bb Height (G)	310	310	310	309	309	309
Bb Offset (H)	45	45	45	65	65	65
Chainstay Length (I)	425	425	425	435	435	435
Wheelbase (J)	1106	1128	1150	1147	1169	1191
Frame Reach (K)	410	430	450	430	450	470
Frame Stack (L)	593.8	5993	603	629.3	633.2	637.8
Standover Height (M)	663	697	726	693	715	751
