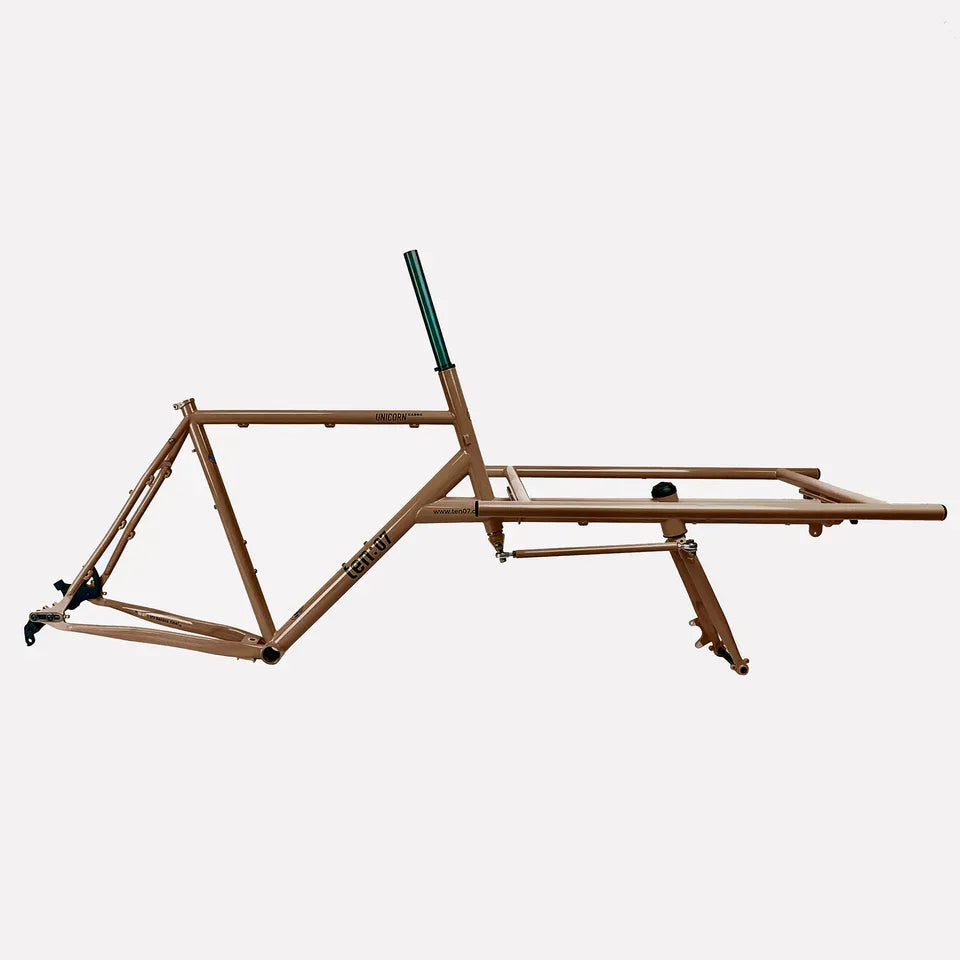

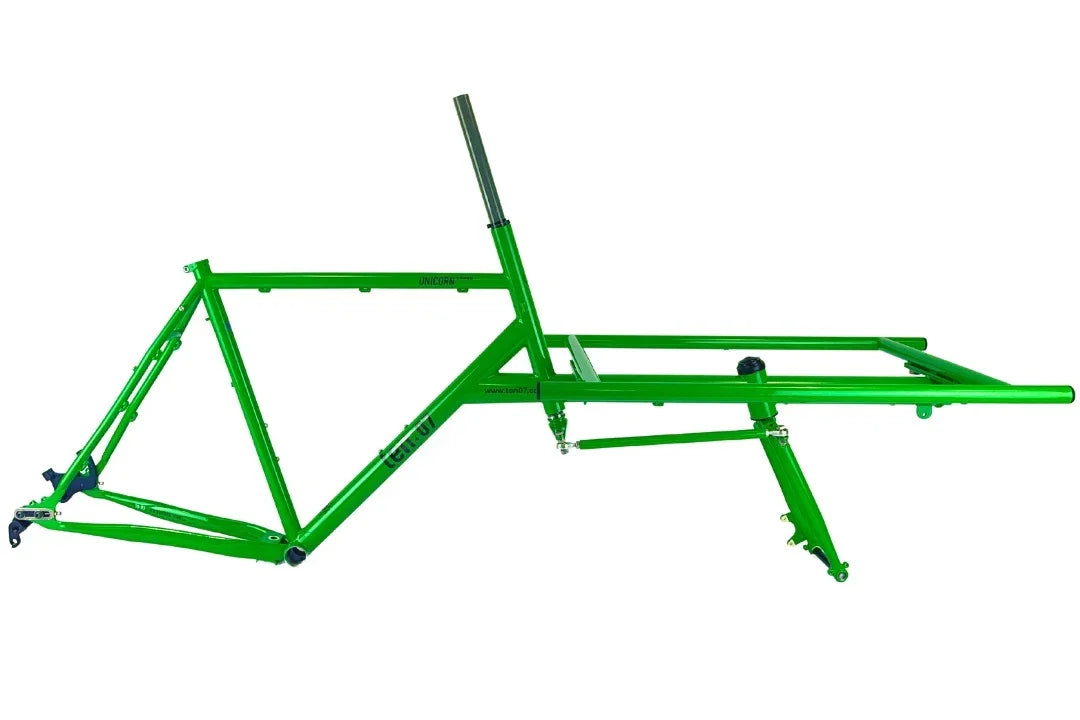

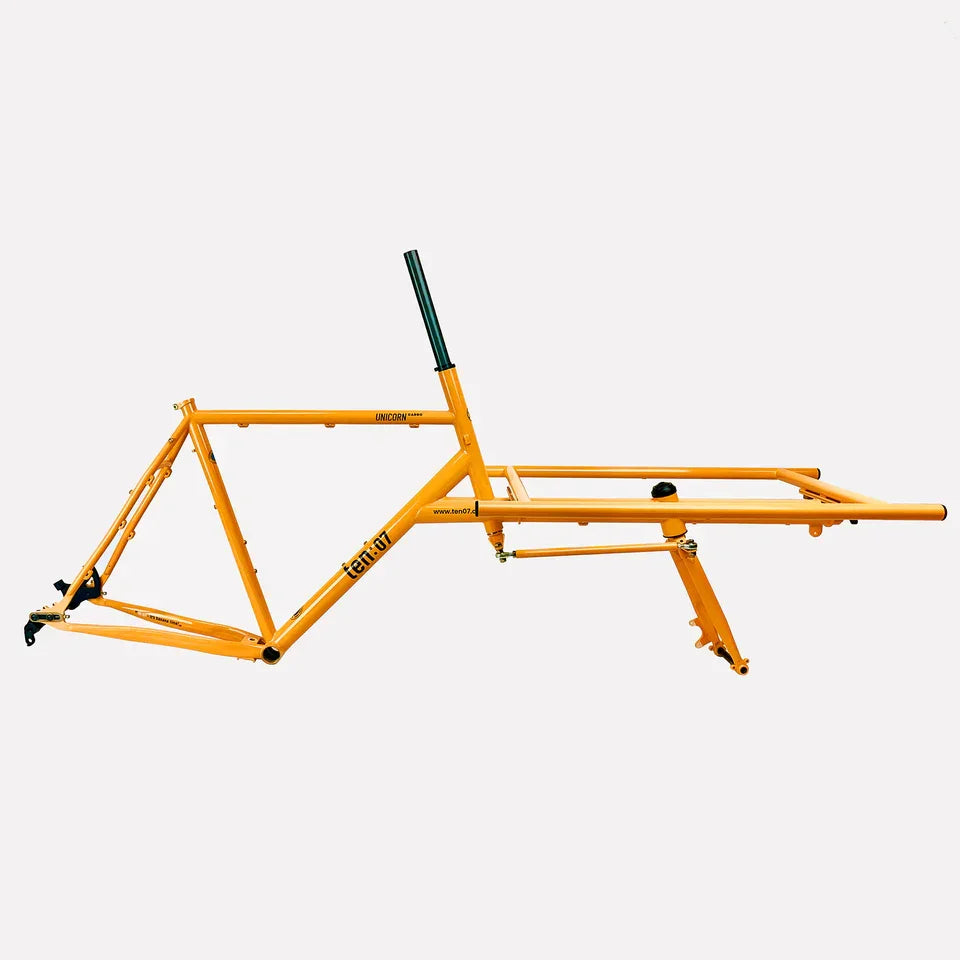

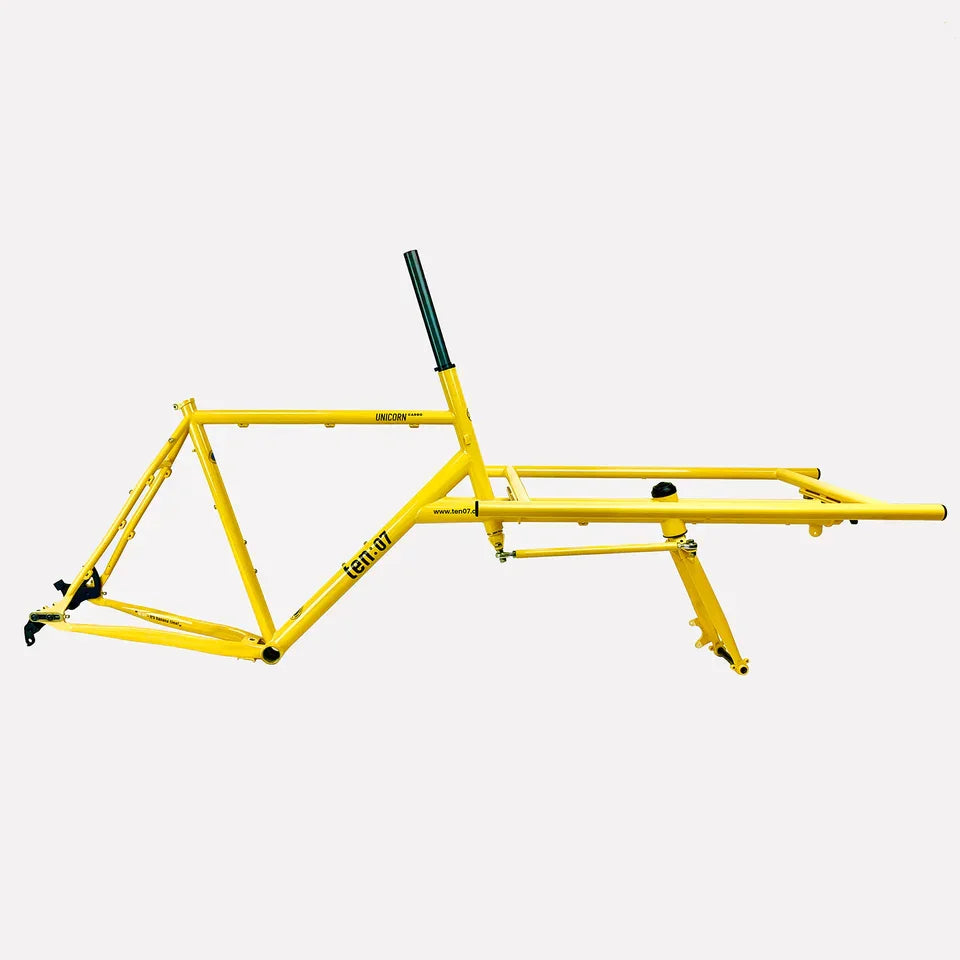

Ten07 Unicorn Cargo Bike Frame Kit
Have you ever wanted a cargo bike, but never had the space for it?
Well, have we got just the bike for you!
Introducing our very first cargo bike model, the Unicorn Cargo Bike. Looks like a cargo bike, rides like a normal bike- but it’s so much more than that! With the Unicorn, you get the benefit of having a bike that can carry some serious volume without needing that much space to store it. The Unicorn basically defies the laws of physics (not really).

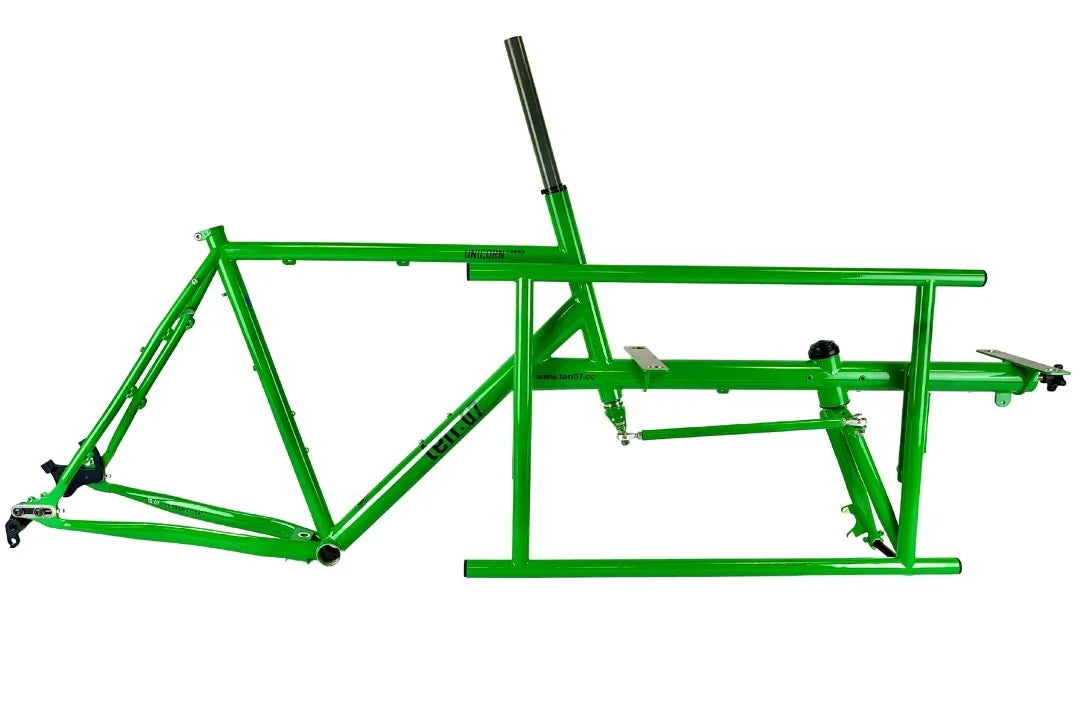

With our signature quick-release mechanism on our platform, you can transform the bike from a load-bearing machine to a bike so narrow you can practically store it in your hallway. All within a span of five seconds.
Maximum Recommended load:
Driver’s weight: 100kg
Total maximum load (payload + driver’s weight): 160kg
Unicorn Cargo frame kit includes:
Frame:
- 25CrMo4 Double-Butted steel tubes
- Front wheel: 20”(406), 15x100mm thru axle, disc only
- Front tyre clearance: maximum 55mm with mudguards
- Rear wheel: 28”(622), 12x142mm thru axle, disc only
- Rear tyre clearance: maximum 60mm with mudguards
- Seat post diameter: 27.2mm
- Bottom bracket: BSA 68mm
- Steering headset: 1 1/8”
Cargo rack (25CrMo4 steel tubes)
- 25CrMo4 steel tubes
- Stainless steel sliding system
Fork:
- 25CrMo4 steel tubes
- Fork headset: 1 1/8” semi-integrated bearings with threaded locking caps
Thru axle and dropouts
Steering arm and steering tube
| Size | Small | Medium | Large |
| Standover height (A) | 752mm | 790mm | 829mm |
| Seat tube length (B) | 500mm | 540mm | 580mm |
| Top tube length (C) | 500mm | 540mm | 580mm |
| Bicycle length (D) | 1995mm | 2036mm | 2076mm |
| Rack dimension (E) | 800mm | ||
| Rack dimension (F) | 500mm | ||
| Maximum storage space width | 50cm | ||
