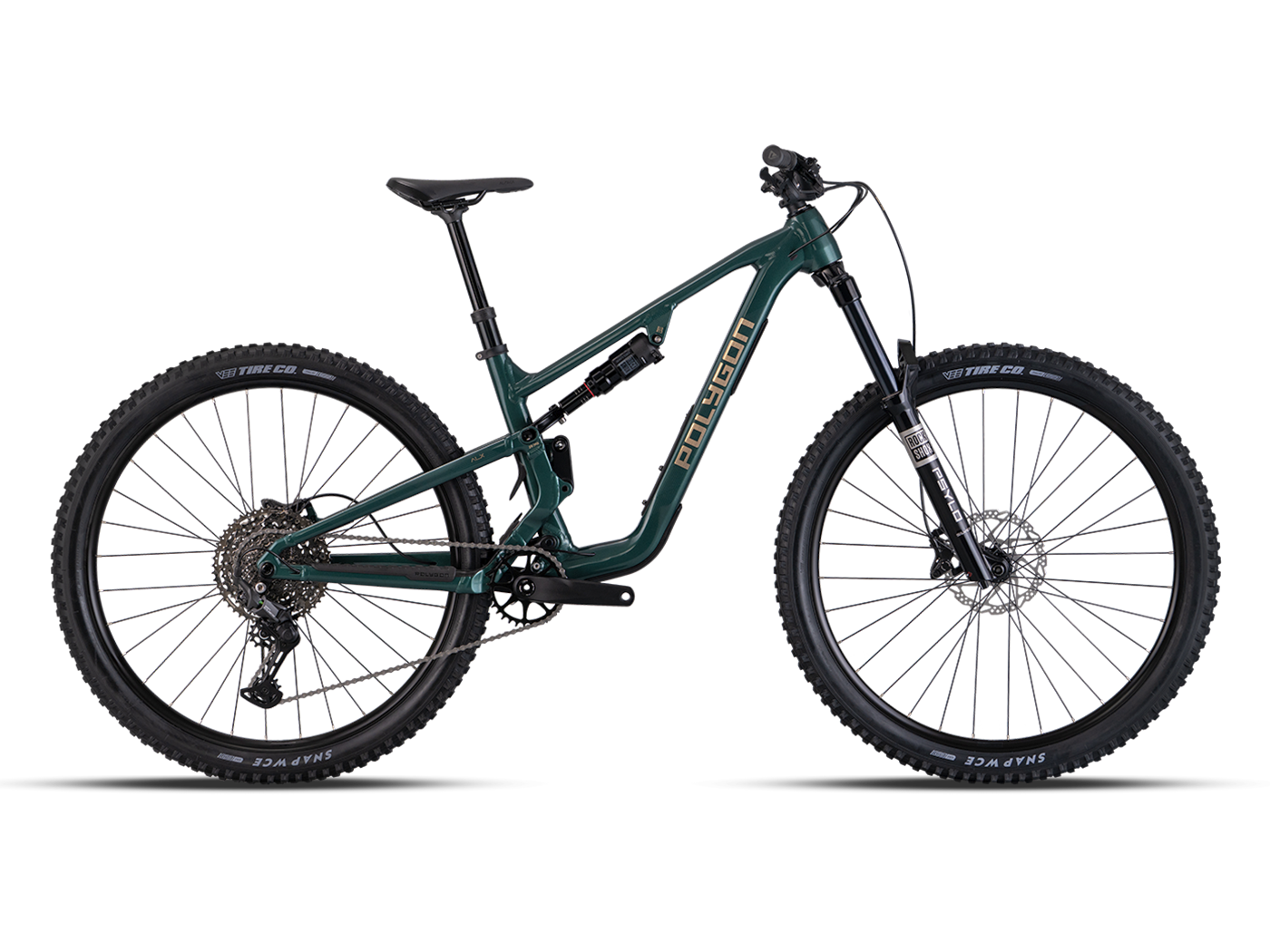

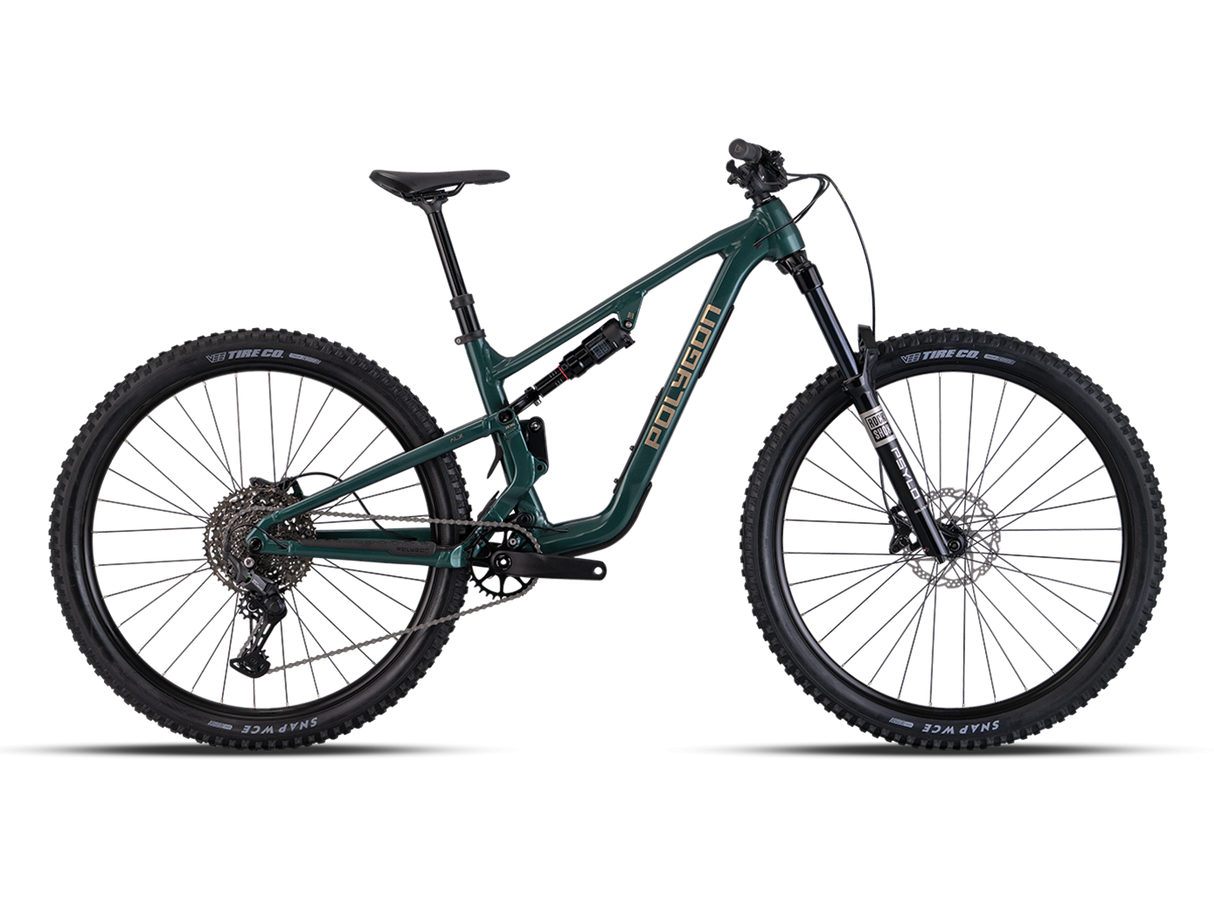

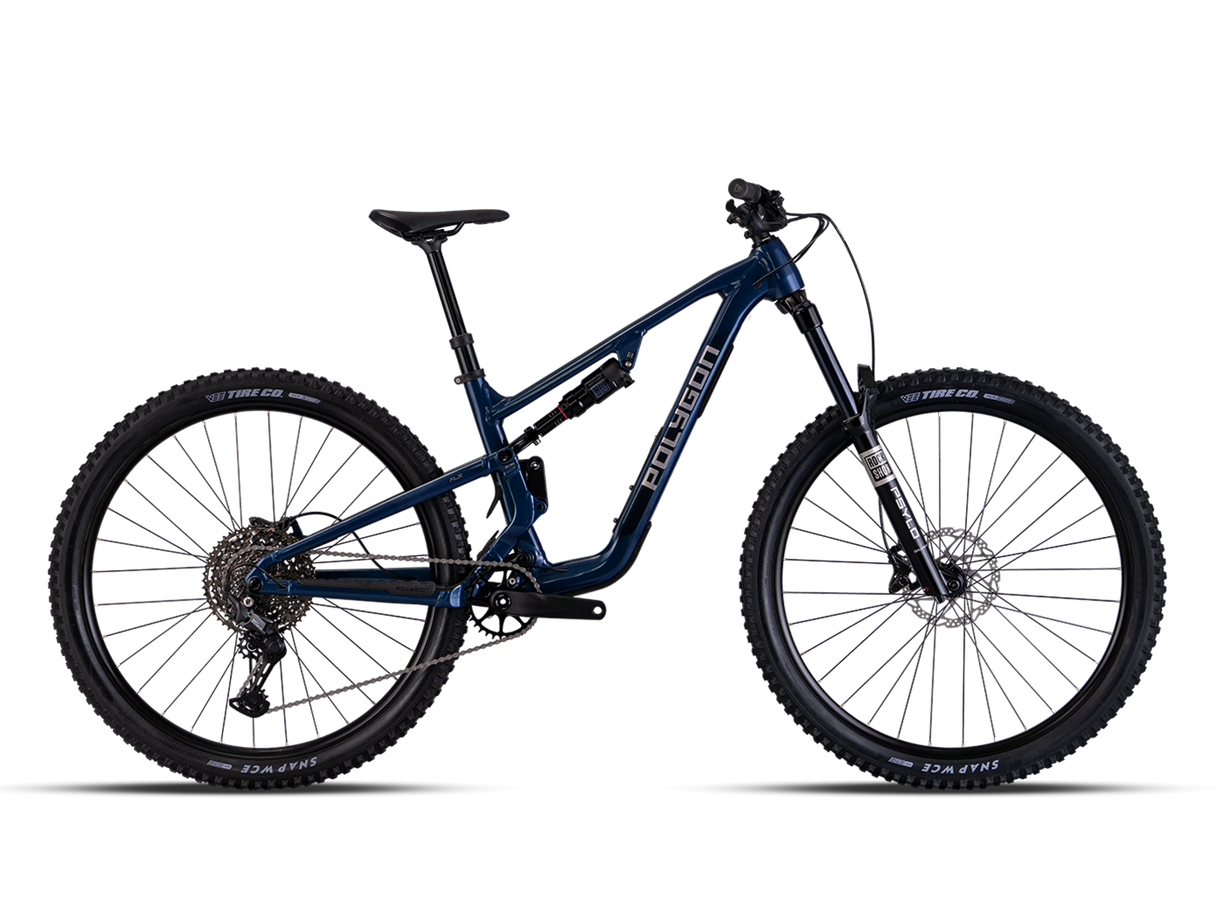

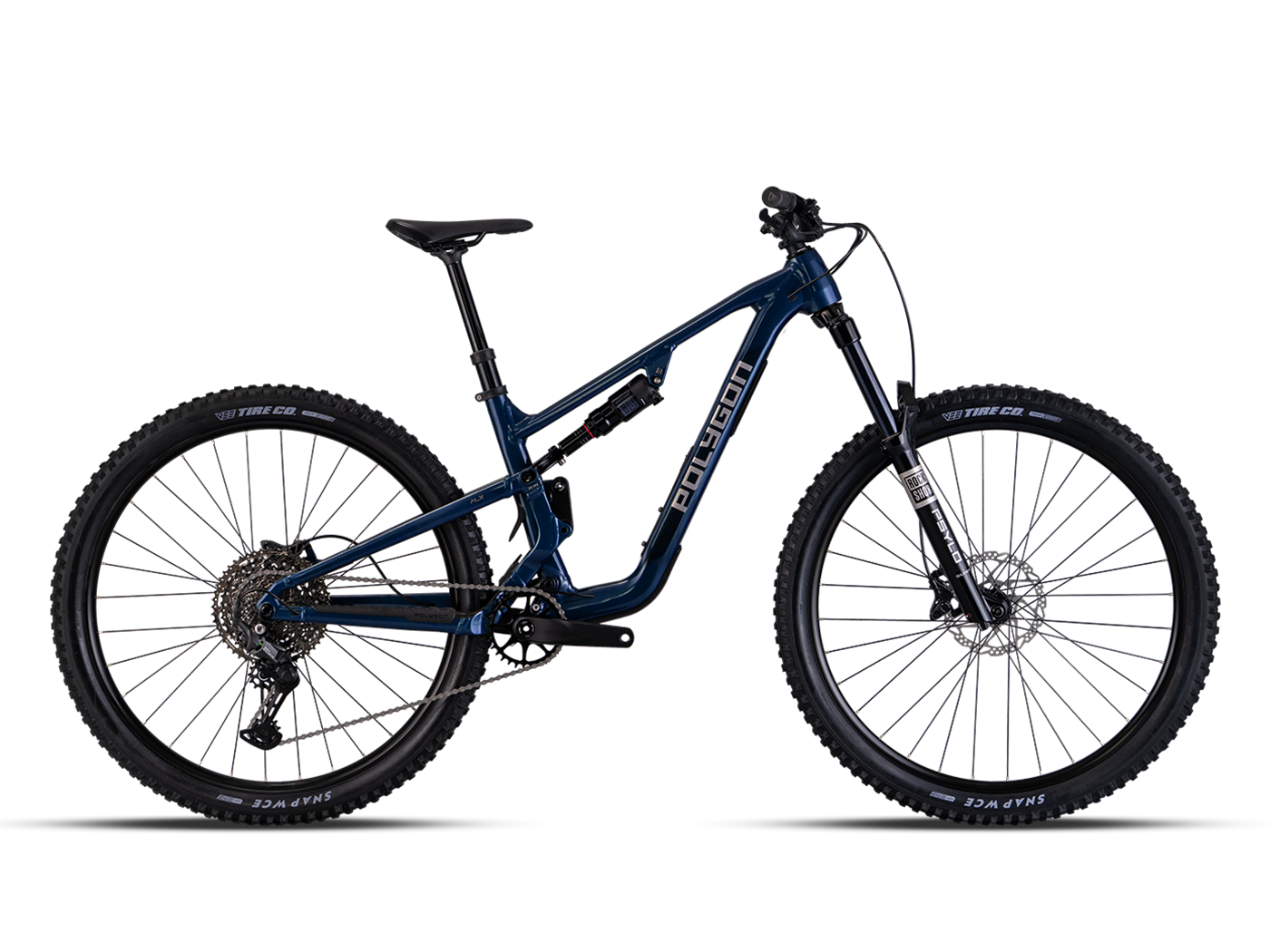

Polygon Collosus T5 - 2026
🔥 Get Ready for Summer SALE – ends in
COLLOSUS T: Modern Trail Bike Design
Features
Riders worldwide have different demands - so your bike should be adaptable too. Head angle can be slackened to 63.5° using the included headset cups in the box, along with a high/low BB position flip chip for fine tuning your ride style.
The twin-link layout is inspired directly from the gravity 6-bar IFS linkage of the COLLOSUS N, which was developed on the EDR race circuit to maximise traction, high speed stability and control. IFS compact has been designed to carry over all these qualities in a more pedal efficient, lower weight package.
Frame storage always helps save the day - the PolyPocket keeps your trailside spares secure and within reach. The insert bag attaches with a Velcro backing for a rattle-free fit, and includes a stopper to prevent sliding toward the bottom bracket.
Switchable between 29” and MX setups with easy-to-use seatstay flip chips. No extra parts needed to get your party in the back setup.
Specification
Frameset
ALX TRAIL
Fork
ROCKSHOX PSYLO SILVER RC 160mm
Rear Shock
ROCKSHOX DELUXE SELECT, E2E: 210x55mm
Decal Color
BROWN / SILVER
Drivetrain
Shifter
SHIMANO CUES SL-U6000-11R, 11-SPEED TRIGGER
Crank
SAMOX RAC61C CL55, 32T
Cassette
SHIMANO CUES CS-LG400-11, 11-50T
Rear Derailleur
SHIMANO CUES RD-U6000-GS DIRECT ATTACH
BB
SAMOX EB2401C BSA THREADED 73mm
Chain
KMC XGLIDE
Pedal
ALLOY FLAT PEDAL W/ REPLACEABLE PIN & REFLECTOR
Cockpit
Saddle
FIZIK TERRA ALPACA X5
Seatpost
XFUSION MANIC LC 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 432mm (S, M) / 474mm (L, XL)
Handlebar
POLYGON XPERT, W: 780mm, BB: 35mm, R/D: 30mm, B: 9degree
Handlestem
POLYGON XPERT, E: 35mm, BB: 35mm, R/D: 0degree
Headset
FSA NO.76 ALLOY TOP COVER, THREADLESS, ZS 51/28.6 | ZS 59/40
Wheel & Tire
Wheel Set
POLYGON MT6 TUBELESS READY
Tire
VEE SNAP WCE 29"x2.35"
Rim
ALLOY DOUBLE WALL H: 18mm W: 29mm 622-29 32H FOR TYRE 622-54/76 TL READY
Hub
F: SHIMANO HB-TC-500 BOOST 15x110mm 32H CL, R: SHIMANO FH-TC500 BOOST 12x148mm 32H CL FOR SPROCKET
Spokes
F: 14G STAINLESS NDS:292mm DS:294mm W/ 12mm BRASS NIPPLE, R: 14G STAINLESS NDS:292mm DS:290mm W/ 12mm BRASS NIPPLE
Brake
Brake Lever
SHIMANO BL-M4100
Brake Caliper
SHIMANO MT420 HYDRAULIC DISC
Rotor
SHIMANO SM-RT54, 180mm CL

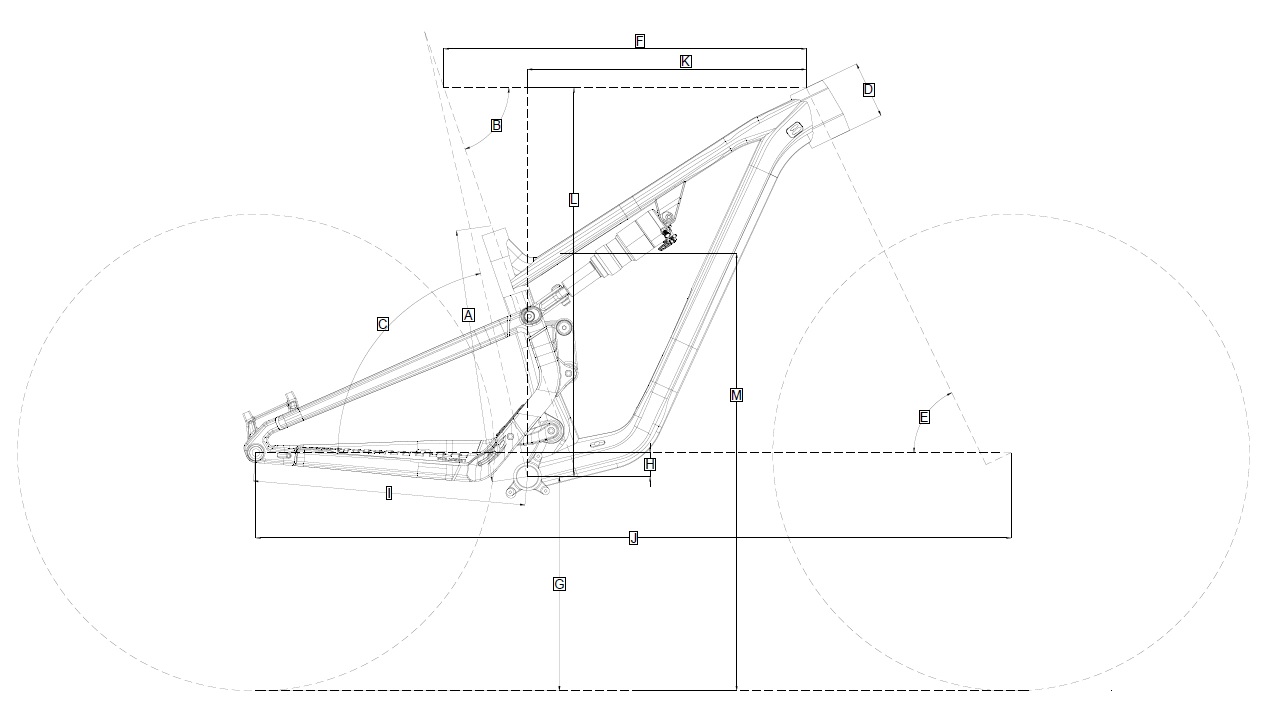

Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 390 | 400 | 415 | 430 |
| Seat Tube Angle (B) | 71 | 71 | 71 | 71 |
| Effective Seat Tube Angle (C) | 77 | 77 | 77 | 77 |
| Head Tube Length (D) | 90 | 95 | 105 | 120 |
| Head Tube Angle (E) | 64.5 | 64.5 | 64.5 | 64.5 |
| Effective Top Tube (F) | 572 | 598 | 621 | 646 |
| Bb Height (G) | 338 | 338 | 338 | 338 |
| Bb Offset (H) | 38 | 38 | 38 | 38 |
| Chainstay Length (I) | 430 | 430 | 435 | 435 |
| Wheelbase (J) | 1192 | 1219 | 1248 | 1274 |
| Frame Reach (K) | 440 | 465 | 485 | 505 |
| Frame Stack (L) | 613 | 618 | 627 | 640 |
| Standover Height (M) | 706 | 713 | 720 | 718 |
