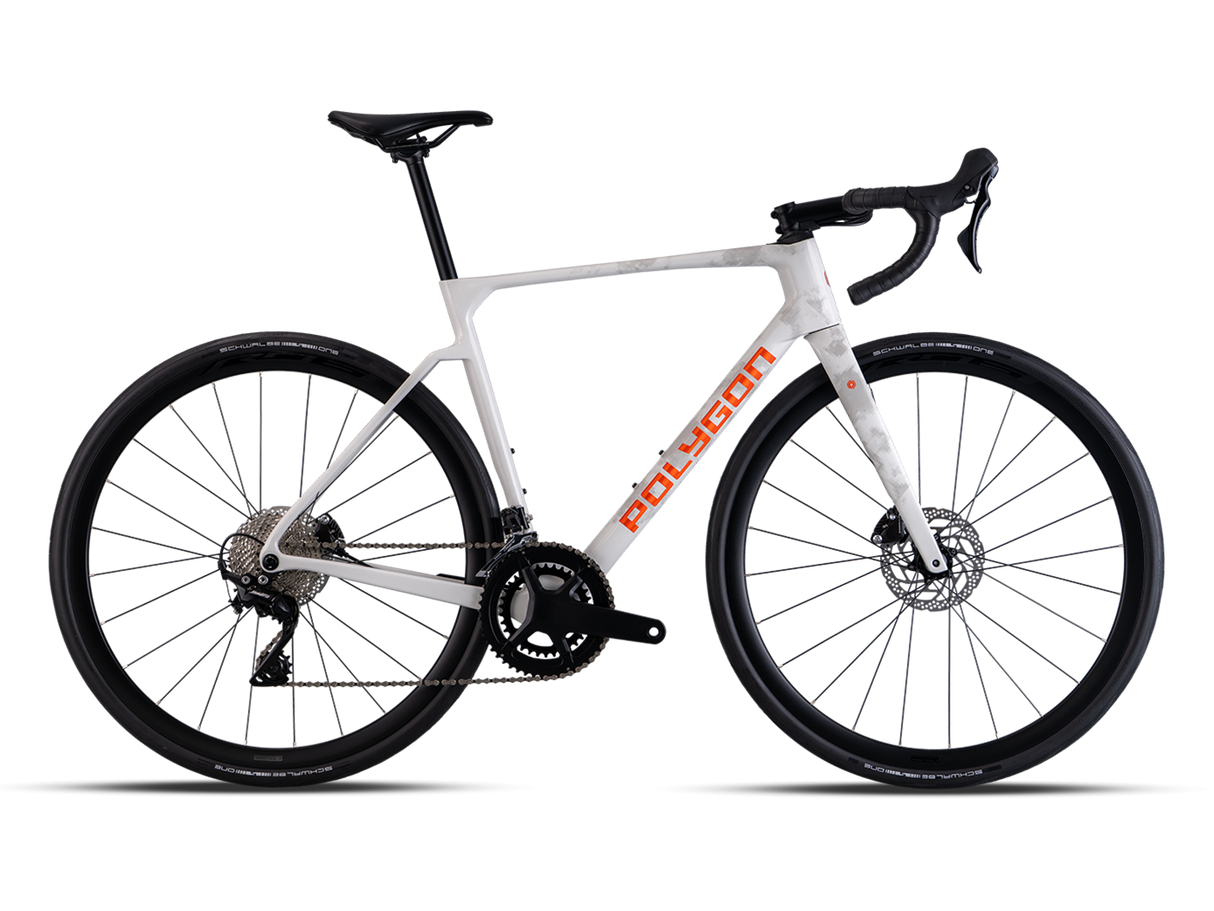

Polygon Strattos S6
🔥 Get Ready for Summer SALE – ends in
Features
Optimized stack height provides a more upright riding position, reducing strain on your back and shoulders. Designed to keep you comfortable and efficient through long rides, endurance events, and every mile in between.
The old myth that performance and comfort can’t coexist - busted. The new Strattos features an engineered seat stay design that absorbs road vibrations without compromising stiffness, allowing riders to perform at their best for longer without fatigue.
Wide Tire Clearance for All-Road Versatility
It accommodates tires up to 34c, giving riders the freedom to fine-tune their setup for speed, comfort, or stability — making it ultra-versatile across a wide range of road conditions.
Future-Ready Compatibility
Designed with UDH for a cleaner standard, easier maintenance, and broader compatibility moving forward.
Streamlined Cable Routing
Semi-internal routing keeps cables neatly managed for a cleaner look, easier maintenance, and everyday practicality.
Specification
Frameset
CARBON ENDURANCE
Fork
CARBON ENDURANCE
Frame Color
WHITE
Decal Color
BRONZE
Drivetrain
Shifter
SHIMANO TIAGRA R4020, 2x11 SPEED
Crank
PROWHEEL ARE-C607X-TT, 50/34T
Cassette
SHIMANO TIAGRA RS400, 11-36T
Rear Derailleur
SHIMANO TIAGRA R4000
BB
TOKEN T47 FOR 24mm SPINDLE, 68mm
Chain
KMC X11
Cockpit
Saddle
LINC GLYD
Seatpost
POLYGON EXPERT ALLOY HEAD TUBE, DxL: 27.2x350mm
Handlebar
POLYGON EXPERT ALLOY, W: 380mm (XXS, XS, S) / 400mm (M, L) / 420mm (XL, XXL), BB: 31.8mm, R/D: 125mm
Handlestem
POLYGON EXPERT ALLOY, E: 90mm (XXS) / 100mm (XS, S) / 110mm (M, L) / 120mm (XL, XXL), BB: 31.8mm, R/D: 7degree
Headset
INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Wheel & Tire
Wheel Set
POLYGON RD6 DISC
Tire
SCHWALBE ONE ADDIX TLE 700x30C
Rim
ALLOY DOUBLE WALL 622-19 24H FOR TYRE 622-28/62, DISC TUBELESS READY
Hub
F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CL, R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CL
Spokes
F: STAINLESS SPOKES NDS: 278mm DS: 280mm, R: STAINLESS SPOKES NDS: 280mm DS: 278mm
Brake
Brake Lever
SHIMANO TIAGRA R4020
Brake Caliper
SHIMANO TIAGRA HYDRAULIC DISC
Rotor
SHIMANO RT30 160mm CENTER LOCK
Geometry & Size
| XXS | XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Height (cm) | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 | 185-195 |
| Seat Tube Length (A) | 400 | 430 | 470 | 520 | 560 | 580 | 610 |
| Seat Tube Angle (B) | 74.5 | 74.5 | 74 | 73.5 | 73 | 73 | 73 |
| Effective Seat Tube Angle (C) | 74.5 | 74.5 | 74 | 73.5 | 73 | 73 | 73 |
| Head Tube Length (D) | 100 | 115 | 125 | 136 | 162 | 191 | 217 |
| Head Tube Angle (E) | 70.5 | 70.5 | 71.5 | 72 | 72 | 72 | 72 |
| Effective Top Tube (F) | 498.4 | 507.2 | 525.1 | 542.4 | 564.3 | 580.97 | 597.61 |
| Bb Height (G) | 268 | 268 | 268 | 270.5 | 270.5 | 273 | 273 |
| Bb Offset (H) | 76.5 | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Chainstay Length (I) | 415 | 415 | 415 | 415 | 415 | 414 | 415 |
| Wheelbase (J) | 975.1 | 985.1 | 989.3 | 995.2 | 1012.3 | 1030.7 | 1047.84 |
| Frame Reach (K) | 355 | 360 | 369 | 378 | 387 | 396 | 405 |
| Frame Stack (L) | 516.9 | 531.1 | 544.3 | 555 | 580 | 605 | 630 |
| Standover Height (M) | 686.1 | 711.4 | 747.4 | 784.5 | 821.7 | 845 | 868.9 |
