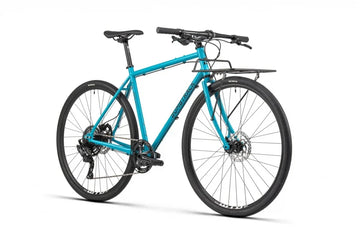

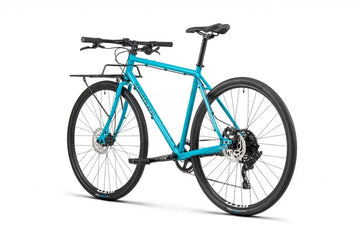

Bombtrack ARISE GEARED - 2024
Bombtrack ARISE GEARED - 2024
Description

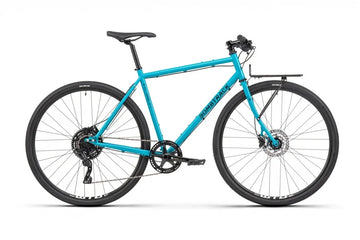

Is it a commuter, a delivery bike or a practical work bike? Our 2024 Arise Geared is all three and more. We use the same quality double-butted frame as all our Arise models but now with the addition of a Bombtrack Deck front rack, a Microshift Advent 1 x 9 drivetrain with an 11 – 42T cassette, flat bars and Shimano hydraulic brakes. Wide Vee Tire Speedster tyres are ideally suited to urban road surfaces, with excellent straight-line speed and edge grip for park and towpath ‘shortcuts’. The Arise Geared is the perfect bike for trips to the shops, commuting, or just loading it up and heading off into the woods for the weekend.
Specification
Color 2 Matt Petrol Blue
Frame 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
Fork 4130 crmo, TA, rack / fender mounts, internal hub
dynamo cable routing

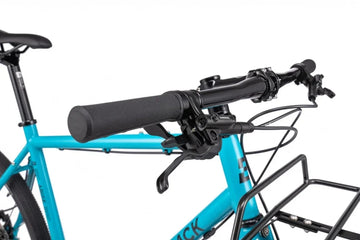

Handlebar Bombtrack Origin flat bar, 31.8 mm, 8° backsweep
Grips Bombtrack Scroll grips

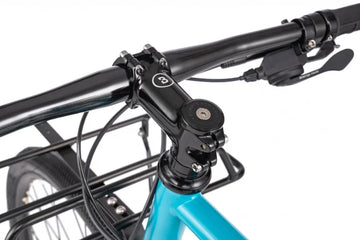

Stem Bombtrack Roam forged aluminium stem, -7°
Headset Neco H282 sealed external aheadset, 1.1/8''
Levers Shimano BL-M200 hydraulic brake levers
Shifter Microshift Advent SL-M8195-R shifter 1 x 9

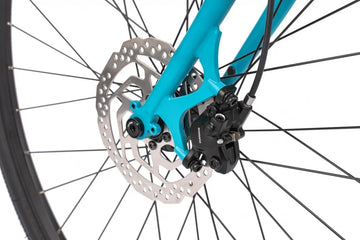

Brakes Shimano BR-MT200 post mount hydraulic disc brake
Rotor Shimano SM-RT26 160 mm rotors

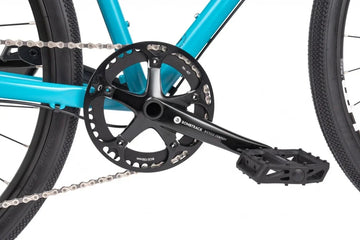

Crankset Bombtrack TAF19 aluminium crank, 24 mm spindle
BB BSA sealed BB, external cups
Pedals Wellgo B109N flat pedal
Chain KMC X9 chain, 1/2'' x 11/128'', 114L
Chainring Bombtrack Ridge aluminium chainring, narrow-wide,
42 T, incl. chainguard

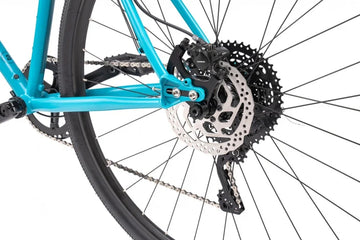

Cassette Microshift Advent CS-H093 9-speed, 11 - 42 T
Front derailleur -

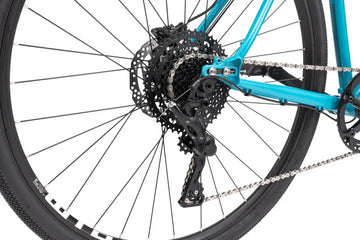

Rear derailleur Microshift Advent RD-M6195M wide range, clutch
Front hub Bombtrack Arc sealed hub, 6-bolt disc
Rear hub Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle 12 x 100 mm / 12 x 142 mm
Front rim WTB ST i19 double wall, TCS 2.0, 32h
Rear rim WTB ST i19 double wall, TCS 2.0, 32h
Saddle Bombtrack Fuzz saddle
Seat post Bombtrack Beech 27.2 mm x 300 mm
Seat clamp Bombtrack Origin 29.8 mm
Front tire XS - S Vee Tire Speedster 650B x 38C /
M - XL Vee Tire Speedster 700C x 40C
Rear tire XS - S Vee Tire Speedster 650B x 38C /
M - XL Vee Tire Speedster 700C x 40C
Fender -

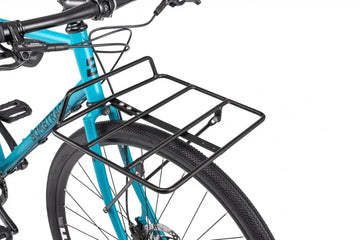

Rack Bombtrack Deck frontrack, aluminium
Kickstand -
Light -
Weight 12.6 kg (size M)
Weight frameset 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight 120 kg incl. luggage
ASTM riding condition 2
Geometry
| Bike Size | XS | S | M | L | XL |
| Wheel size | 650B | 650B | 700C | 700C | 700C |
| Seat Tube Length | 460 | 490 | 520 | 550 | 580 |
| Horizontal TT length | 506 | 529 | 554 | 578 | 602 |
| Seat Angle | 73.5° | 73.5° | 73° | 73° | 73° |
| Head Angle | 70° | 70.5° | 70.5° | 71° | 71° |
| Headtube Length | 100 | 130 | 150 | 180 | 210 |
| BB Drop | 55 | 55 | 70 | 70 | 70 |
| Chainstay Length | 420 | 420 | 435 | 435 | 435 |
| Fork Offset | 55 | 55 | 55 | 55 | 55 |
| Trail | 64 | 60 | 68 | 65 | 65 |
| Wheelbase Length | 995 | 1016 | 1045 | 1065 | 1090 |
| Standover | 733 | 762 | 799 | 828 | 857 |
| Reach | 351 | 370 | 379 | 394 | 409 |
| Stack | 508 | 538 | 572 | 602 | 631 |
| Front Center | 582 | 602 | 619 | 639 | 664 |
| Axle to Crown | 390 | 390 | 390 | 390 | 390 |
| Minimum rider height ¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height ¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
