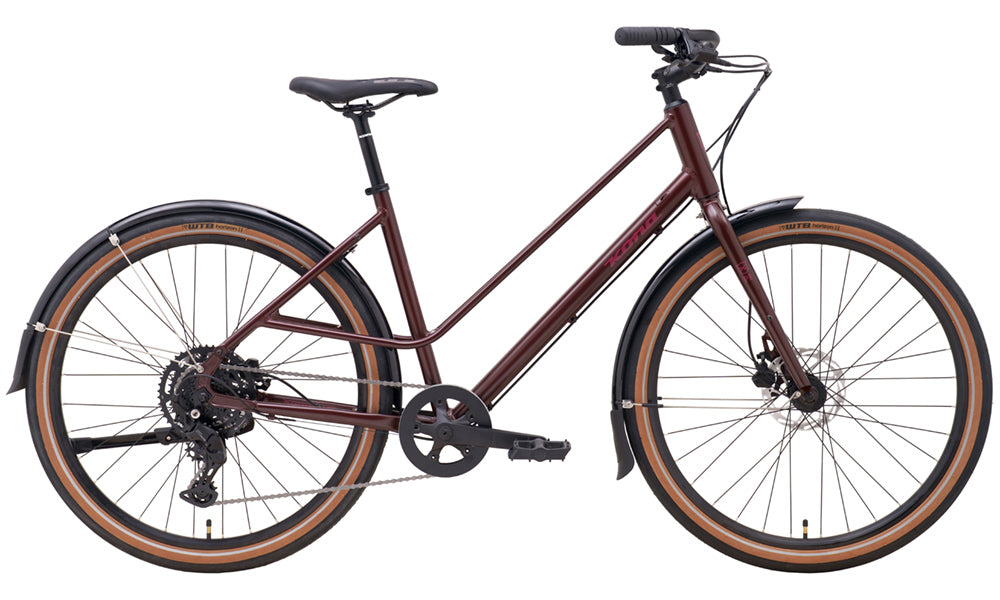

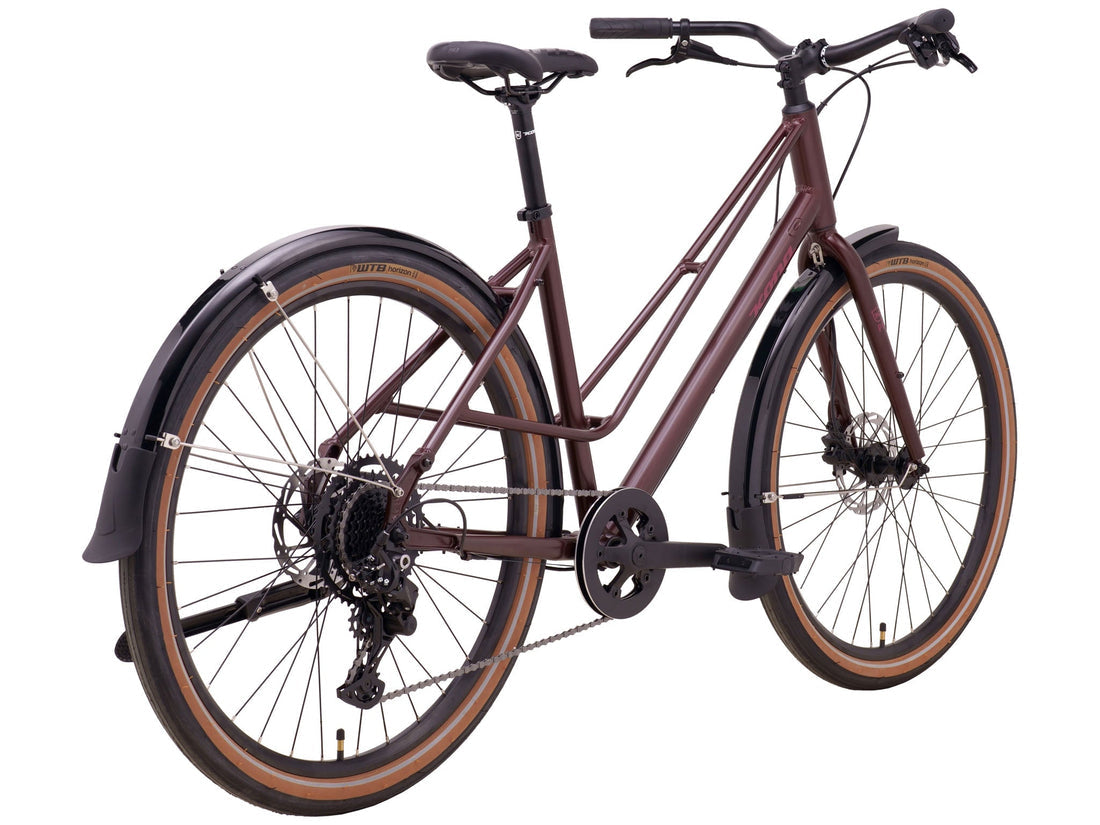

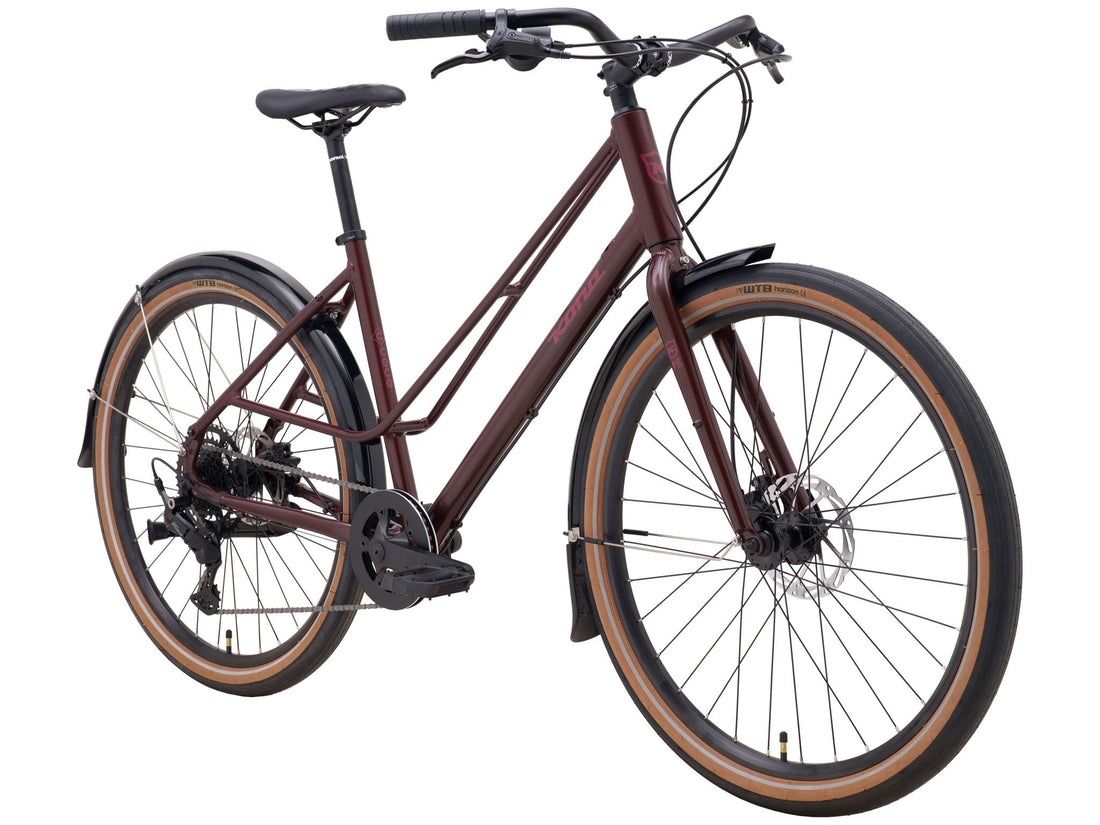

Kona Coco

Style points matter. The Coco pays homage to the classic European step-through bicycle. Internal shift cable routing helps keeps the lines clean and sleek, and puncture-resistant tires help keep the ride stress-free.

This is the bike that makes neighbourhood cruising more fun, so we don’t blame you if you “forgot the milk/beer/wine” and need to ride back to the store to pick it up. Don’t be surprised if you turn a few heads on this bike!

SPECIFICATIONS

Frame Material	Kona 6061 Aluminum Butted
Sizes	XS, S, M, L, XL
Rear Shock	n/a
Fork	Kona Project Two Aluminum Disc
Crankarms	Samox
Chainrings	39t/Guard
B/B	Feimin 68mm
Pedals	Kona JS2
Chain	KMC X9
Cassette	Shimano LG300 11-46t 9spd
Chainguide	n/a
F/D	n/a
R/D	Shimano Cues SGS
Shifters	Shimano Cues
Brake Calipers	Tektro HDM275 Hydraulic
Front Brake Rotor	Tektro TR160 160mm
Rear Brake Rotor	Tektro TR160 160mm
Brake Levers	Tektro HDM275 Hydraulic
Headset	Feimin FP-H863
Handlebar	Kona Handplant
Stem	Kona Commuter
Seatpost	Kona Thumb w/Offset 27.2mm
Seat Clamp	Kona Clamp
Grips	Velo Ergo
Saddle	Kona Commuter
Front Hub	Formula 100x9mm
Rear Hub	Formula 135x10mm
Spokes	Stainless Black 14g
Rims	Double Wall Alloy
Front Tire	WTB Horizon Comp w/ Puncture Protection 650x47c
Rear Tire	WTB Horizon Comp w/ Puncture Protection 650x47c
Paint Color	Satin Metallic King Crimson w/ Crimson Decals
Extras	Fenders w/ Mudflaps & Kickstand

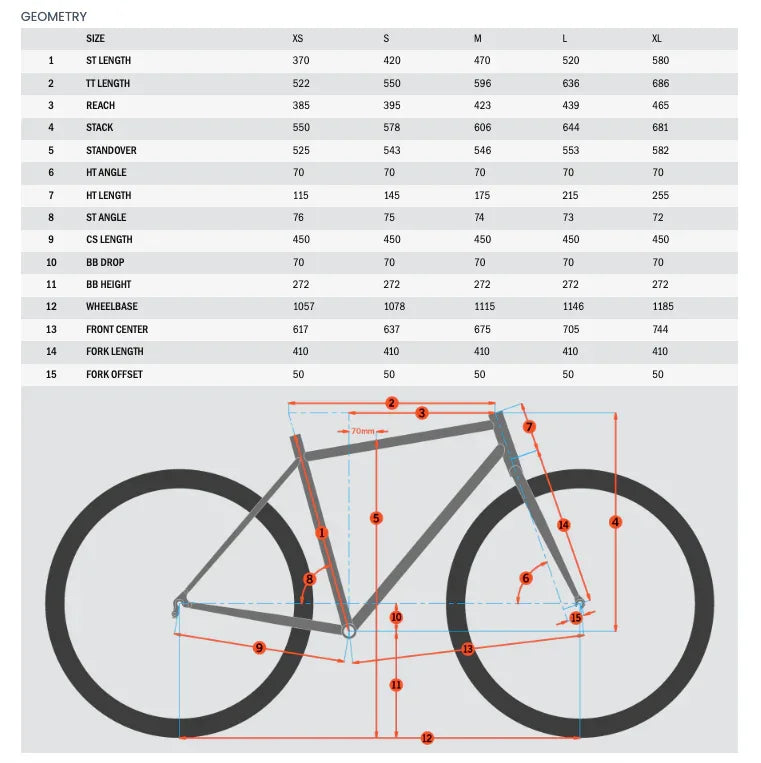

GEMOETRY

Size	S	M	L	XL
1	ST Length	420	470	520
2	TT Length	550	596	636
3	Reach	395	423	439
4	Stack	578	606	644
5	Standover	543	546	553
6	HT Angle	70	70	70
7	HT Length	145	175	215
8	ST Angle	75	74	73
9	CS Length	450	450	450
10	BB Drop	70	70	70
11	BB Height	272	272	272
12	Wheelbase	1078	1115	1146
13	Front Center	637	675	705
14	Fork Length	410	410	410
15	Fork Offset	50	50	50
