Marin  |  eMTB

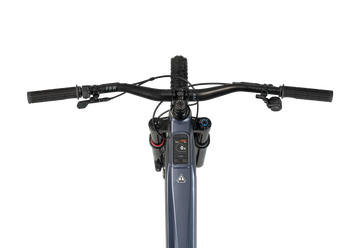

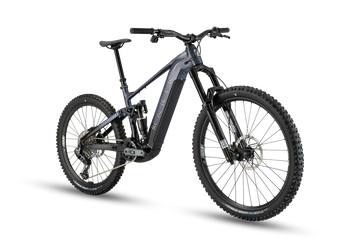

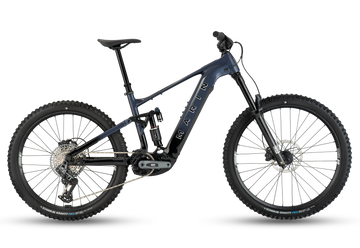

Marin ALPINE TRAIL EXR - 2026

€7.04900 €7.99900
21% VAT included
Size:  Small

Marin Alpine Trail E size chart



S 160 – 168cm
 M 168 – 178cm
L 178 – 188cm
XL 188 – 193cm


Not available in Rotterdam Showroom
Available in warehouse
Estimated delivery: Oct 16–27
Official dealer
70,000+ riders since 2011
14-day easy returns
Description

The Alpine Trail E Bosch is our biggest, baddest beast of a bike family, with 170mm of suspension up front, 160mm of MultiTrac 2 travel at the rear and a Bosch CX drive unit at its core, the Alpine Trail E is constructed  for riders who challenge themselves with the steepest, most technical terrain, and maximum range for big days in the mountains.

Specifications
Display Bosch Kiox 400 Top Tube Display
Battery PT800 Horizontal
Frame All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
Rear Suspension RockShox Vivid Air Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune
Rims DT Swiss M552, 29mm Inner, 32H
Hub, Rear DT Swiss 370 Hybrid, 148x12mm, 6-Bolt Disc, Mircro Spline Driver, 32H
Hub, Front DT Swiss 370 Hybrid, 110x15mm, 6-Bolt Disc, 32H
Tires Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
Derailleur, Rear SRAM GX AXS T-Type
Shift Lever SRAM AXS Pod Infinity Mount
Crankset Sram GX, 34T, 150mm
Chain SRAM GX T-Type
Brake, Front SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brake, Rear SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brake Levers SRAM Maven Silver
Handlebar PNW Range Handlebar, 38mm Rise, 35mm Clamp, 800mm Width
Stem All New Marin CNC, 35mm Length, 35mm Bar Bore
Grip Marin Grizzly Lock-On
Headset FSA Custom Headset, Adjustable HTA Design
Seatpost PNW Loam Post with Range Lever, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
Saddle WTB Devo Pick-Up

Geometry


Specifications, pricing, and availability are subject to change without notice.
