Marin  |  Barcode: 843346130501  |  Trail Bikes

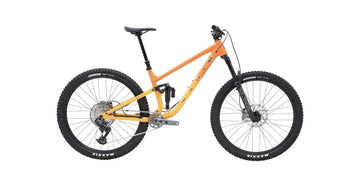

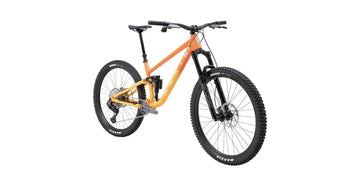

Marin Rift Zone XR AXS - 2025

€3.49900 €5.39900
21% VAT included
Size:  XLarge 29

Marin Rift Zone 1 size chart



XS 147 – 160cm
S 160 – 168cm
 M 168 – 178cm
L 178 – 188cm
XL 188 – 193cm


Not available in Rotterdam Showroom
Available in warehouse
Estimated delivery: Oct 16–27
Official dealer
70,000+ riders since 2011
14-day easy returns
Description

The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

XR means Extra Rad. The Marin Rift Zone XR AXS is our hard-charging special edition, made for riders that want the raddest, baddest Rifty in the range. RockShox Lyrik Select+ fork and Super Deluxe Select+ shock, Maxxis Assegai tires, loads of SRAM GX Eagle, SRAM Code 4-piston brakes, loads of Marin fine details. And, the cherry on top, we've added SRAM GX Eagle AXS wireless shifting to create our highest-spec, highest-tech Rift Zone alloy model ever.

Specifications

Frame Series 3 6061 Aluminum, 27.5 or 29" Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Front Suspension RockShox Lyrik Select+, 150mm Travel, 110x15 Maxle Stealth, 42mm Offset
Rear Suspension RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune
Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hub Rear Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
Hub Front Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
Spokes 14g Black Stainless Steel
Tires Maxxis Assegai, 2.5", MAXX TERAA, EXO, Tubeless Compatible
Derailleur Rear SRAM GX Eagle AXS T-Type
Derailleur Front -
Shift Lever SRAM AXS POD MMX
Crankset SRAM GX Eagle, 32T, 55MM CL, 170MM Length
Bottom Bracket SRAM DUB MTB 73
Chain SRAM GX Eagle T-Type
Cassette SRAM GX 1275 T-Type 10-52T
Brakes Front SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brakes Rear SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 180mm Rotor
Brake Levers SRAM Code Bronze Hydraulic
Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem Marin CNC, 35mm Length, 35mm Bar Bore
Grips Marin Grizzly Lock-On
Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Saddle Marin Speed Concept
Pedals -
Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Geometry

Specifications, pricing, and availability are subject to change without notice.
