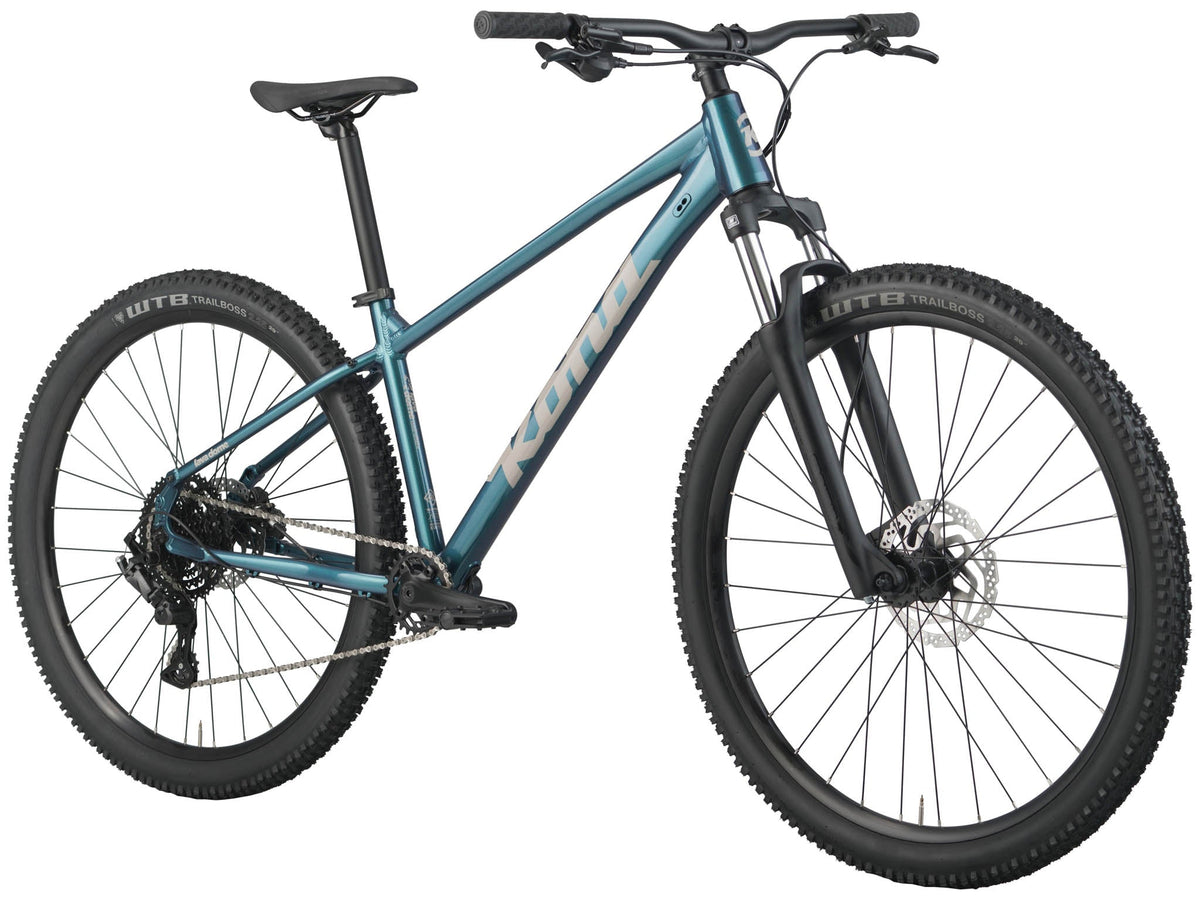

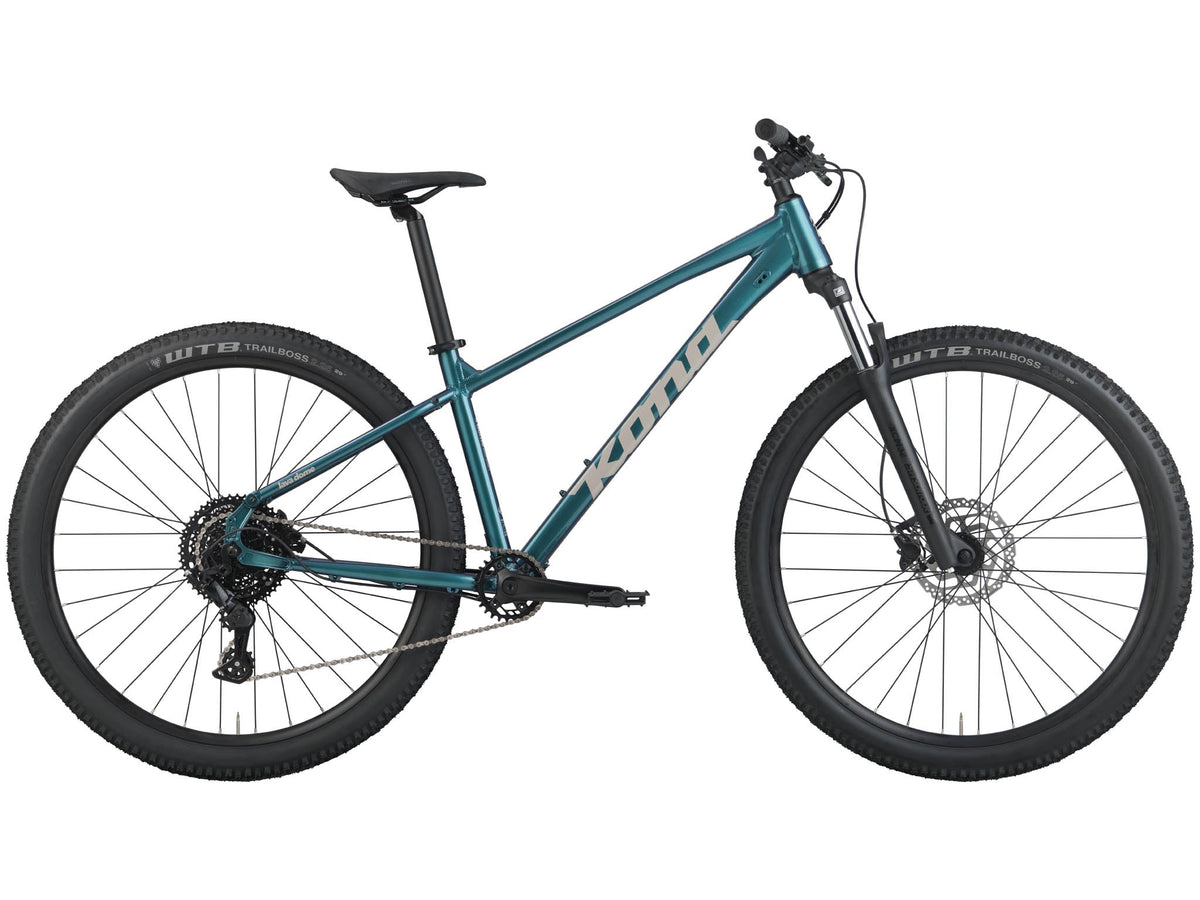

Kona Lava Dome 2027

The Lava Dome is a versatile hardtail mountain bike that is just as happy exploring local trails as it is getting you across town. Its 9-speed drivetrain keeps things simple and dependable, while the clutch rear derailleur helps keep the chain under control when the trail gets rough.

Size specific wheels give every rider a more natural fit, and clearance for tires up to 2.3 inches leaves plenty of room for extra grip and confidence. It’s approachable, capable, and ready to follow a casual ride wherever it happens to go. The Lava Dome has a way of turning a quick spin into a much bigger adventure.

Specification

FRAME	Kona 6061 Aluminum Butted
SIZES	XS, S, M, L, XL
REAR SHOCK	n/a
FORK	SR/Suntour XCM32 Coil 100mm
CRANKSET	Prowheel CHARM 30t 4-bolt 104mm / Length XS-S 165mm / M-XL 170mm
BOTTOM BRACKET	Feimin BSA 73
PEDALS	Kona JS2
CHAIN	KMC X9
CASSETTE	Microshift Advent 11-46t 9spd HG
CHAINGUIDE	n/a
FRONT DERAILLEUR	n/a
REAR DERAILLEUR	Microshift Advent
SHIFTERS	Microshift Advent
BRAKE CALIPERS	Shimano MT200
FRONT BRAKE ROTOR	Shimano 180mm 6B
REAR BRAKE ROTOR	Shimano 160mm 6B
BRAKE LEVERS	Shimano MT200
HEADSET	Feimin ZS44/ZS56
HANDLEBAR	Kona 31.8mm / Back 6º / Rise 20mm / Width XS-S 740mm / M-XL 780mm
STEM	Kona 31.8mm / Rise 7º / Length XS-M 40mm / L-XL 50mm
SEATPOST	Kona w/Offset 31.6mm / Length XS-M 350mm / L-XL 400mm
SEAT CLAMP	Kona Clamp 34.9mm
GRIPS	Kona Key Grip
SADDLE	Kona MTB
FRONT HUB	Joytech 9x100mm
REAR HUB	Joytech 10x135mm
SPOKES	Stainless 2.0mm Black
RIMS	Double Wall Aluminum
FRONT TIRE	WTB Ranger XS 26x2.25" / WTB Trail Boss S 27x2.25" / M-XL 29x2.25"
REAR TIRE	WTB Ranger XS 26x2.25" / WTB Trail Boss S 27x2.25" / M-XL 29x2.25"
PAINT COLOR	Gloss Prism Dragonfly w/ Putty Decals



All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.

Geometry

	Size	XS	S	M	L	XL
1	ST Length	365	380	410	450	490
2	TT Length	560	587	622	650	687
3	Reach	410	430	455	480	515
4	Stack	561	586	624	633	642
5	Standover	679	699	728	726	721
6	HT Angle	67.5	67.5	67.5	67.5	67.5
7	HT Length	100	110	120	130	140
8	ST Angle	75	75	75	75	75
9	CS Length	435	435	450	450	450
10	BB Drop	30	45	60	60	60
11	BB Height	305	310	315	315	315
12	Wheelbase	1110	1132	1190	1219	1257
13	Front Center	676	701	746	755	814
14	Fork Length	490	490	509	509	509
15	Fork Offset	42	42	51	51	51
