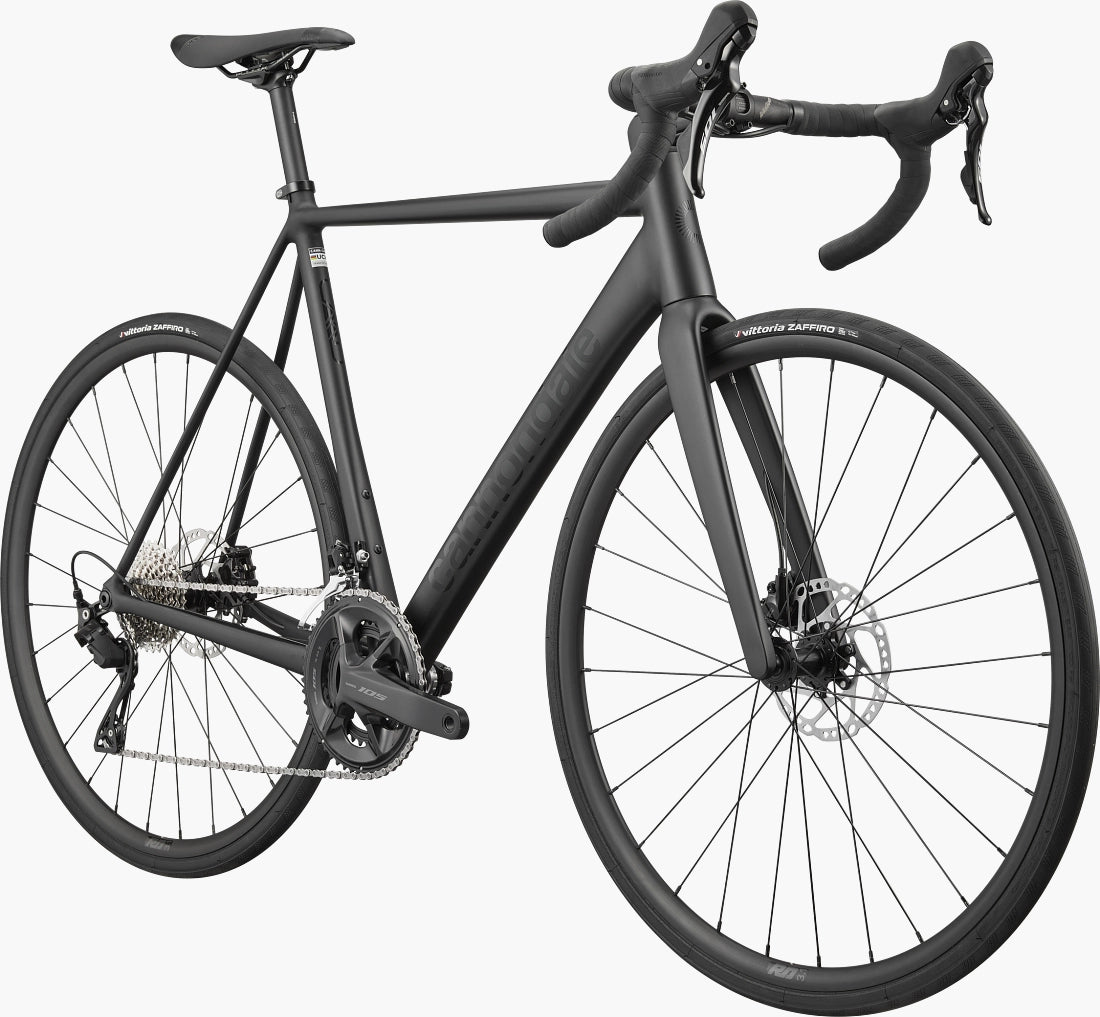

Cannondale CAAD14 3
Cannondale CAAD14 3
Description
Not Carbon. Not Sorry.
A lineage of fast aluminum shaped over decades—smooth welds, clean geometry, road-true handling. CAAD14 is built for the pure feel of road riding: the pull, the side-glance, the shoulder-to-shoulder sprint, the arms-up finish.
Model Description
The most accessible way into the CAAD lineage, without diluting the essentials. CAAD14 3 combines the same SmartForm C1 Premium aluminum frame with Shimano 105 mechanical shifting—smooth, consistent, and made for long seasons of riding. Clean geometry, stable handling, and room for wider tires make it comfortable at tempo and confident in the red zone. Built for performance road riders who want metal they can race hard and ride every day.
What it's for
All-in attacks. Full-gas sprints. Fearless cornering. Feeling alive.
Highlights
- CAAD14 SmartForm C1 Premium Alloy frame - high performance aluminum like it was meant to be
- CAAD14 full carbon Delta Steerer fork - clean internal cable routing with minimal frontal area
- Smooth, consistent, reliable 2x12-speed shifting from Shimano's trusted 105 mechanical drivetrain
- Vision Trimax Compact bars and Cannondale C1 Conceal stem - ergonomic cockpit with hidden cables
Specification
-
Platform
-
Model NameCAAD14 3
-
Model CodeC1302GU SMU
Frameset
-
FrameCAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH
-
ForkCAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm), 45mm offset (56-61cm)
-
HeadsetIntegrated, 1-1/8" - 1.5"
Drivetrain
-

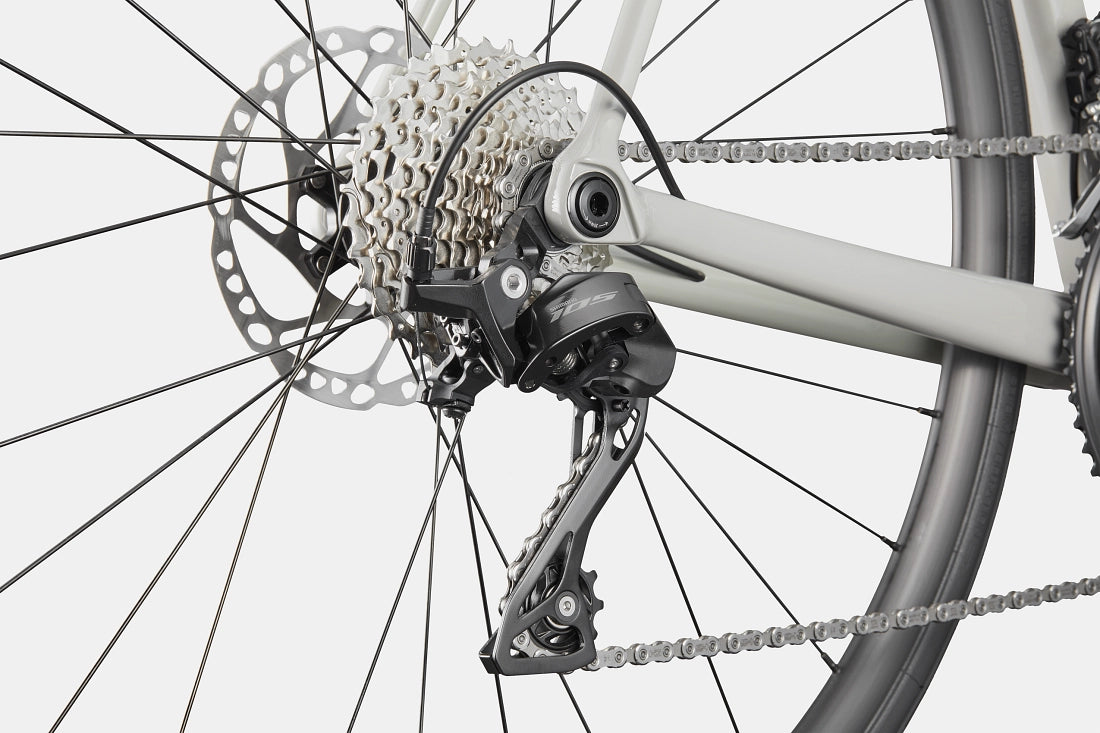

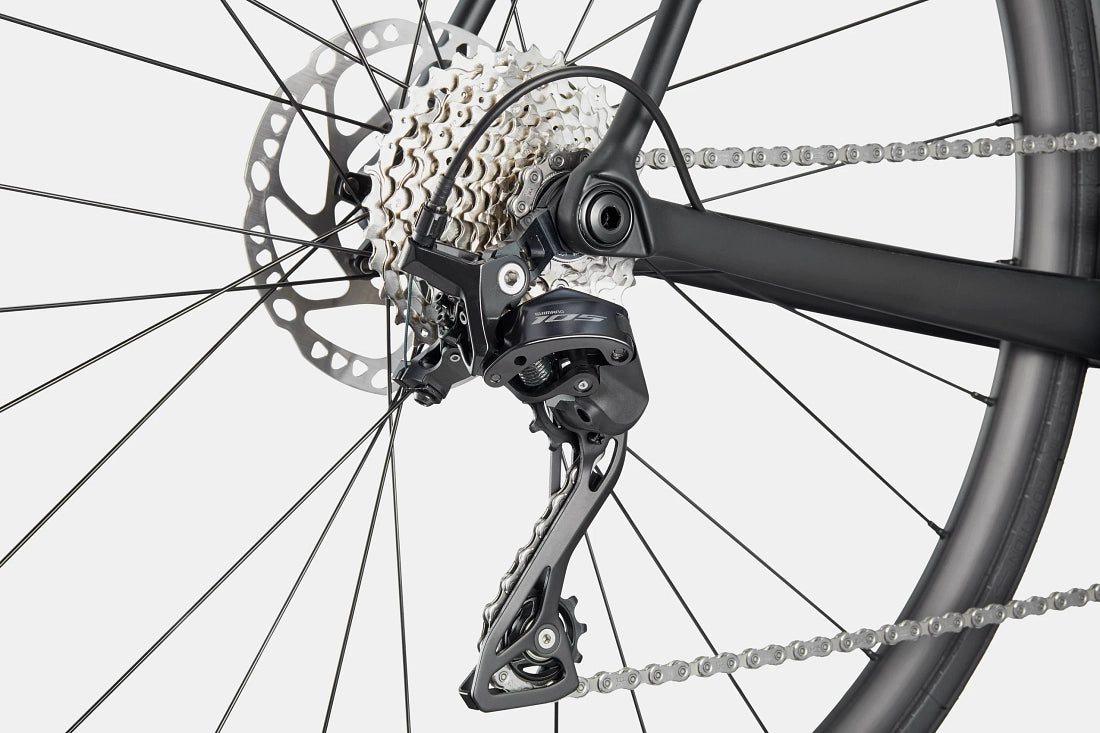

Rear DerailleurShimano 105 7100, 12-speed
-
Front DerailleurShimano 105 7100
-
ShiftersShimano 105 R7100, 2x12-speed
-
ChainShimano 105 7100, 12-speed
-

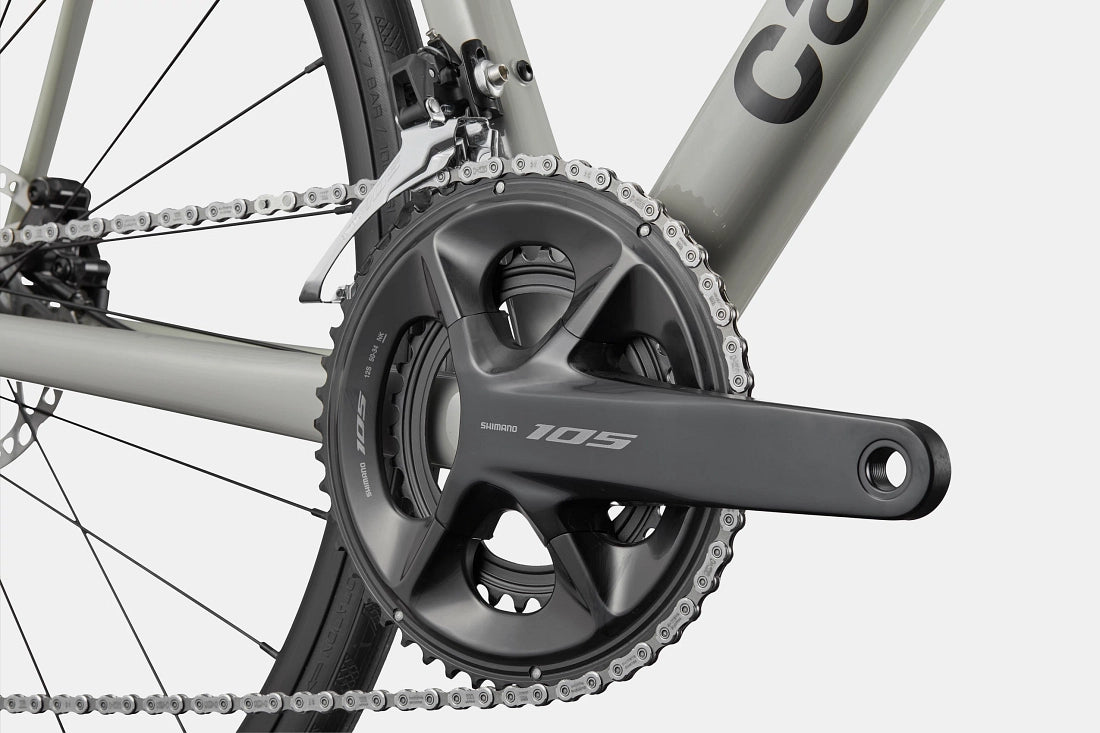

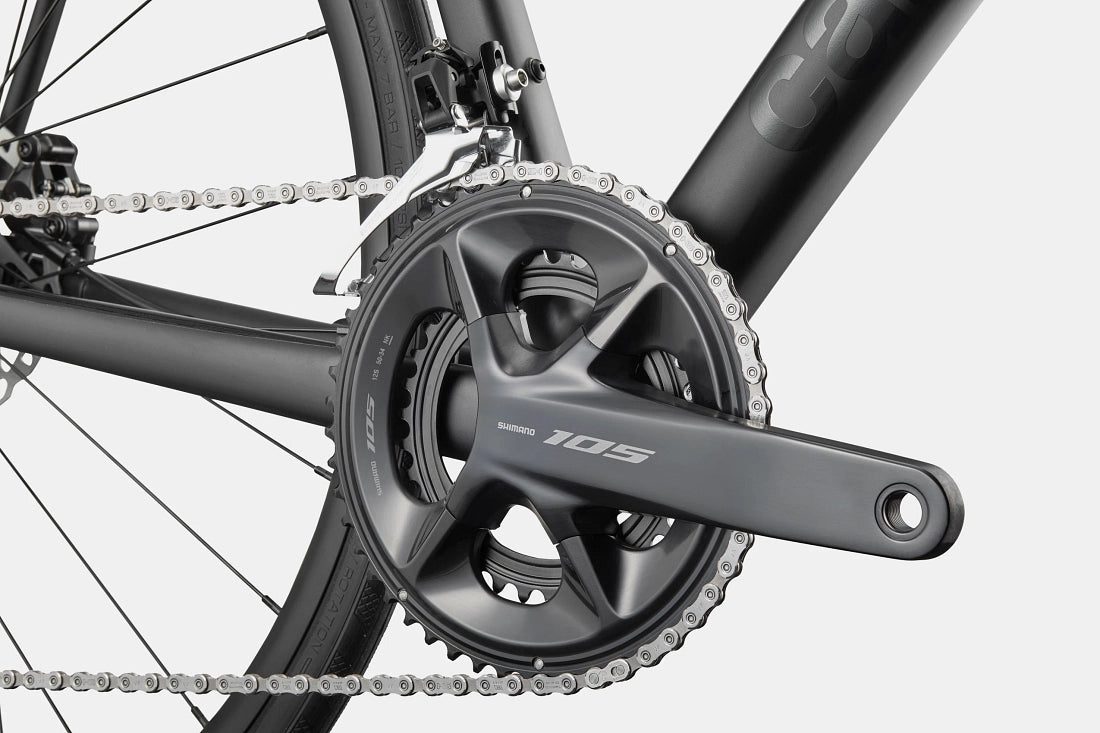

CrankShimano 105 R7100, 50/34: 165mm (48-51cm), 170mm (54-56cm) 172.5mm (58-61cm)
-
Rear CogsShimano 105 R7100, 11-34, 12-speed
-
Bottom BracketShimano BB-RS500, BSA 68
Brakes
-
BrakesShimano 105 R7170 hydraulic disc, 160/160mm RT70 rotors
-
Brake LeversShimano 105 R7100 hydraulic disc
Wheels
-
RimsCannondale RD 2.0 Disc, double wall w/ eyelet, 28h
-
SpokesStainless Steel, 14g
-
Tire Size28
-
Wheel Size700c
-
HubsShimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
-
TiresVittoria Zaffiro, 700x28c
Components
-

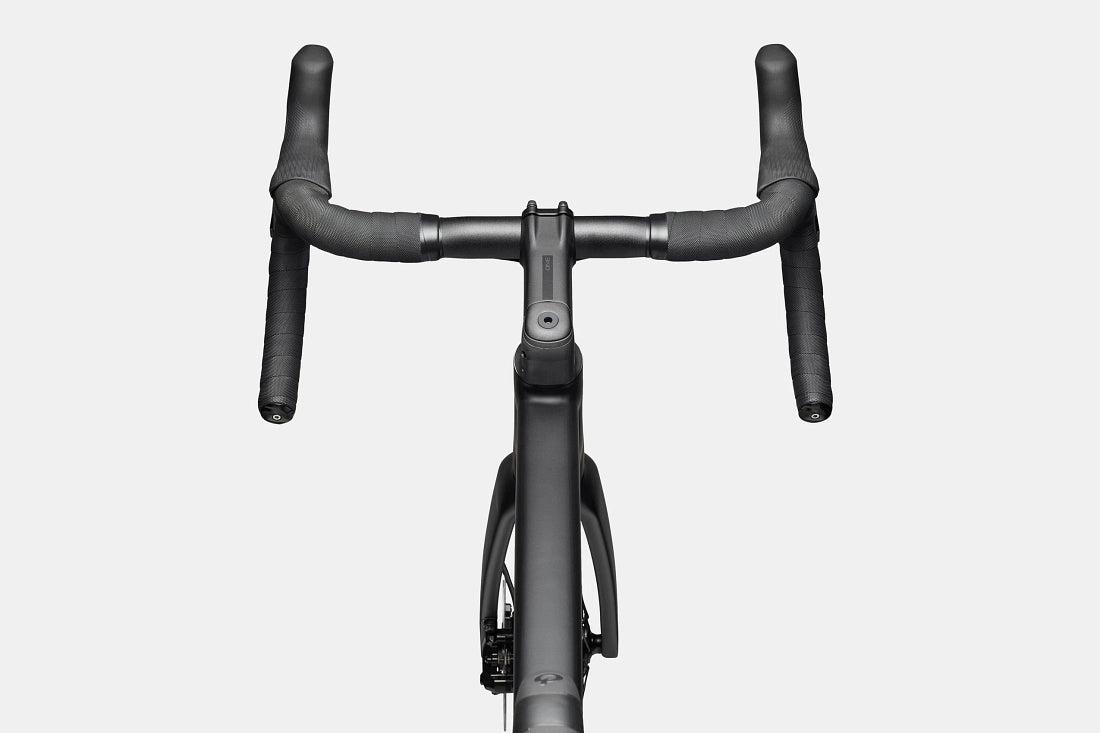

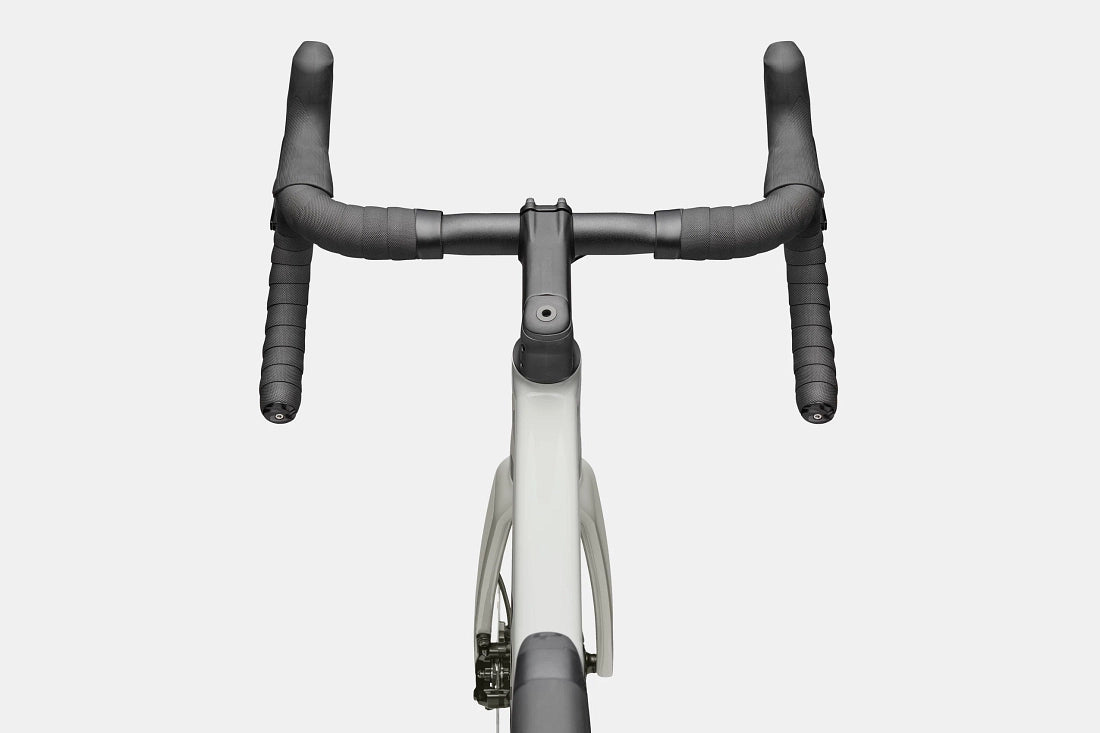

HandlebarVision Trimax Compact: 400mm (48-56cm), 420mm (58-61cm)
-
StemCannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
-
GripsCannondale Bar Tape, 3.5mm
-
SaddlePrologo Nago RS STN
-
SeatpostCannondale 3, 6061 Alloy, 27.2x350mm, 11mm offset
Extra
-
Extra 1Conceal Stem accessory/computer mount (Garmin/Wahoo)
Please note that, based on component availability and other factors, specifications are subject to change without notice.
