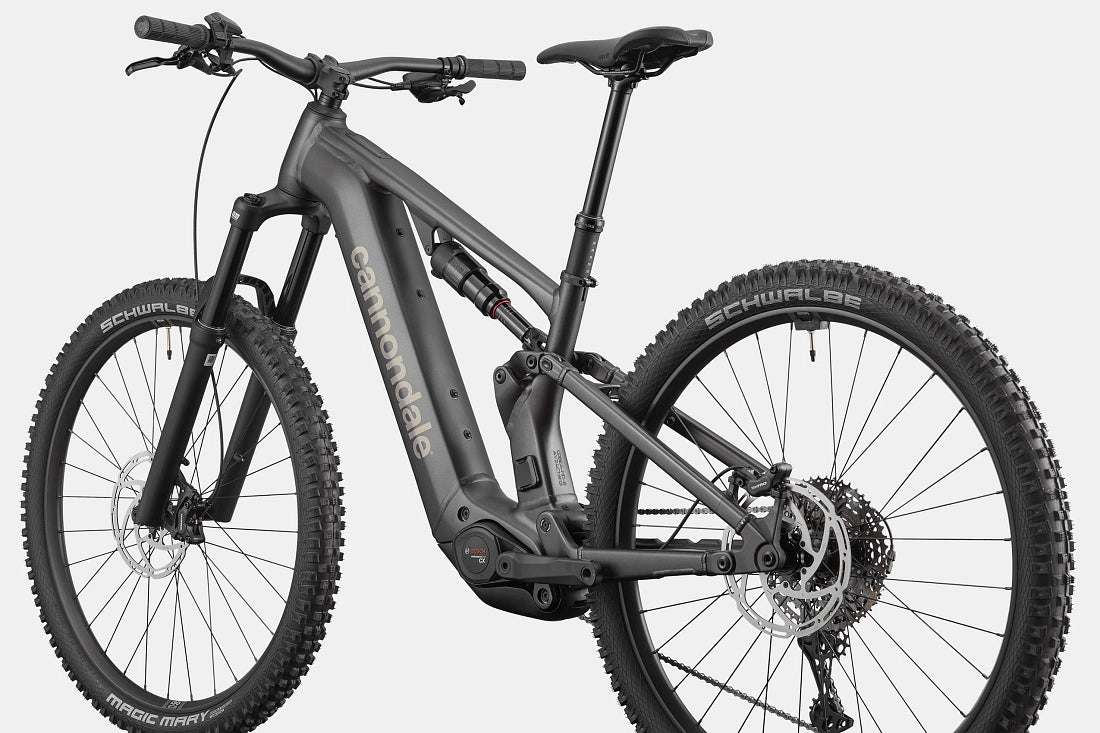

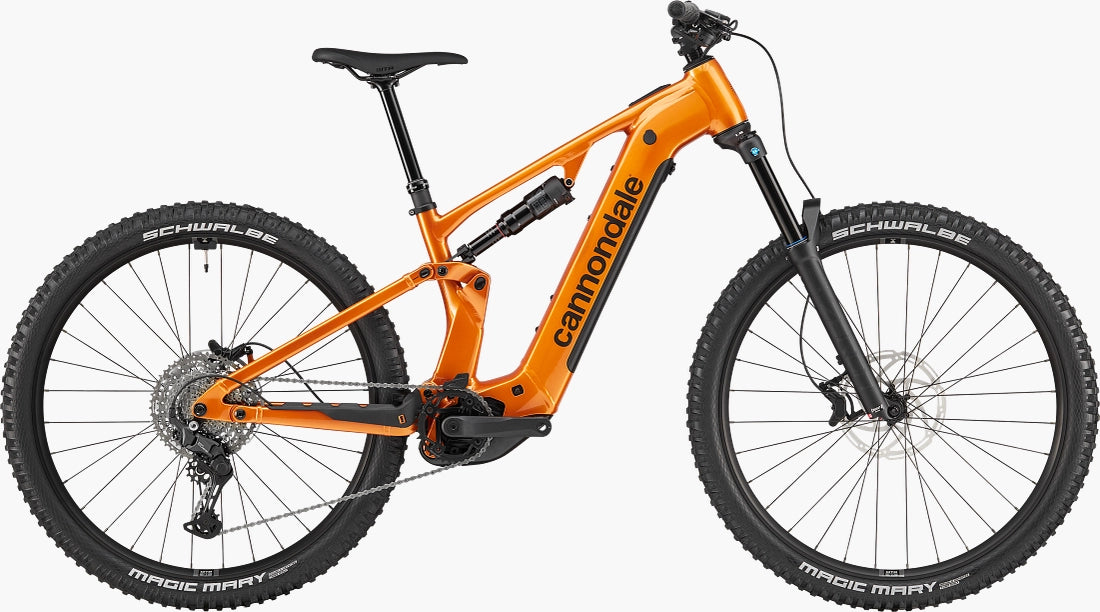

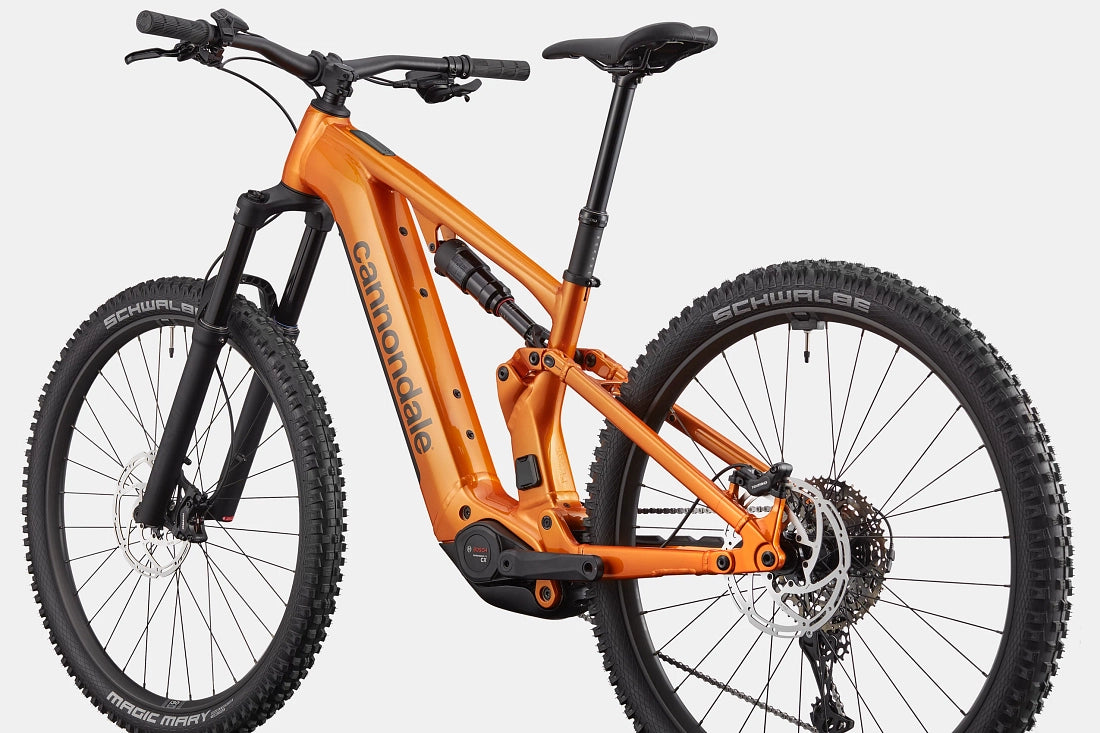

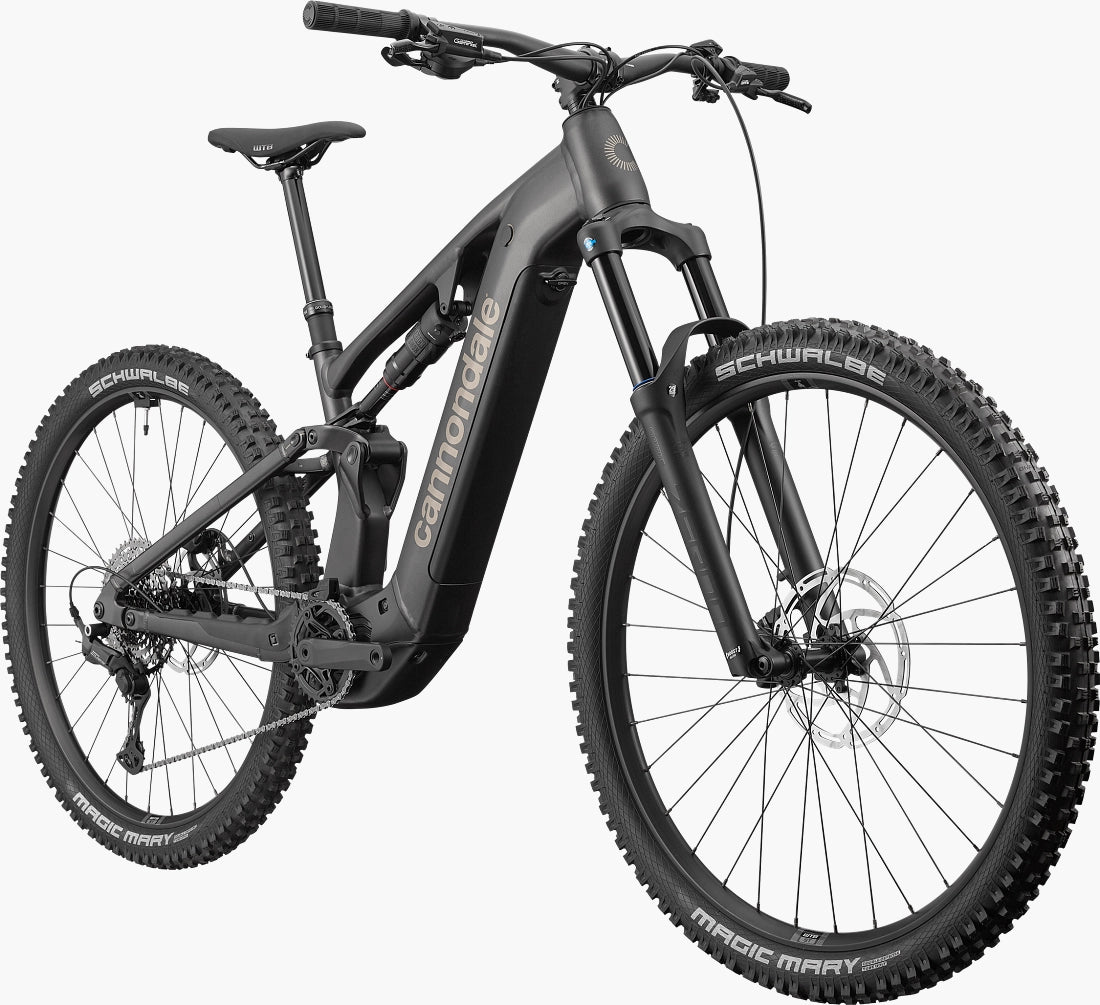

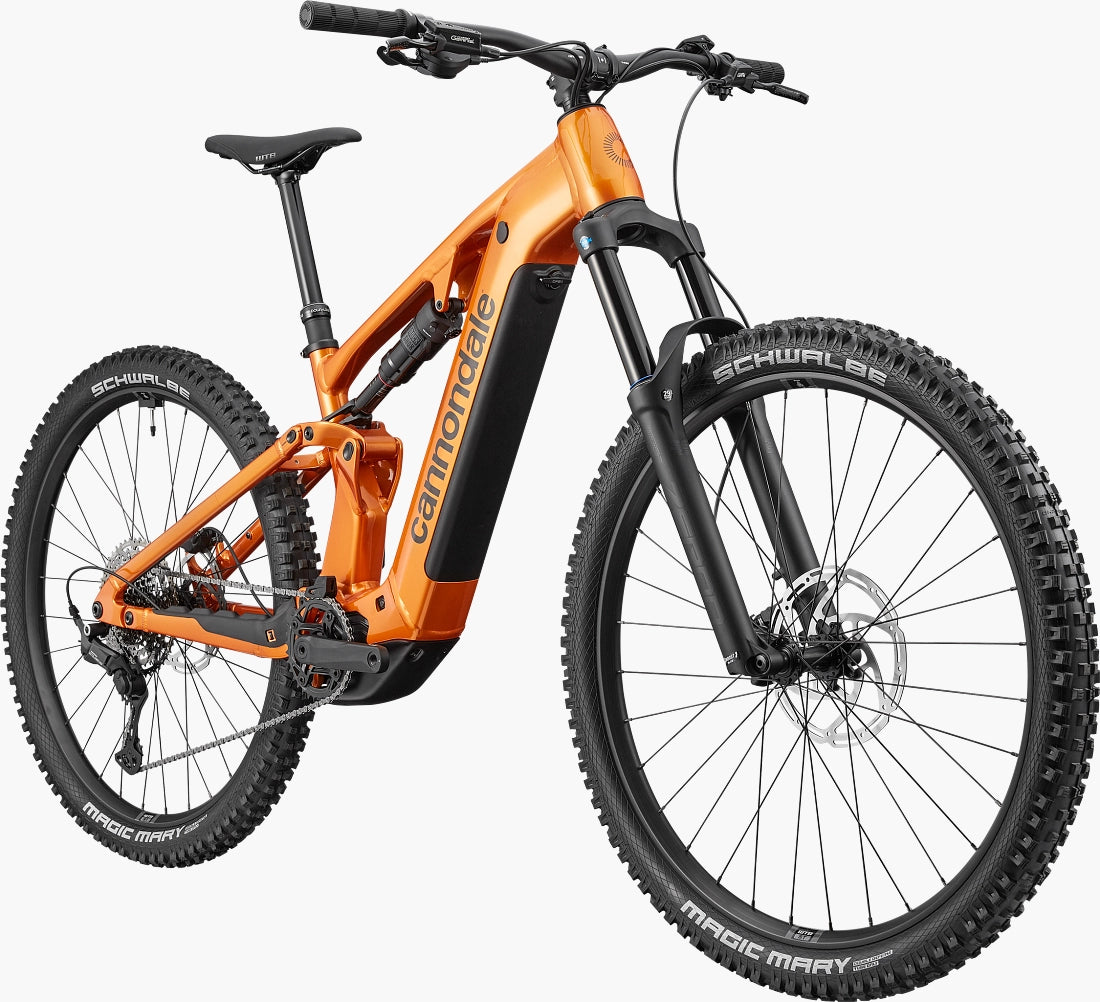

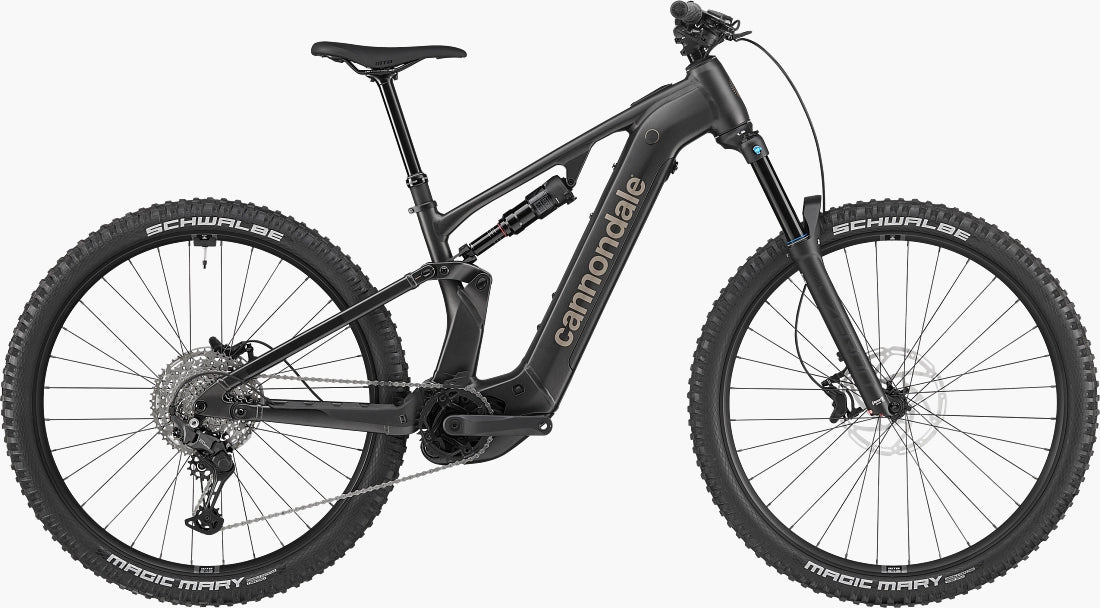

Cannondale Moterra 4+
Cannondale Moterra 4+
Description
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Model Description
Moterra 4+ is built for big days. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and largest 800Wh battery deliver smooth, sustained power with massive range. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.
What it's for
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
- Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
- Massive 800Wh battery delivers big range for big rides
- Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
- Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
Specification
-
Platform
-
Model NameMoterra 4+
-
Model CodeC6550GU
Frameset
-
FrameMoterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
-
ForkSR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
-
HeadsetAcros ICR, 1.5" to 1.8", sealed bearings
-
Rear ShockRockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
E-System
-

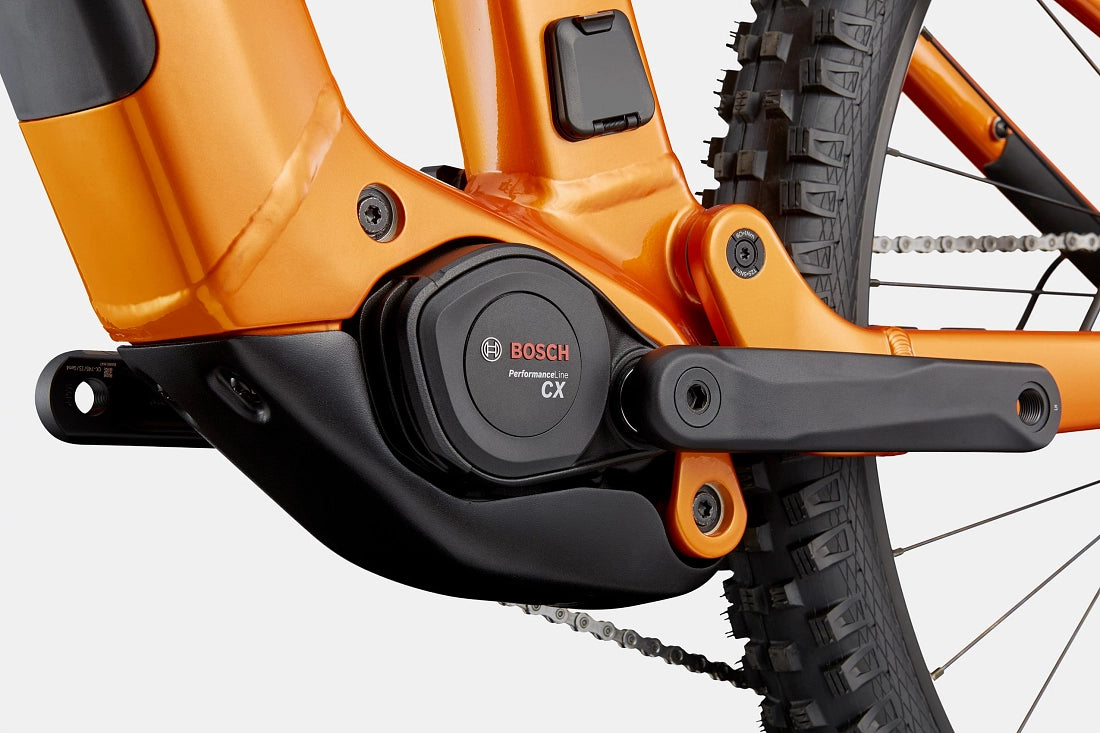

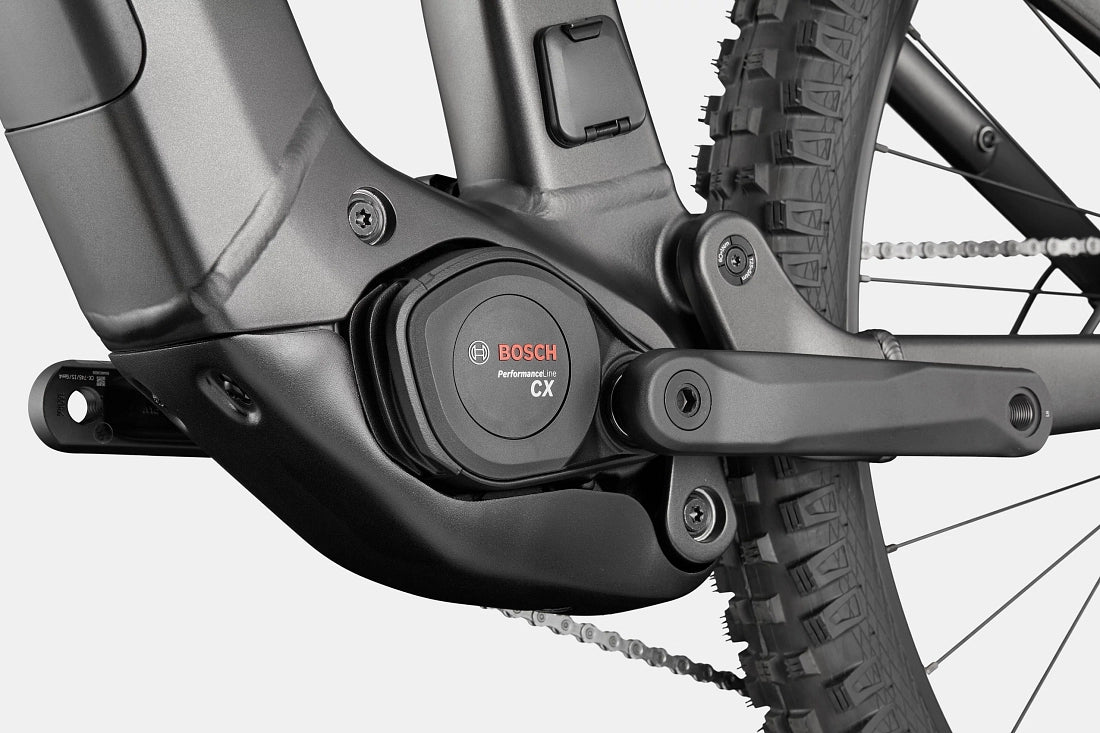

Drive UnitBosch Performance Line CX
-
BatteryBosch PowerTube, 800Wh
-
ChargerBosch 4A
-
DisplayBosch LED Remote
-
CertificationsUL 2849 Lithium-Ion Battery Safety
Drivetrain
-

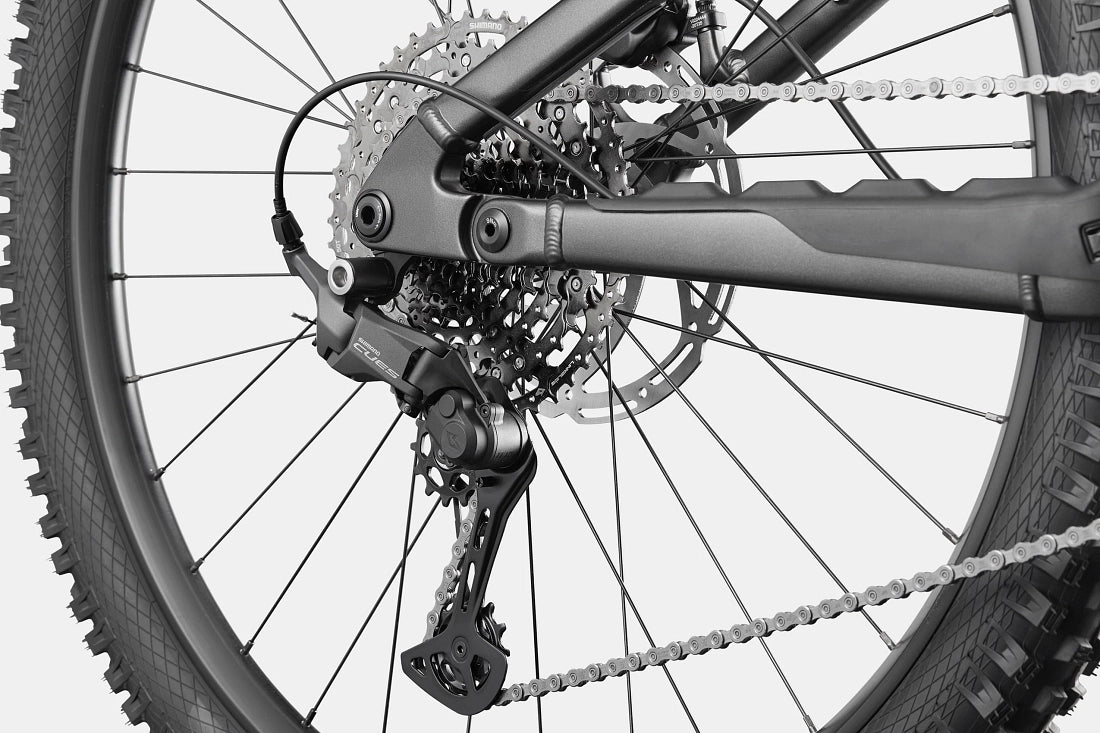

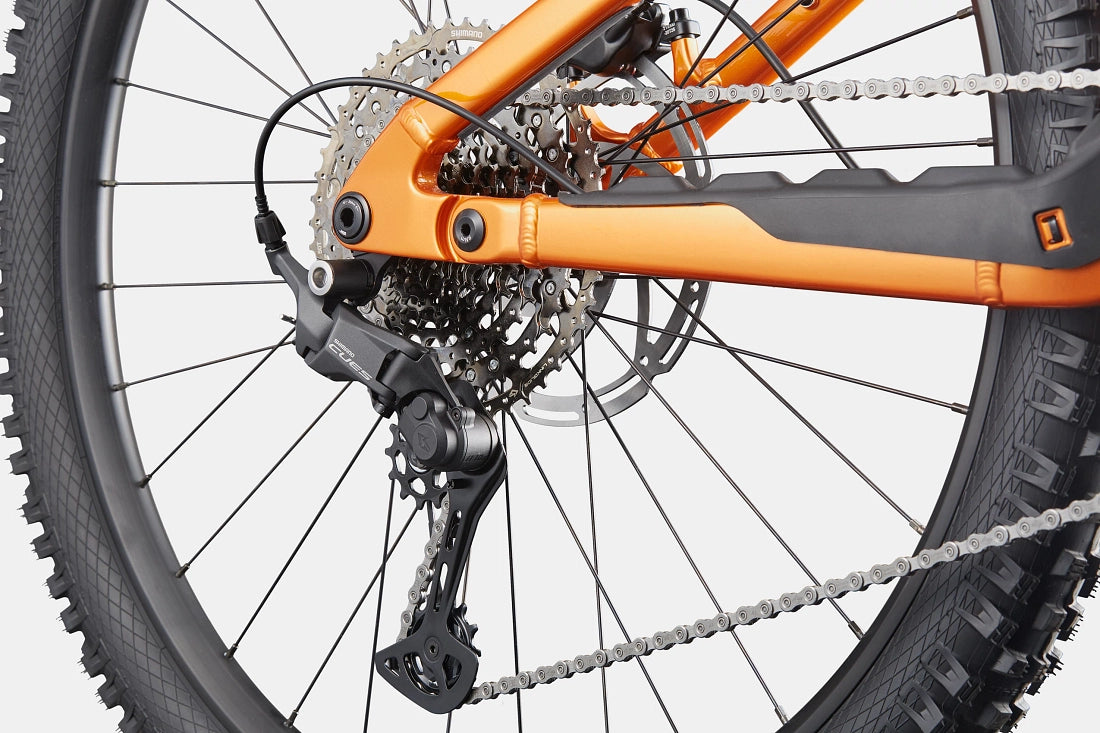

Rear DerailleurShimano CUES U6000, LinkGlide
-
ShiftersShimano CUES U6000, 11-speed, LinkGlide
-
ChainShimano LG500, LinkGlide, 11-speed
-
CrankFSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
-
Rear CogsShimano CUES LG400, LinkGlide, 11-50, 11-speed
Brakes
-
BrakesTektro Gemini SL 4-piston hydraulic disc, 203mm rotors
-
Brake LeversTektro Gemini SL hydraulic disc
Wheels
-
RimsWTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
-
SpokesDT Swiss Champion 2.0
-
Tire Size2.4
-
Wheel Size29
-
Hubs(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC600, 12x148mm thru-axle, centerlock
-
TiresSchwalbe Magic Mary Performance, 29x2.4", Tube
Components
-

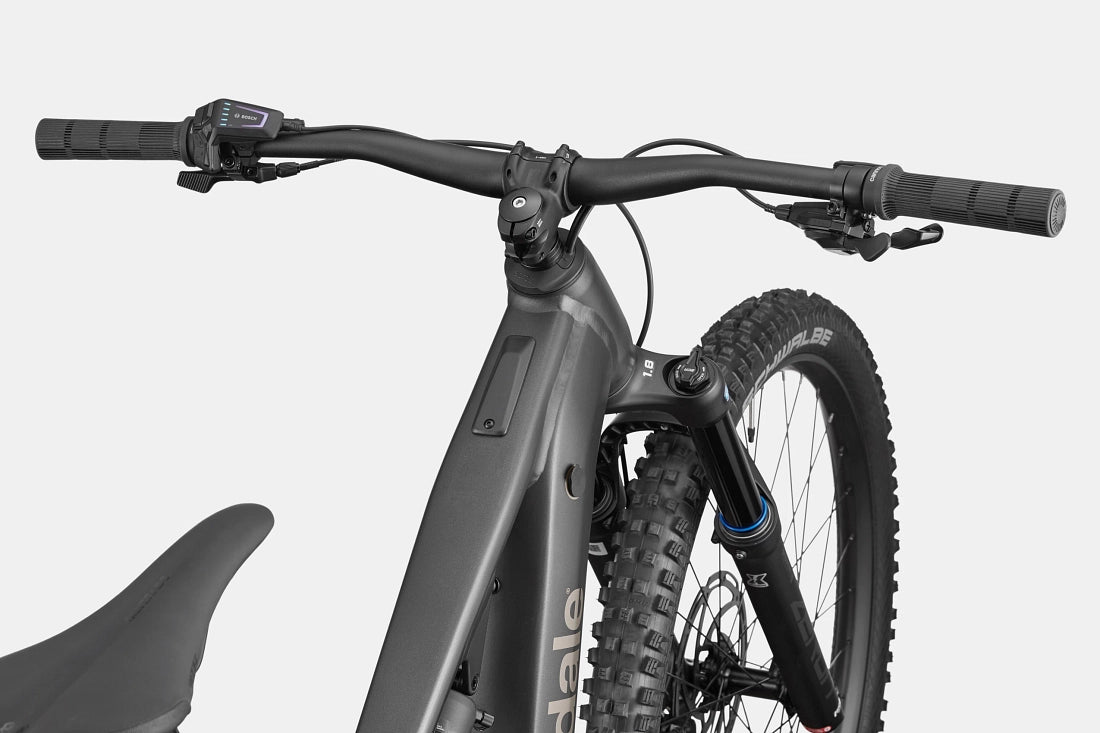

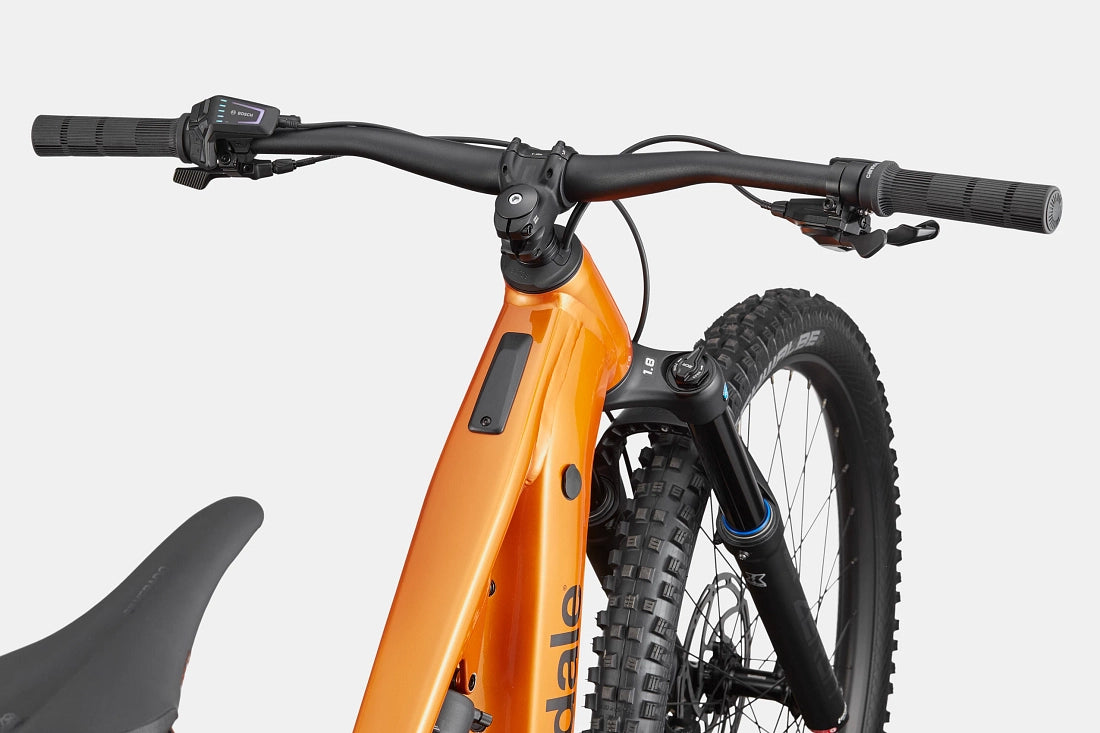

HandlebarCannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
-
StemCannondale 1, 6061 Alloy, 35.0, 40mm, 0°
-
GripsCannondale TaperRidge
-
SaddleWTB Silverado Medium
-
SeatpostCannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
-
Extra 1Bosch PowerMore range extender compatible
Please note that, based on component availability and other factors, specifications are subject to change without notice.
