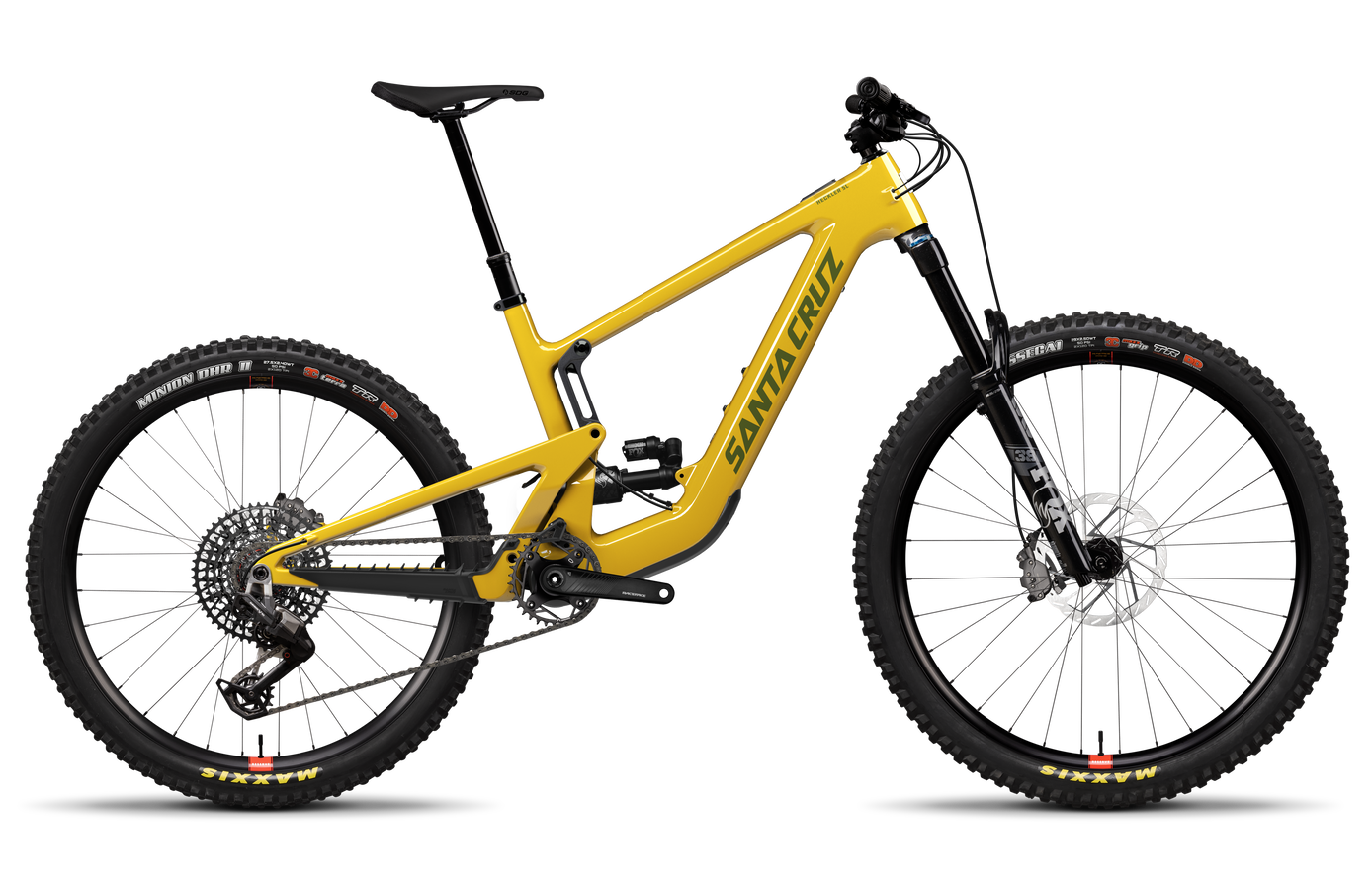

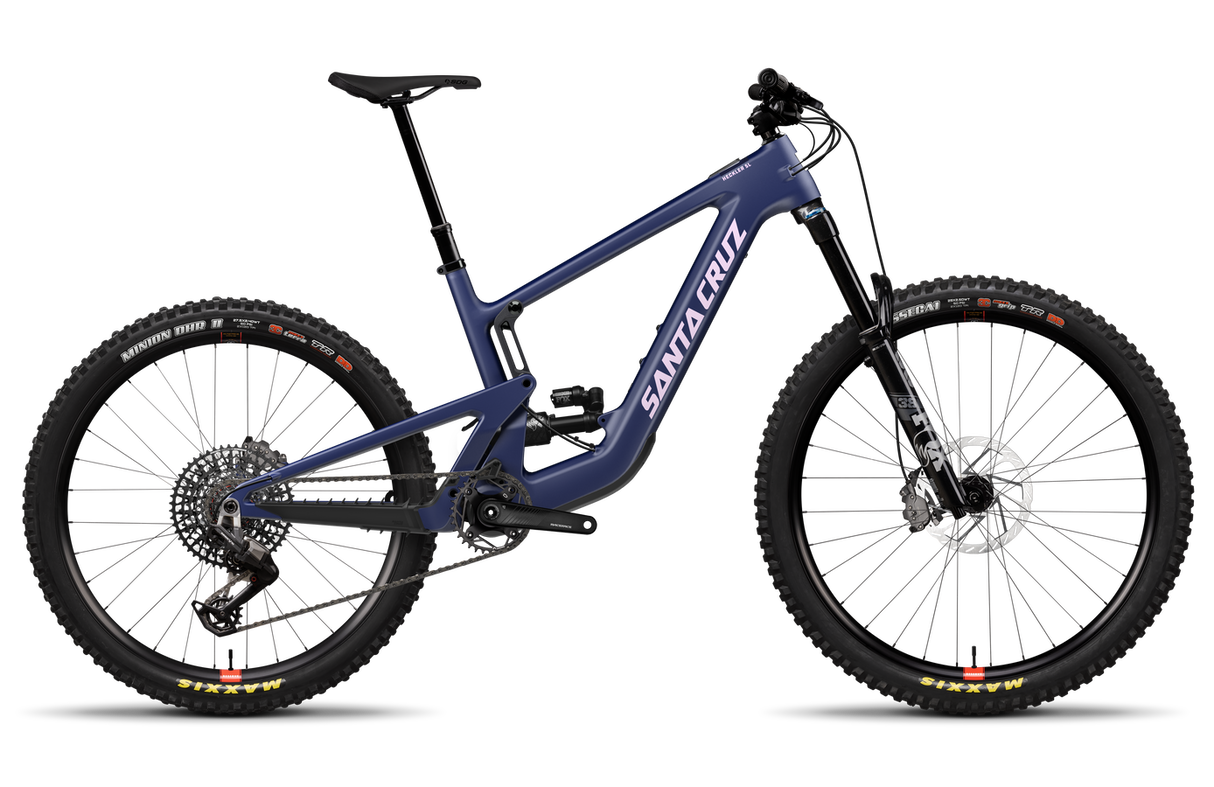

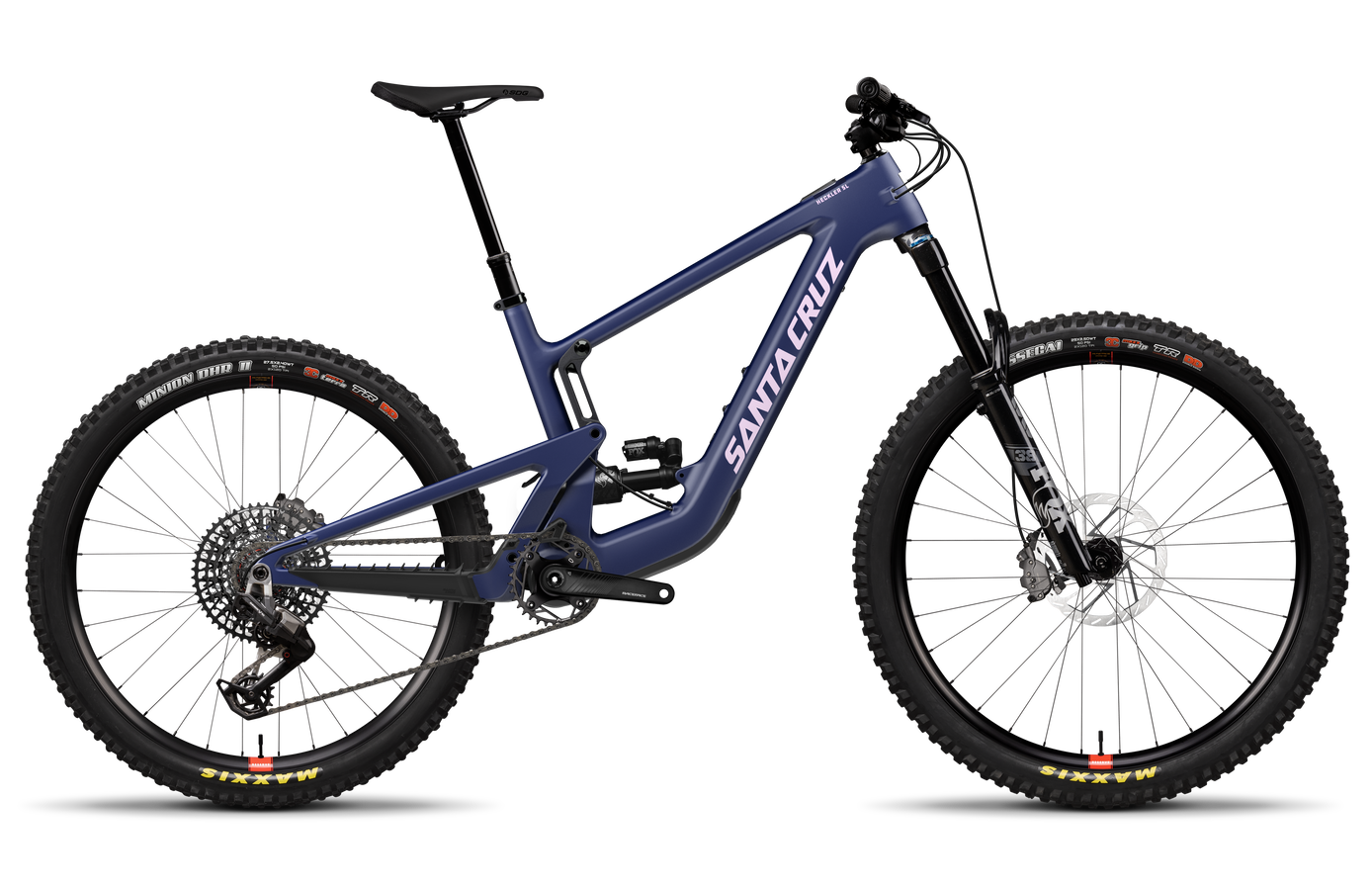

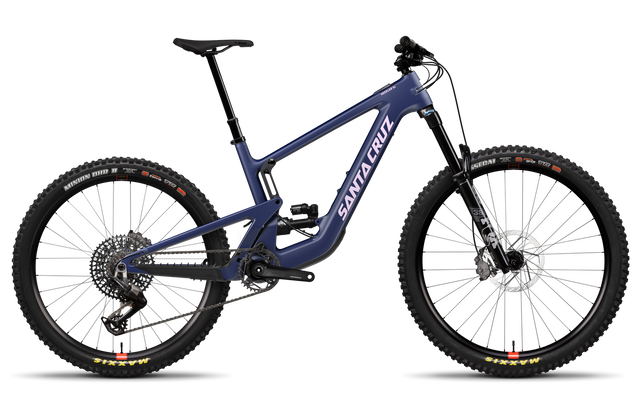

Santa Cruz Heckler SL Stout - 2026

FAST, LIGHT, OR POWERFUL–CHOOSE ALL THREE

A sneaky ebike that’s lightweight, powerful, and has surprising range. It combines all the on-trail traits of Santa Cruz with the FAZUA RIDE 60 drive unit. With 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry, the Heckler SL is a trail bike—but with hidden superpowers.

A TRAIL BIKE WITH HIDDEN SUPERPOWERS

The Heckler SL’s trim weight and the FAZUA RIDE 60 motor’s natural torque delivery make it feel like riding a regular mountain bike—just with more punch. The range is comparable to full-power ebikes because, despite a smaller battery, the RIDE 60 motor sips energy, and the significantly lighter bike makes propulsion easier.

MORE POWERFUL, LIGHTER AND BIGGER BATTERY THAN OTHER SLS

It provides added boost up the hills thanks to the compact FAZUA RIDE 60 drive unit, offering the most power in its category. Lightweight (41 lb / 19 kg, depending on build) and equipped with 150mm of legendary VPP™ suspension, MX wheels, and progressive geometry, it handles like a trail bike—just with the extra power.

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change

Frame
Material Carbon C
Frame Carbon C MX 150mm Travel VPPâ„¢
Travel 150mm
Weight 45.86lbs / 20.8kg
Wheel Size MX
Suspension
Fork FOX 38 Float Performance Elite, Grip X2, 160mm
Shock FOX Float X2 Performance Elite, 210x55
Drivetrain
Bottom Bracket N/A
Cassette SRAM XS 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset Race Face Aeffect R All Sizes: 165mm
Rear Derailleur SRAM 90 Eagle T-Type, 12spd
Right Shifter SRAM 90 Eagle T-Type, Single Click, 12spd
Brakes
Brakes SRAM Maven Bronze
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Cockpit
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz eCarbon Bar S: 35x800mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise
Headset Cane Creek 50 IS Integrated Headset
Saddle SDG Bel-Air V3, Max Lux-Alloy
Seatpost OneUp Dropper Post, 31.6 S: 120m, M: 150mm, L: 180mm, XL/XXL 210mm
Stem OneUp Enduro Stem All Sizes: 42mm
Wheels
Front Rim Reserve 30|HD AL 6069
Front Hub E13 SL, 15x110, 6-Bolt, 32h
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, Double Down
Rear Rim Reserve 30|HD AL 6069
Rear Hub E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra DoubleDown
Valves Reserve Fillmore Valves
Ebike
Battery Fazua Energy 480Wh Integrated Battery
Drive Unit Fazua Ride 60
Specs
Bottom Bracket Shell Fazua DU w/ E-TOR spindle
Rear Brake Mount PM 200mm
Shock Length 210mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount No
Headset IS 41 / IS52
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.6"
Rear Spacing 148mm
Shock Bushing Size Front 30x8
Shock Bushing Size Rear 30x8
Shock Stroke 55mm
UDH Compatible Yes
