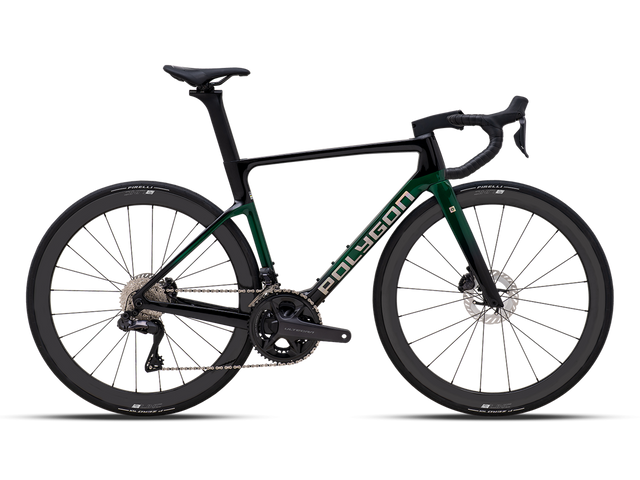

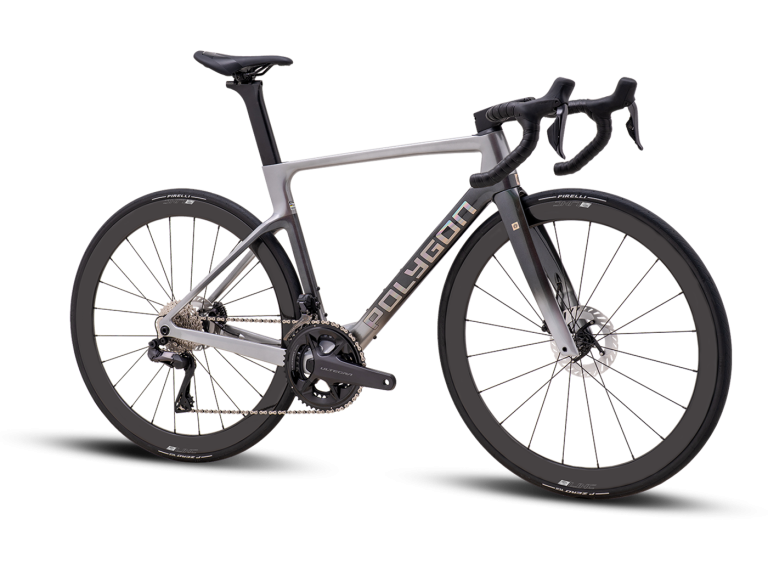

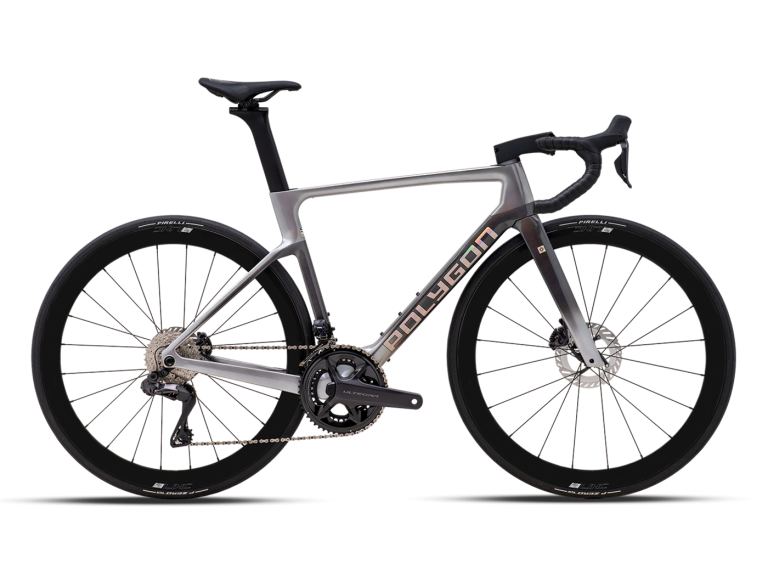

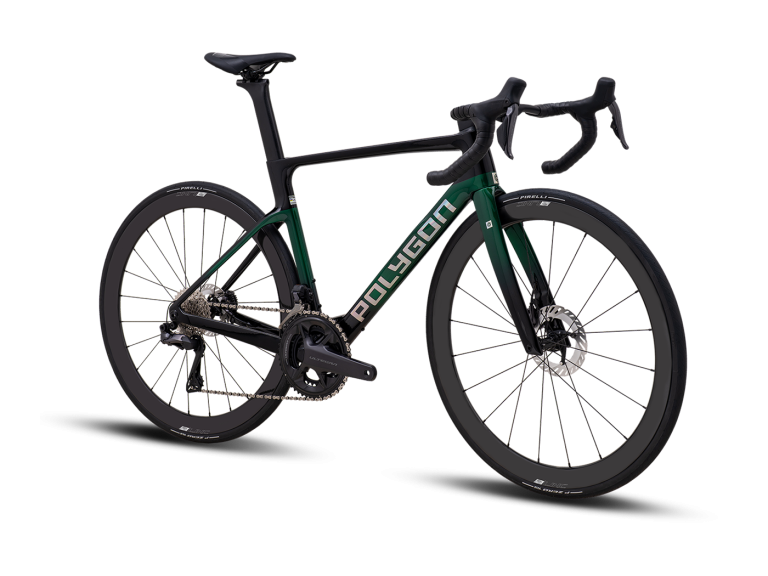

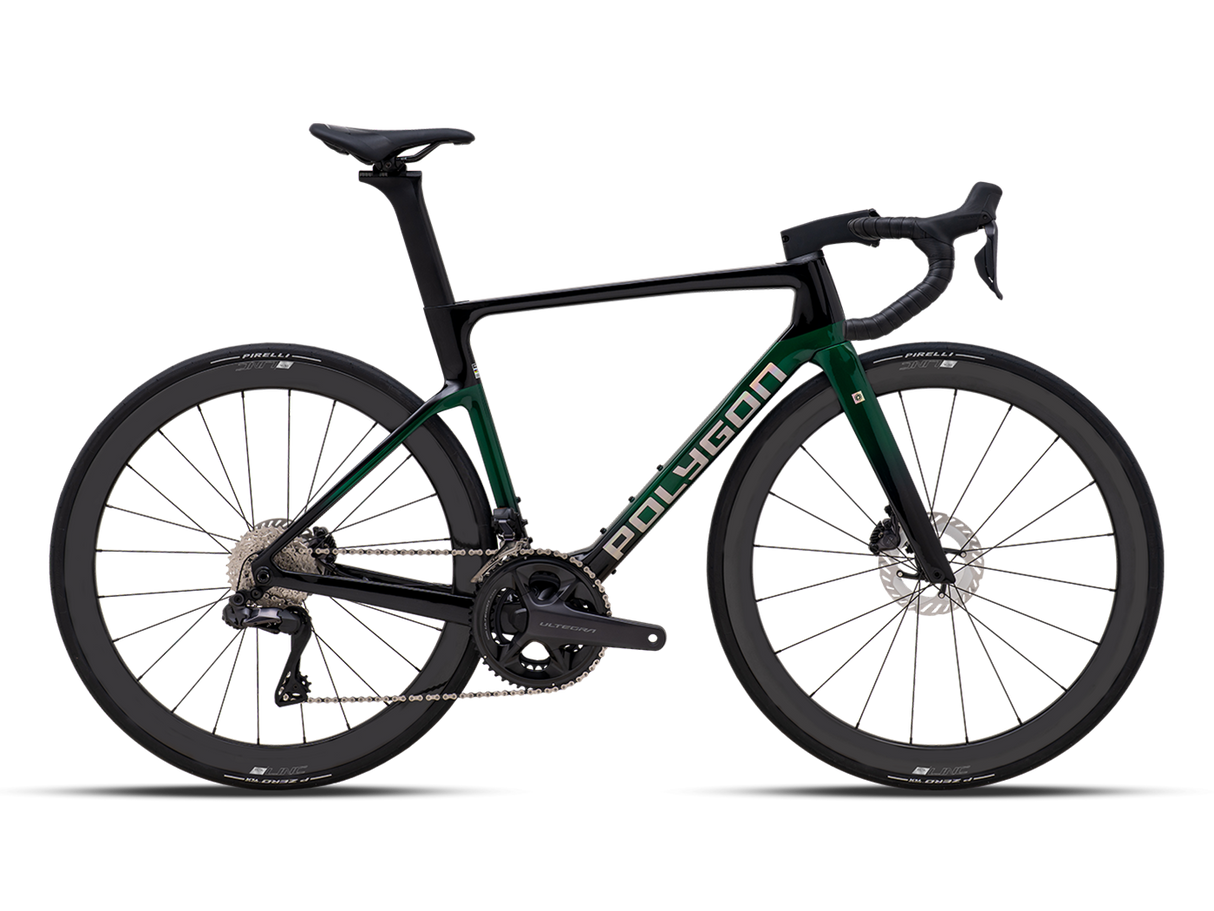

Polygon Helios A8 Di2
Polygon Helios A8 Di2 - Midnight Pine / XXSmall is nabesteld en wordt verzonden zodra het weer op voorraad is.
Estimated Shipping Widget will be displayed here!
Reviews
Polygon Helios A8 Di2
Designed To Cut Through Air Better
Frameset
Frameset
ACX PERFORMANCE UCI APPROVED
Fork
ACX PERFORMANCE UCI APPROVED
Frame Color
MIDNIGHT PINE / CHROME ROCKET
Decal Color
HOLOGRAPHIC SILVER
Drivetrain
Shifter
SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED
Crank
SHIMANO ULTEGRA FC-R8100 52/36T
Cassette
SHIMANO ULTEGRA CS-R8101-12 11-34T
Rear Derailleur
SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH
BB
TOKEN T47 85.5 FOR 24mm SPINDLE
Chain
KMC X12 EPT 12-SPEED
Cockpit
Saddle
LINC FLUX2, CR-MO ø 7mm
Seatpost
CARBON AERO, DxL: AERO 35 x 351mm
Handlebar
LINC CARBON, W: 400mm (XXXS, XXS, XS) / 420mm (S, M) / 440mm (L, XL), BB: 31.8mm, R/D: -134.2 mm (XXXS, XXS, XS) / -138.2mm (S, M, L, XL), B/R: 92.5mm (XXXS, XXS, XS) / 89.7mm (S, M, L, XL)
Handlestem
CARBON, EXT: 90mm (XXXS) / 100mm (XXS, XS) / 110mm (S, M) / 120mm (L, XL), BB: 31.8mm, R/D: (-7.5)degree
Headset
INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Wheel & Tire
Wheel Set
LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED
Wheel Size
700C
Tire
PIRELLI PZERO ROAD TLR 700x28C
Rim
F: CARBON 622-22 20H FOR TYRE 622-28/62 DISC TUBELESS READY / R: CARBON 622-22 24H FOR TYRE 622-28/62 DISC TUBELESS READY
Hub
F: ALLOY THRU AXLE 12x100mm 20H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK
Spokes
F: STAINLESS DOUBLE BUTTED NDS:278mm DS:280mm / R: STAINLESS DOUBLE BUTTED NDS:272mm DS:274mm
Brake
Brake Lever
SHIMANO ULTEGRA ST-R8170
Brake Caliper
SHIMANO ULTEGRA HYDRAULIC DISC
Rotor
SHIMANO ULTEGRA CL800 F:160mm / R:140mm CENTER LOCK
| XXXS | XXS | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|---|
| Height (cm) | 143-153 | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
| Seat Tube Length (A) | 395 | 420 | 457 | 489 | 499 | 518 | 536 |
| Seat Tube Angle (B) | 75 | 74.7 | 74.3 | 74 | 73.7 | 73.3 | 73 |
| Effective Seat Tube Angle (C) | 75 | 74.7 | 74.3 | 74 | 73.7 | 73.3 | 73 |
| Head Tube Length (D) | 90 | 100 | 110 | 120 | 130 | 150 | 170 |
| Head Tube Angle (E) | 71 | 71.3 | 71.5 | 72.3 | 72.5 | 72.8 | 73 |
| Effective Top Tube (F) | 502 | 513 | 529 | 540 | 556 | 570 | 598 |
| Bb Height (G) | 266 | 266 | 268.5 | 271 | 271 | 272.5 | 272.5 |
| Bb Offset (H) | 78 | 78 | 75.5 | 73 | 73 | 71.5 | 71.5 |
| Chainstay Length (I) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (J) | 969 | 976 | 988 | 985 | 996 | 1005 | 1024 |
| Frame Reach (K) | 370 | 375 | 385 | 390 | 400 | 405 | 420 |
| Frame Stack (L) | 493 | 503 | 511 | 523 | 533 | 551 | 571 |
| Standover Height (M) | 662 | 685 | 720 | 752 | 761 | 780 | 799 |
EU prices include VAT.
