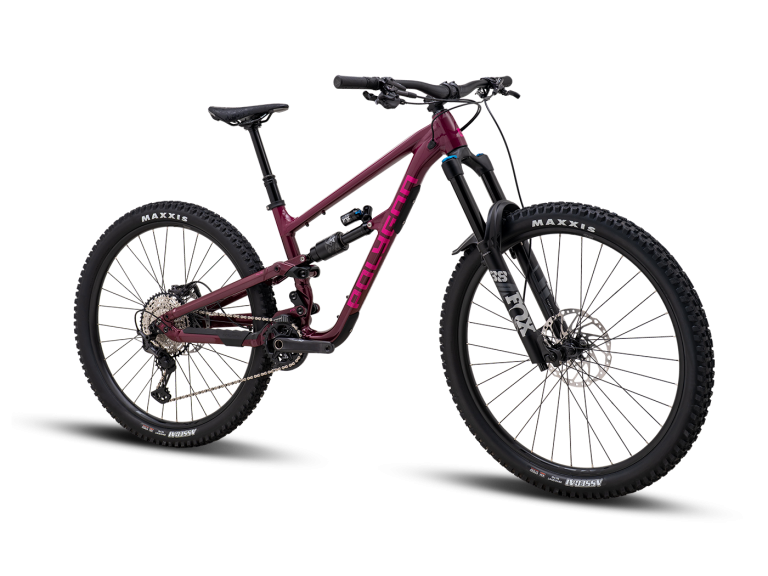

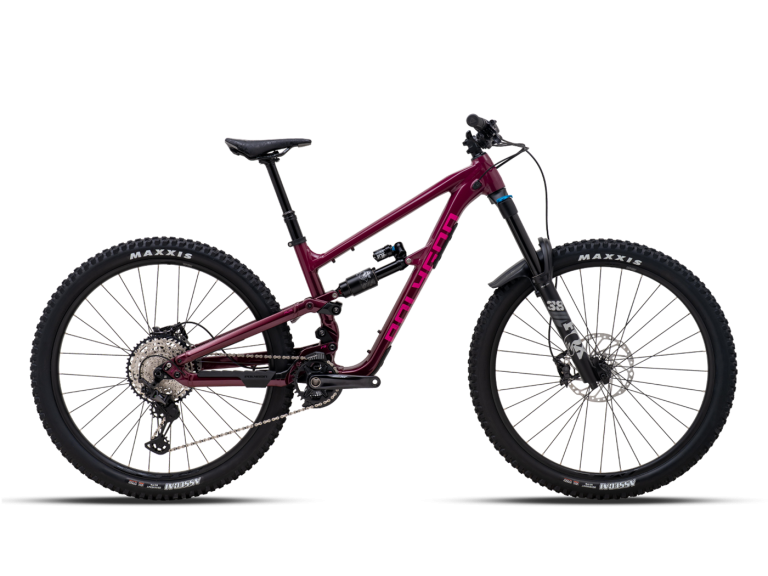

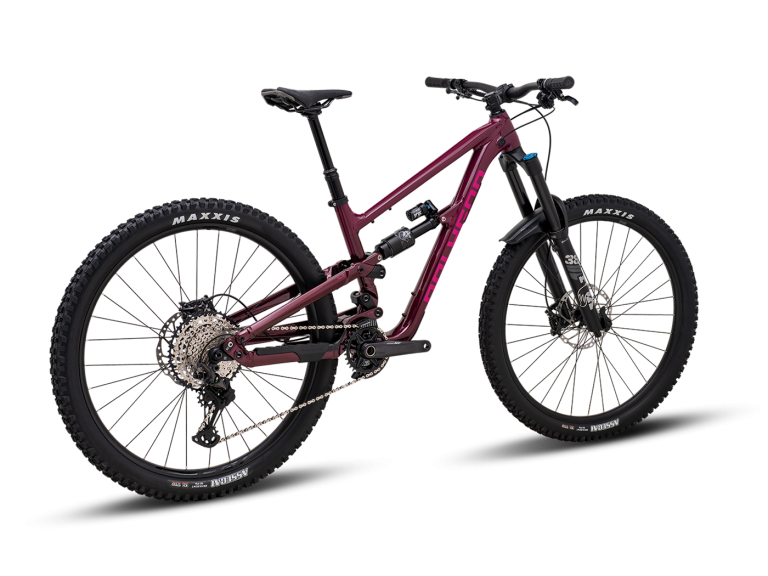

Polygon Collosus N9
🎄 Christmas Deal – geldig tot
Polygon Collosus N9 - Small is nabesteld en wordt verzonden zodra het weer op voorraad is.
Estimated Shipping Widget will be displayed here!
Reviews
Polygon Collosus N9
Ride faster, track better, leave them in the dust
Frameset
Frameset
ALX ENDURO 170mm TRAVEL
Fork
FOX 38 FLOAT PERFORMANCE, AIR SPRING, 170mm TRAVEL, OFFSET: 44mm, W/ FENDER
Rear Shock
FOX FLOAT X2, AIR SPRING, 2 POSITION ADJUST, HSC-LSC, HSR-LSR, E2E: 230x65mm
Frame Color
BURGUNDY RED
Decal Color
MAGENTA PINK
Drivetrain
Shifter
SHIMANO XT SL-M8100-R, 1x12-SPEED TRIGGER
Crank
SHIMANO DEORE XT FC-M8120, 32T
Cassette
SHIMANO SLX CS-M7100, 10-51T
Rear Derailleur
SHIMANO XT RD-M8100-SGS
BB
SHIMANO BB-MT501 BSA THREADED
Chain
KMC X-12
Pedal
ALLOY FLAT W/ REPLACEABLE PIN
Cockpit
Saddle
LINC XTENT, CR-MO ø7mm
Seatpost
TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL)
Handlebar
RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree
Handlestem
RACE FACE AEFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0degree
Headset
FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40
Wheel & Tire
Wheel Set
POLYGON MT6 TUBELESS READY
Wheel Size
29"
Tire
MAXXIS ASSEGAI 29"x2.5"
Rim
F: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY / R: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY
Hub
F: SHIMANO XT HB-M8110-B BOOST 15x110mm 32H CL / R: SHIMANO DEORE XT FH-M8110-B BOOST 12x148mm 32H CL FOR MICRO SPLINE
Spokes
F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE
Brake
Brake Lever
SHIMANO XT BL-M8100
Brake Caliper
SHIMANO XT HYDRAULIC DISC
Rotor
SHIMANO SM-RT64 203mm
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 390 | 400 | 415 | 430 |
| Seat Tube Angle (B) | 70 | 70 | 70 | 70 |
| Effective Seat Tube Angle (C) | 77 | 77 | 77 | 77 |
| Head Tube Length (D) | 100 | 105 | 110 | 120 |
| Head Tube Angle (E) | 63.5 | 63.5 | 63.5 | 63.5 |
| Effective Top Tube (F) | 583.6 | 604.6 | 626.4 | 647.7 |
| Bb Height (G) | 353 | 353 | 353 | 353 |
| Bb Offset (H) | 27 | 27 | 27 | 27 |
| Chainstay Length (I) | 435 | 435 | 435 | 435 |
| Wheelbase (J) | 1221.7 | 1244 | 1266.2 | 1290.7 |
| Frame Reach (K) | 440 | 460 | 480 | 500 |
| Frame Stack (L) | 625.5 | 630 | 634.5 | 643.4 |
| Standover Height (M) | 710 | 716 | 717 | 720 |
