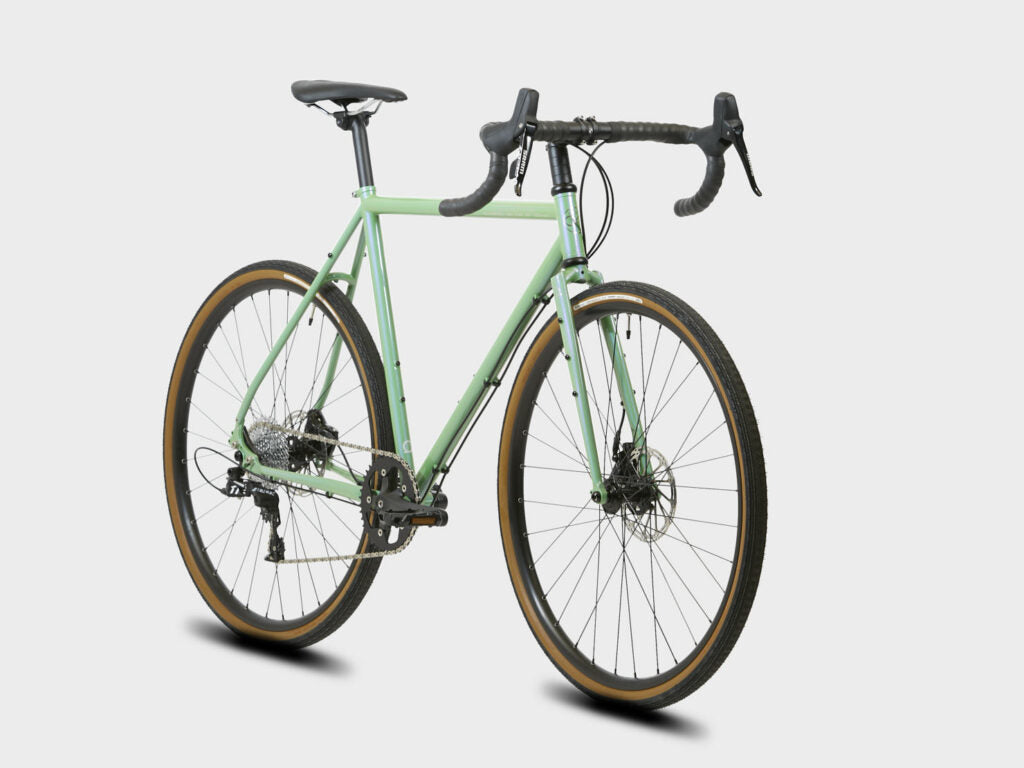

The dropbar version of the ever versatile CXC makes the bike quite a bit faster, as well as a bit more fun to go off-road with. With a 1×11 Apex setup, this bike can go anywhere from paved roads to gravel adventure.
Even though the CXC has a classic look, the frame is definitely ready for the future. With interchangeable dropout inserts, beltsplit and disc brake tabs this bike can do almost everything.
Go have fun!
The dropbar version of the ever versatile CXC makes the bike quite a bit faster, as well as a bit more fun to go off-road with. With a 1×11 Apex setup, this bike can go anywhere from paved roads to gravel adventure.
Even though the CXC has a classic look, the frame is definitely ready for the future. With interchangeable dropout inserts, beltsplit and disc brake tabs this bike can do almost everything.
Go have fun!
Frame Specifications
| 6 Sizes | XS (51), S (53), M(56), L (59), XL (62), XXL (64) |
| Material | Double-Butted Chromoly Steel Frame & Fork |
| Gears | For 1x rear derailleur gear system |
| Seat post diameter: | 27.2mm |
| Rear Wheel: | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front Wheel: | 622, 12 x 100mm spacing, disc only |
| Tyre clearance, front: | 45mm clearance with mudguards |
| Tyre clearance, rear: | 45mm clearance with mudguards (50mm chainstay clearence) |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
| Thru Axle Front | 12×100, 125mm, 17mm thread length, 1.5mm Pitch |

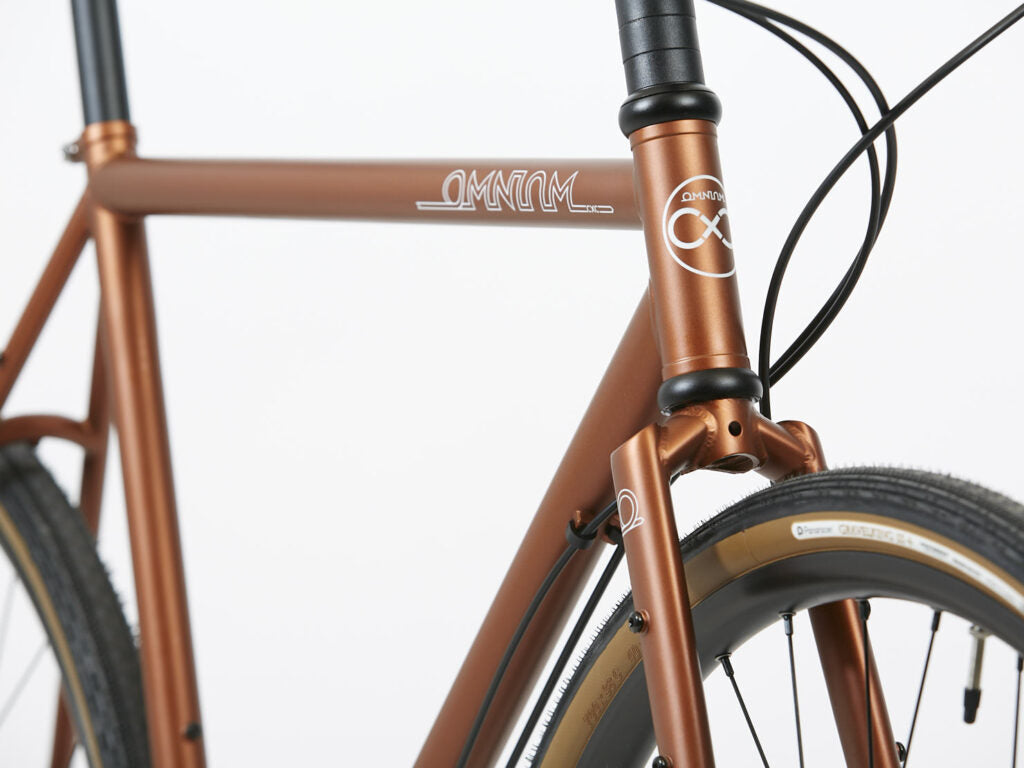

| Headset: | 1 1/8″ Ahead |
| Bottom Bracket: | 68mm BSA |
| Brake Mounts: | IS brake mount front and rear, for minimum 160mm and max 180 rotors |
| Q-Factor | 145mm |
| Recommended maximum loading weight including rider: | 100 kg |
| Framekit weight(Large); Including Fork, Drop Outs & Axles | 3,7 kg |
