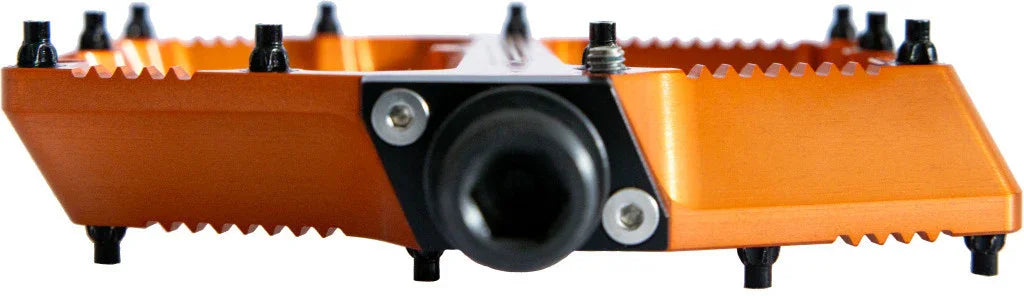

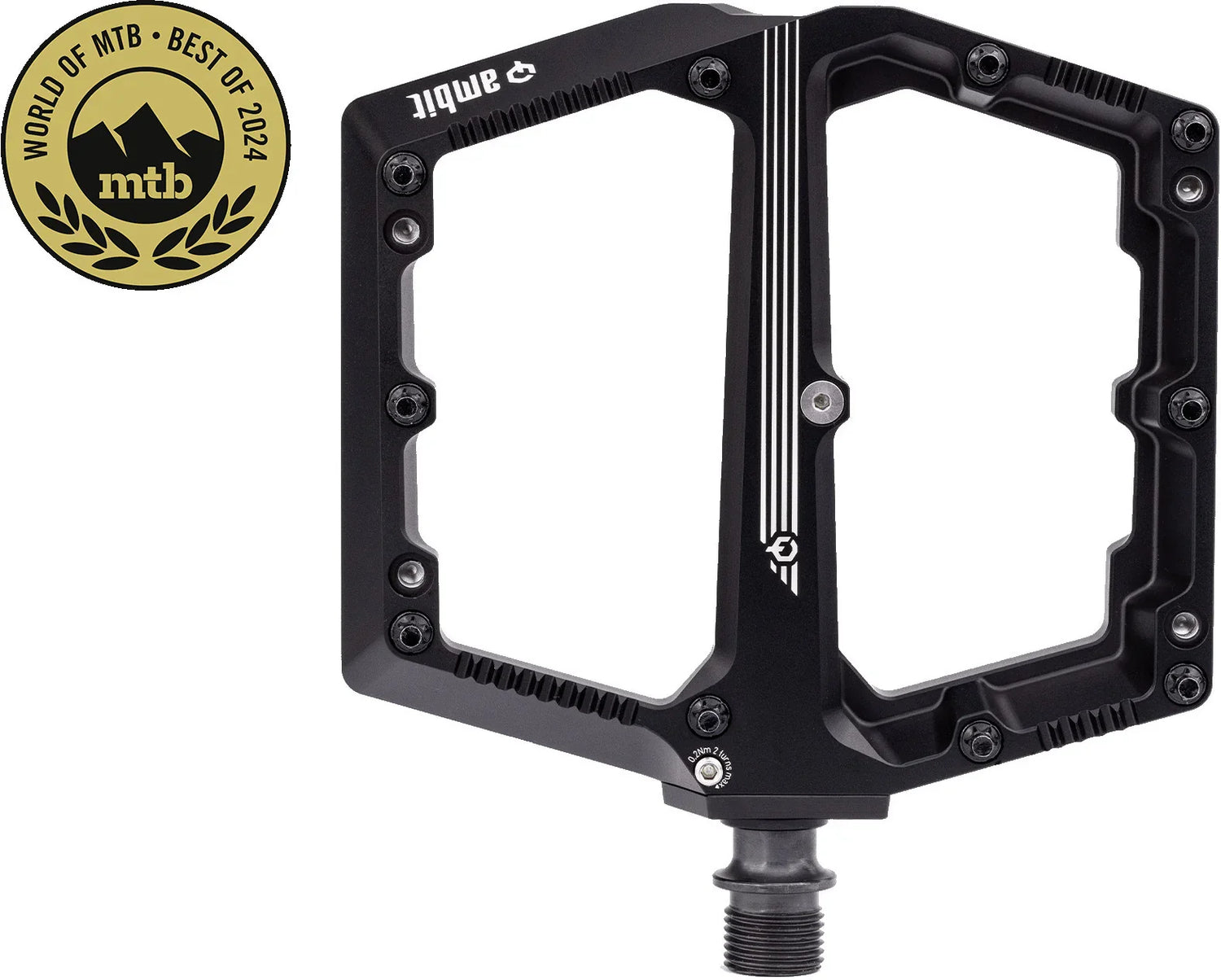

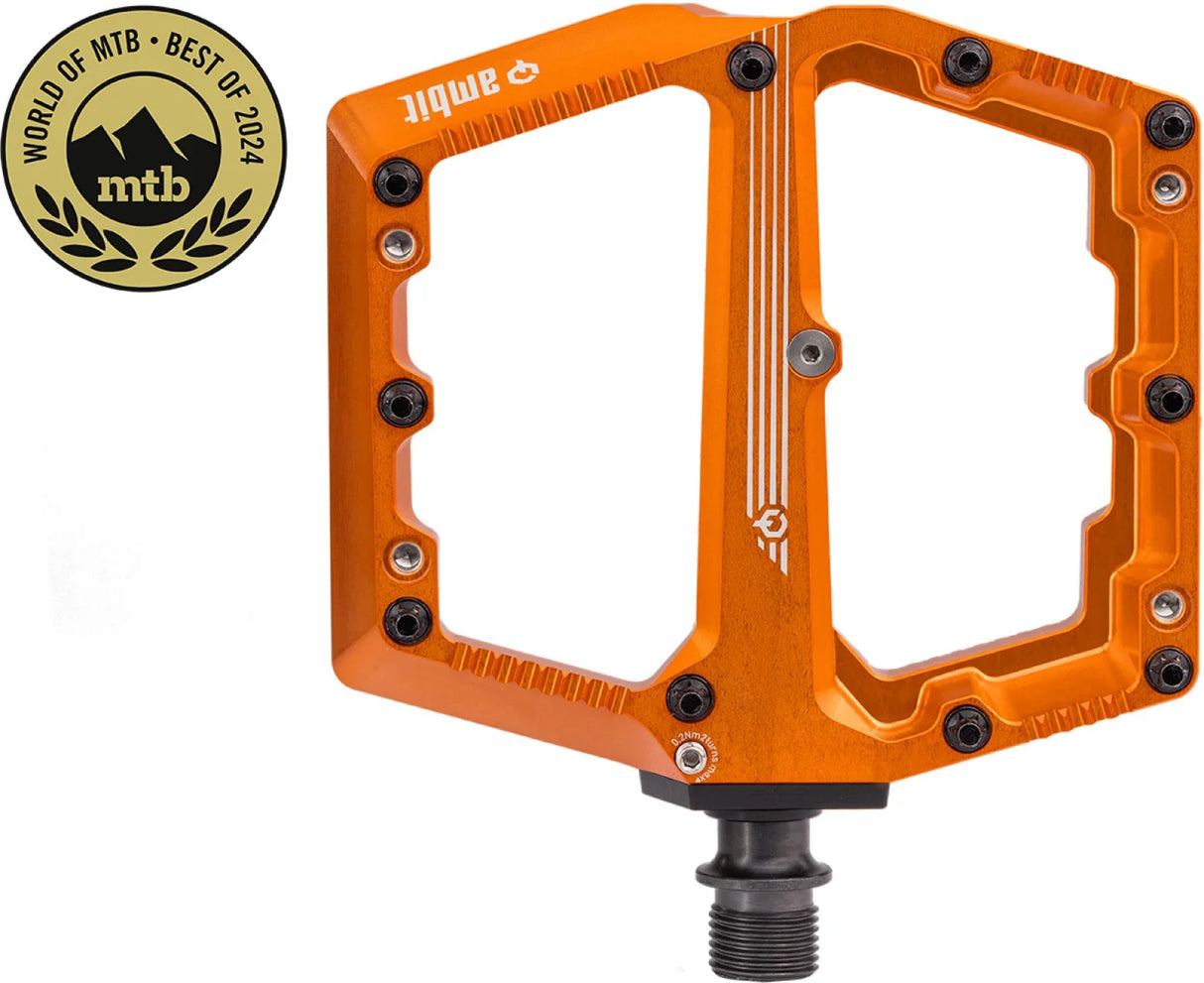

Ambit Enduro Flat Pedals
Regular price
€230,00 EUR
Unit price
/
Unavailable
In Oberammergau, our pedals are manufactured on state-of-the-art five-axis CNC machines. Our flat pedals are developed specifically for use in Slopestyle and MTB Enduro. On in-house test rigs, off-road and in competition use, our products are tested for maximum resilience until they are ready for the market. Despite all the built-in finesse, the maintenance is very easy due to a simple design. 100% made in Bavaria.
- Inclined footprint
For best possible force application without fatigue. Based on scientific research, our pedal has an inclined position. This allows us to provide you with a particularly ergonomic riding experience: strength, endurance and riding comfort increase noticeably by optimizing the alignment of the hips, knees and feet.
- Rotation adjustment
For stepless adjustment of the rotational movement. The rotation brake allows you to individually adjust the rotation of the pedal without foot contact. The Haxn Hoita supports you exactly as you need it for your riding style - a decisive safety advantage in slopestyle and jumps. This way, you will immediately regain grip on the pedal while still in the air.
- Material pedal body: aluminum (AL7075)
- Material axle: steel (42CrMo4) nitrided
- Bearing: one IGUS plain bearing 12x15mm, two industrial bearings
- Seals: 3mm felt ring, INA shaft seal 3x12
- Overall height: 18 mm (axle, without pin), 14 mm (outer, without pin)
- Q-factor: 57 mm
- Dimensions Size L: (L x W): 123 mm x 124 mm (outer dimension) / 116 mm x 110 mm (footprint)
- Dimensions Size M: (L x W): 113 mm x 114 mm (outer dimension) / 106 mm x 100 mm (footprint)
- Number of pins per footprint: 10
- Pin height: 5 mm, optional 4 mm
- Weight: 385 g (pair without pins, size M), 416 g (per pair without pins, size L)
- Patent pending
- Inclined footprint
For best possible force application without fatigue. Based on scientific research, our pedal has an inclined position. This allows us to provide you with a particularly ergonomic riding experience: strength, endurance and riding comfort increase noticeably by optimizing the alignment of the hips, knees and feet.
- Rotation adjustment
For stepless adjustment of the rotational movement. The rotation brake allows you to individually adjust the rotation of the pedal without foot contact. The Haxn Hoita supports you exactly as you need it for your riding style - a decisive safety advantage in slopestyle and jumps. This way, you will immediately regain grip on the pedal while still in the air.
- Material pedal body: aluminum (AL7075)
- Material axle: steel (42CrMo4) nitrided
- Bearing: one IGUS plain bearing 12x15mm, two industrial bearings
- Seals: 3mm felt ring, INA shaft seal 3x12
- Overall height: 18 mm (axle, without pin), 14 mm (outer, without pin)
- Q-factor: 57 mm
- Dimensions Size L: (L x W): 123 mm x 124 mm (outer dimension) / 116 mm x 110 mm (footprint)
- Dimensions Size M: (L x W): 113 mm x 114 mm (outer dimension) / 106 mm x 100 mm (footprint)
- Number of pins per footprint: 10
- Pin height: 5 mm, optional 4 mm
- Weight: 385 g (pair without pins, size M), 416 g (per pair without pins, size L)
- Patent pending
EU prices include VAT.
