Bombtrack Munroe Cargo Microshift 9
Bombtrack Munroe Cargo Microshift 9
Description
"In the modern world, this might be the only vehicle you'll ever need. No fuel tank to fill, no parking space fees, no insurance bills...
If you’re trying to use the van less and the bike more, then the Munroe Cargo is the bike for you. Specifically designed aluminium frame for load carrying with its frame-mounted front rack with a 30 kg capacity, a double top tube and tall head tube deliver a stable ride with good visibility, even when loaded. Having a smaller front wheel aids manoeuvrability and both wheels have wide rims and fat Kenda tyres for strength. A 36 / 22T crankset coupled with a 9 speed 11 – 36T cassette allows you to keep the pedals spinning whatever the cargo. Shimano hydraulic brakes will keep you and your load safely under control and being a Bombtrack, there are bottle, rack and fender mounts on the frame for all your extra’s.
Features
- Color 1: Matt swamp green
- Color 2: Matt slate grey

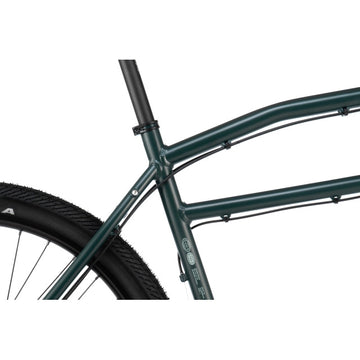

- Frame: 6061-T6 hydroformed aluminium, TA, rack / fender mounts, 68 mm BSA BB shell
- Fork: 6061 aluminium, TA dropouts, with fender mounts, internal light cable routing
- Shifter: Microshift SL-M859 shifter 2 x 9
- Front derailleur: Microshift FD-M462-B

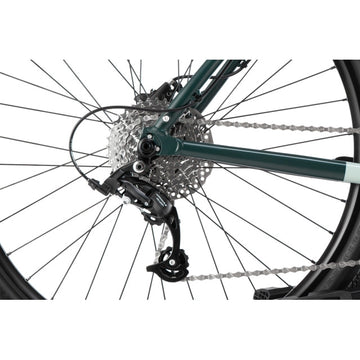

- Rear derailleur: Microshift RD-M46S
- Chain: KMC X9 chain, 1/2" x 11/128"
- Cassette: Microshift CS-H092 9-speed, 11 - 36 T
- Crankset: Bombtrack Aude aluminium crank, square taper
- Chainring: Forged steel, 36 / 22 T
- Bottom bracket: BSA sealed BB, 119 mm, square taper
- Pedals: Wellgo B109N flat pedal
- Front hub: Bombtrack Arc sealed hub, 6-bolt disc
- Rear hub: Bombtrack Arc sealed hub, 11-speed HG body, 6-bolt disc
- Through axles: 12 x 100 mm / 12 x 142 mm
- Front rim: Bombtrack Lune double wall, i24, 20"
- Rear rim: Bombtrack Lune double wall, i24, 27.5"
- Front tire: Kenda Kranium 20 x 2.3"
- Rear tire: Kenda Kwick Seven.5 27.5 x 2.2"
- Handlebar: Bombtrack Origin flat bar, 31.8 mm, 8° backsweep
- Grips: Bombtrack Scroll grips
- Stem: Bombtrack Wander forged aluminium stem, +17°
- Headset: Neco H52MP sealed integrated aheadset, 1.1/8''
- Seat: Bombtrack Fuzz seat
- Seat post: Bombtrack Beech 27.2 mm x 400 mm
- Seat clamp: Bombtrack Origin 31.8 mm
- Brake levers: Shimano BL-M200 hydraulic brake levers

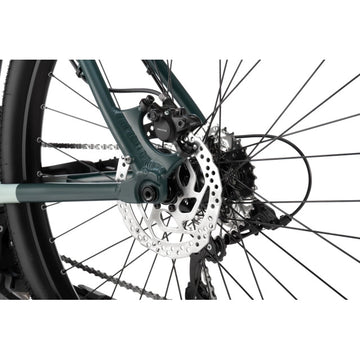

- Brakes: Shimano BR-MT200 post mount hydraulic disc brake
- Rotors: Shimano SM-RT26 160 mm rotors
- Complete weight: 14.8 kg (size M)
- Weight frame: 3240 g frame (size M, incl. TA, hanger, rack and bolts)
- Weight fork: 770 g fork (400 mm steerer)
- Maximum rider weight: 140 kg incl. luggage
- ASTM riding condition: 1

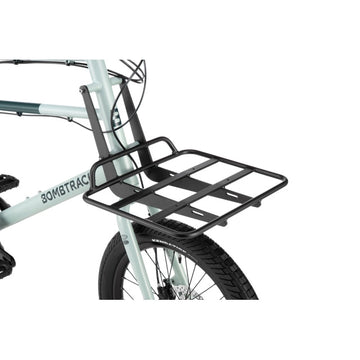

- Rack: Bombtrack Cargo frontrack, aluminium
- Kickstand: Seido Arcade center mount double leg kickstand
Specification
Frame
BB standard: BSA - 68 mm shell width
Frame max tire clearance w/o fender:
27.5'' x 2.2''
Frame front derailleur compatible: yes
Front derailleur clamp diameter: 31.8 mm
Brake mount rear: PM 6''
Maximum rotor clearance rear: 180 mm
Bike trailer: approved
Seat tube mounted child seat: approved
ISO testing standard: MTB
Fork
Fork max tire clearance w/o fender:
20'' x 2.5''
Fork steerer inner diameter: 24.6 mm
Headset standard (S.H.I.S.):
IS42 / 28.6 | IS42 / 30
Headset crown race angle: 45°
Brake mount front: PM 6''
Maximum rotor clearance front: 180 mm
Drivetrain
Maximum chainring clearance 1x:
42 T with 45 mm chainline
Maximum chainring clearance 2x:
52 / 38 T with 45 mm chainline
Crankarm: 170 mm
Q Factor: 174 mm
BCD crank: 104 mm / 64 mm, 4 bolts
Chainring offset: 0 mm
Chainline: 49 mm
Seat & Seatpost
Seat post diameter: 27.2 mm
Seat post offset: 24 mm
Seat post length: 400 mm
Seat clamp diameter: 31.8 mm
Cockpit
Stem length: 60 mm
Stem angle: 17°
Headset spacers: 2 x 10 mm, 1 x 5 mm
Wheels
Spoke length front wheel:
182 mm, 184 mm
Spoke length rear wheel:
270 mm, 269 mm
Spoke count (front / rear): 36 / 36
Front through axle:
12 mm x 100 mm, 1.5 thread pitch
Rear through axle:
12 mm x 142 mm, 1.5 thread pitch
ERD: 380 mm / 563 mm
Front hub PCD: 58 mm
Rear hub PCD: 58 mm
Front hub flange distance / offset:
56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset:
51 mm center to center / 8.8 mm
Spare Parts
Derailleur hanger:
BT-DH-023
Hub end caps front:
BT-HC-012
Hub end caps rear:
BT-HC-017
Cassette body:
BT-CB-006
Through axle front:
BT-TA-F-603
Through
axle rear: BT-TA-R-603
