Cannondale | Barcode: 196870076990

Cannondale SuperX 4 AXS

Name: Fire Orange / 61cm Cannondale SuperX 4 AXS
SKU: C1711GU1061
Price: 3999.0 EUR

€3.999⁰⁰

Price includes VAT. Shipping calculated at checkout.

Color: Fire Orange

Size: 46cm

46cm 51cm 54cm 56cm 58cm 61cm

Product variants

Not available in Rotterdam store

Available in warehouse

Estimated delivery: Sep 19–25

Official dealer

70,000+ riders since 2011

14-day easy returns

Description

All In to Go All Out

A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

Model Description

Train, race, repeat. SuperX 4 AXS offers serious gravel racing chops at a more approachable price. It shares the same carbon frame as the more expensive models, and features a suite of high value, high performance components guaranteed to raise your game without killing your wallet. SRAM's proven Apex AXS XPLR 12-speed gravel group cracks off precise wireless shifts. Apex brakes deliver precise power and control. DT Swiss G540 gravel rims balance light weight with rugged durability. Everything you need to excel at high-speed gravel exploits.

What it's for

Elite gravel racing, KOM hunting, Going like hell

Highlights

Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
Wireless electronic shifting from SRAM's workhorse Apex AXS XPLR 12-speed gravel group
SRAM Apex hydraulic disc brakes deliver powerful, consistent braking
Light and durable DT Swiss G540 gravel rims, wrapped in 40c Vittoria Terreno T50 tubeless ready tires
Lightweight Cannondale C1 Aero 27 Carbon seatpost

Specification

Platform
SuperX
Model Name
SuperX 4 AXS
Model Code
C1711GU SMU

Frameset

Frame
SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Fork
SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Headset
Integrated, 1-1/8" - 1.5"

Drivetrain

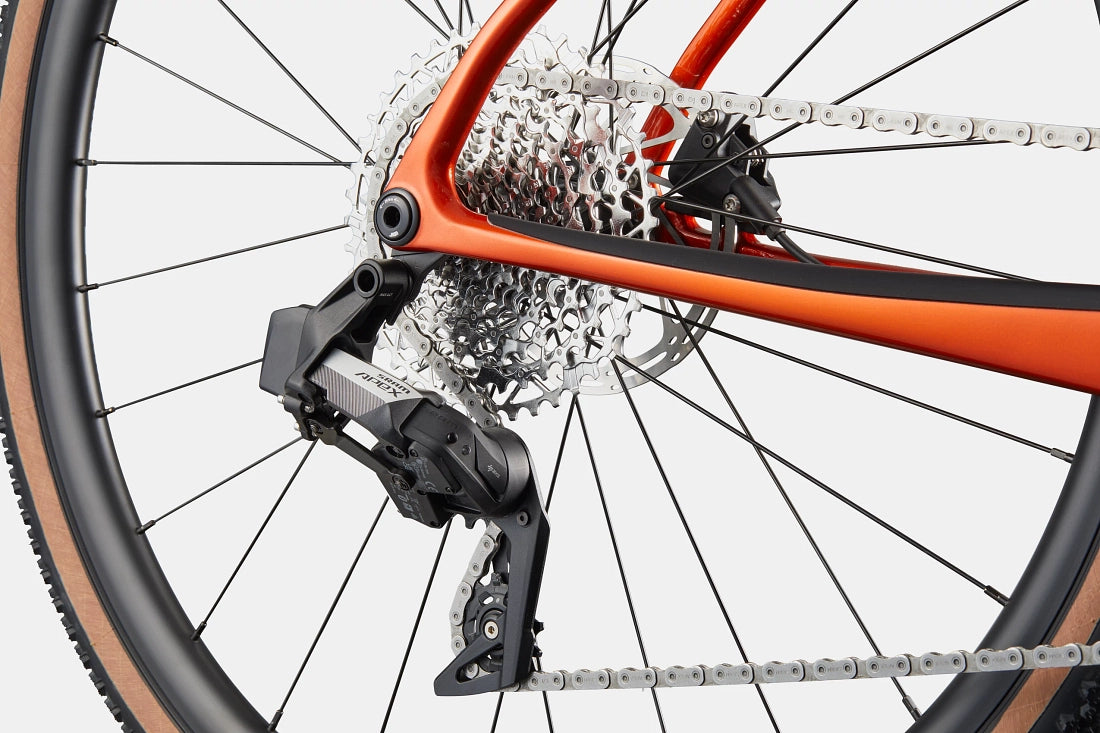

Rear Derailleur
SRAM Apex AXS XPLR, 12-speed

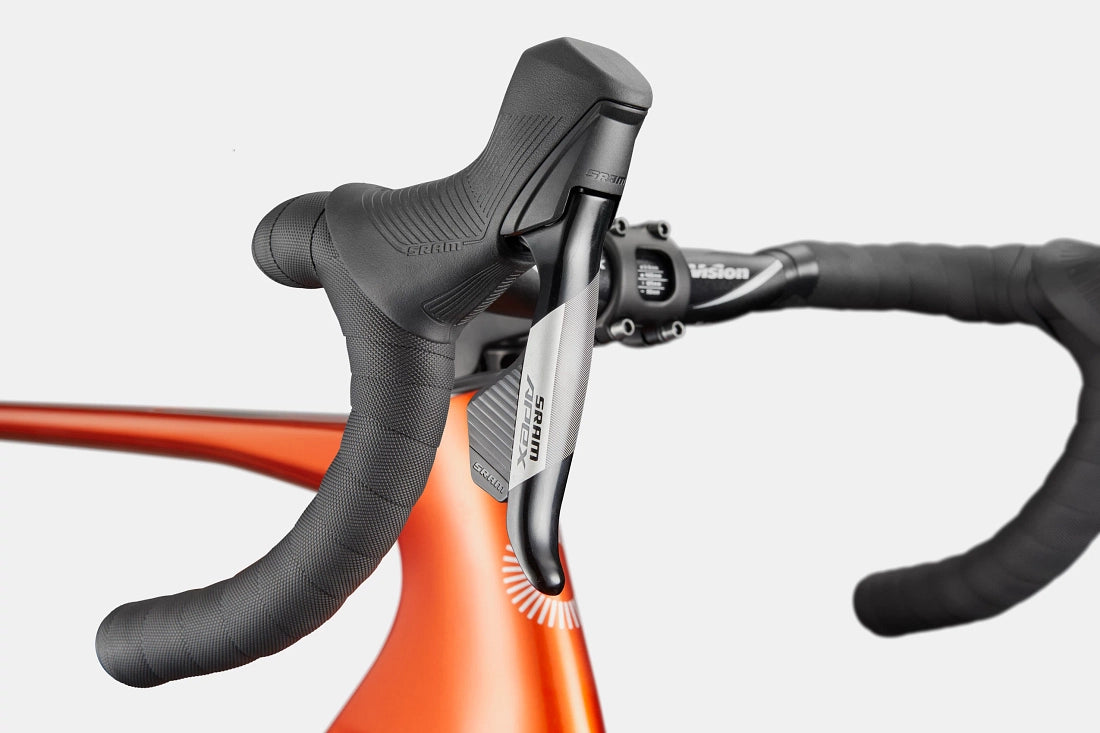

Shifters
SRAM Apex AXS, 12-speed
Chain
SRAM Apex, 12-speed

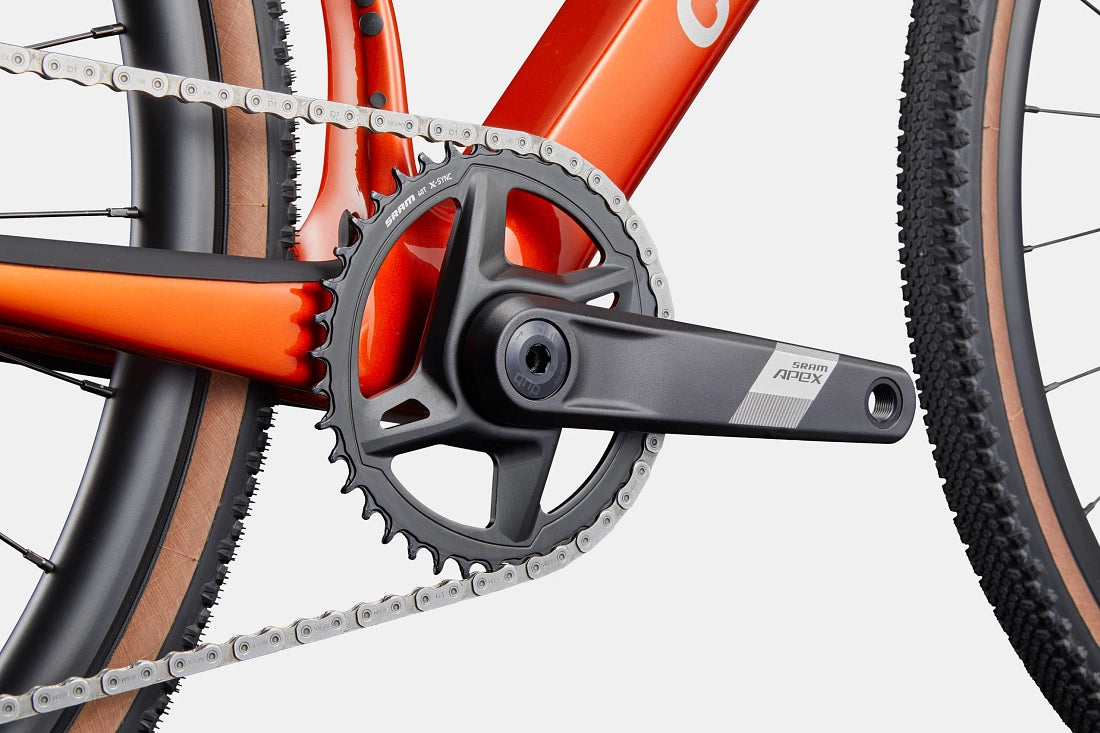

Crank
SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51-54cm), 172.5 (56-58cm), 175mm (61cm)
Rear Cogs
SRAM Apex XPLR PG-1231, 11-44, 12-speed
Bottom Bracket
SRAM DUB BSA Road 68 Wide

Brakes

Brakes
SRAM Apex hydraulic disc, Centerline 160/160mm centerlock rotors
Brake Levers
SRAM Apex AXS hydraulic disc

Wheels

Rims
DT Swiss G540, 24mm inner width, 28h, tubeless ready
Spokes
DT Swiss Champion
Tire Size
40
Wheel Size
700c
Hubs
Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
Tires
Vittoria Terreno T50, 700x40c, tubeless ready

Components

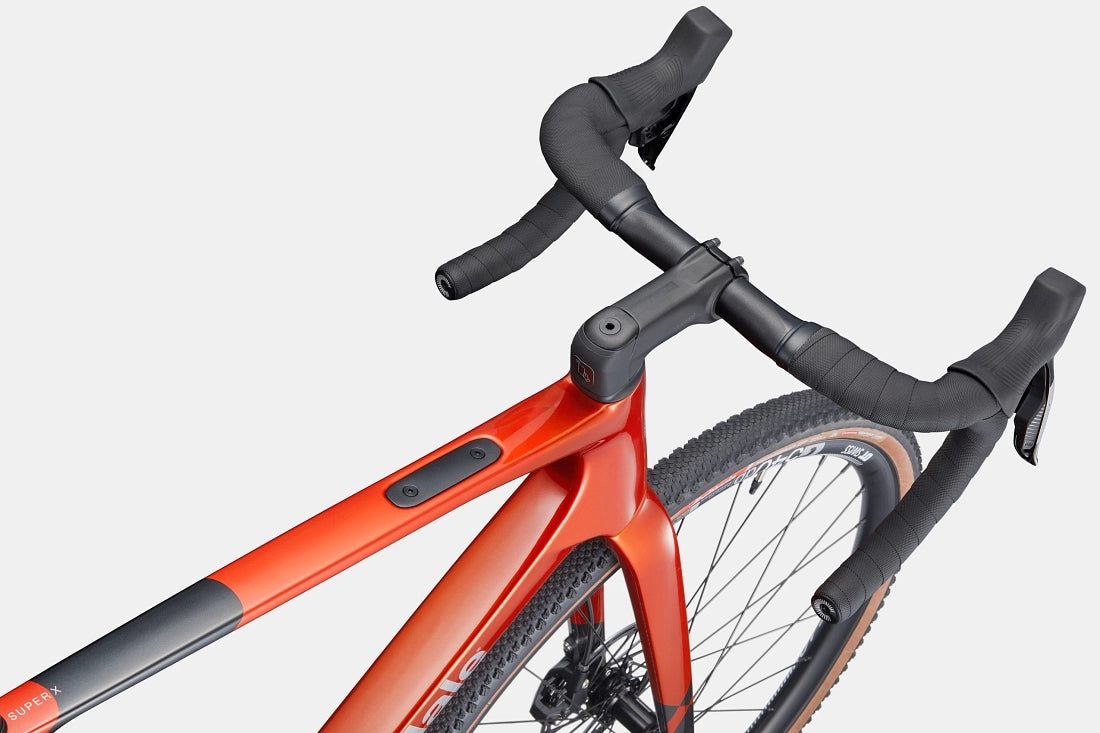

Handlebar
Vision Trimax Aero Alloy : 400mm (46-58cm), 420mm (61cm)
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm)
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Fizik Vento Argo X5, S-Alloy rails, 140mm

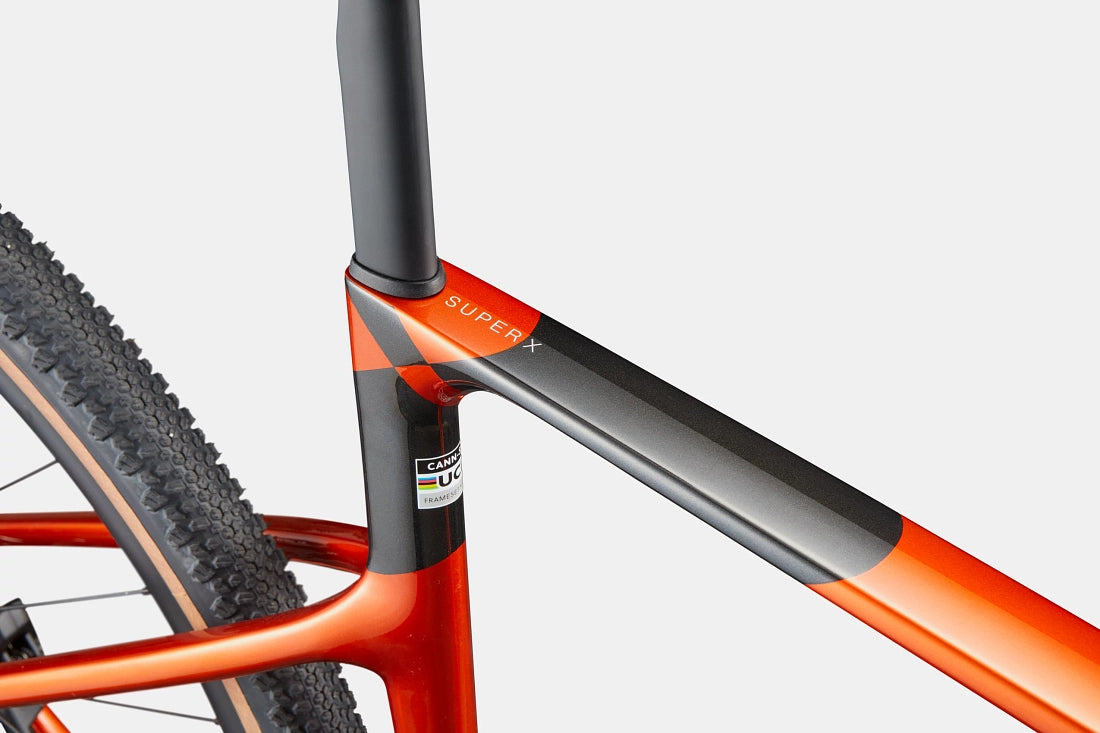

Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Extra

Extra 1
Tubeless valves, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo/Hammerhead)

Please note that, based on component availability and other factors, specifications are subject to change without notice.

Geometry

All In to Go All Out

Two cyclists race on a dirt path, one in a yellow jersey and the other in a blue jersey, both focused and intense.

Fast & Light

Our KOM-winning road tech meets Unbound-winning engineering. SuperX is super aero and light to stay ahead of the pack in this rapidly -evolving era of high-speed, elbow-to-elbow gravel racing. With gravel race speeds averaging well over 35 km/h, SuperX brings a whole lotta free speed over any distance.

A bicycle is displayed in a wind tunnel, with a blue tint and technical data overlay in the background.

Gravel Glider, Not Grinder

SuperX’s sophisticated carbon construction smooths out the rough, floating above the gravel to keep you cranking. Specially constructed flex zones in the seat tube, rear triangle, and top tube work as a system with the D-shaped seatpost to absorb shock and vibration, keeping your mind and body fresher longer.

A blurred image of a bicycle, showcasing dynamic movement with hints of colors and shapes in a foggy environment.

Handle It

Take the faster line. Pass on the inside. Lay off the brakes and let 'er fly. With its race-proven geometry, OutFront steering design, and finely calibrated frame stiffness, the SuperX’s handling blends stability and precision in a way that takes the drama out of clutch moments, letting you hold your line while staying on the gas.

A close-up of a cyclist's hands gripping the handlebars of a bike, with muddy legs and a blurred background.

Built to Take It. Tuned for You.

SuperX’s Proportional Response carbon construction is tailor made for gravel racing and for you. Fully customized by size, precisely oriented layers of different types and moduli of carbon fibers deliver an ideal balance of weight, stiffness and durability for every rider. All backed by our lifetime guarantee. 

Two cyclists, one male and one female, smile while wearing helmets. The male wears a purple long-sleeve jersey, and the female has a polka dot shirt.

Get ‘Crossed Up

Is cyclocross your thing? SuperX has you covered. Throw on some 33c tires and hit it. With its straight-line speed, planted handling, and massive mud clearance, SuperX loves to battle it out between the tape. Oh, and the flat top tube is pretty nice on the shoulders too.

A cyclist carries a bike up a muddy slope during a race, with spectators watching in the background. The image is in black and white.
