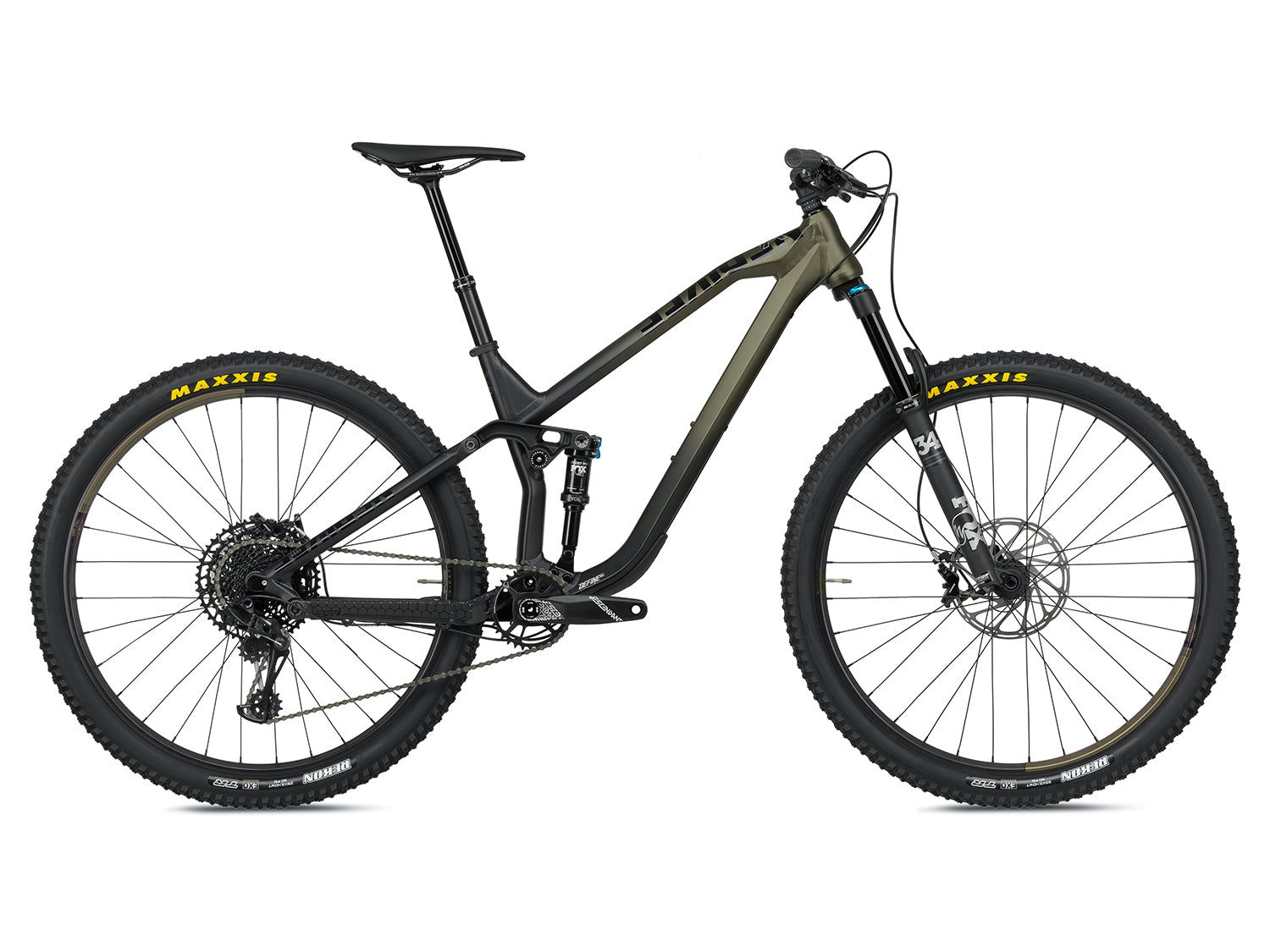

Define AL 130 1

The Define AL 130 is arguably the most versatile bike in the series, perfect for tearing up and down the mountains every day. The sturdy aluminum frame with semi-integrated cable routing, 130mm of travel, and the height-adjustable bottom bracket make this bike the perfect daily companion, especially impressive on climbs. The Define AL 130 1, equipped with high-quality components, is a top-tier all-purpose machine for all aluminum fans.

Specifications:
FRAME: NS Bikes Define AL, 130mm travel, AL6061-T6 + AL6066-T6
FORK: Fox Performance 34 Float Grip, 140mm travel, 3 positions
SHOCK: Fox Performance Float DPS, 3 positions
DRIVETRAIN: SRAM GX Eagle Type 3, 1x12
SHIFT LEVER: SRAM NX Eagle, 1x12
CASSETTE: SRAM PG-1210, 11-50T, 1x12
FRONT BRAKE: SRAM G2 R 4-piston, 200mm
REAR BRAKE: SRAM G2 R 4-piston, 180mm
CRANKSET: Truvativ Descendant 6K DUB 170mm, 32T
SEAT POST: Race Face Aeffect R 125mm (S), 150mm (M), 170mm (L), 31.6mm
SADDLE: WTB Volt Medium Cromoly
HANDLEBAR: NS Bikes 35, 780mm, 20mm Rise
STEM: NS Bikes Quantum Lite 35, 45mm
FRONT HUB: NS Bikes Rotary 110x15mm Boost (sealed bearings)
REAR HUB: NS Bikes Rotary Cassette 148x12mm Boost (sealed bearings)
RIMS: Octane One Solar 29”, 32h, tubeless ready
FRONT/REAR TIRES: Maxxis Rekon EXO TR 29x2.4” WT
BOTTOM BRACKET: SRAM DUB BSA 73mm
HEADSET: GW integrated tapered IS42/IS52, sealed bearings
GRIPS: NS Bikes Hold Fast supersoft
SPOKES: Spokes 14mm nipples
CHAIN: SRAM SX Eagle, 1x12
WEIGHT (KG): approx. 15.4 kg *Size M, tubeless

Specifications subject to change without notice.

Actual colours and design may vary slightly from the images on the website.
