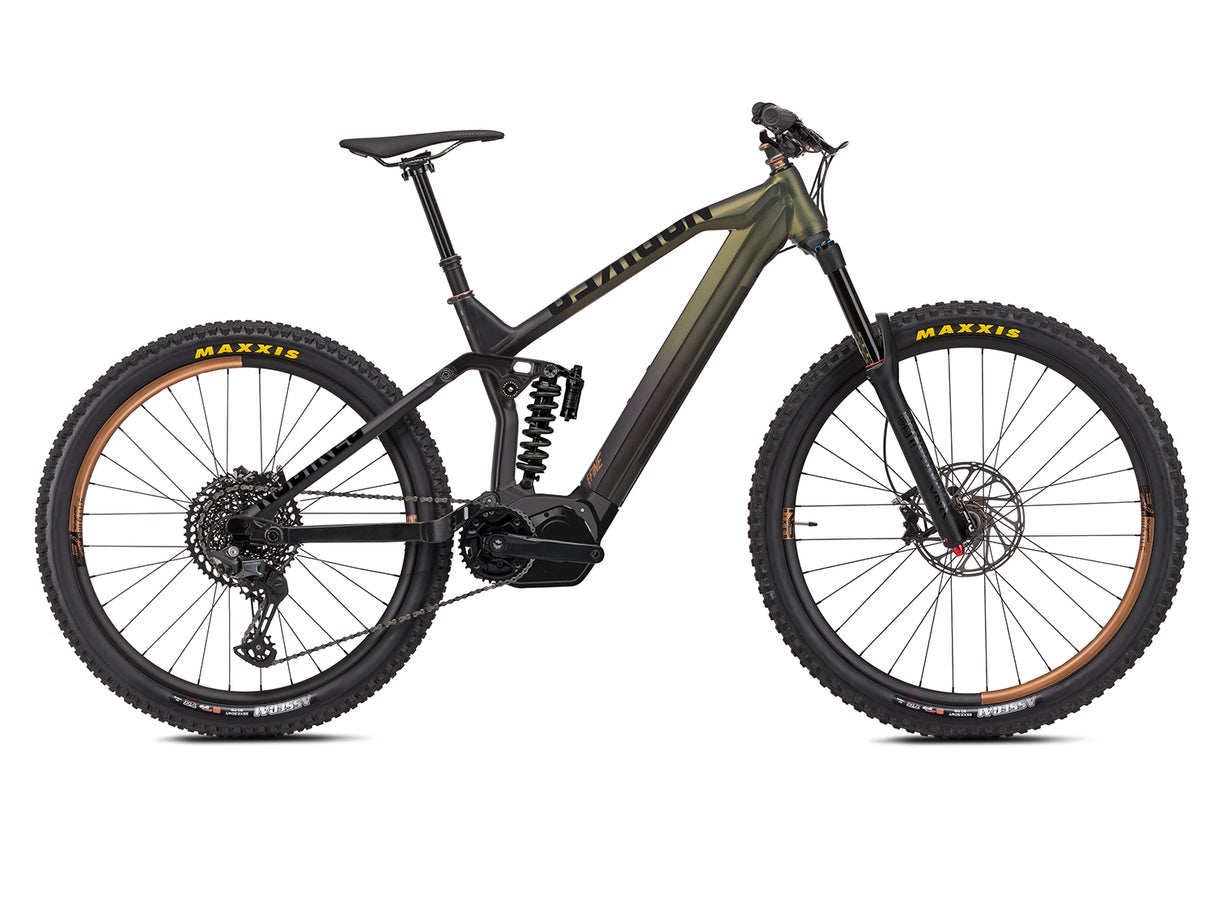

NS Bikes E-Fine 1

The E-Fine 1 is the flagship model of NS Bikes’ new E-MTB lineup. Equipped with high-end components such as the Rock Shox ZEB fork and what is arguably the most sought-after motor on the market, the Shimano EP8, the E-Fine 1 is a trail and enduro rocket, both uphill and downhill. Thanks to the 630Wh battery, long-lasting riding fun is guaranteed. In addition to the powerful motor, the high-quality components and the 29“/27.5” mullet setup ensure the bike performs exceptionally well on climbs as well as on downhill trails.

Specifications:
FRAME: NS Bikes E-fine AL, 160mm travel, AL6061-T6 + AL6066-T6, Shimano EP8 drivetrain, integrated high-capacity Shimano battery
FORK: Rock Shox ZEB Charger R 29, E-MTB
SHOCK: Rock Shox Super Deluxe Coil Select
DRIVETRAIN: Shimano Deore RD-M6100, 1x12
SHIFT LEVER: Shimano Deore SL-M6100, Rapidfire Plus, 1x12
CASSETTE: Shimano CS-MZ800, 11-51T, 1x12
FRONT BRAKE: Magura MT7, 4-piston, 203mm
REAR BRAKE: Shimano BL-M6100(R), BR-M6120(R), 4-piston, 203mm
CRANKSET: Shimano FC-EM600 160mm, 36T
SEAT POST: Race Face Aeffect R 125mm (S), 150mm (M), 170mm (L), 31.6mm
SADDLE: WTB Volt Medium Cromoly
HANDLEBAR: NS Bikes 35, 800mm, 38mm Rise
STEM: NS Bikes Quantum Lite 35, 45mm
FRONT HUB: NS Bikes Rotary 110x15mm Boost (sealed bearings)
REAR HUB: NS Bikes Rotary Cassette 148x12mm Boost (sealed bearings)
RIMS: NS Enigma Rock 29“ / 27.5”, 32h, tubeless ready
FRONT/REAR TIRES: Maxxis Assegai MaxxGrip 3C DD TR 29x2.50“ / 27.5x2.50”
BOTTOM BRACKET: Shimano Steps EP8
HEADSET: NS Bikes custom tapered IS42/IS52 reach-adjustable offset cups (+/-10mm), sealed bearings
GRIPS: NS Bikes Hold Fast supersoft
SPOKES: Spokes 14mm nipples
CHAIN: Shimano Deore CN-M6100, 1x12
WEIGHT (KG): approx. 22.5 kg *Size M, tubeless

Specifications subject to change without notice.

Actual colours and design may vary slightly from the images on the website.
