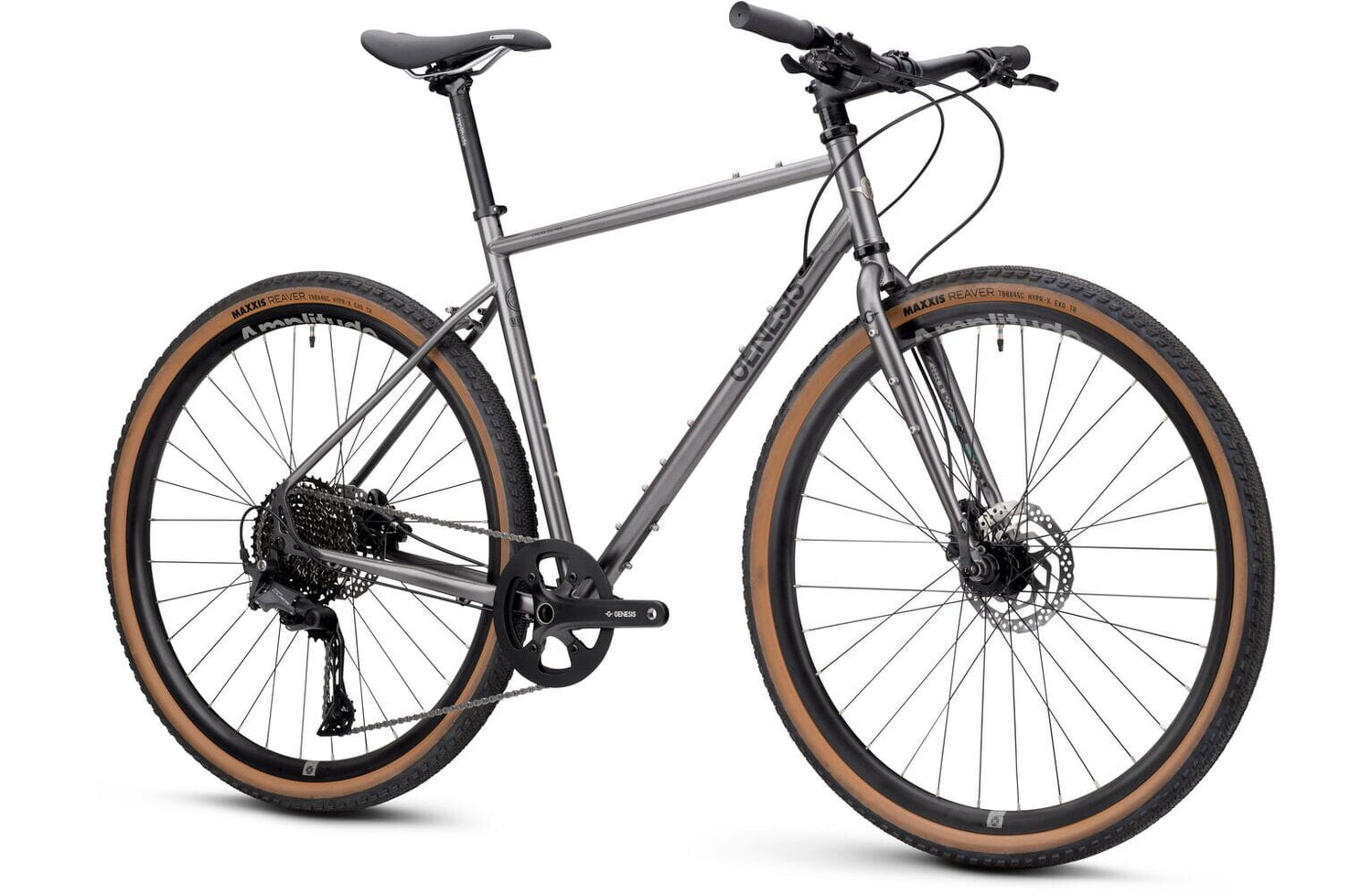

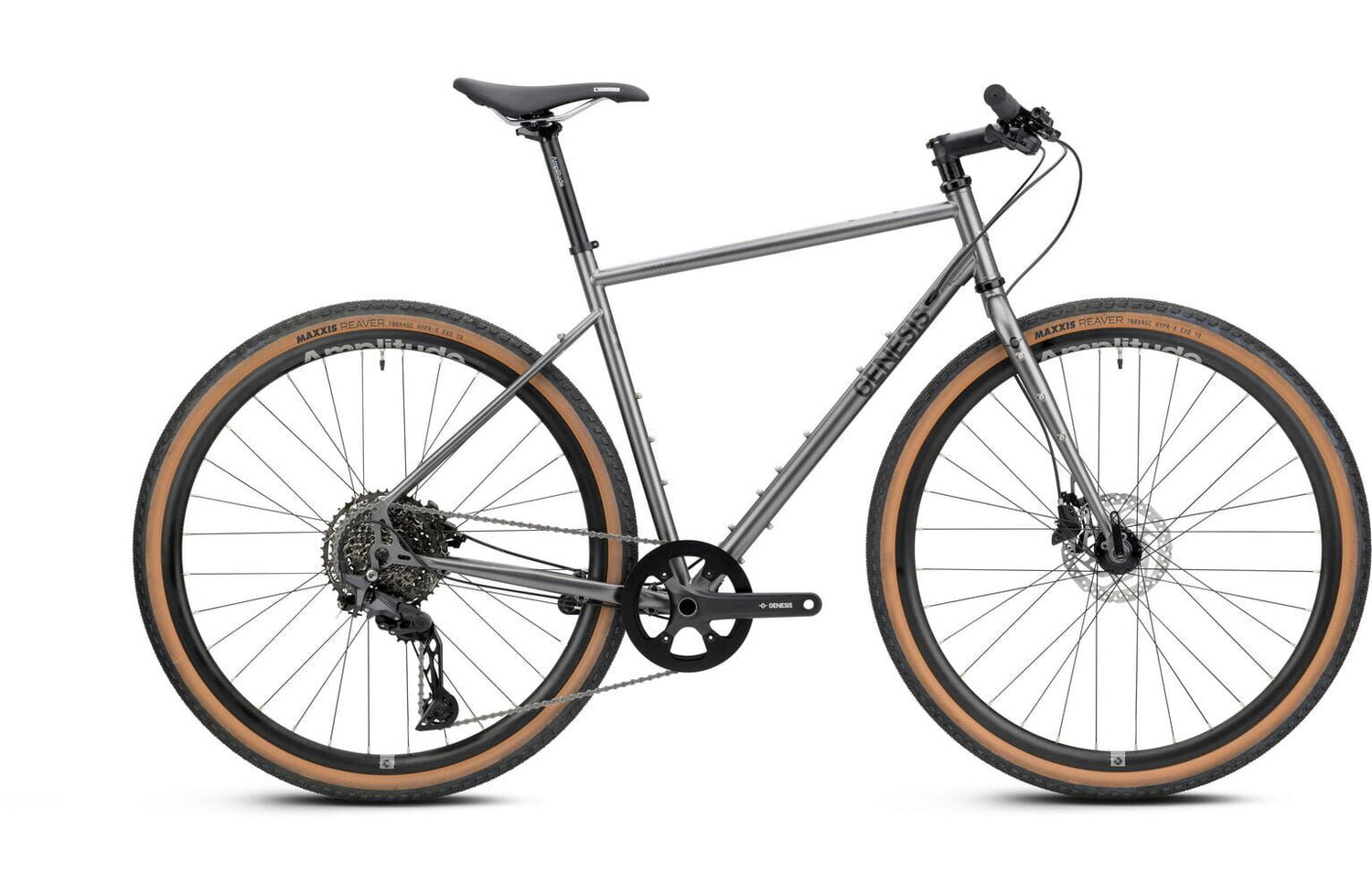

Genesis Croix De Fer 20 Flat Bar - 2026
Genesis Croix De Fer 20 Flat Bar - 2026
Flat Out
Like a regular Croix de Fer, but flatter!

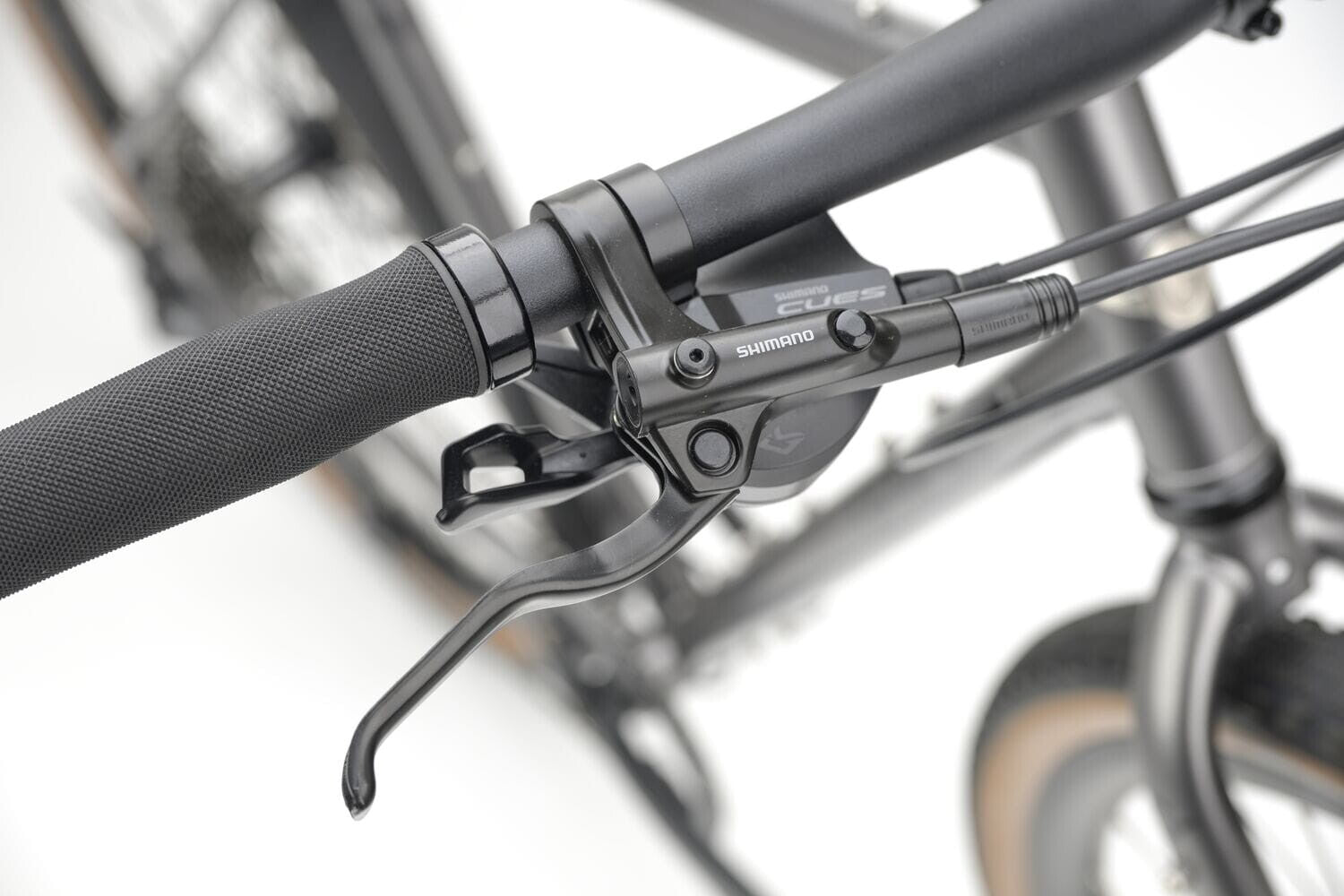

Not everyone wants a drop handlebar. If you prefer the additional comfort and control of a flat handlebar on your gravel bike or spend more time ripping around town than you do ticking off epic gravel routes, the Croix de Fer 20 Flat Bar is well equipped to tackle any surface.
Anti-Service

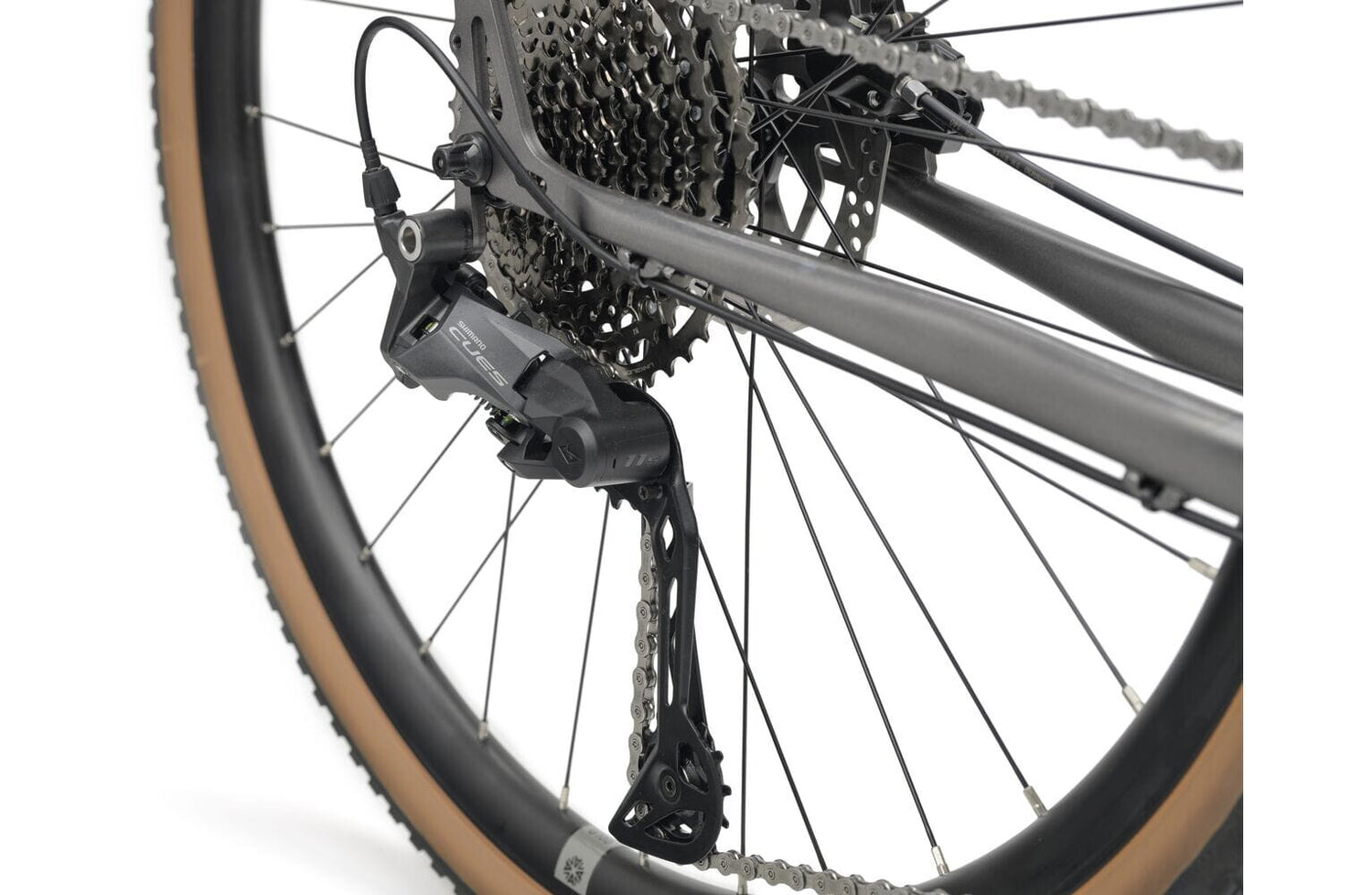

The Shimano CUES LINKGLIDE 1 x 11-speed drivetrain delivers exceptional service life and superb consistency.
Stop! Anytime.

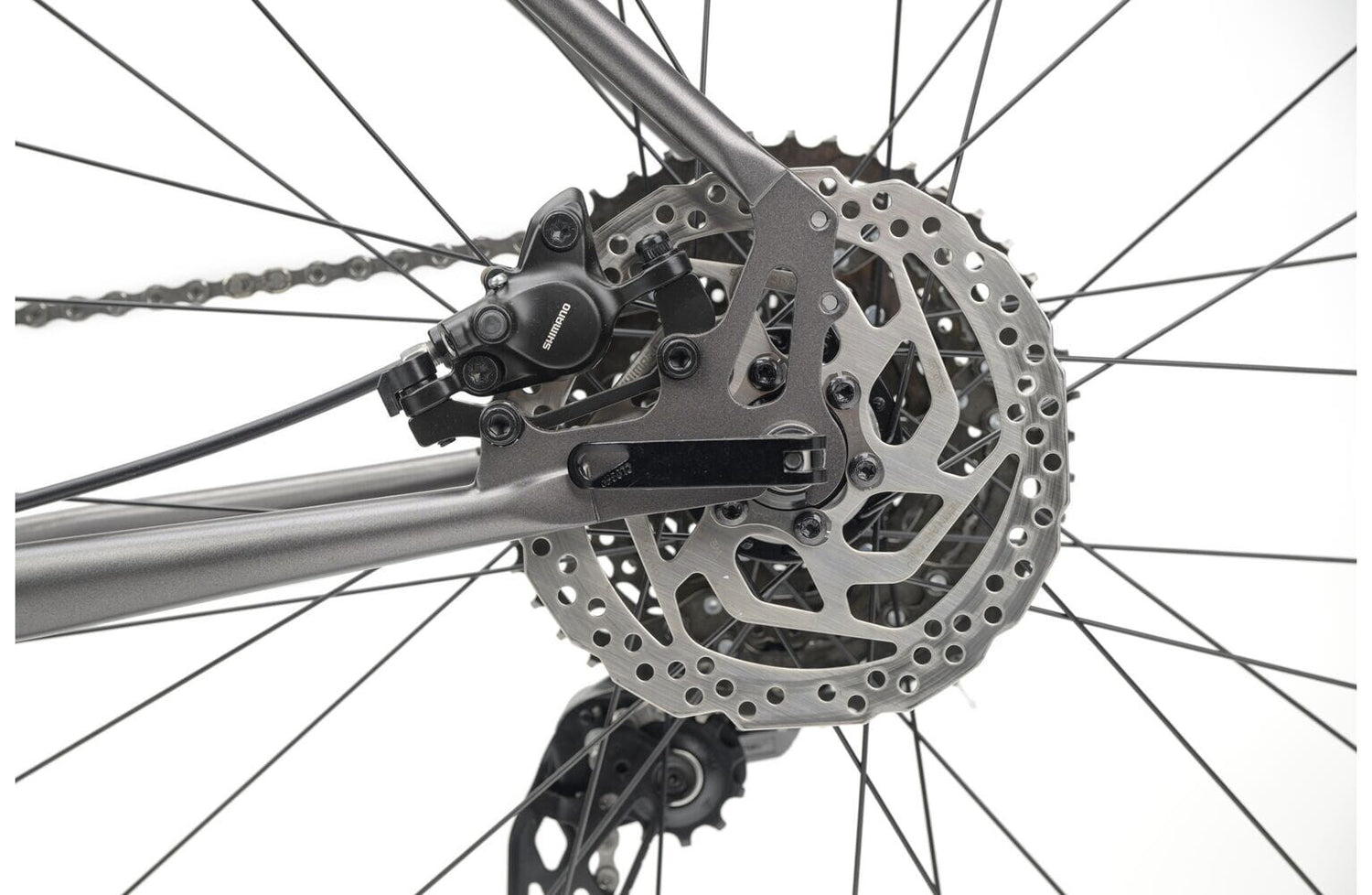

Shimano MT200 hydraulic disc brakes paired with 160mm rotors front and rear provide dependable stopping power in all conditions.
Tubeless Treads

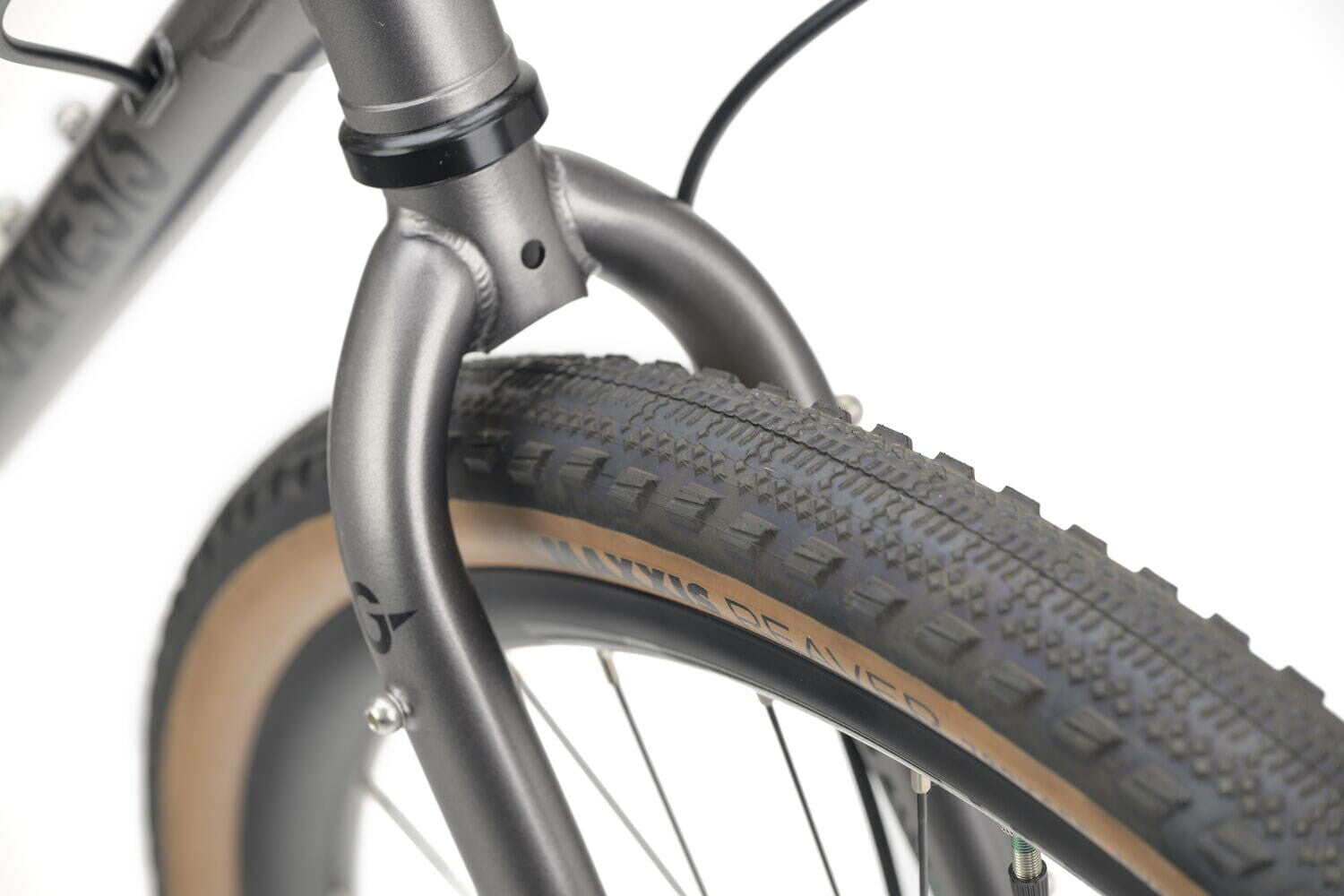

The 20 Flat Bar gets gravel capable tubeless ready 45mm Maxxis Reaver tyres mounted to pre-taped tubeless ready Amplitude G100 wheels.
Thor's Favourite

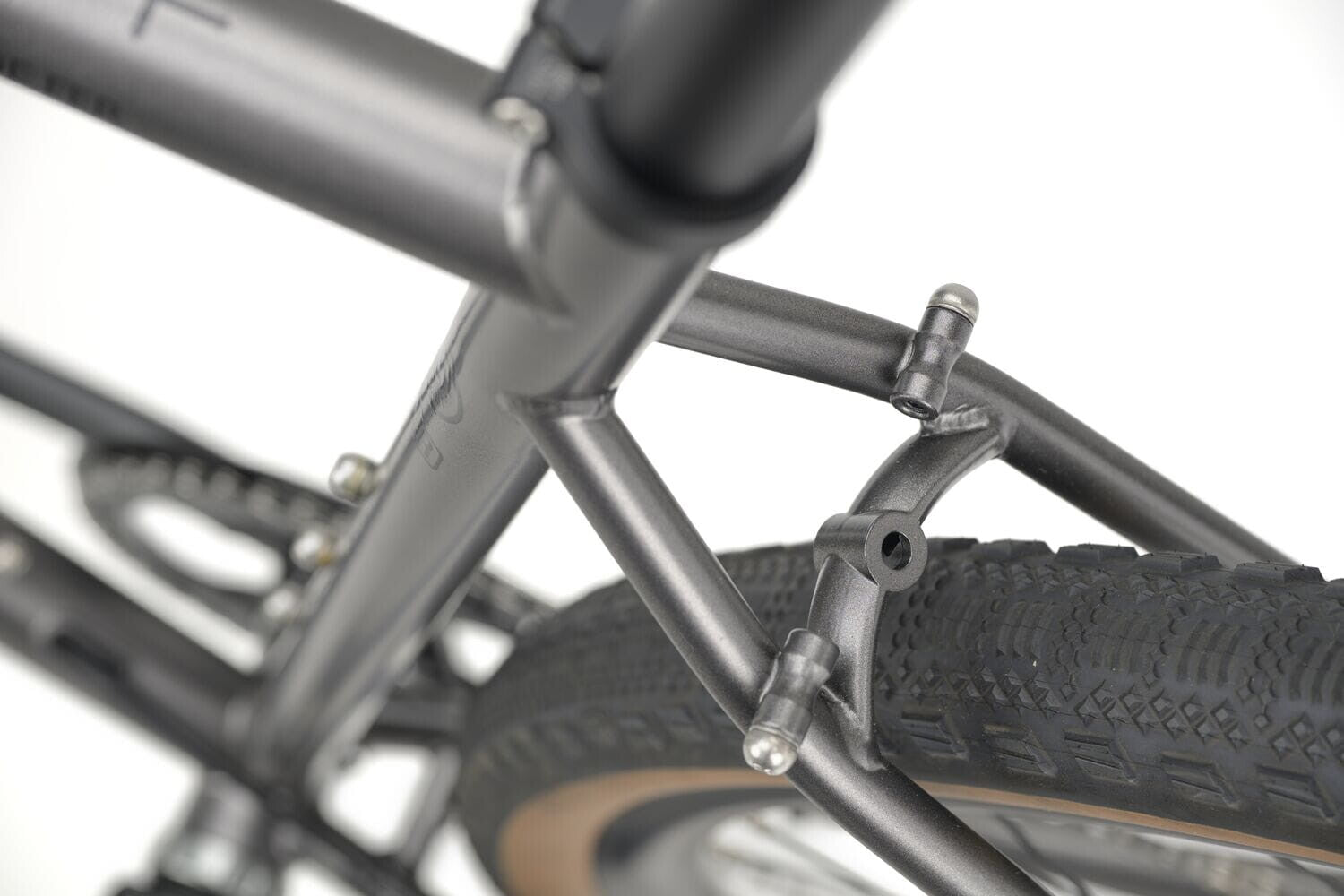

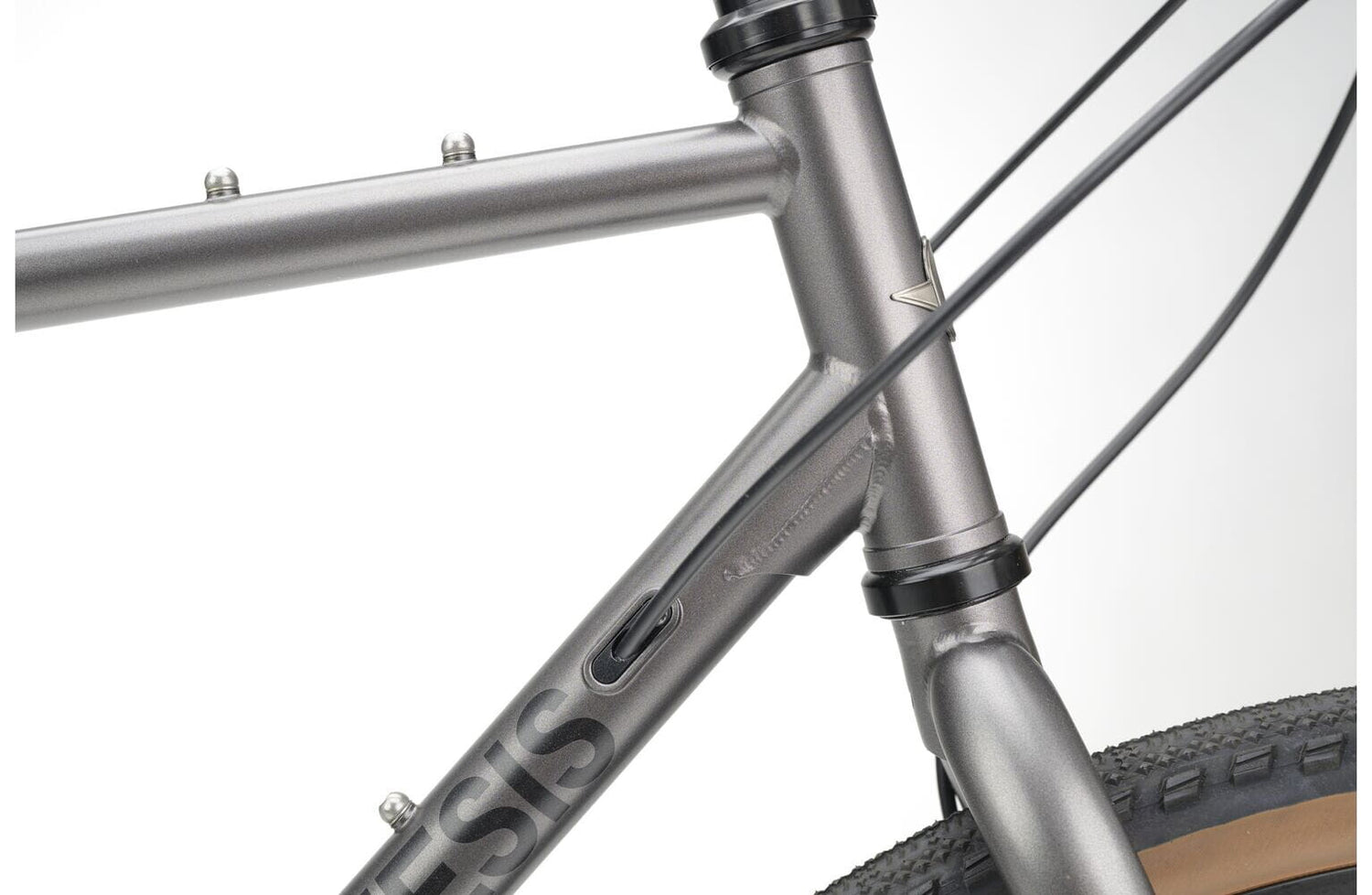

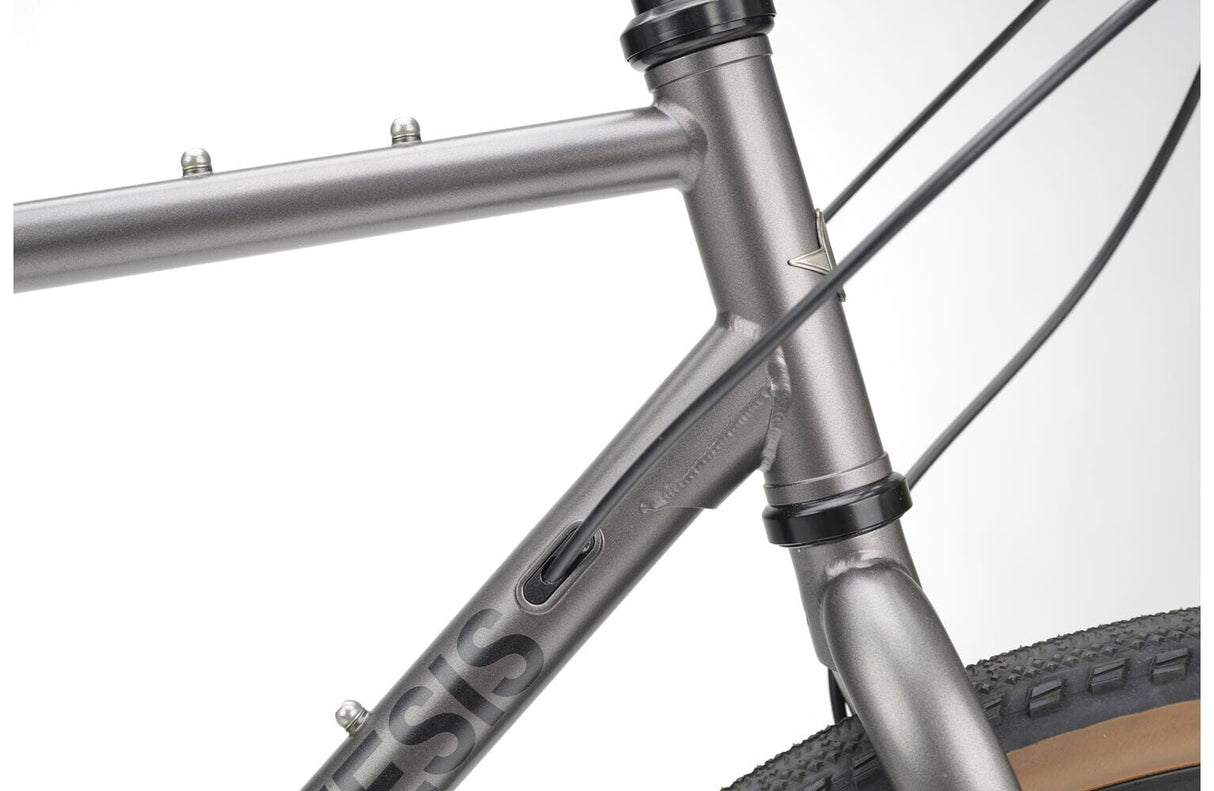

Our Mjolnir Chromoly tubeset is crafted to deliver a sublime ride feel with excellent comfort whilst also being immensely durable.
![]()
Specification
Frame & Fork
- Genesis Mjolnir Chromoly Tubing
- Amplitude G100 Chromoly Fork
Drivetrain
- Shimano CUES U6000
- 1 x 11-speed

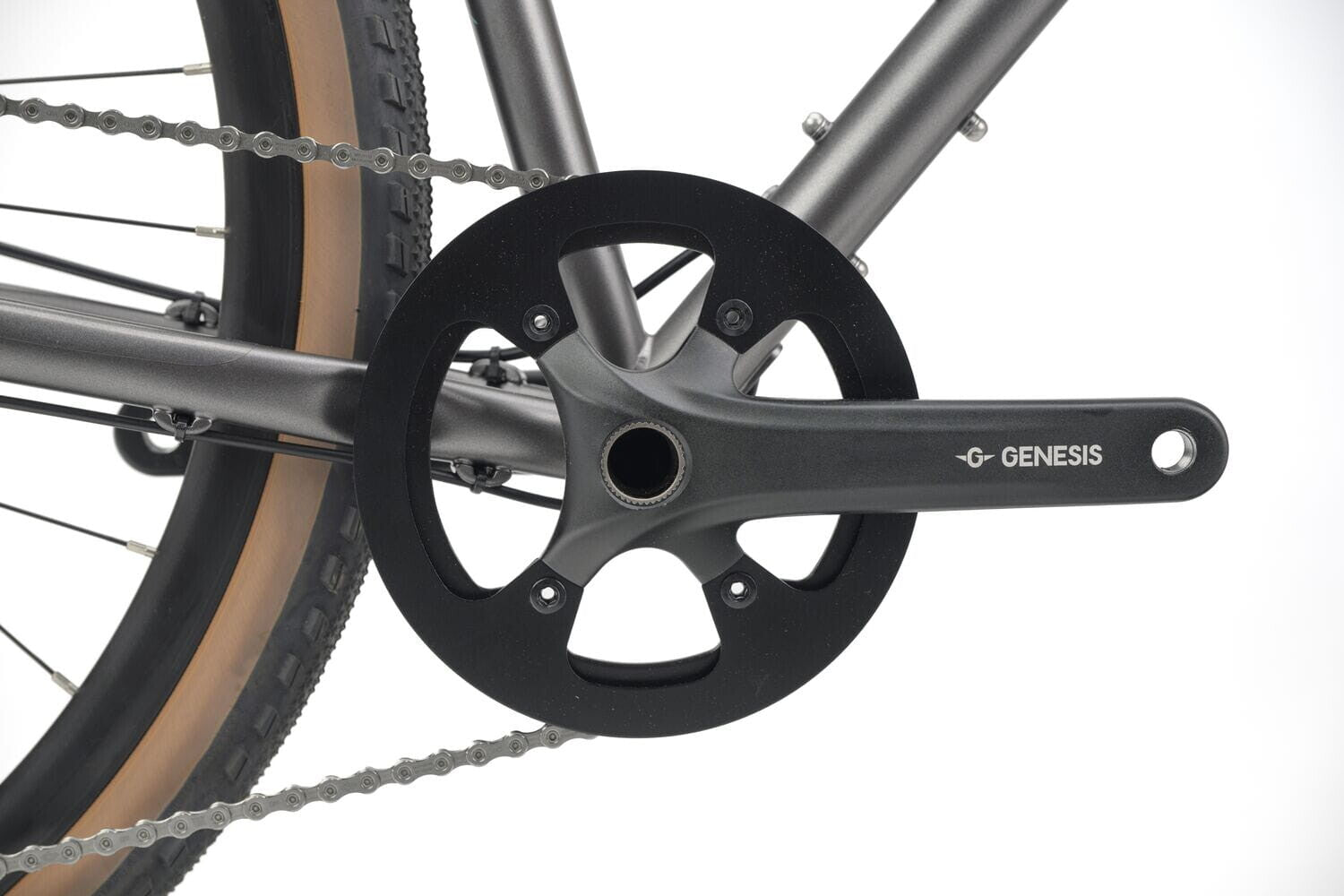

- 42T Chainring
- 11-45T Cassette
Components

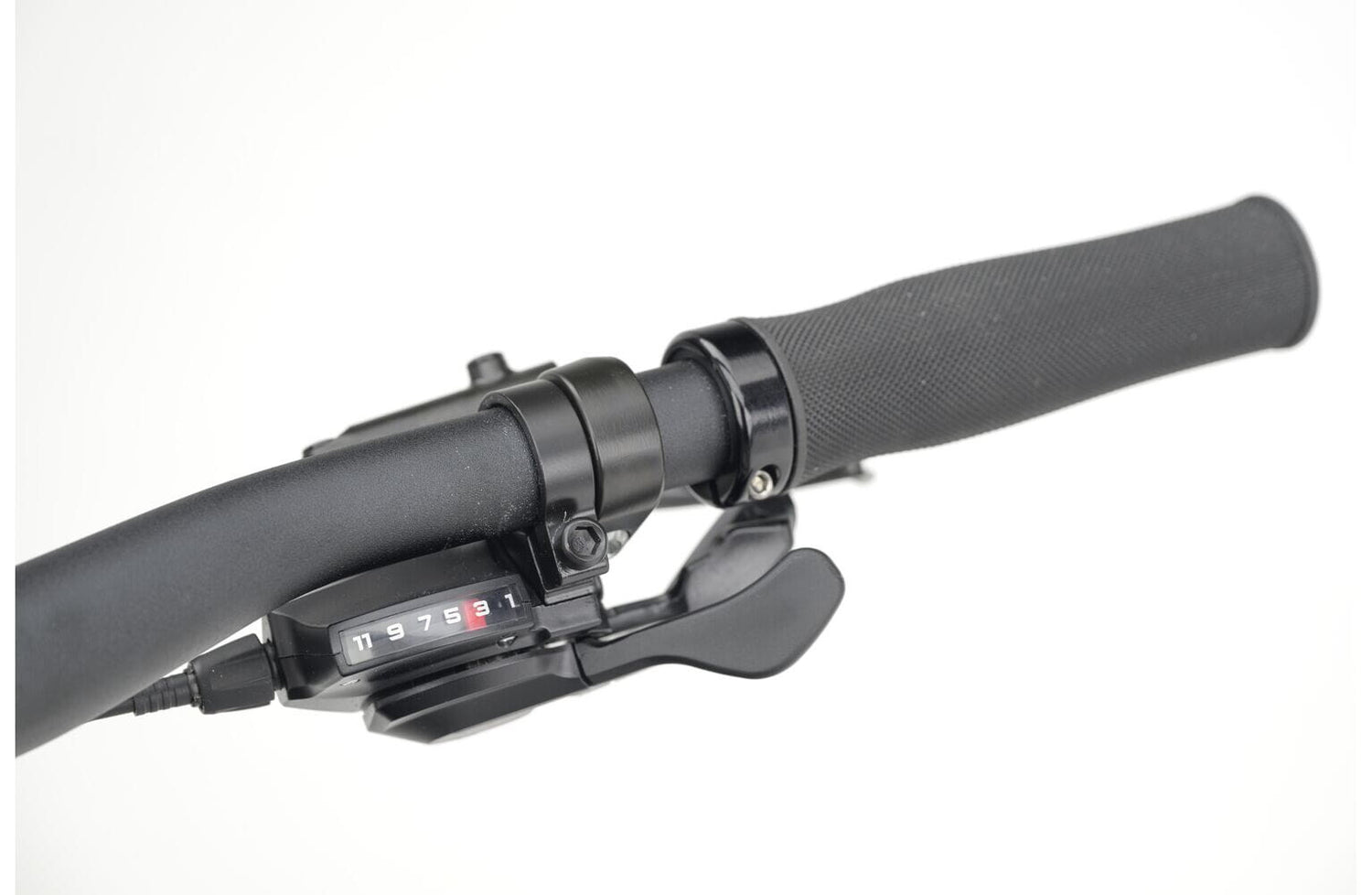

- Amplitude F100 Flat Handlebar
- Amplitude G100 Stem & Seatpost
- Madison Flux Switch Saddle
Wheelset
- Amplitude G100
- Six-Bolt Rotor Mounts
- QR Front & Rear
Brakes
- Shimano MT-200 Hydraulic Disc
- 160mm Rotors Front & Rear
Tyres
- Maxxis Reaver 700x45mm Tubeless Ready
- Pre-taped Tubeless Ready Rims
- Tubeless Valves Included
Geometry
| Frame Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Effective Reach | 465 | 475 | 485 | 495 | 505 |
| Seat Tube | 470 | 490 | 530 | 560 | 590 |
| Top Tube | 553 | 557 | 558 | 574 | 589 |
| Reach | 395 | 395 | 385 | 395 | 405 |
| Stack | 552 | 566 | 585 | 604 | 623 |
| Head Tube | 100 | 115 | 135 | 155 | 175 |
| Head Angle | 71 | 71 | 71 | 71 | 71 |
| Seat Angle | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Chainstay | 435 | 435 | 435 | 435 | 435 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Wheel Base | 1042 | 1046 | 1043 | 1059 | 1076 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Standover | 734 | 752 | 778 | 802 | 826 |
| Stem Length | 70 | 80 | 100 | 100 | 100 |
| Handle Bar Width | 640 | 660 | 660 | 680 | 680 |
*Please note: price and parts spec information is subject to change.
