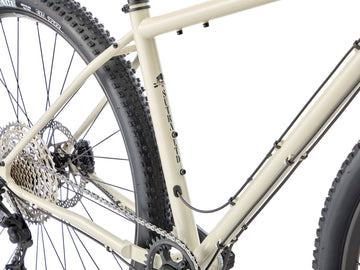

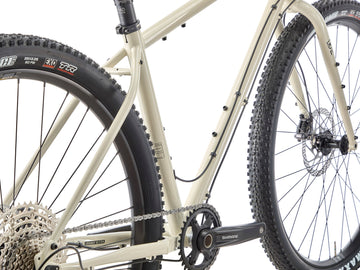

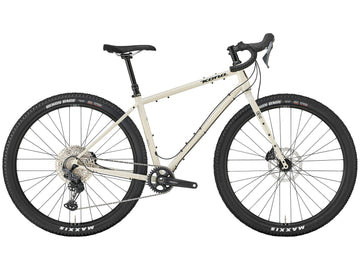

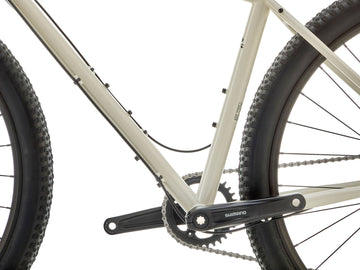

Kona Sutra LTD Shimano

The Sutra LTD is one of those bikes that just changes everything. You thought you were a mountain biker, but you find yourself sneaking off on adventures and enjoying the drop bars on the LTD. You thought you were a roadie but find yourself absolutely destroying singletrack when no one else is looking and suddenly getting rad is all you wanna do! That’s the best part about the Sutra LTD—it broke the mold of what a bike has to be. It’s got bigger tires, burlier construction, and enough mounts to hold a horse. But who needs a horse when this is your horse?

SPECIFICATIONS

Frame Material	Kona Cromoly Butted
Sizes	48, 50, 52, 54, 56, 58
Rear Shock	n/a
Fork	Kona Project Two Cromoly Disc Touring Fork
Crankarms	Shimano Deore
Chainrings	34t Deore
B/B	Shimano Deore 73mm
Pedals	n/a
Chain	Shimano Deore
Cassette	Shimano Deore 10-51t 12spd
Chainguide	n/a
F/D	n/a
R/D	Shimano GRX 12spd
Shifters	Shimano GRX 1x
Brake Calipers	Shimano GRX
Front Brake Rotor	Shimano 180mm
Rear Brake Rotor	Shimano 180mm
Brake Levers	Shimano
Headset	FSA No.1/No.10
Handlebar	Kona Road
Stem	Kona Road Deluxe
Seatpost	TranzX Dropper +RAD Internal 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Cork Tape
Saddle	WTB Volt
Front Hub	Formula 100x12mm
Rear Hub	Formula 142x12mm
Spokes	Stainless Black 14g
Rims	WTB KOM Team i27 TCS 2.0
Front Tire	Maxxis Rekon Race EXO TR 29x2.25"
Rear Tire	Maxxis Rekon Race EXO TR 29x2.25"
Paint Color	Gloss Bone w/ Charcoal Decals



GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	410	410	455	455	500	535
2	TT Length	532	545	560	575	592	613
3	Reach	380	385	390	395	400	405
4	Stack	568	578	592	609	627	660
5	Standover	735	739	773	781	827	851
6	HT Angle	69.5	69.5	69.5	69.5	69.5	69.5
7	HT Length	115	125	140	160	180	215
8	ST Angle	75.0	74.5	74.0	73.5	73.0	72.5
9	CS Length	445	445	445	445	445	445
10	BB Drop	74	74	74	72	72	72
11	BB Height	301	301	301	303	303	303
12	Wheelbase	1062	1071	1081	1094	1106	1123
13	Front Center	628	636	647	658	670	688
14	Fork Length	430	430	430	430	430	430
15	Fork Offset	55	55	55	55	55	55

All specifications are subject to change without notice.
Prerelease products may be displayed as graphic representations.
