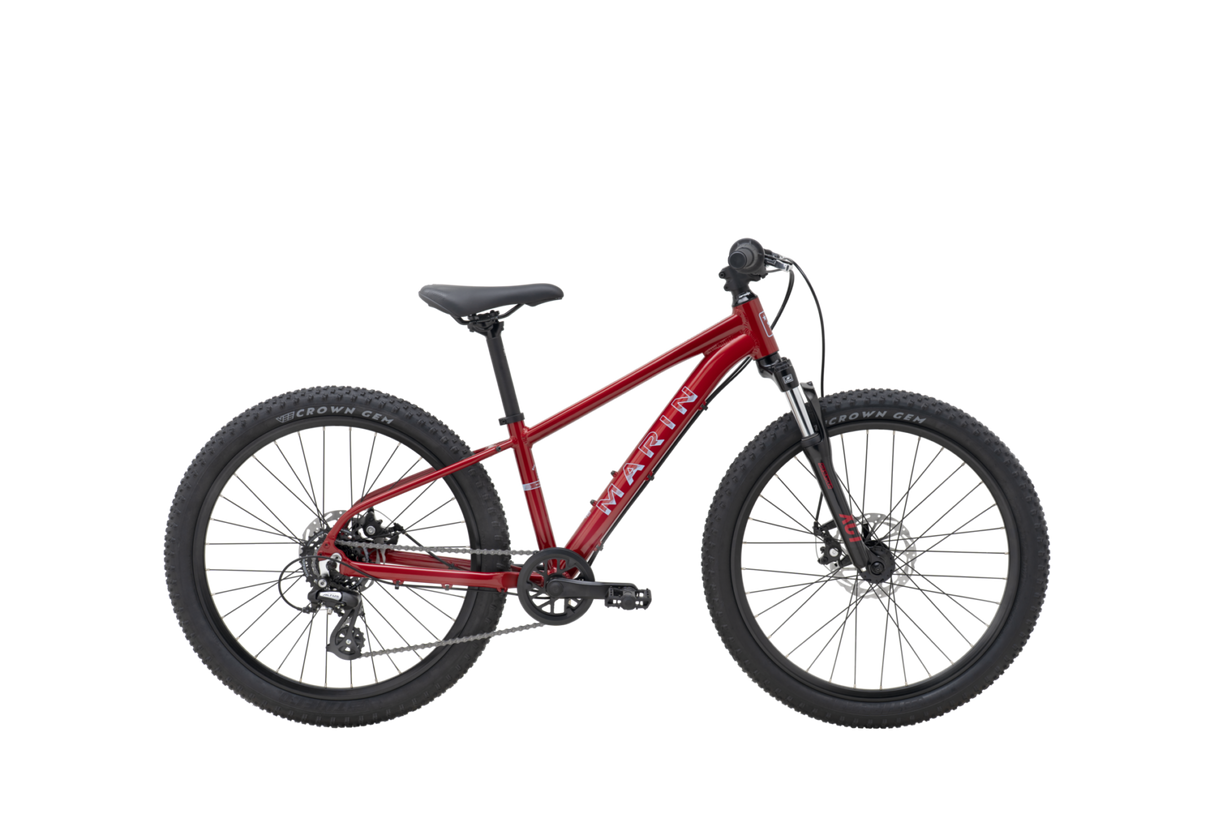

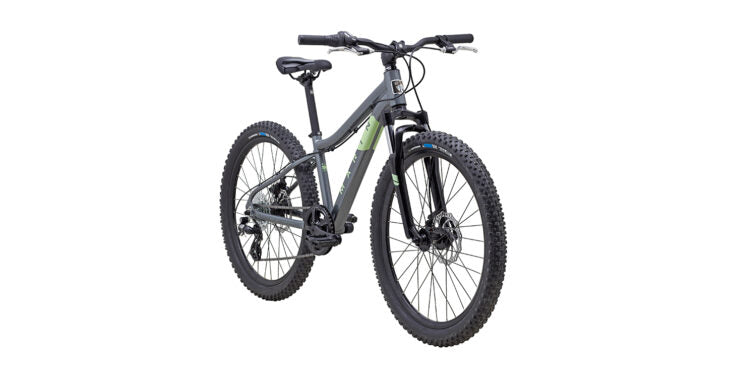

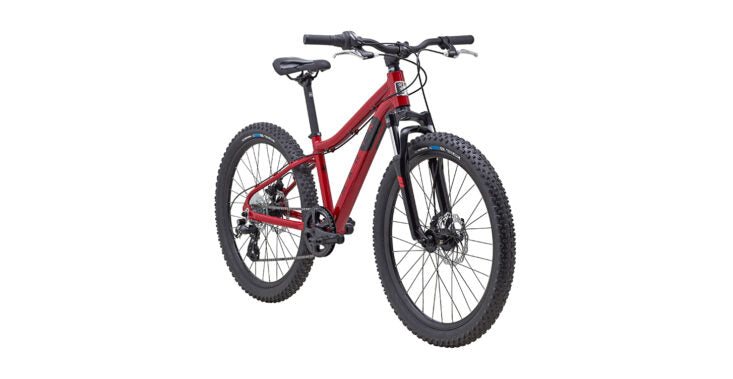

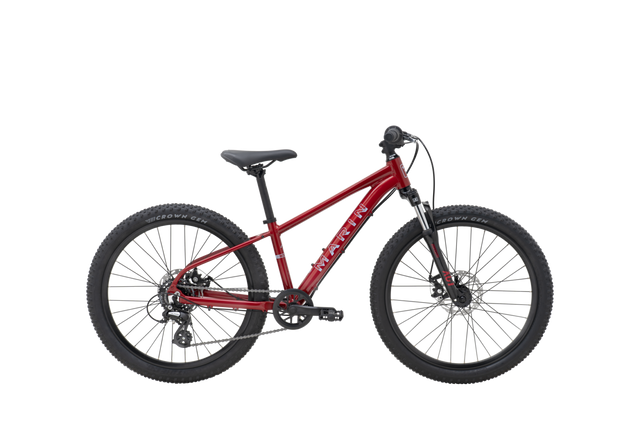

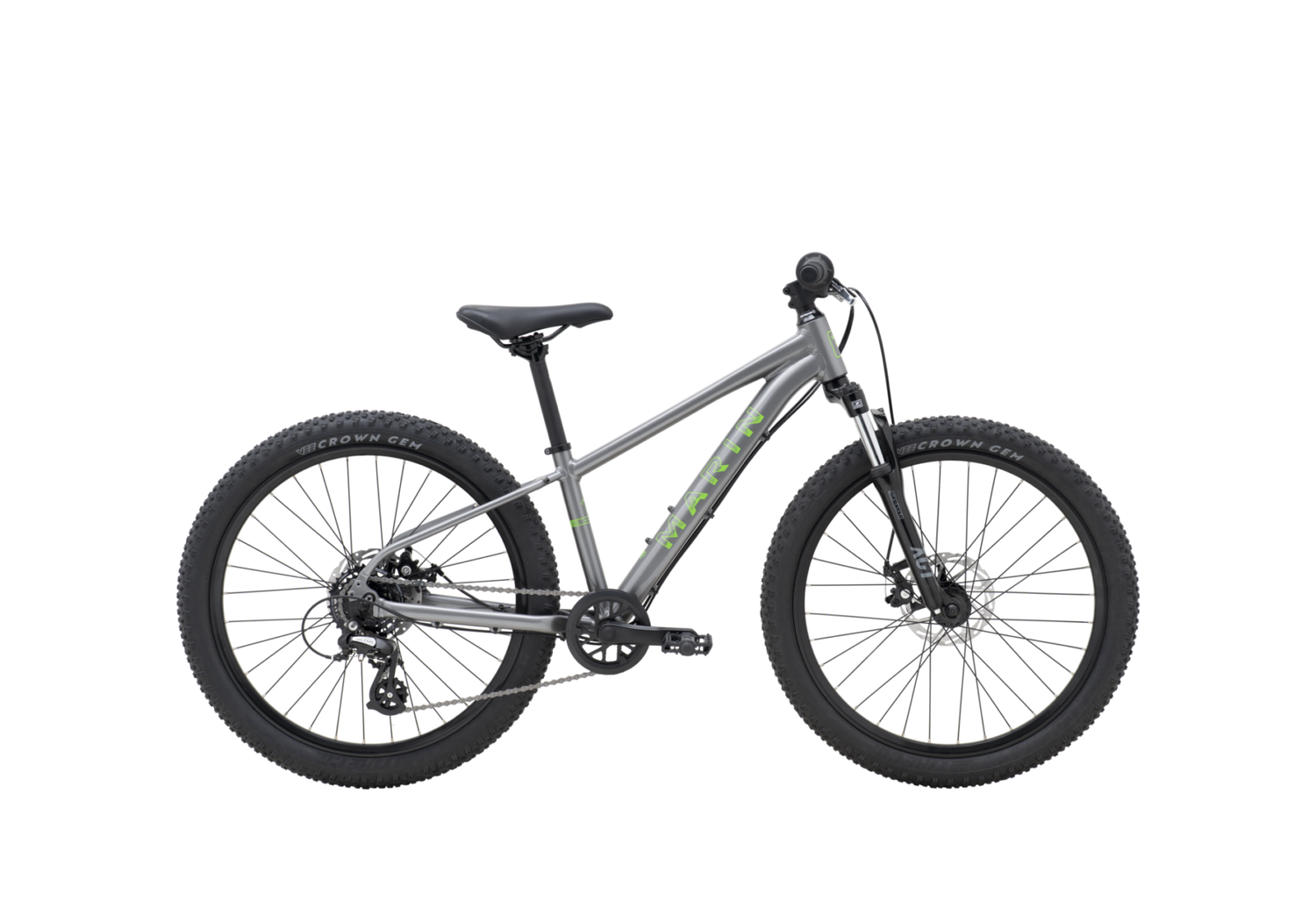

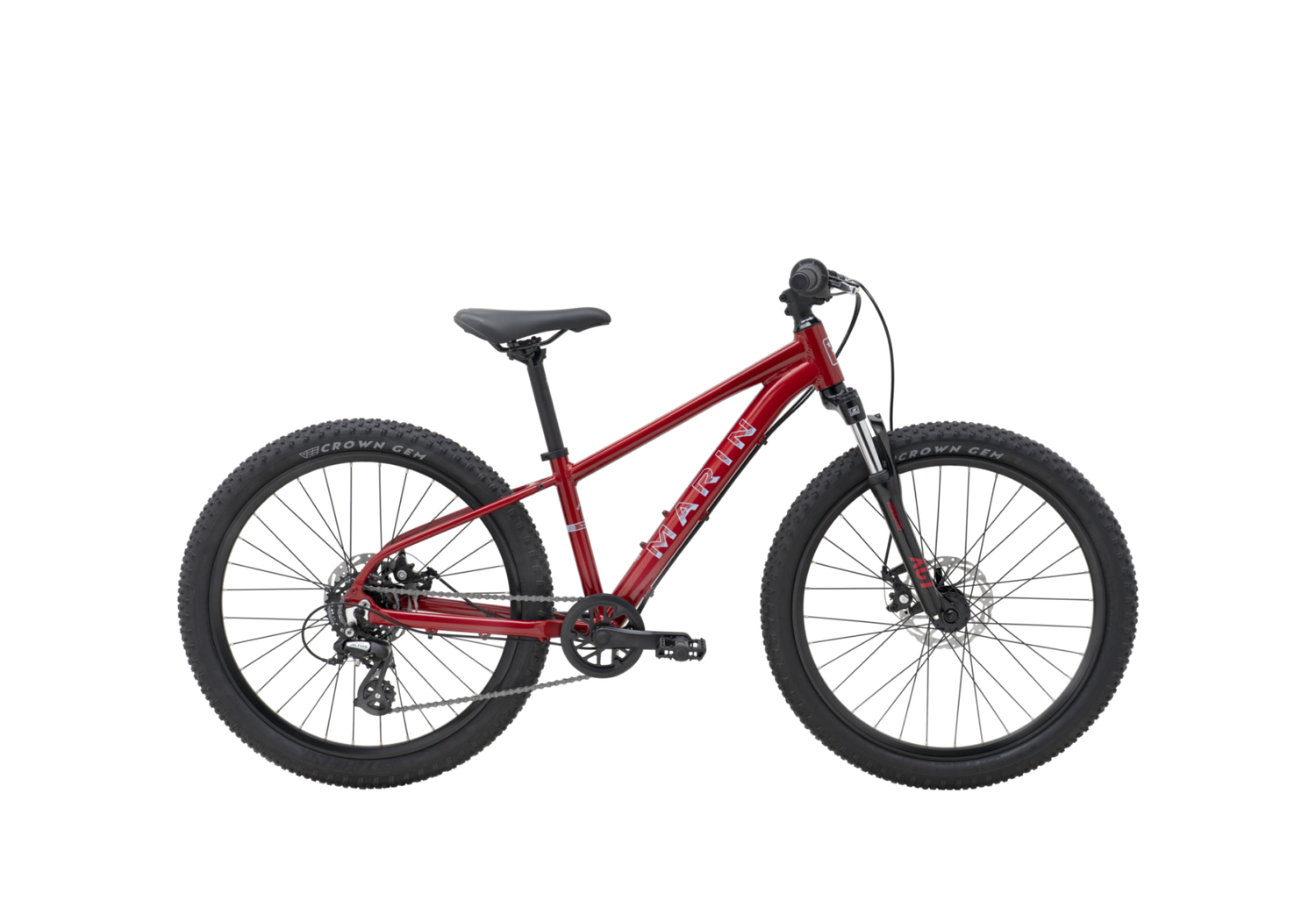

Marin Bayview Trail 24" - 2025

The Bayview Trail 24” and Hidden Canyon 20” bikes are built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.

Specifications
Frame Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts
Front Suspension SR/Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
Rims Marin, Double Wall Alloy
Hub, Rear Forged Aluminum Alloy, 32H
Hub, Front Forged Aluminum Alloy, 32H
Spoke, Nipples 14g Stainless Steel
Tires Vee Tire Co. Crown Gem, 24”x2.25”, Wire Bead
Derailleur, Rear Shimano Altus, 7-Speed
Derailleur, Front -
Shift Lever Shimano Revo Twist 1x7-Speed
Crankset Forged Alloy, 30T, 152mm, Ring Guard
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Chain KMC Z8
Cassette Shimano, CSHG200, 7-Speed, 11-32T
Brake, Front Tektro MDM280 Mechanical Disc, 160mm Rotor
Brake, Rear Tektro MDM280 Mechanical Disc, 160mm Rotor
Brake Levers Kids Specific Short Reach Alloy Lever
Handlebar Marin Riser, 30mm Rise, 590mm Width
Stem Marin Alloy, 60mm
Grips Marin Dual Density
Headset FSA, Threaded
Seatpost Marin Alloy, 27.2mm
Saddle Marin Kids MTB
Pedals Kids Specific Nylon Pedal

Specifications, pricing, and availability are subject to change without notice.
