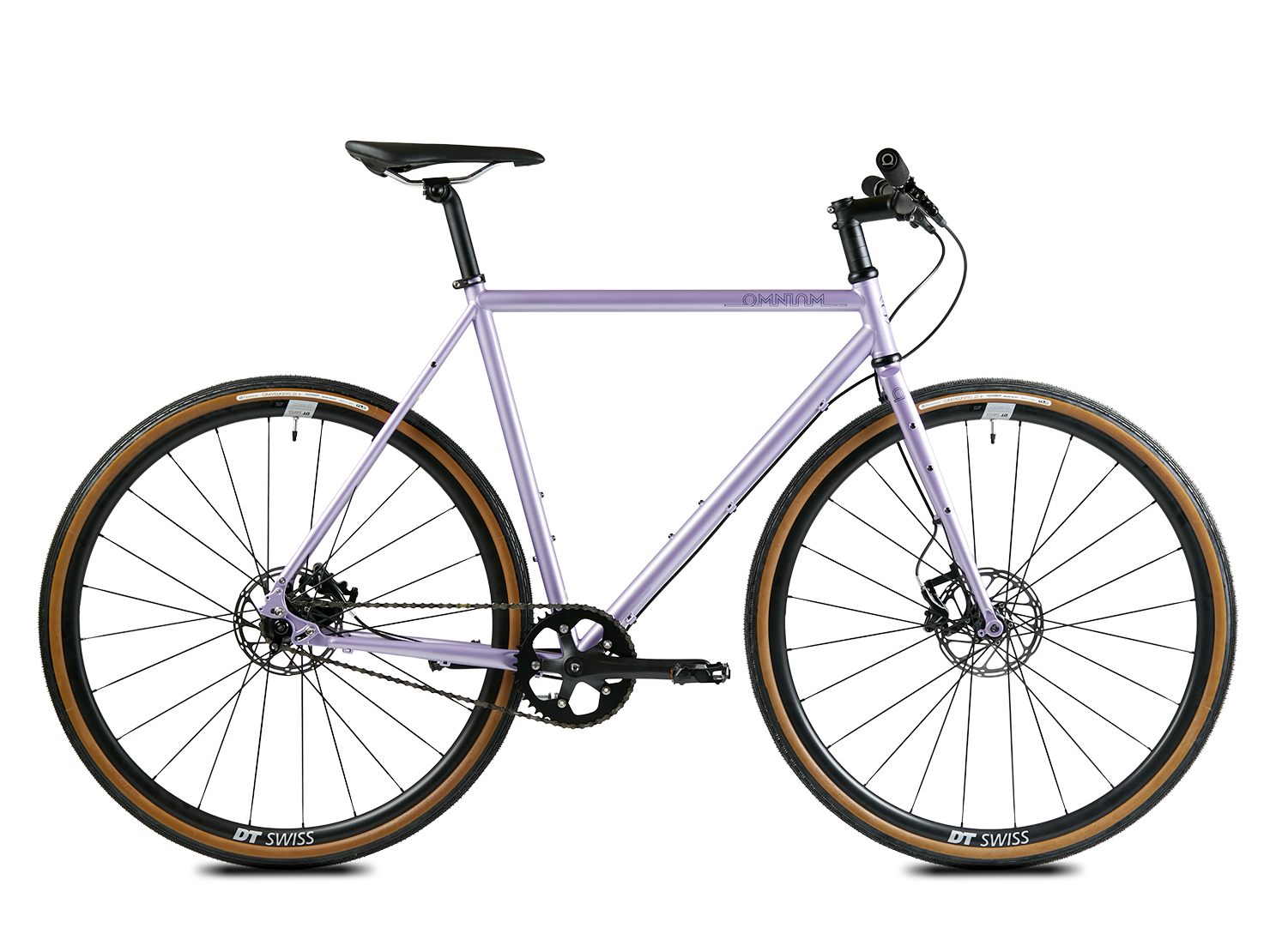

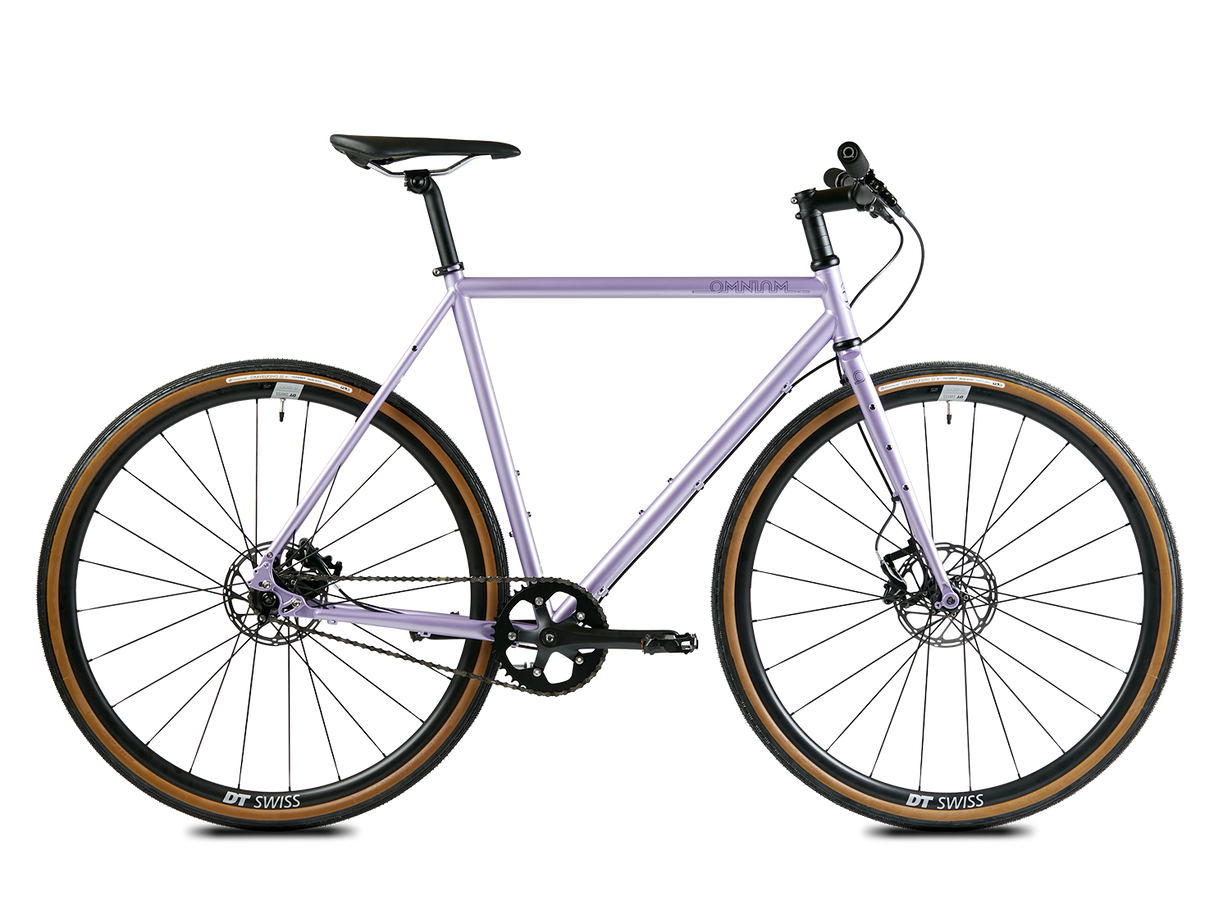

Omnium CXC V4 Complete Bike
Omnium CXC V4 Complete Bike - Blurple / XSmall / Sram Apex 11 is backordered and will ship as soon as it is back in stock.
Reviews
Omnium CXC V4 Complete Bike
V4 UPDATES
The CXC has been updated and it is now in its 4th iteration. With this new edition we have swapped the brake mounts for Flat Mount.
We have also swapped the traditional binder bolt for af collar that adds a more strength and replaceability should any thing brake.
A SWISS ARMY KNIFE
Meet the Omnium CXC, our most adaptable all-rounder. It’s built for riders who want a bike that handles city commutes, all road, and weekend adventures with ease.
The CXC combines the quick, responsive feel of a track bike with the clearance and mounts of an all road setup. It’s tough, agile, and ready to ride anywhere you want to go.
Made from double-butted steel, the frame balances everyday durability with a responsive feel. It’s ED-coated for extra protection against the elements, so you can ride year-round without worry. Adjustable rocker dropouts and a belt split let you choose your setup — geared, single-speed, or belt-drive.
The segmented steel fork is designed for disc brakes and features triple cage mounts on both legs, giving you plenty of space for bottles or bags when you’re loading up. Add racks, fenders, and wide tires — the CXC is built to adapt to your needs.
Whether you’re tackling your daily commute, exploring back roads, or hitting the track, the CXC delivers a fast, agile, and reliable ride every time.
DRIVETRAIN OPTIONS
SINGLE SPEED
Gears are great, but they also require maintance and have moving parts that can break – When it comes to simplicity, nothing beats single speed.
With the one right gear urban commuting is as simple and enjoyable as it will ever be.
Gears and Brakes
| Brakes | Sram Level TL |
| Rotors | Sram Centerline 160mm 6 Bolt |
| Rear Cog | 15t SS Adaptor |
| Chain | Sram PC830 |
| Crankset | Driveline, 42t, CNC Narrow Wide Chainring |
| Bottom Bracket |
FSA, Square Taper, 68mm BSA |
Wheels
| DT Swiss G1800 | Rear Wheel | Front Wheel | Dynamo Wheel |
| Supplier Name | G 1800 SPLINE db 25 12/142 mm Shimano | G 1800 SPLINE db 25 12/100 mm | G 1800 SPLINE db 25 12/100 mm Dynamo |
| Supplier SKU | W0G1800NIDMSA21294 | W0G1800AIDXSA21293 | W0G1800AIDXSA27425 |
| Net Weight | 994g | 864g | 1098g |
| Max Carrying Capacity | 130kg | 130kg | 130kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Tire Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 29″ / 700C | 29″ / 700C | 29″ / 700C |
| Rim Hight | 25mm | 25mm | 25mm |
| Inner Width | 24mm | 24mm | 24mm |
| Outer Width | 28mm | 28mm | 28mm |
| Holes | 32 | 32 | 32 |
| Hub Type | 370 | 370 | 370 |
| Axle System | 12 mm Thru Axle | 12 mm Thru Axle | 12 mm Thru Axle |
| Built-In Dimension | 142mm | 100mm | 100mm |
| Brake Interface | Disc Center Lock | Disc Center Lock | Disc Center Lock |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub Body | Shim. RD. 11SP Forged (ASF11) | – | – |
| Freehub System | Ratchet LN 18 | – | – |
| Spokes | DT aero comp® wide straightp | DT aero comp® wide straightp | DT aero comp® wide straightp |
| Spoke Pattern | Two-cross (1:1) | Two-cross (1:1) | Two-cross (1:1) |
| Nipples | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| Tubeless Tape (Included) | Tubeless tape 27 mm | Tubeless tape 27 mm | Tubeless tape 27 mm |
| Tubless Valve (Included, not installed) | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm |
| Compatability | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 |
Cockpit and Finishing Kit
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET REAR | Omnium 1 1/8 Threadless Headset |
| HEADSET FRONT | Omnium Integrated Front Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Standard Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Cargo Pedals | Multiple Choice in Bike Builder |
| KICKSTAND | Omnium Cargo Kickstand |
| MUDGUARDS | Omnium V3 60mm Mudguards |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
| SEATPOST CLAMP | Omnium Seatpost Clamp |
SRAM APEX
Apex is SRAM’s dedicated gravel groupset, a 1×11 groupset with wide range and is simple to use. With a long cage that fits a 42-tooth cassette and the X-HORIZON design reduces shifting force adding extra comfort. It also comes with Sram CAGE LOCK making wheel removal and maintenance much easier.
APEX 1X11
| Brakes | Sram Level TL | IS mount |
| Rotors | Sram Centerline 6 Bolt Rotor 160mm |
| Derailleur | Sram Apex 11 SPD |
| Cassette | Sram PG-1130 11-42 |
| Chain | KMC 11 Spd Chain EPT |
| Crankset | Omnium Wide Narrow Cranks 42t |
| Bottom Bracket | FSA 10,5mm Square Taper |
WHEELS
| DT Swiss G1800 | Rear Wheel | Front Wheel | Dynamo Wheel |
| Supplier Name | G 1800 SPLINE db 25 12/142 mm Shimano | G 1800 SPLINE db 25 12/100 mm | G 1800 SPLINE db 25 12/100 mm Dynamo |
| Supplier SKU | W0G1800NIDMSA21294 | W0G1800AIDXSA21293 | W0G1800AIDXSA27425 |
| Net Weight | 994g | 864g | 1098g |
| Max Carrying Capacity | 130kg | 130kg | 130kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Tire Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 29″ / 700C | 29″ / 700C | 29″ / 700C |
| Rim Height | 25mm | 25mm | 25mm |
| Inner Width | 24mm | 24mm | 24mm |
| Outer Width | 28mm | 28mm | 28mm |
| Holes | 32 | 32 | 32 |
| Hub Type | 370 | 370 | 370 |
| Axle System | 12 mm Thru Axle | 12 mm Thru Axle | 12 mm Thru Axle |
| Built-In Dimension | 142mm | 100mm | 100mm |
| Brake Interface | Disc Center Lock | Disc Center Lock | Disc Center Lock |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub Body | Shim. RD. 11SP Forged (ASF11) | – | – |
| Freehub System | Ratchet LN 18 | – | – |
| Spokes | DT aero comp® wide straightp | DT aero comp® wide straightp | DT aero comp® wide straightp |
| Spoke Pattern | Two-cross (1:1) | Two-cross (1:1) | Two-cross (1:1) |
| Nipples | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| Tubeless Tape (Included) | Tubeless tape 27 mm | Tubeless tape 27 mm | Tubeless tape 27 mm |
| Tubless Valve (Included, not installed) | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm |
| Compatability | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 |
Cockpit and Finishing Kit
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET REAR | Omnium 1 1/8 Threadless Headset |
| HEADSET FRONT | Omnium Integrated Front Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Standard Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Cargo Pedals | Multiple Choice in Bike Builder |
| KICKSTAND | Omnium Cargo Kickstand |
| MUDGUARDS | Omnium V3 60mm Mudguards |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
| SEATPOST CLAMP | Omnium Seatpost Clamp |
