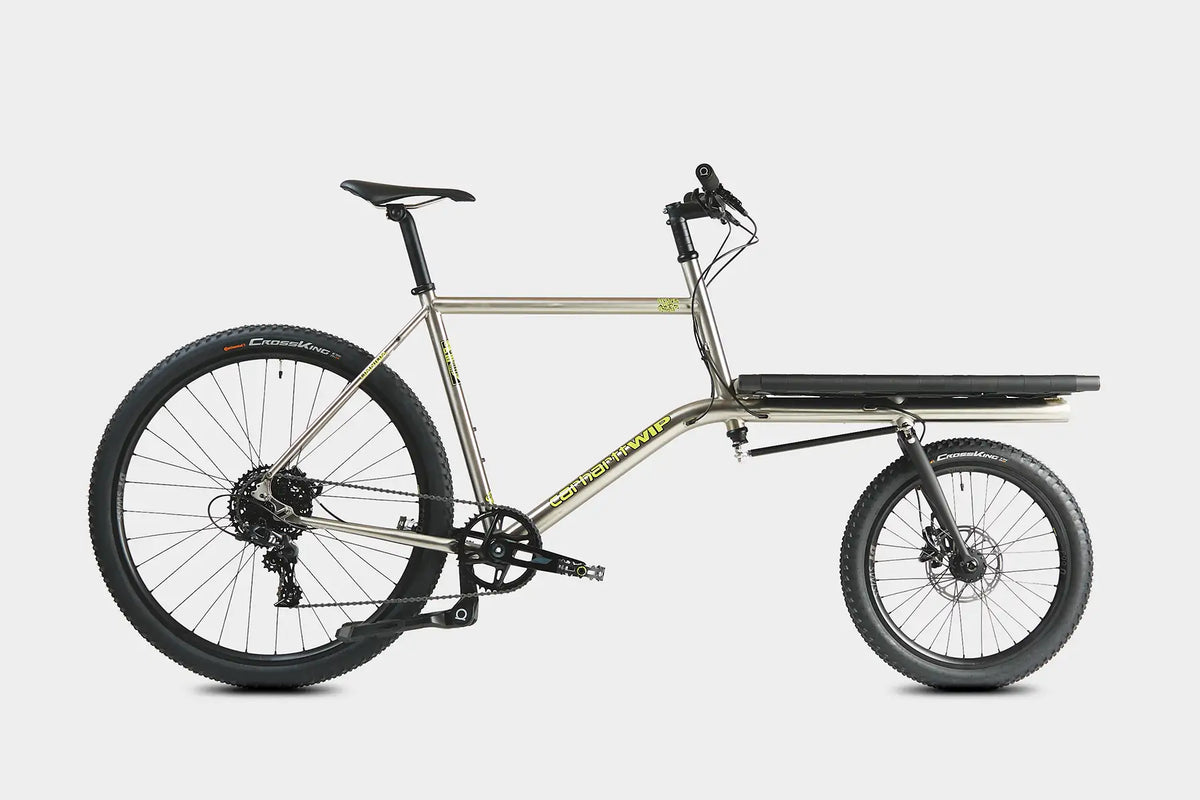

Omnium X Carharrt Wip MINI-MAX
Regular price
€4.50000
Unit price
/
Unavailable
Description
Something solid. Hard-wearing. Fast. A real escape from the steady pull of the digital: the OMNIUM x Carhartt WIP Mini-Max.

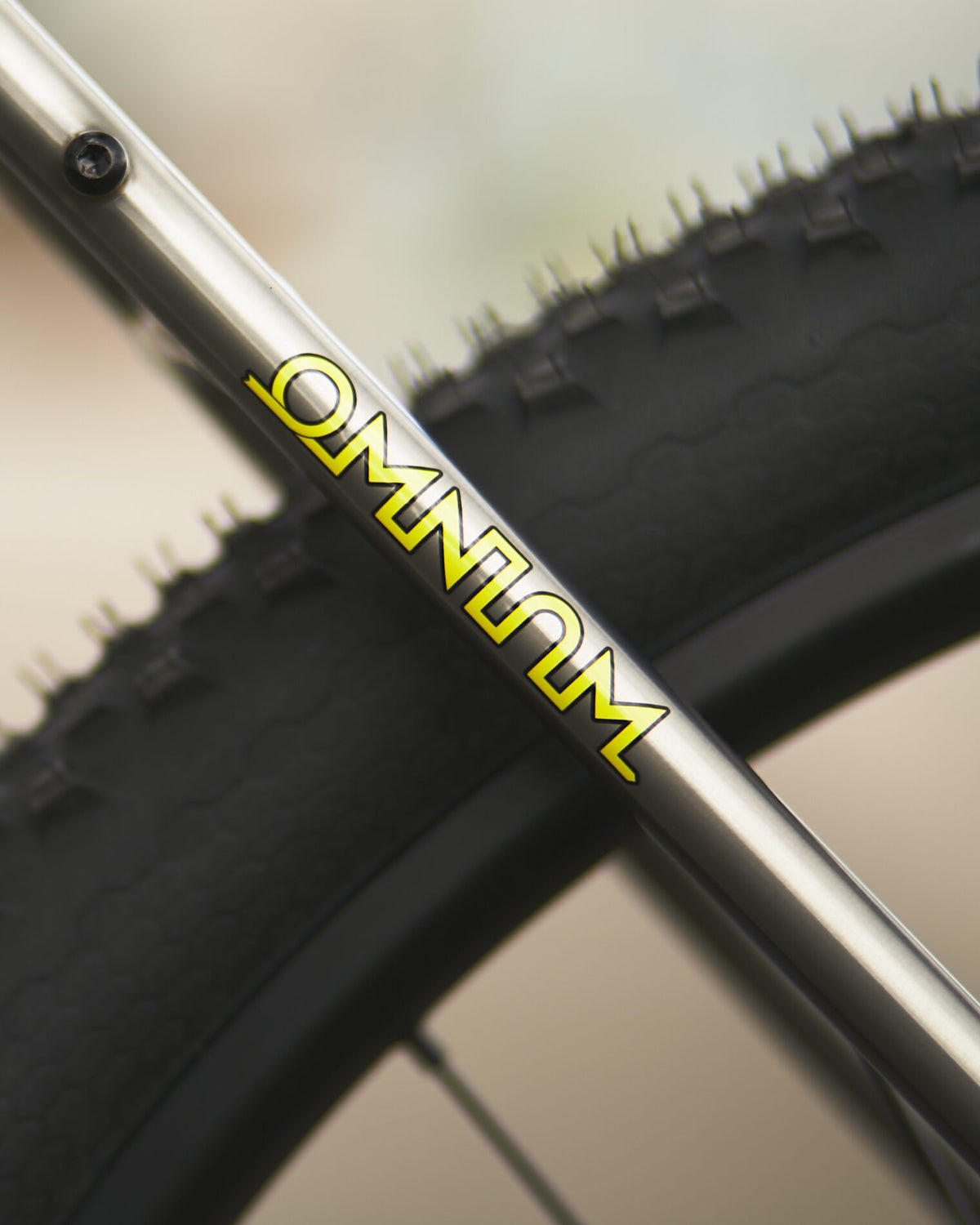

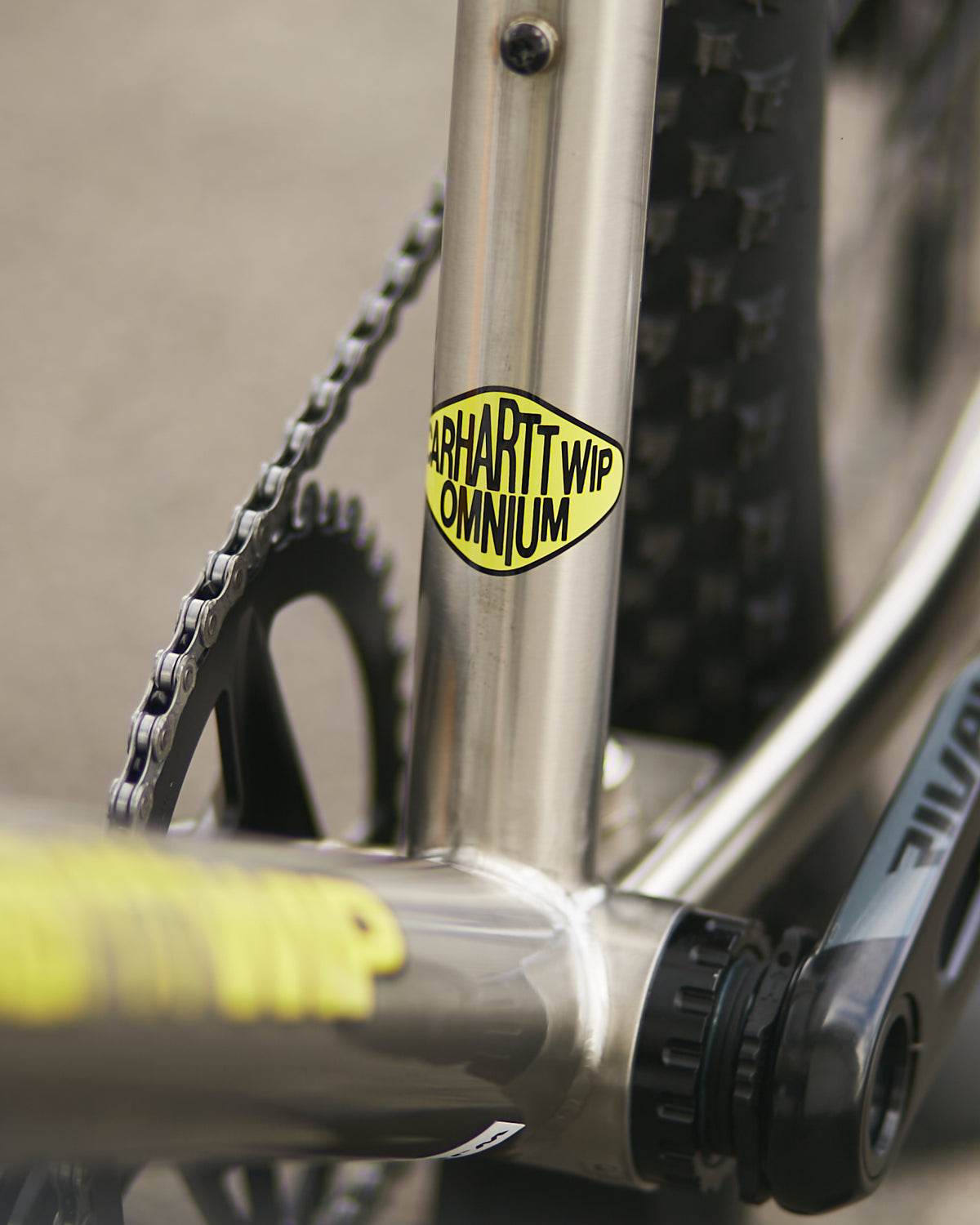

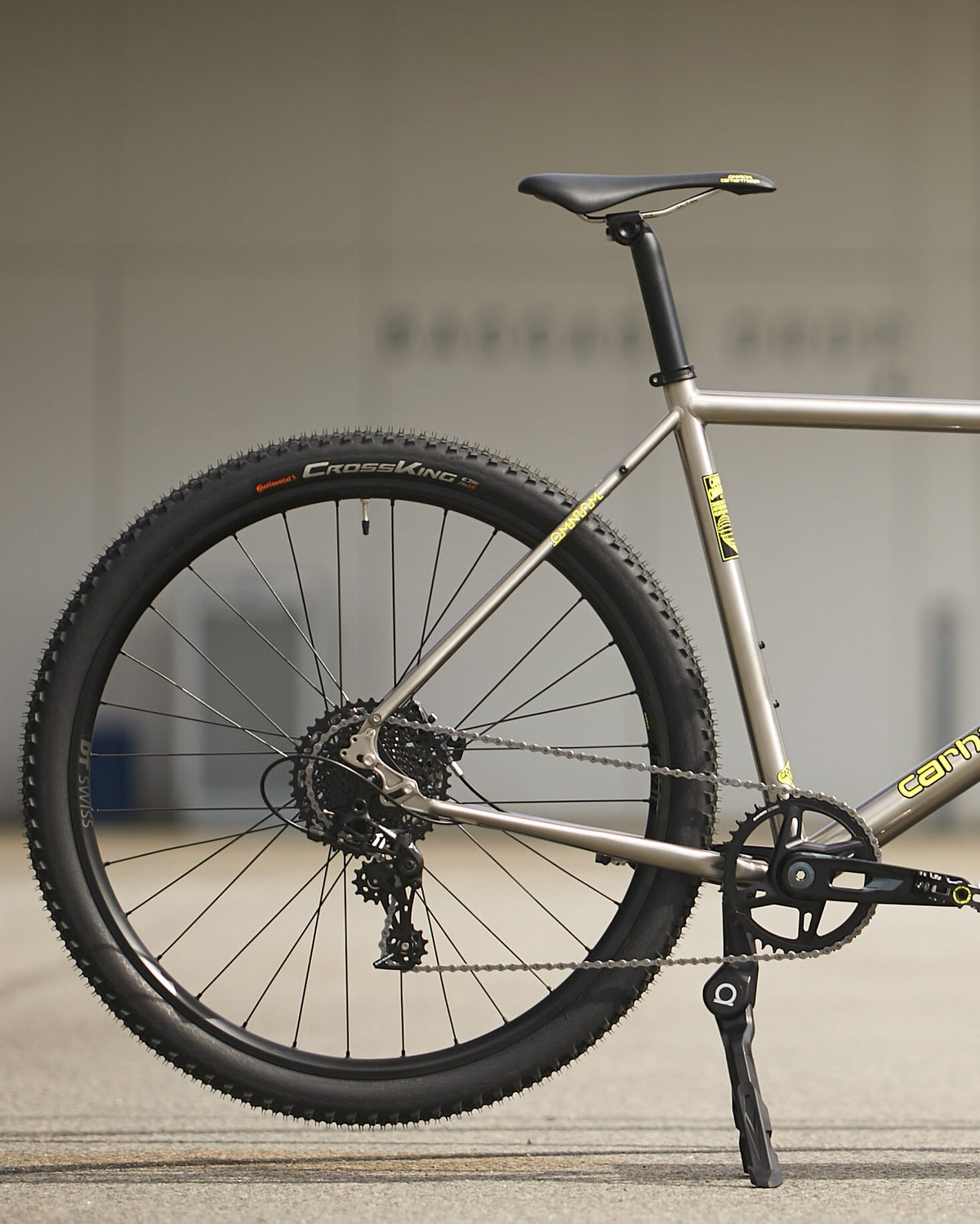

The first collaboration between Danish bicycle brand OMNIUM and Carhartt WIP takes OMNIUM’s original Mini-Max as its starting point, reworking the bike from its standard chromoly construction into a tough, premium stainless steel frame. To keep its raw appearance, the frame is clear-coated, leaving high-quality welds and heat discoloration visible. The bike is available in three sizes (S/M/L), and limited to 150 units.

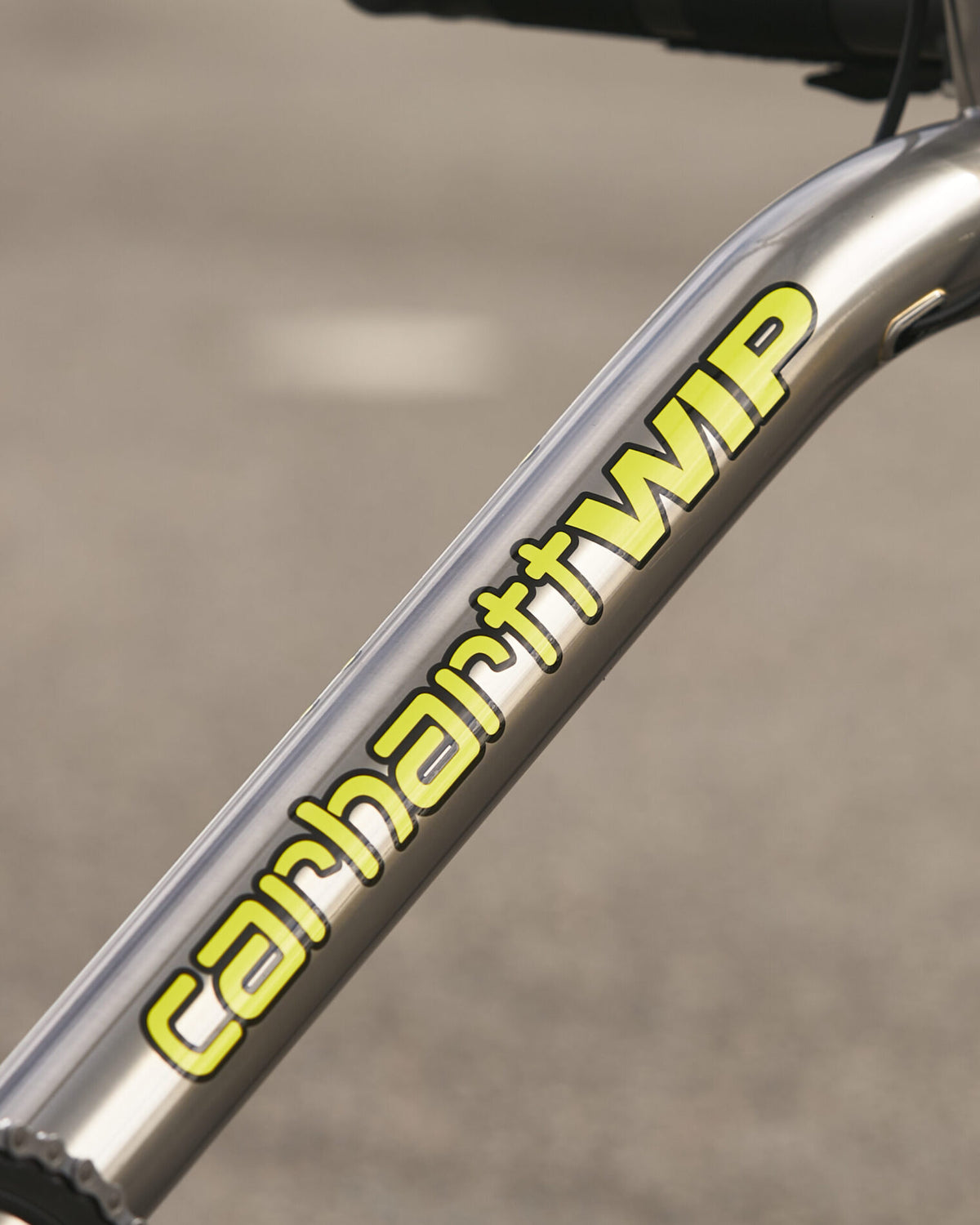

Acid yellow and black co-branded graphics lend an industrial, hi-vis character throughout, appearing across its DT Swiss cargo wheels, cargo webbing, lock-on foam grips, and titanium-railed saddle.
The bike also includes special-edition MKS x Carhartt WIP XC-III “bear trap” pedals, via Blue Lug Japan, nodding to Carhartt WIP’s history in BMX. They feature a custom matte-black colorway with hand-painted embossed branding and C-Logo cutouts in the cages.
Parts List
- Stainless Steel Frame
- Chromoly Steel Fork, Black

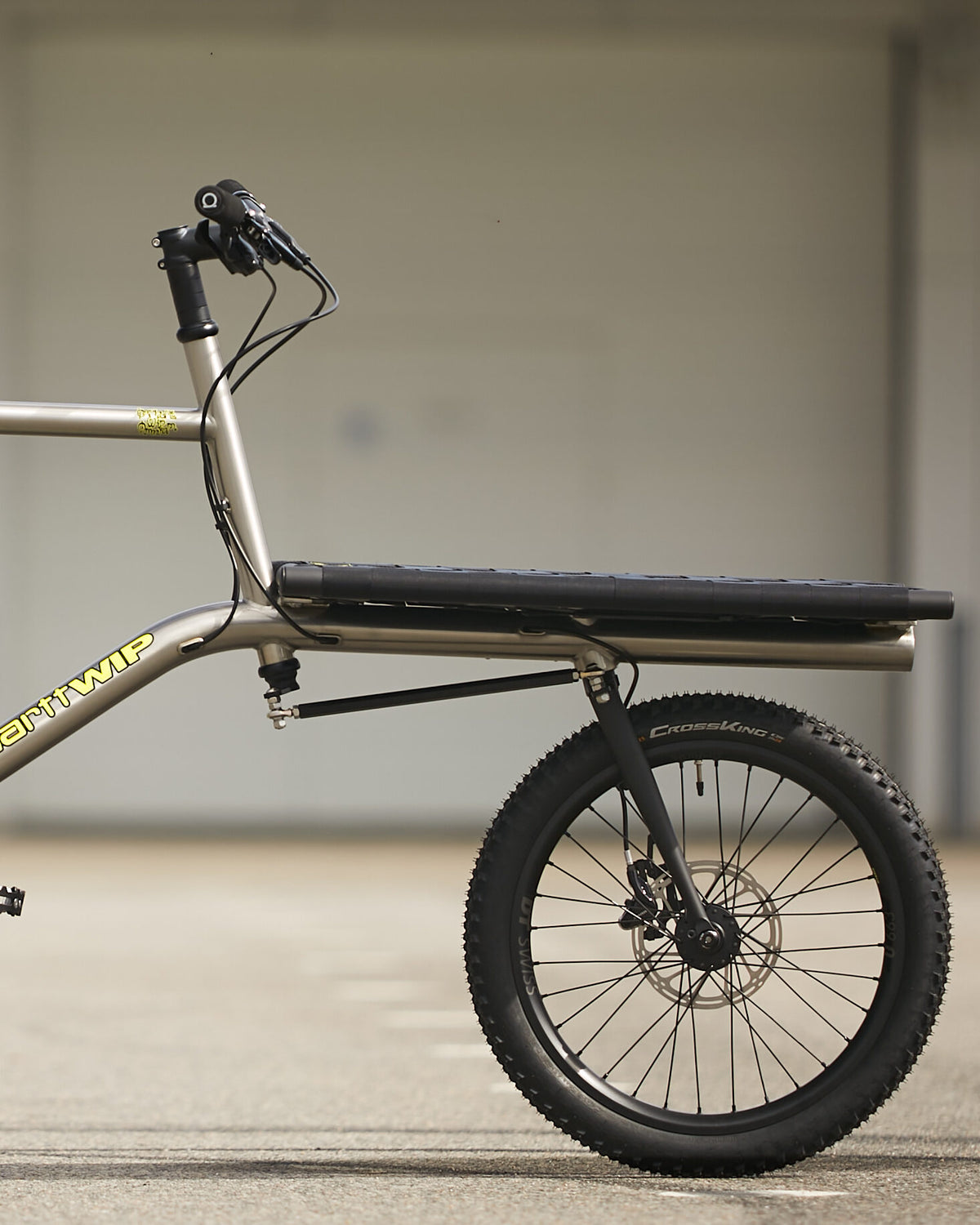

- Aluminium Cargo Rack, Black
- Cargo Webbing With Woven Label

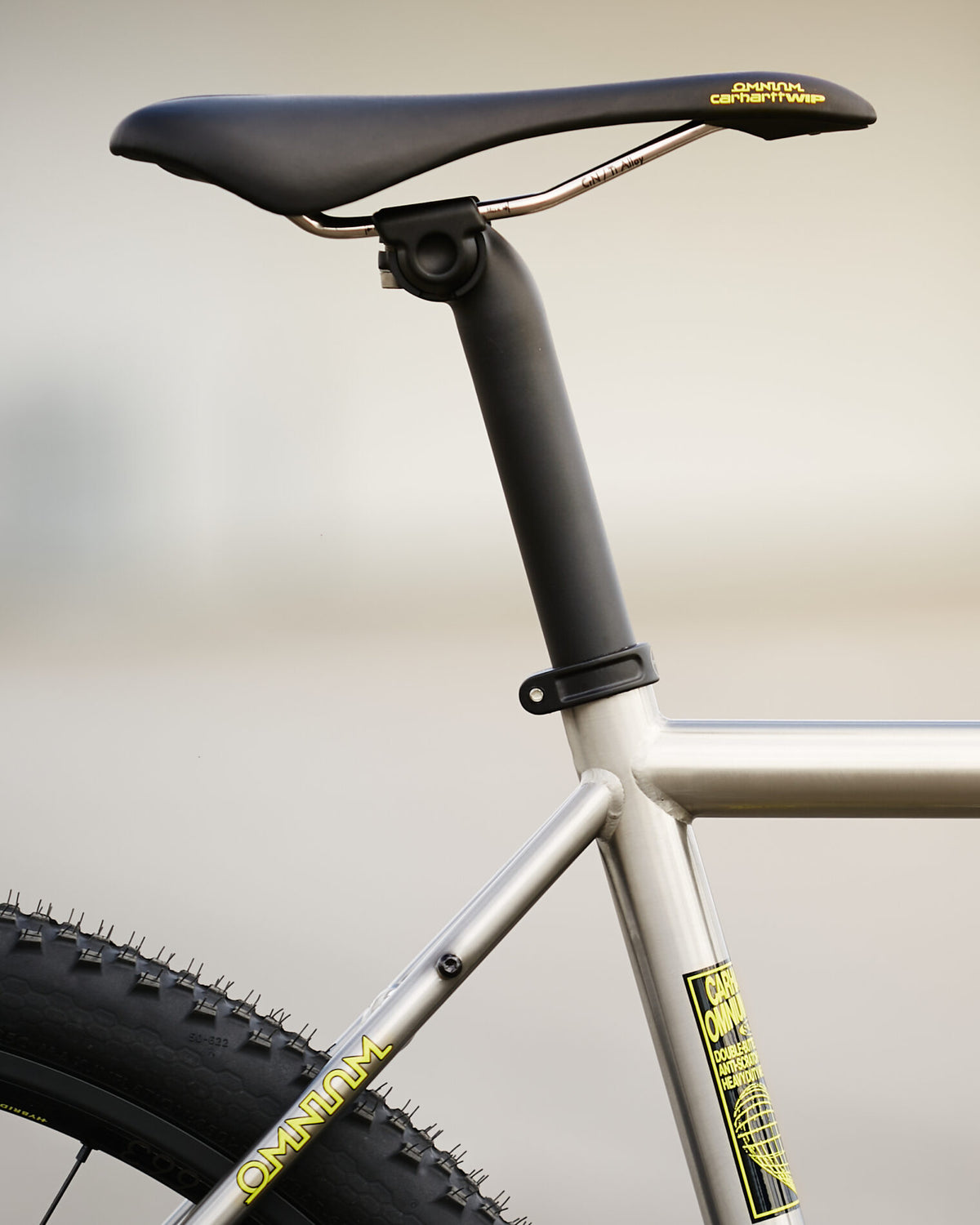

- Omnium x Carhartt WIP Saddle With Titanium Rails
- Omnium x Carhartt WIP Lock On Foam Grips
- Omnium Cargo Kick Stand

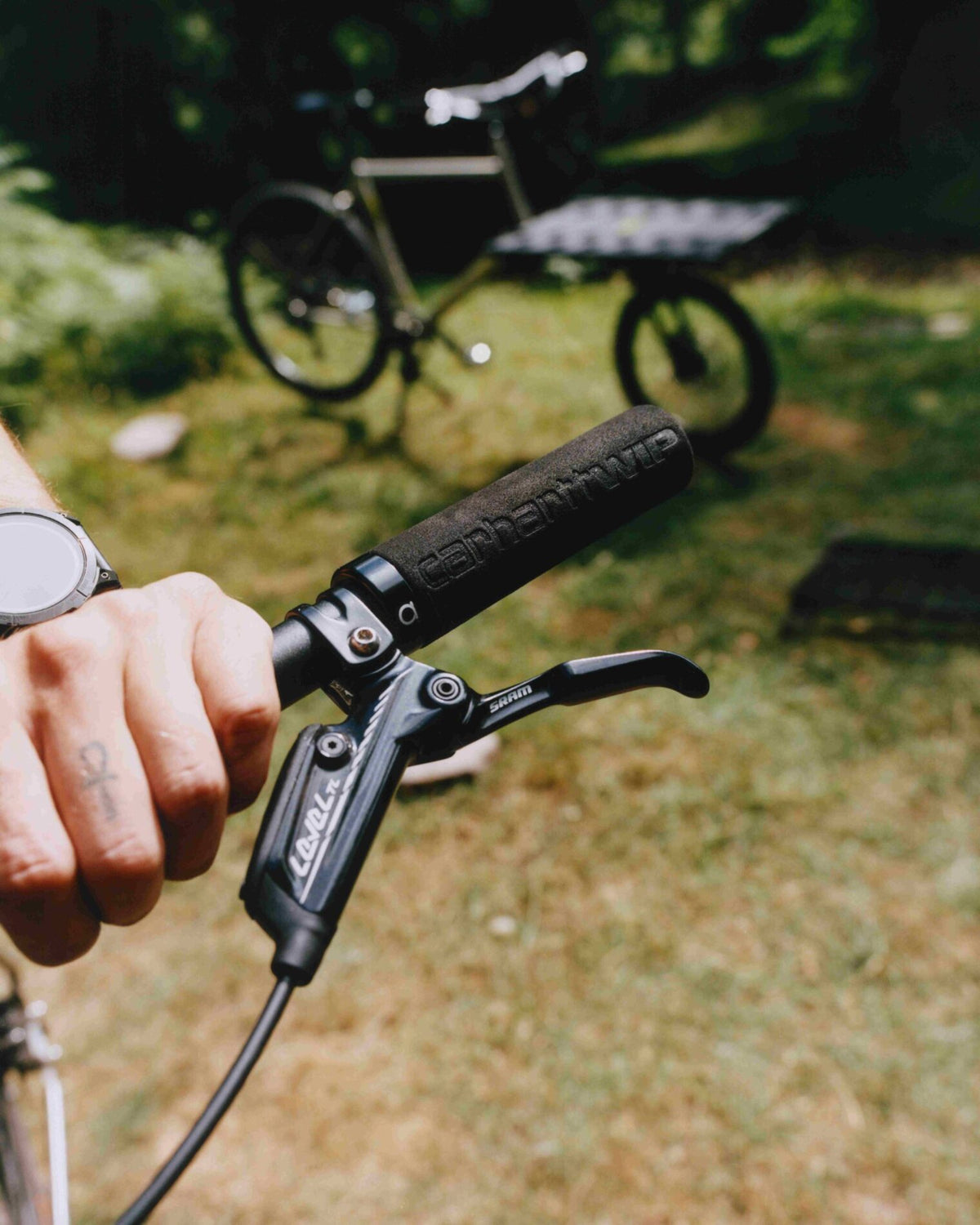

- SRAM Level TL Hydraulic Disc Brakes
- SRAM Apex 11 Speed Mechanical Drivetrain (11-42t)
- SRAM Rival E1 Crank (42t)
- MKS x Carhartt WIP XC-III “Bear Trap” Pedals
- DT Swiss U663 / 370 Cargo Wheels, Co-Branded
- Continental Cross King Tyres 29 X 2.0 Rear, 20 X 2.0 Front
Frame
| Material | KVA MS3 Stainless Steel Tubing |
| 3 Sizes | S, M, L |
| Standard Rack Weight | 1320g +/- |
| Rack Dimensions | 70cm X 50cm, Made Of Aluminum |
| Rack Bolt Size | M10 X 15mm |
| Frame Kit Weight (Medium) | 8,7kg (Including Rack, Steerer Tube & Rod, Fork, Drop Outs, Grummets, Head Sets & Axles) |
| COMPLETE BIKE WEIGHT (MEDIUM) | 19,5kg (Including Webbing, Kickstand & Pedals) |
| Seat Post Diameter | 31.6mm |
| Seat Post Clamp Size | 34.9mm |
| Rear Wheel | TA Insert: 622, 12 X 142mm Spacing, Disc Only |
| Front Wheel | 406, 15 X 100mm Spacing, Disc Only |
| Tyre Clearance, Front | 55mm With Mudguards |
| Tyre Clearance, Rear | 55mm With Mudguards |
| Thru Axle Rear | 12×142, 167mm Long, 21mm Thread Length. 1.75mm Pitch |
| Thru Axle Front | 15×100, 125mm Long, 17mm Thread Length, 1.5mm Pitch |
| Fork Headset | 1 1/8″ Threaded Integrated With Locking Cap |
| Steerer Headset | 1 1/8″ Ahead |
| Bottom Bracket | T47 68mm |
| Gears | For 1x Rear Derailleur Gear System Only |
| Cable Guides | Internal Routing |
| Maximum Loading Weight On Front Rack | 50 Kg (Total Weight May Never Exceed Maximum Loading Weight) |
Drivetrain
| Brakes | Sram Level TL | IS Mount, |
| Rotors | Sram Centerline 6 Bolt 160mm |
| Derailleur | Sram Apex 1 11 SPD |
| Shifter | Sram Apex 1 11 SPD |
| Cassette | Sram PG1130 |
| Chain | KMC 11 SPD EPT |
| Crankset | Sram Rival E1 (42t) |
| Bottom Bracket | Token T-47 BB Dub |
Cockpit
| Handlebar | Omnium Riserbar |
| Stem | Omnium LW Stem |
| Headset Rear | Omnium 1 1/8 Threadless Headset |
| Headset Front | Omnium Integrated Front Headset |
| Seatpost | Omnium Forged Seatpost |
| Grips | Omnium x Carhartt WIP Lock On Foam Grips |
| Saddle | Omnium x Carhartt WIP Saddle With Titanium Rails |
| Pedals | MKS x Carhartt WIP XC-III “Bear Trap” Pedals |
| Kickstand | Omnium Cargo Kickstand |
| Column Spacers | Omnium Spacer 15mm X4 |
| Seatpost Clamp | Omnium Seatpost Clamp |
| Tyres | Continental Cross King Tyres Front & Rear 20” X 2.0” | 29” X 2.0” (ERTRO: 406/622×50) |
Wheels
| Wheels | Rear Wheel | Front Wheel |
| Rim Weight | 760g | 500g |
| Wheel Weight | 1414g | 880g |
| Max Carrying Capacity | 180kg | 180kg |
| Rim Material | Aluminum | Aluminum |
| Rim Model | U663 | U663 |
| Tire Interface | Hooked / Crotchet Tubeless Tc | Hooked / Crotchet Tubeless Tc |
| Valve Hole | Presta | Presta |
| Rim Diameter | 29″ / 700c | 20″ / 406 |
| Rim ERD | 599mm | 383mm |
| Rim Hight | 22mm | 22mm |
| Inner Width | 30mm | 30mm |
| Outer Width | 35mm | 35mm |
| Holes | 32 | 32 |
| Hub Type | 370 | 370 |
| Axle System | 12 Mm Thru Axle | 15 Mm Thru Axle |
| Built-In Dimension | 142mm | 100mm |
| Brake Interface | Disc 6 Bolt | Disc 6 Bolt |
| Cassette Interface | Shimano MTB (HG) | – |
| Freehub Body | Shim. Rd. 11sp Forged (Asf11) | – |
| Freehub System | Ratchet Ln 18 | – |
| Spokes | Alpine II Spokes 2.34 / 291 + 289 Mm | Alpine II Spokes 2.34 / 174mm + 176mm |
| Nipples | DT Brass Standard Pro Head 2.0 X 14 | DT Brass Standard Pro Head 2.0 X 14 |
Geometry
| MINI-MAX STAINLESS (ALL MEASUREMENTS IN MM) | S | M | L |
| STL – Seat Tube Length (C-T) | 520 | 545 | 570 |
| TTL – Top Tube Length (C-C / Actual) | 520 | 545 | 570 |
| Stack | 557 | 581.5 | 605.5 |
| Reach | 355.5 | 373 | 391 |
| SO – Standover Height | 769.5 | 793.5 | 818 |
| BBH – Bottom Bracket Height | 288 | 288 | 288 |
| BBD – Bottom Bracket Drop | 81 | 81 | 81 |
| STA – Seat Tube Angle | 73.3° | 73.3° | 73.3° |
| HTA1 – Head Tube Angle Rear | 73.6° | 73.6° | 73.6° |
| HTA2 – Head Tube Angle Front | 73.6° | 73.6° | 73.6° |
| WB – Wheelbase | 1370 | 1395 | 1420 |
| A-C – Axle To Crown | 298.5 | 298.5 | 298.5 |
| R – Rake | 45 | 45 | 45 |
| T – Trail | 29.5 | 29.5 | 29.5 |
| CSL – Chainstay Length | 462 | 462 | 462 |
| FL – Full Bike Length | 1999.5 | 2024.5 | 2049 |
