Polygon | Barcode: 8994981085021

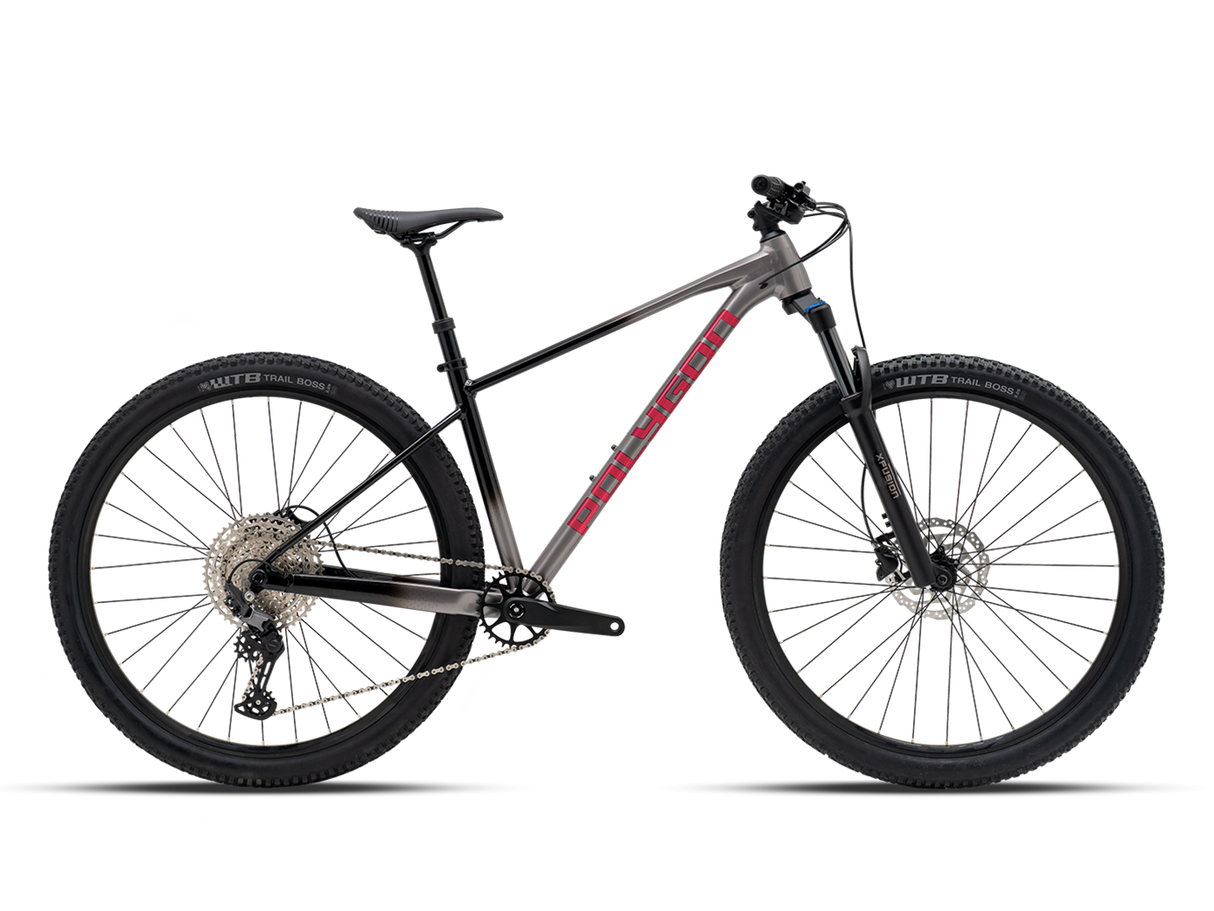

Polygon Xtrada 6

Name: XLarge 29" / Charcoal black Polygon Xtrada 6
SKU: 503536004
Price: 699.0 EUR

€699⁰⁰ €799⁰⁰

Price includes VAT. Shipping calculated at checkout.

🔥 Get Ready for Summer SALE – ends in

Size: Small 29"

Small 29" Medium 29" Large 29" XLarge 29"

Color: Charcoal black

Product variants

Found a better price?

ADVENTURE STARTS HERE

Created for chasing endless tracks.

Riding the Xtrada feels like running with a wolf,” they said. True to its cross-country DNA, the Xtrada is born to run the trail with you—impeccably versatile, effortlessly fast, and obsessively comfortable. Built with speed-focused, stable geometry and tough, trail-ready components, it’s the perfect companion for local singletrack laps or all-day mountain adventures.

Features

Effortless shifting with a 1x drivetrain, paired with UDH compatibility for next-generation drivetrains
A suspension fork designed to take the edge off rough terrain and keep your ride composed
Dropper post for uninterrupted focus, up or down *Xtrada 7 and 6 series

Specification

*Specifications, colors, and product availability are subject to change without prior notice.

Frameset

Frameset
ALX XC 29
Fork
X-FUSION MIGO LO DAMPER 32 120mm TRAVEL BOOST THRU AXLE
Frame Color
CHARCOAL BLACK
Decal Color
RED BLACK

Drivetrain

Shifter
SHIMANO DEORE SL-M6100 1x12-SPEED TRIGGER
Crank
SAMOX RAC61C-018S-C55 32T
Cassette
SHIMANO CS-M6100 12-SPEED 10-51T
Rear Derailleur
SHIMANO DEORE RD-M6100 DIRECT ATTACH
BB
SAMOX 2-PIECE CRANKSET BSA THREADED
Chain
KMC X-12
Pedal
ONE PIECE PP BODY

Cockpit

Saddle
LINC VOID SADDLE, STEEL ø7mm
Seatpost
DROPPER POST 150mm TRAVEL, DXL: 30.9 x 429mm, SEAT CLAMP: 34.9mm BOLT TYPE
Handlebar
POLYGON SPORT ALLOY, W: 760mm, BB: 31.8mm, R/D: 20mm, B: 9degree
Handlestem
POLYGON SPORT ALLOY, EXT: 40mm, BB: 31.8mm, R/D: 7degree
Headset
ZERO STACK W/ CAGED BEARING, ZS 44/28.6 | ZS 56/40

Wheel & Tire

Wheel Set
ALLOY WHEELS
Tire
WTB TRAIL BOSS 29"X2.25"
Rim
F: ALLOY DOUBLE WALL H:19mm W: 23mm 32H FOR TYRE 622-68 / R: ALLOY DOUBLE WALL H:19mm W: 23mm 32H FOR TYRE 622-68
Hub
F: SHIMANO HB-TC500 THRU AXLE 15x110mm 32H CENTERLOCK / R: SHIMANO HB-TC500 THRU AXLE 12x148mm 32H CENTERLOCK FOR MICROSPLINE
Spokes
F: 14G STAINLESS NDS: 294mm DS: 292mm 12MM NIPPLE BRASS / R: 14G STAINLESS NDS: 292mm DS: 290 12MM NIPPLE BRASS

Brake

Brake Lever
SHIMANO BL-MT200
Brake Caliper
SHIMANO MT200 HYDRAULIC DISC BRAKE
Rotor
SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK

Geometry & Size

	S	M	L	XL
Height (cm)	152-165	162-175	172-185	182-195
Seat Tube Length (A)	390	430	450	470
Seat Tube Angle (B)	73	73	73	73
Effective Seat Tube Angle (C)	74	74	74	74
Head Tube Length (D)	91	100	110	120
Head Tube Angle (E)	67	67	67	67
Effective Top Tube (F)	586	609	632	655
Bb Height (G)	313	313	313	313
Bb Offset (H)	60	60	60	60
Chainstay Length (I)	432	432	437	437
Wheelbase (J)	1121	1145	1174	1198
Frame Reach (K)	410	430	449	470
Frame Stack (L)	620	629	638	647
Standover Height (M)	725	756	771	788

geometry
