Santa Cruz  |  Barcode: 616663237617  |  Gravel Bikes

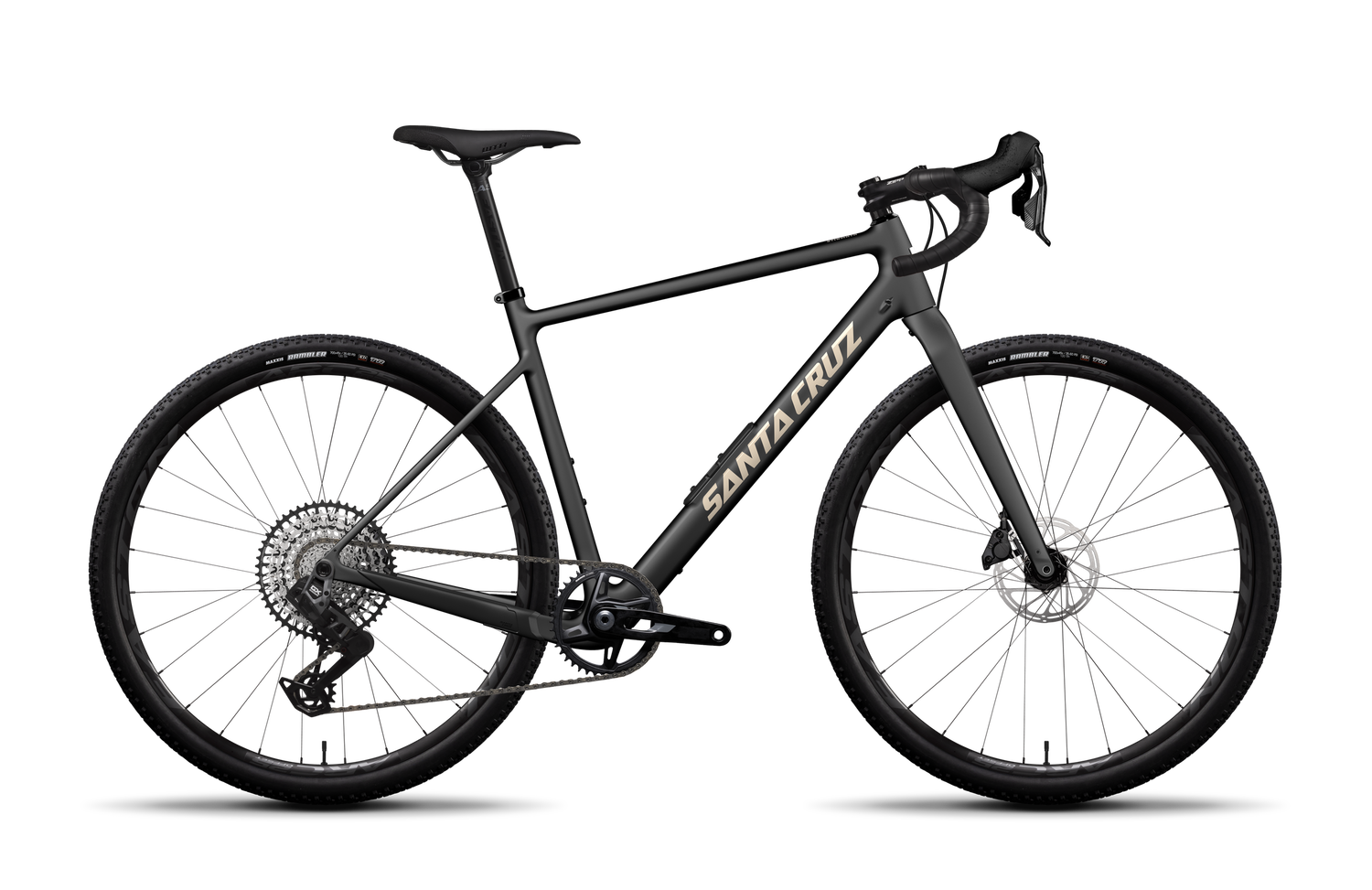

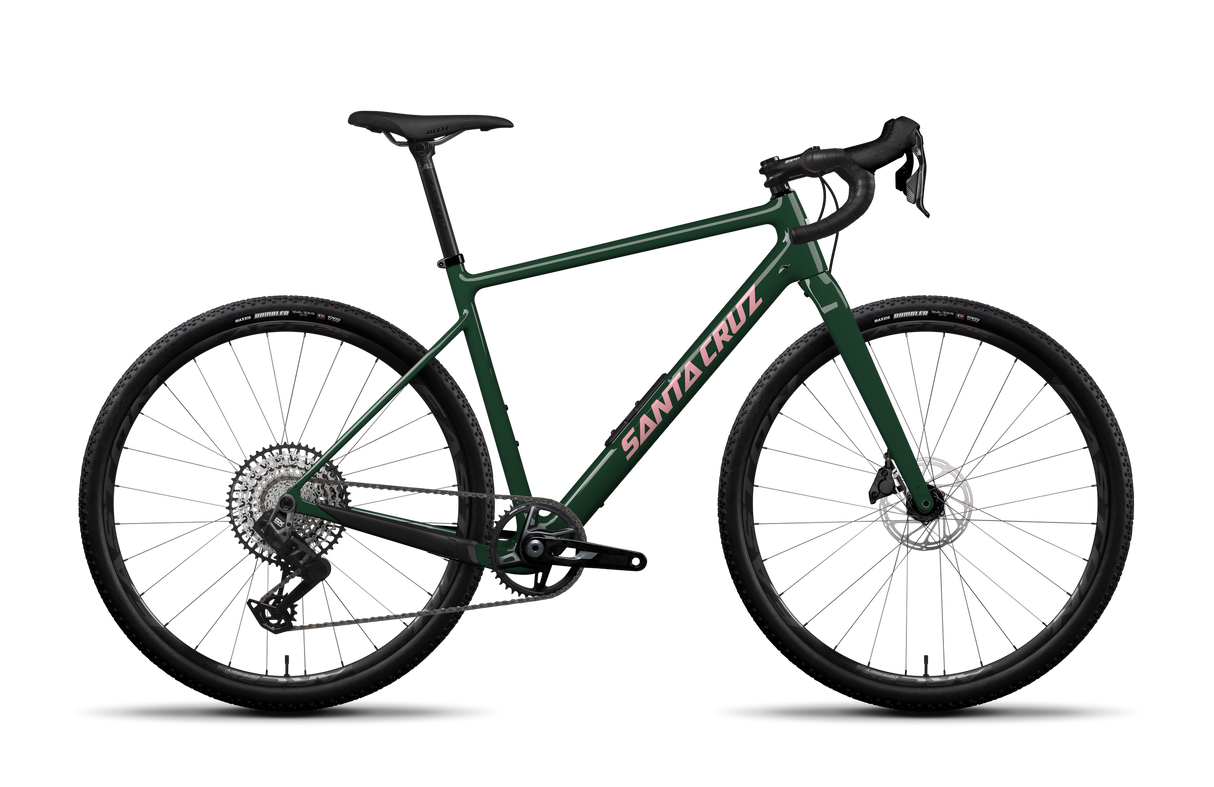

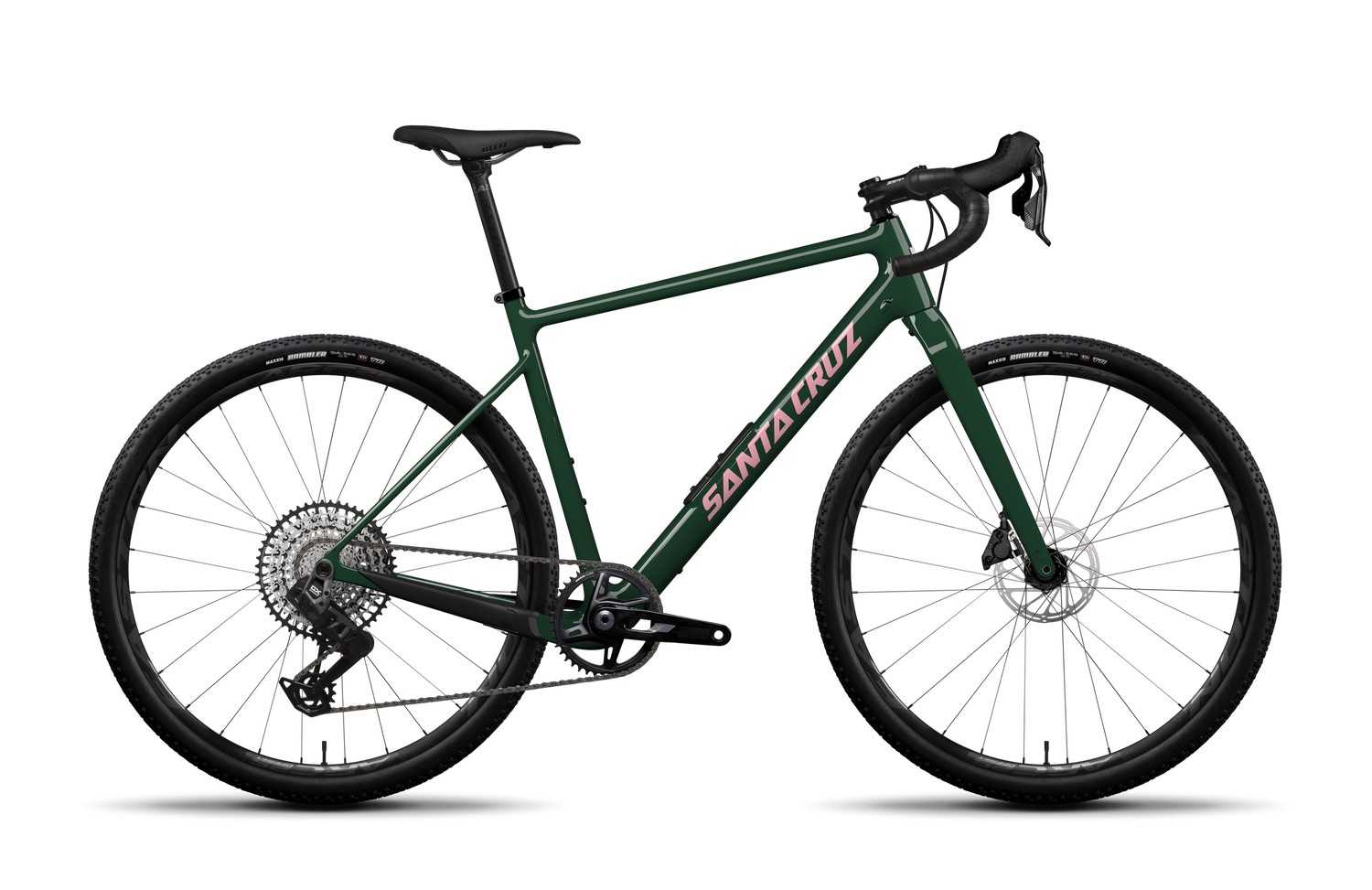

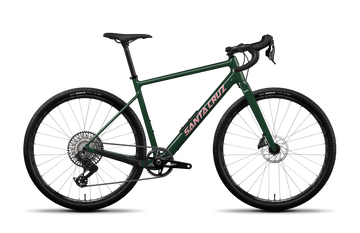

Santa Cruz Stigmata CC 700C Force Rival 1X AXS - 2026

€5.29900
21% VAT included
Size:  Medium

Santa Cruz Stigmata Size Chart

SIZE HEIGHT RANGE
X-Small 152 cm – 160 cm
Small 160 cm – 167 cm
Medium 167 cm – 175 cm
Large 175 cm – 182 cm
X-Large 182 cm – 188 cm
XX-Large 188 cm – 193 cm

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

Personal Preference
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Body Dimension
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.

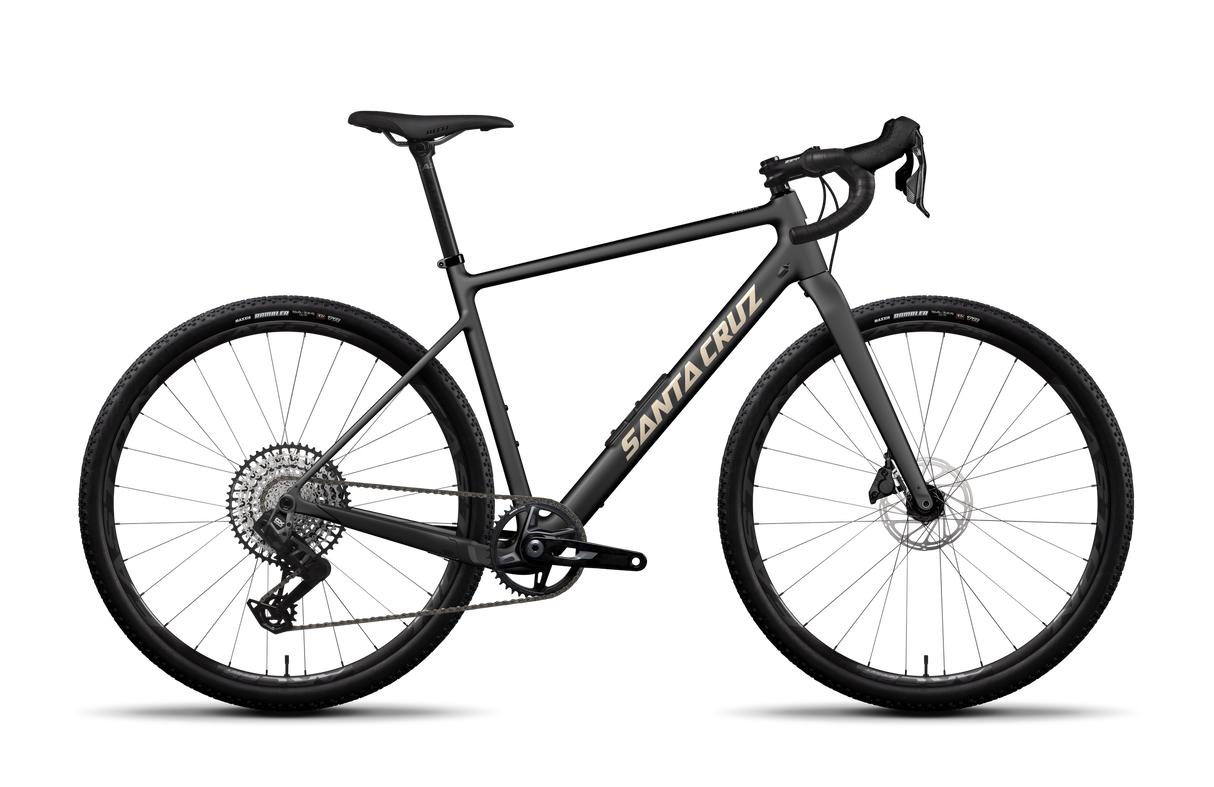

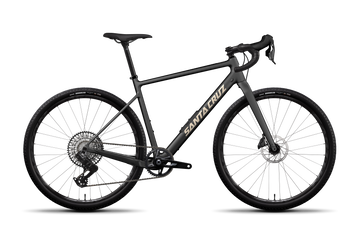

Color:  Matte Carbon
Not available in Rotterdam Showroom
Available in warehouse
Estimated delivery: Oct 27–Nov 9
Official dealer
70,000+ riders since 2011
14-day easy returns
Description

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there.

Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

Features
  • Carbon CC Frame
  • Carbon Fork
  • SRAM X0 AXS Eagle Drivetrain
Specifications
Frame
Material Carbon CC
Frame Carbon CC Gravel
Weight 19.14lbs / 8.68kg
Wheel Size 700c
Suspension

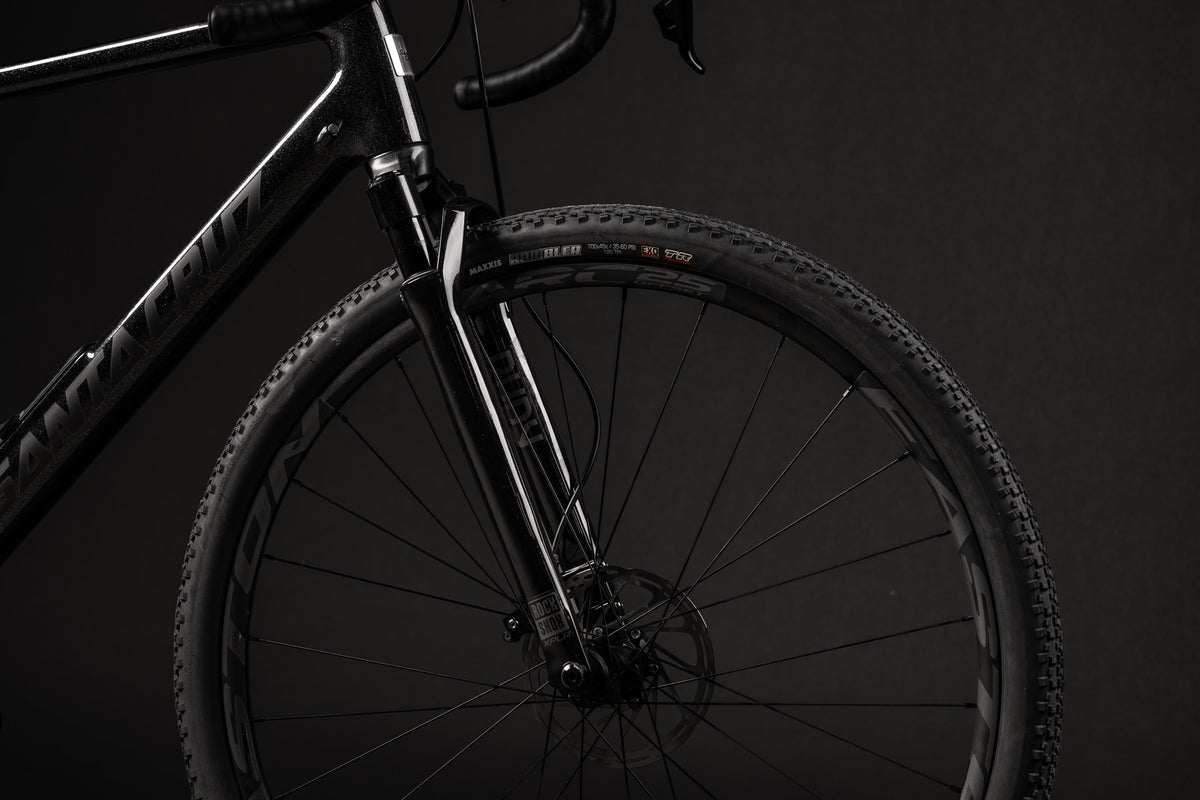

Fork Carbon
Shock N/A
Drivetrain
Bottom Bracket SRAM DUB 68mm Road Wide BB
Cassette SRAM X0 1295 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide N/A

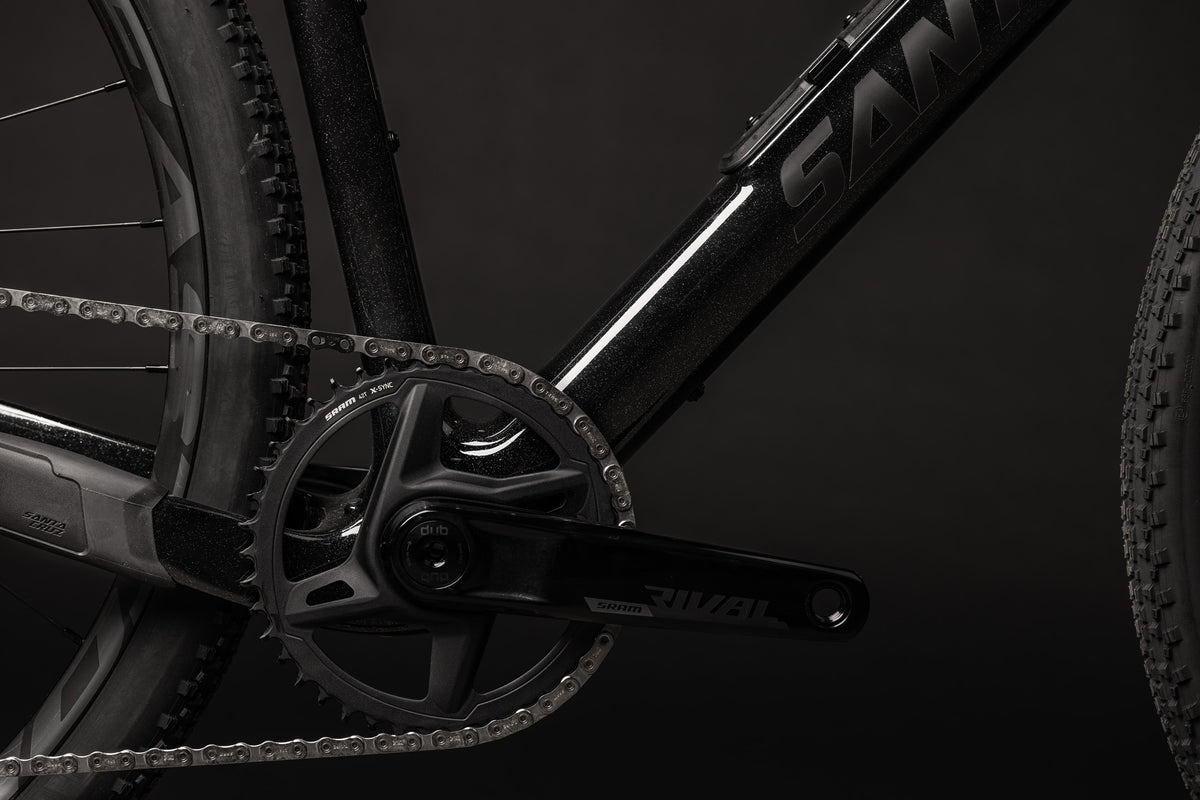

Crankset SRAM Force XPLR, 42t XS/S: 165mm, M/L: 170mm, XL: 172.5, XXL 175mm

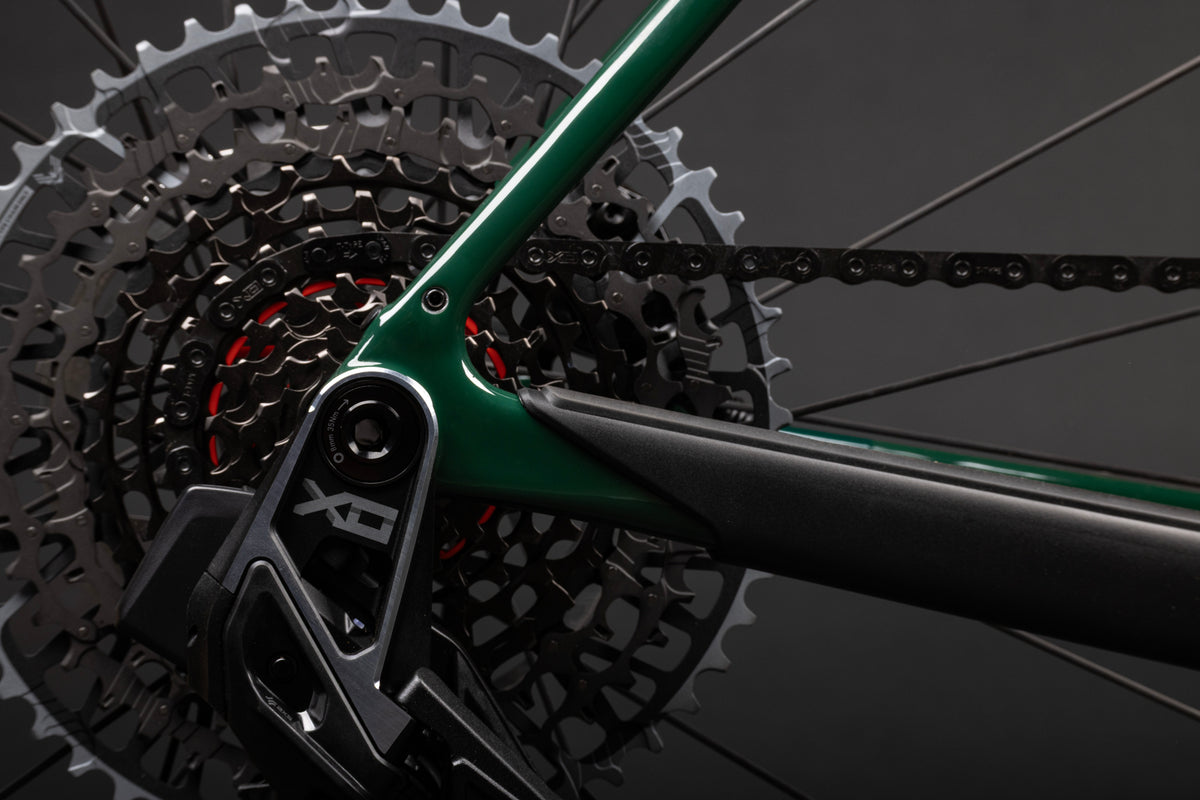

Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter SRAM Force AXS
Brakes
Brakes SRAM Force
Front Rotor SRAM Centerline, Centerlock, 160mm
Rear Rotor SRAM Centerline, Centerlock, 160mm
Cockpit
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course SL-70 XPLR Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset Cane Creek 50 IS Integrated Headset -or- Cane Creek 40 IS Integrated Headest
Saddle WTB Silverado Medium Fusion, CroMo SL
Seatpost Easton EC70, 27.2, Zero Offset All Sizes: 350mm
Stem Zipp Service Course Stem All Sizes: 70mm
Wheels
Front Rim Reserve 25|GR
Front Hub DT Swiss 350, 12x100, Centerlock, 24h
Front Tire Maxxis Rambler, 700x45c, DC, EXO
Rear Rim Reserve 25|GR
Rear Hub DT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h
Rear Tire Maxxis Rambler, 700x45c, DC, EXO
Valves Reserve Fillmore Valves
Specs
Headset Integrated (IS41/52)
Fork Axle to Crown 430mm
Fork Offset 45mm
Fork Compatibility 40mm
Bottom Bracket Shell Threaded 68mm
Max Chainring Size 42t (1x) | 50t (2x)
Front Derailleur Mount Clamp On
UDH Compatible Yes
Rear Spacing 142mm
Rear Brake Mount 160mm FM
Max Tire Clearance
May vary according to tire and rim model		 50mm (1x) | 45mm (2x)
Seat Post Diameter 27.2mm
Seat Clamp Diameter 31.8mm
Water Bottle Mounts 3
Geometry

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
