Polygon

Polygoon Collosus TLE 0 AXS

Verkoopprijs €7.469,00 EUR Reguliere prijs €8.299,00
Belasting inbegrepen. Verzending berekend bij het afrekenen.

Maat

Estimated Shipping Widget will be displayed here!

Reviews

970 reviews

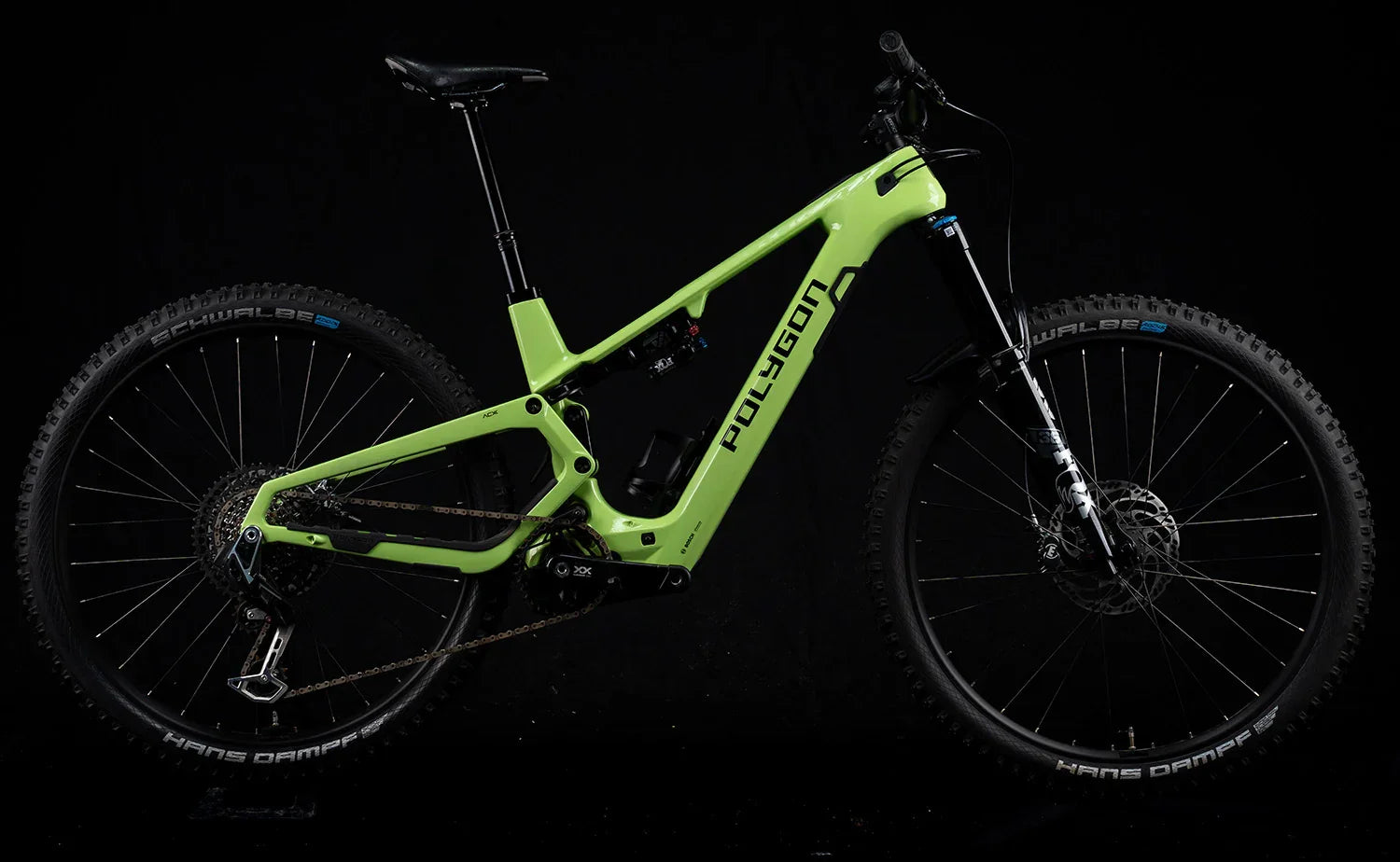

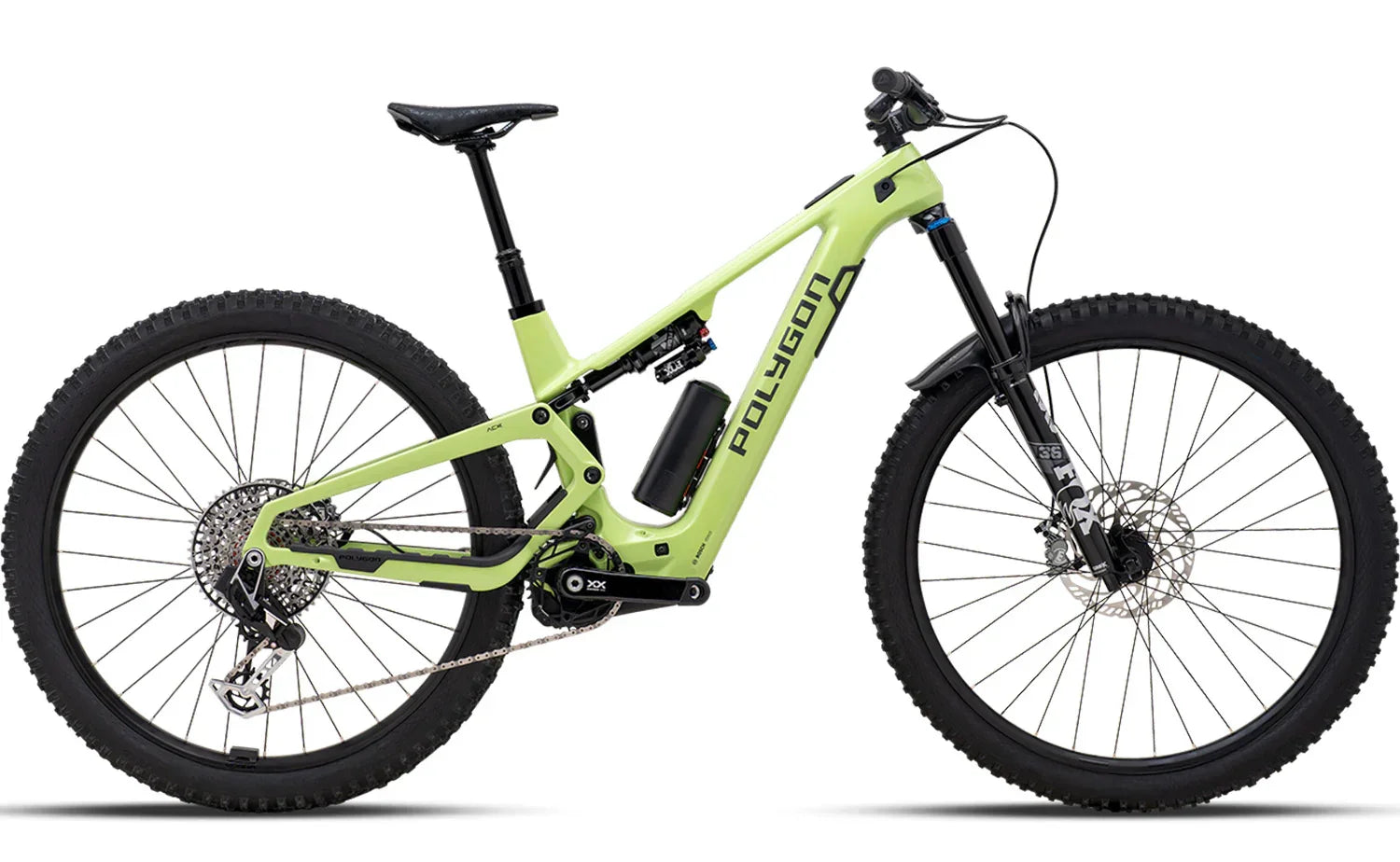

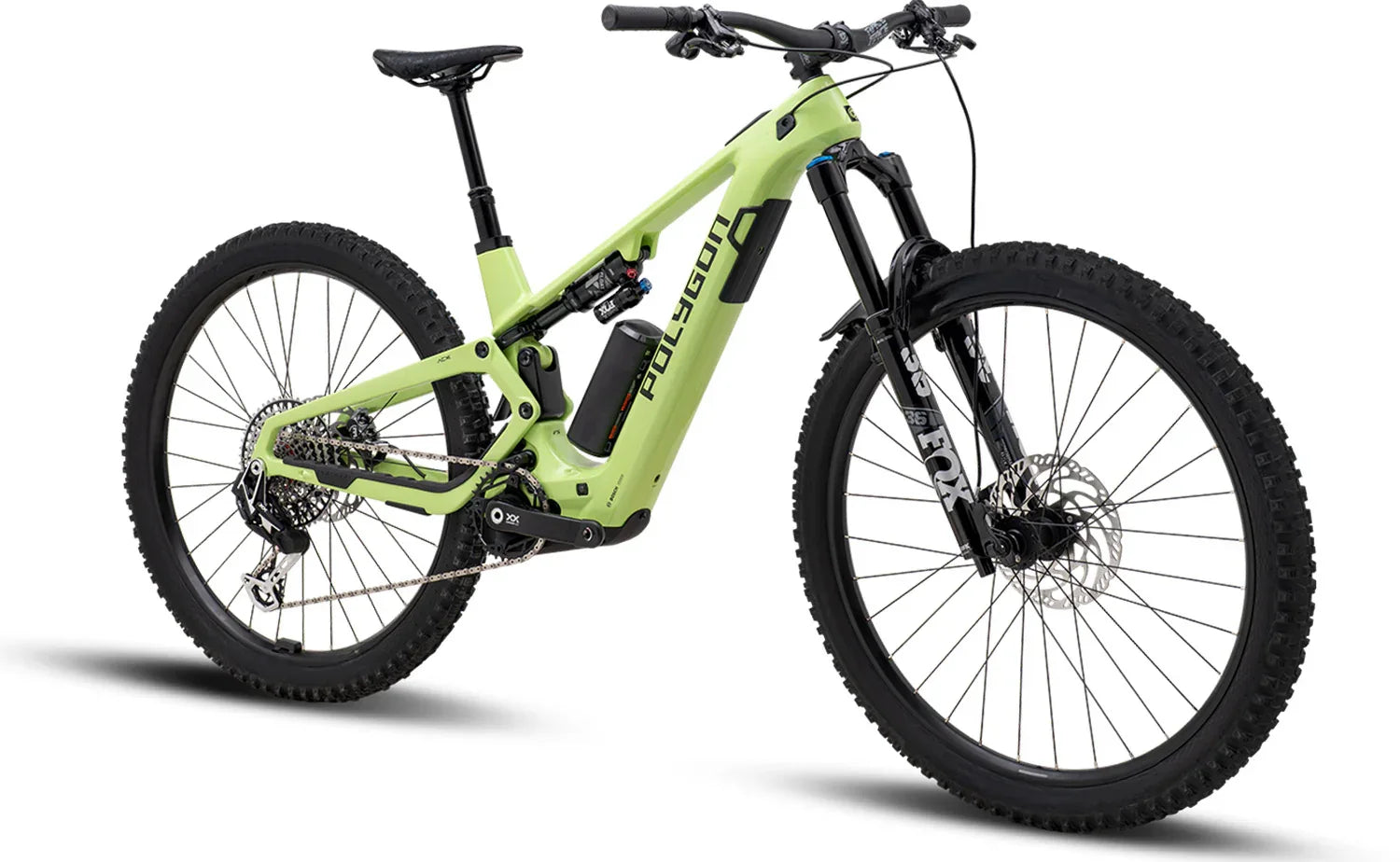

The Polygon Collosus TLE 0 is built for lightweight power and precision—delivering a carbon frame, Bosch SX motor, and wireless SRAM XX T-Type drivetrain in a trail-optimized package. With refined suspension kinematics and range-extender compatibility, the TLE 0 is ready to push longer, climb smoother, and rip harder across any terrain.

THE FUTURE OF TRAIL

The all-new Polygon Collosus TLE brings the proven pedigree of the Collosus line into a bold new territory—merging trail-focused agility with e-performance efficiency. It’s a carbon-built, Bosch-powered platform designed for riders who want more: more distance, more control, and more fun on every ride. Tuned for all-day exploration and tech-heavy descents alike, the TLE is where long travel meets fast laps.

CARBON BUILT POWER

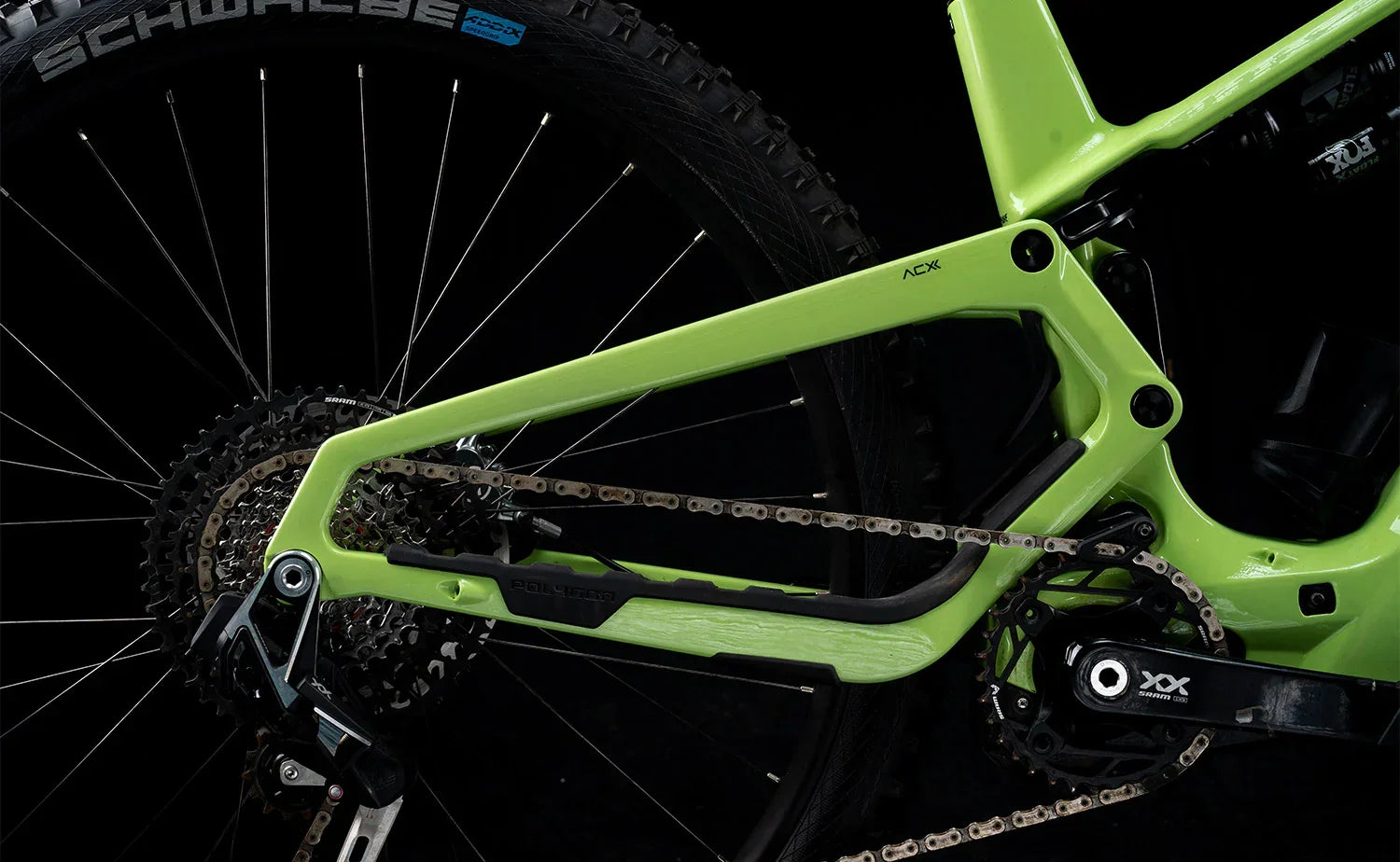

With its full carbon frame and one-piece rear triangle, the TLE blends stiffness, strength, and clean integration. Bosch’s compact Performance Line SX motor pairs with a PowerMore range extender to push your ride further without compromise. A revised linkage design refines the ride feel, while internal cable routing, chainstay armor, and sag-monitoring top tube features keep the build sleek and functional.

IFS SUSPENSION EVOLVED

At the core of the TLE is Polygon’s Independent Floating Suspension—reimagined for this new era. With 140mm of rear travel, a 160mm fork, and full support for both air and coil shocks, the TLE’s kinematics offer responsive grip, balanced climbing, and total confidence on rowdy trails. It’s the same ride DNA as the Collosus N and DH—rebuilt for the trail-forward rider.

FRAMESET

FRAME
ACX E-trail Full carbon frame with single-piece rear triangle, T-Type compatible (UDH hanger), 34.9mm seat tube diameter
HEADSET
FSA NO42/47/ACB, IS 42/28.6

SUSPENSION

FORK
FOX Performance Elite 36, GRIP2 Damper, FLOAT EVOL, 160mm Travel, 44mm Offset, HSC/LSC & HSR/LSR Adjust, w/ Fender
SHOCK
FOX Float X Performance Elite, Air Spring, 2-Position Adjust, LSC/LSR, 210x55mm

DRIVETRAIN

REAR DERAILLEUR
SRAM XX AXS Eagle T-Type, 12-Speed
SHIFTER
SRAM EC AXS Pod Controller
CRANK
SRAM XX AXS 165mm, SRAM CR T-Type Chainring
CHAINRING
34T
CASSETTE
SRAM XS-1297-A1 XX Eagle, 12-Speed, 10-52T, XD Driver
CHAIN
SRAM XX Eagle Chain, 12-Speed

E SYSTEM

BATTERY
Bosch Compact Tube 400wh, 36V, Lithium-ion, With Bosch PowerMore 250Wh Range Extender
COMPUTER
Bosch System Controller (controls on/off function and motor assistance levels)
MOTOR

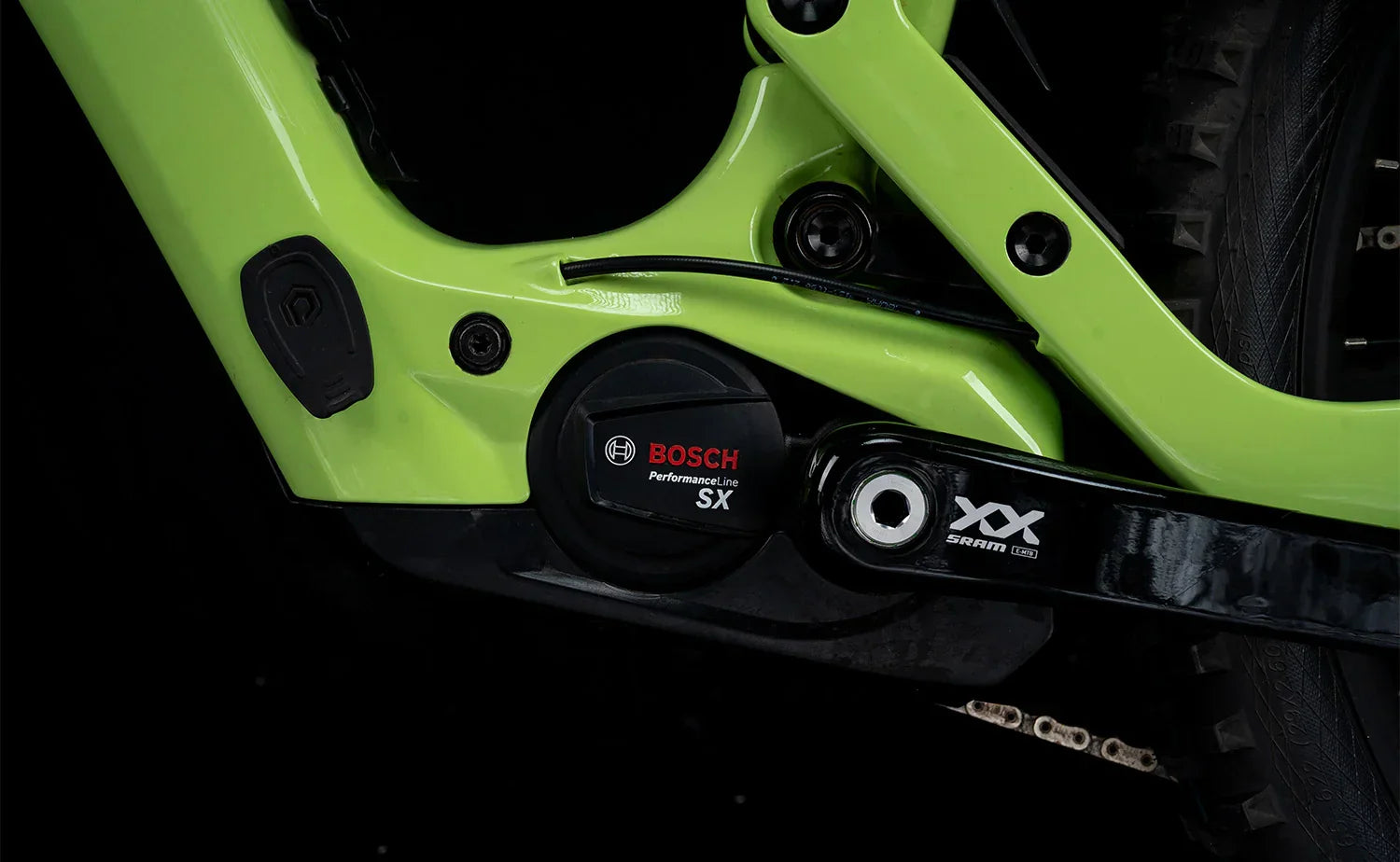

Bosch Performance Line SX, 250W, 36V up to 340% of assistance, 55 Nm Torque
RANGE
Upto 160km Depending on terrain, Rider weight, and Assistance level
CHARGING TIME
Approx. 4-6 hours
CHARGER
Bosch Standard Charger
SWITCH
Bosch Remote Mini

BRAKES

FRONT BRAKE
Magura MT7 4-piston Hydraulic Brakes with Magura HC3 levers
REAR BRAKE
Magura MT7 4-piston Hydraulic Brakes with Magura HC3 levers
ROTOR
Magura MDR-C 203mm

WHEELS

FRONT HUB
DT Swiss 370 Hybrid Classic front hub, 15x110mm, 32H, 6B
REAR HUB
DT Swiss 370 Hybrid Classic rear hub, 12x148mm, 32H, 6B, XD driver.
RIM
Polygon MT6 Alloy Double Wall front rim, 32H, Internal Width: 30mm, Tubeless Ready **
TYRE
Schwalbe Hans Dampf Evo 29"x2.60", Super Trail, TLE, Addix SpeedGrip, Tubeless Ready **
MAX TYRE SIZE
29"x2.6"

CONTACT POINTS

SADDLE
XTENT, CR-MO ø 7mm
SEATPOST
Tranz X JD-YSP39KL Dropper Seatpost, 150mm (S, M) / 200mm (L, XL) travel, 0mm offset
HANDLEBAR
Race Face Aeffect R 35, Width: 780mm, Bar Bore: 35mm
STEM
Race Face Aeffect R 35, Length: 40mm, Bar Bore: 35mm, Rise/Drop: 0Deg

  S M L XL
Rider’s height in cm 5'0" – 5'4" 5'4" – 5'9" 5'8" – 6'1" 6'0" – 6'5"
(A) Seat Tube Length 390 400 415 430
(B) Seat Tube Angle 72° 73° 73° 73°
(C) Effective Seat Tube 77° 77° 77° 77°
(D) Head Tube Length 90 95 105 120
(E) Head Tube Angle 64° 64° 64° 64°
(F) Effective Top Tube 586 607 627 648
(G) BB Height 343 343 343 343
(H) BB Drop 35 35 35 35
(I) Chainstay Length 450 450 450 450
(J) Wheelbase 1215 1242 1266 1293
(K) Frame Reach 435 461 481 501
(L) Frame Stack 614 619 628 642
(M) Standover Height 748 757 764 770
Handlebar Width 780 780 780 780

*All measurements are in mm
