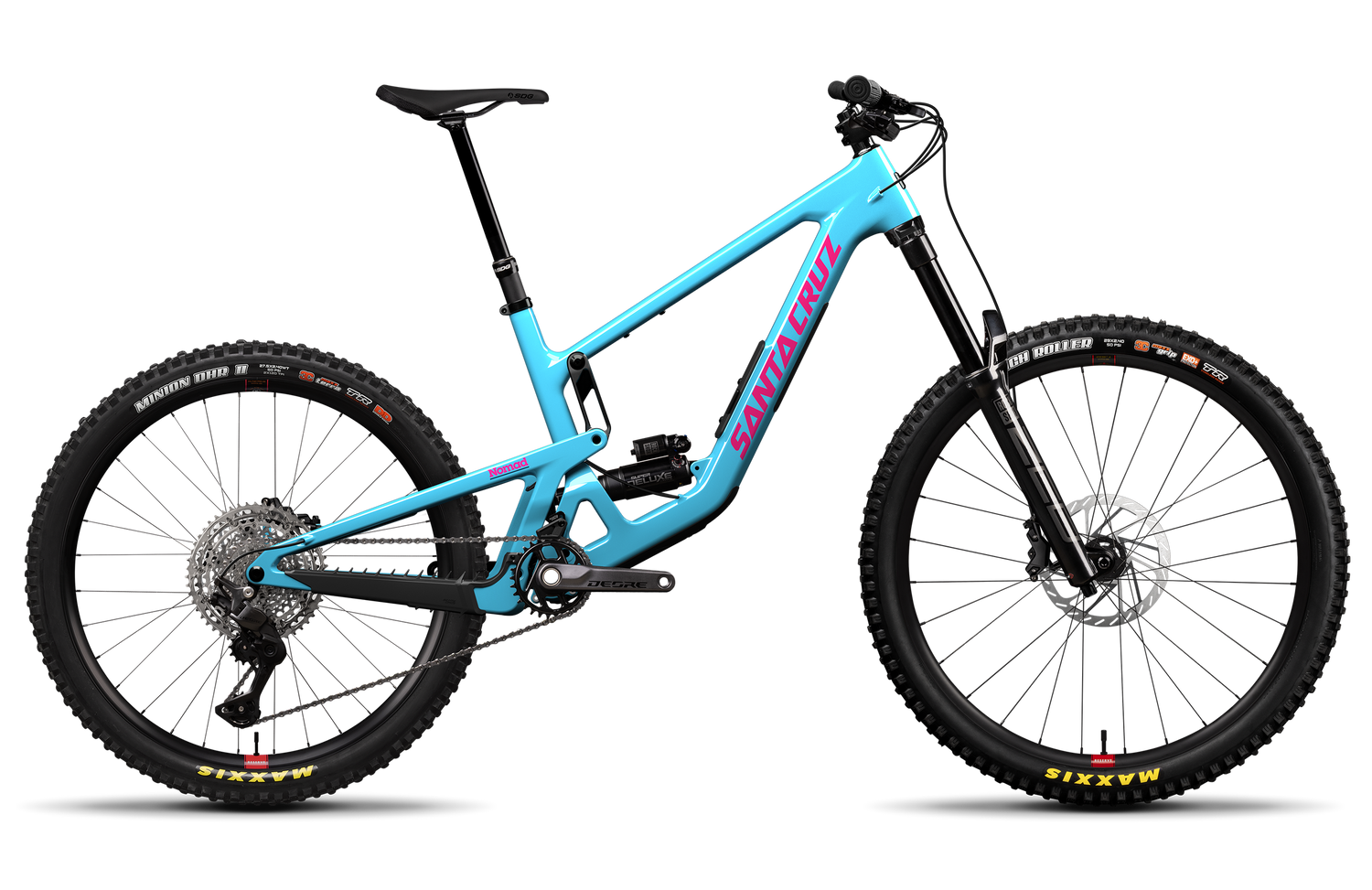

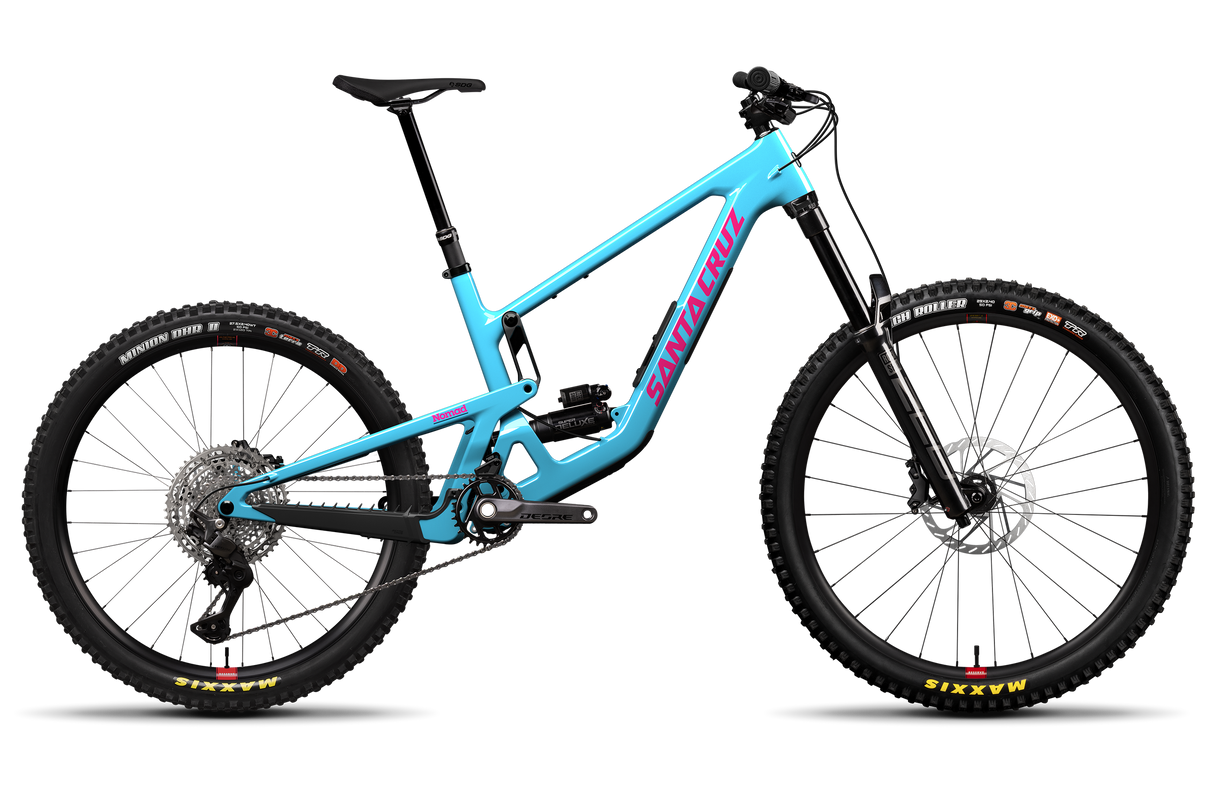

Santa Cruz Nomad CC MX Deore - 2027

Reguliere prijs €5.29900
Prijs inclusief btw. Verzending berekend bij het afrekenen.
Color:  Gloss Aqua Magenta
Size:  XLarge

Santa Cruz Nomad Size Chart

SIZE HEIGHT RANGE REACH
Small 154 cm – 165 cm 435 mm
Medium 165 cm – 175 cm 455 mm
Large 175 cm – 185 cm 475 mm
X-Large 182 cm – 193 cm 495 mm
XXLarge 193 cm – 200 cm 520 mm


Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

Personal Preference
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.

Body Dimension
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Niet beschikbaar in de winkel (Rotterdam)
Beschikbaar in het magazijn
Verwachte levering: 3–16 sep

Een betere prijs gevonden?

Stop hem in de tas, gooi hem in de bus of til hem over de achterklep—wanneer je op de trails aankomt, ben je blij dat je op een Nomad zit. De verfijnde vering zorgt voor efficiënt klimmen, minder reactie tijdens het remmen en meer tractie daartussenin.

Kortom: je rijdt comfortabeler, gecontroleerder en met meer vertrouwen, wat het parcours ook voor je in petto heeft.

Kenmerken

  • Carbon CC-frame
  • RockShox Zeb-vork

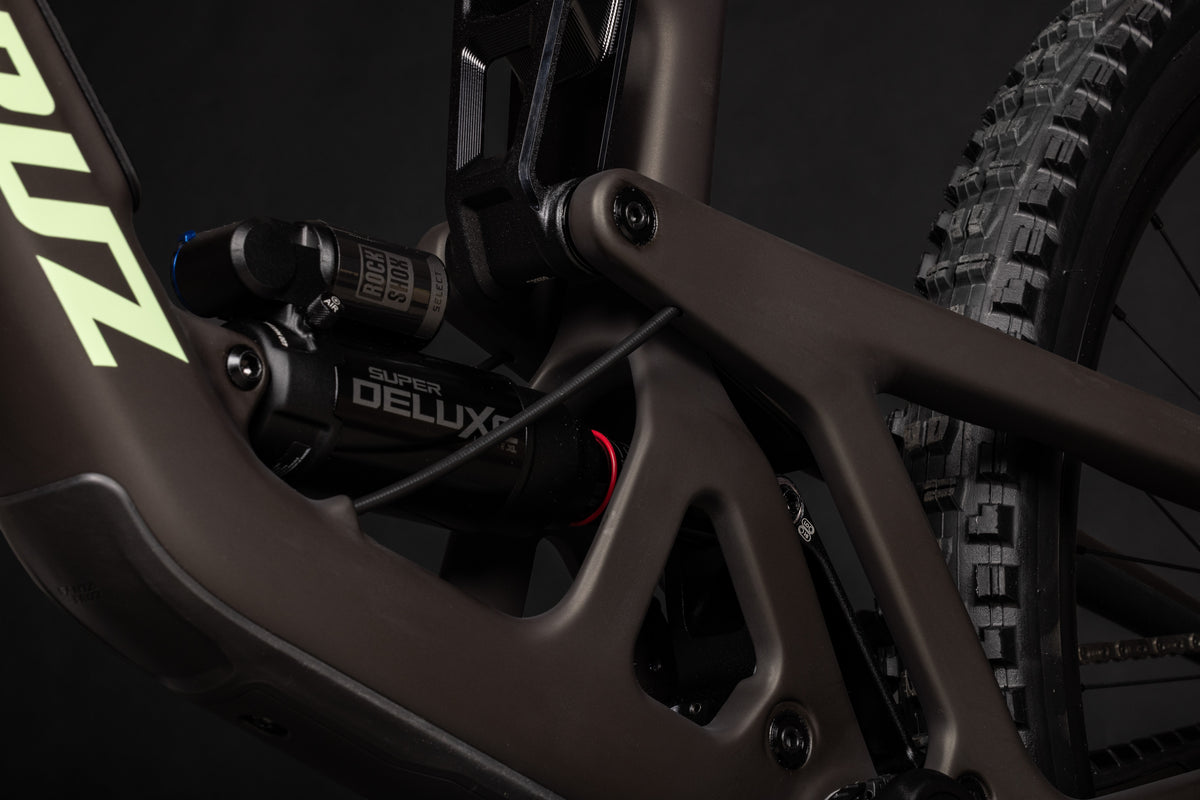

  • RockShox Super Deluxe Select-schokdemper
  • Shimano Deore M7200-aandrijving
Specificaties
Frame
Gewicht 35,63 lb / 16,16 kg
Vering
Voorvork RockShox Zeb Base, 170 mm
Schokdemper RockShox Super Deluxe Select, 230 x 65
Aandrijving
Trapas Shimano MT501, 68/73 mm, schroefdraad
Cassette Shimano Deore M6200, 10-51T
Ketting Shimano Deore M6100, 12-speed
Kettinggeleider OneUp-kettinggeleider
Crankstel Shimano Deore M6200, 32T S: 165 mm, M-XXL: 170 mm
Achterderailleur Shimano Deore M7200, 12-speed
Rechter shifter Shimano Deore M6200, 12-speed met Wolf Tooth Shiftmount-adapter voor MM
Remmen
Remmen SRAM DB8
Voorremschijf SRAM Centerline, 200 mm
Achterremschijf SRAM Centerline, 200 mm
Cockpit
Handvatten / stuurlint Santa Cruz Bicycles handvatten
Stuur Burgtec aluminium stuur, 35 mm S: 760 mm, 20 mm rise, M-XXL: 800 mm, 30 mm rise
Balhoofdset FSA IS-2/47/42 ACB
Zadel SDG Bel-Air V3 Steel
Zadelpen SDG Tellis-dropper, 31.6 S: 125 mm, M: 150 mm, L: 170 mm, XL-XXL: 200 mm
Stuurpen OneUp Enduro-stuurpen, alle maten: 42 mm
Wielen
Voorvelg Reserve 30|TR AL
Voornaaf Shimano TC500, 15x110, 6-bouts
Voorband Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+
Achtervelg Reserve 30|HD AL
Achternaaf Shimano TC600, 12x148, MicroSpline, 6-bouts
Achterband Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Ventielen Reserve Fillmore-ventielen
Specificaties
Balhoofdset Geïntegreerd (IS41/52)
Vorkas tot kroon 588 mm
Vorksprong 44
Compatibiliteit vork 170-180mm
Veringstype VPP™
Achtervering 170 mm
Aanbevolen sag 30%
Lengte schokdemper 230 mm
Inveerslag schokdemper 65 mm
Afmeting voorste schokdemperbus 30x8
Afmeting achterste schokdemperbus 30x8
Trapasbehuizing 73 mm, schroefdraad
Kettinglijn 55 mm
Maximale kettingbladafmeting 36T
Chainguide-standaard Geïntegreerde bovenste geleider + ISCG 05-bashbevestiging met 2 bouten
UDH-compatibel Ja
Inbouwbreedte achter 148 mm
Montage achterrem Postmount 200 mm
Maximale rotorgrootte 223 mm
Diameter zadelpen 31.6
Diameter zadelklem 36.4
Bevestigingspunten voor bidons 1
Opbergruimte in de onderbuis Handschoenenkastje
Geometrie

*Let op: we doen er alles aan om de specificatie-informatie accuraat te houden, maar deze kan wijzigen.
