Cervelo Aspero Apex XPLR AXS 1 - 2026

In 2019, the Cervélo Áspero marked a real breakthrough in the world of gravel, bringing an approach focused on speed and efficiency. This 2026 version retains this performance-oriented DNA while incorporating several notable developments: a threaded T47 bottom bracket for easier maintenance, a universal SRAM UDH derailleur hanger compatible with the latest drivetrains, as well as more refined cable routing. Aerodynamics have been optimized, not only to gain pure speed, but more importantly to conserve energy over long distances.

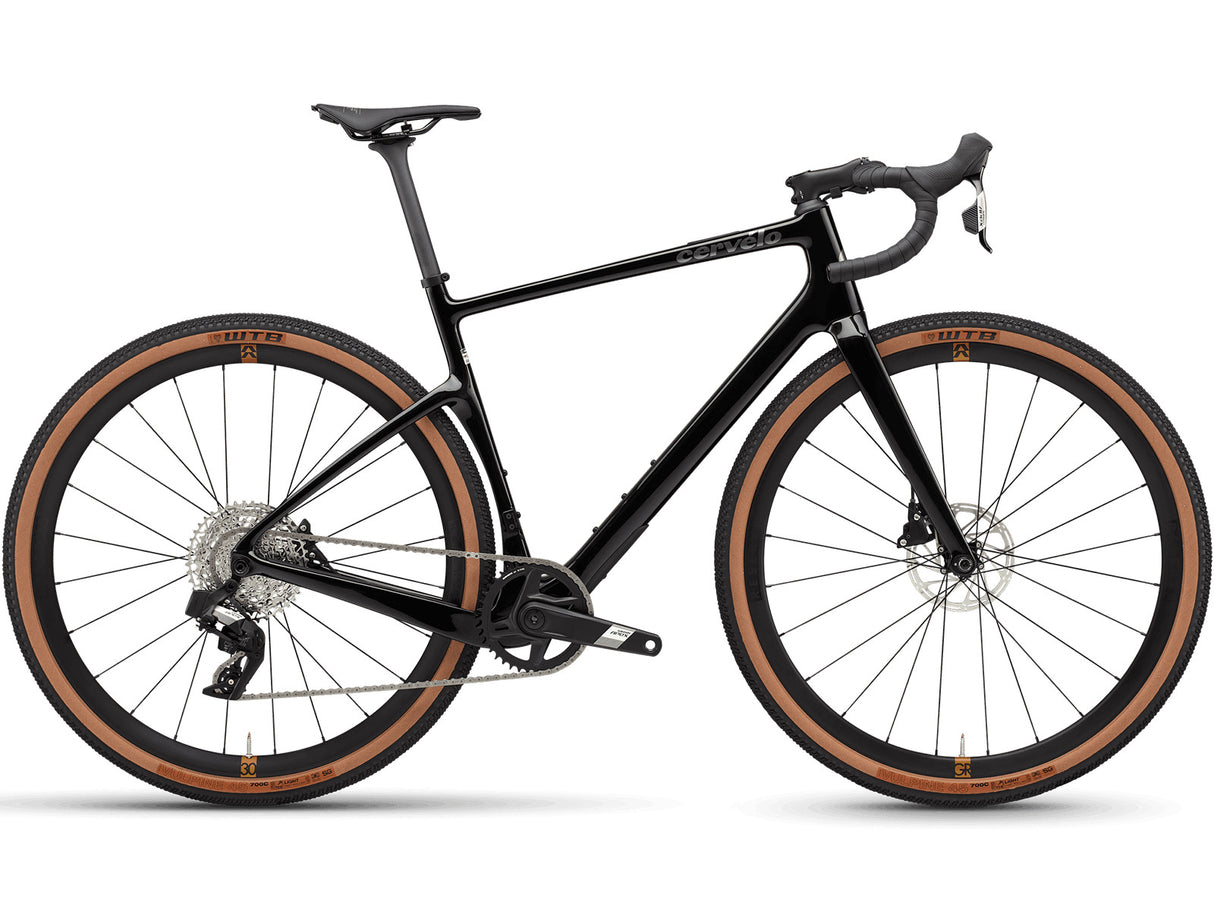

Lowered seatstays and slightly reduced front end stiffness improve comfort on long rides, while increased mud clearance and compatibility with numerous accessories enhance the versatility of the Cervélo Aspero Apex XPLR AXS 1 black/charcoal 2026. The result is a bike that's fast, comfortable, and ready to take on the most demanding gravel events.

Frame

Gravel-optimized carbon Cervélo with dropper seatstays | T47a asymmetric threaded BBright bottom bracket | SRAM UDH universal derailleur hanger | Internal cable routing | ST31 and HB13 cockpit compatibility for fully integrated cable routing

Fork

Cervélo All-Carbon, Tapered Aspero Fork

Headset

FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°

Gallows

Cervélo ST36 Alloy

Handlebar

Cervélo AB09 Carbon, 31.8 mm clamp, 16° flare

Seat post

Cervélo SP19 Carbon 27.2

Saddle

Prologo Nago R4 PAS Steel

Rear derailleur

SRAM Apex XPLR AXS D1

Cassette

SRAM Apex XPLR D1, 11-44 teeth, 12 speed

Chain

SRAM Apex D1

Crankset

SRAM Apex 1 D1, 40 teeth, DUB Wide

Bottom bracket

SRAM DUB Wide, T47 BBright

Levers and stirrups

SRAM Apex AXS D1

Discs

SRAM Centerline Centerlock

Front wheel

Reserve 30 GR AL, Reserve 4LD, 12x100 mm, 24H, centerlock, tubeless compatible

Rear wheel

Reserve 30 GR AL, Reserve 4LD, 12x142 mm, XDR freehub, 24H, centerlock, tubeless compatible

Tires

WTB Vulpine TCS Light Fast Rolling Dual DNA SG 120 tpi 700x45c

Maximum tire width

700c: up to 45 mm | 650c: up to 47 mm

Front axle

Cervélo Aero Thru Axle Front, M12x1.5 mm, 127 mm

Rear axle

Cervélo Aero Thru Axle Rear, M12x1.0 mm, 169 mm

Front support

Cervélo Front Computer/Accessory Mount 810

Rear support

Cervélo Rear Accessory Mount

Bag

Cervélo Smartpak Top Tube Storage Bag 400A

Available sizes

48cm, 51cm, 54cm, 56cm, 58cm, 61cm

Handlebar width

48: 36 cm | 51: 38 cm | 54 and 56: 40 cm | 58 and 61: 42 cm

Stem length

48 and 51: 80 mm | 54 and 56: 90 mm | 58 and 61: 100 mm

Seatpost offset

48, 51, 54 and 56: 0 mm | 58 and 61: 15 mm

Crank length

48: 165mm | 51: 165mm | 54 and 56: 170 mm | 58 and 61: 172.5 mm
