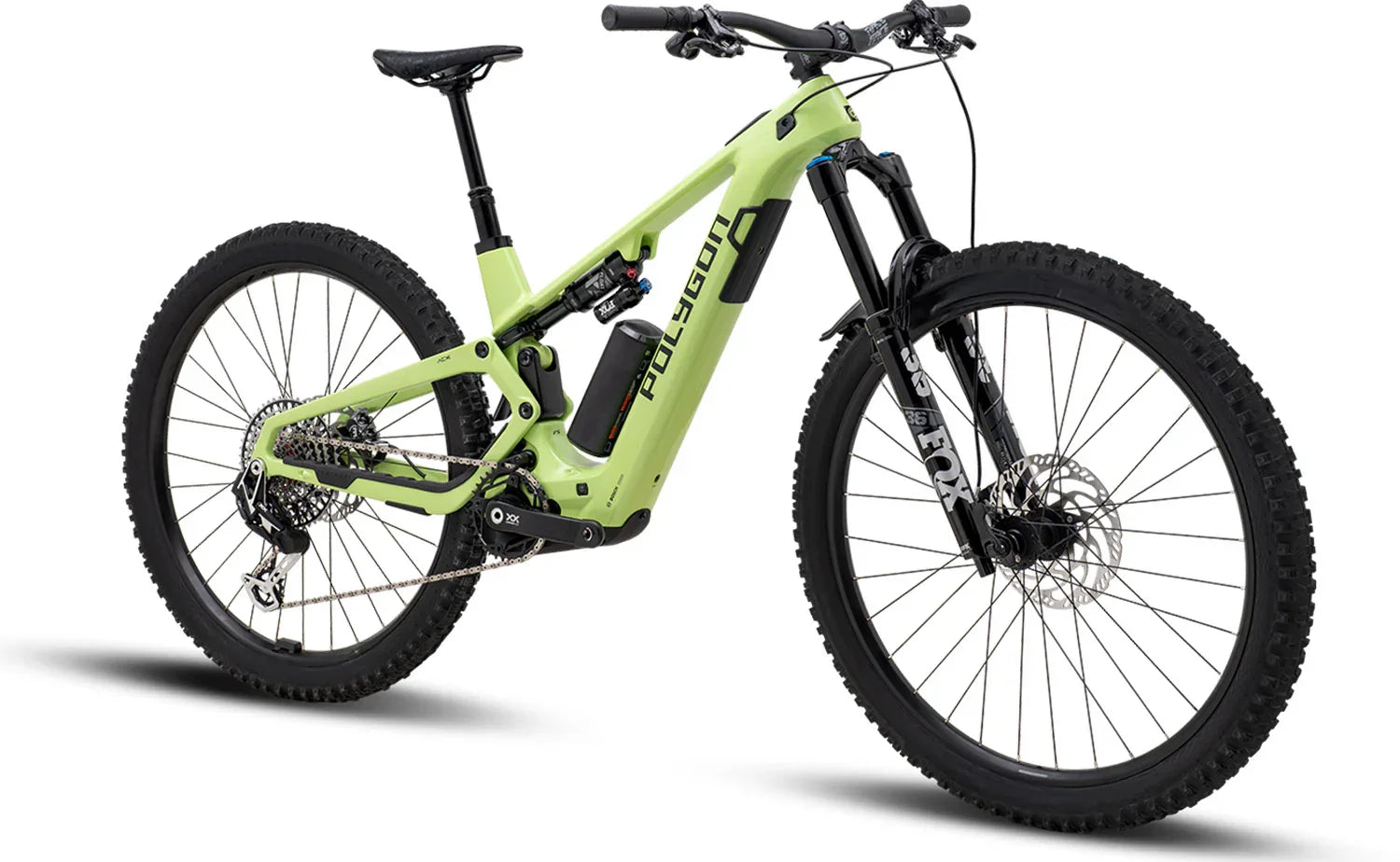

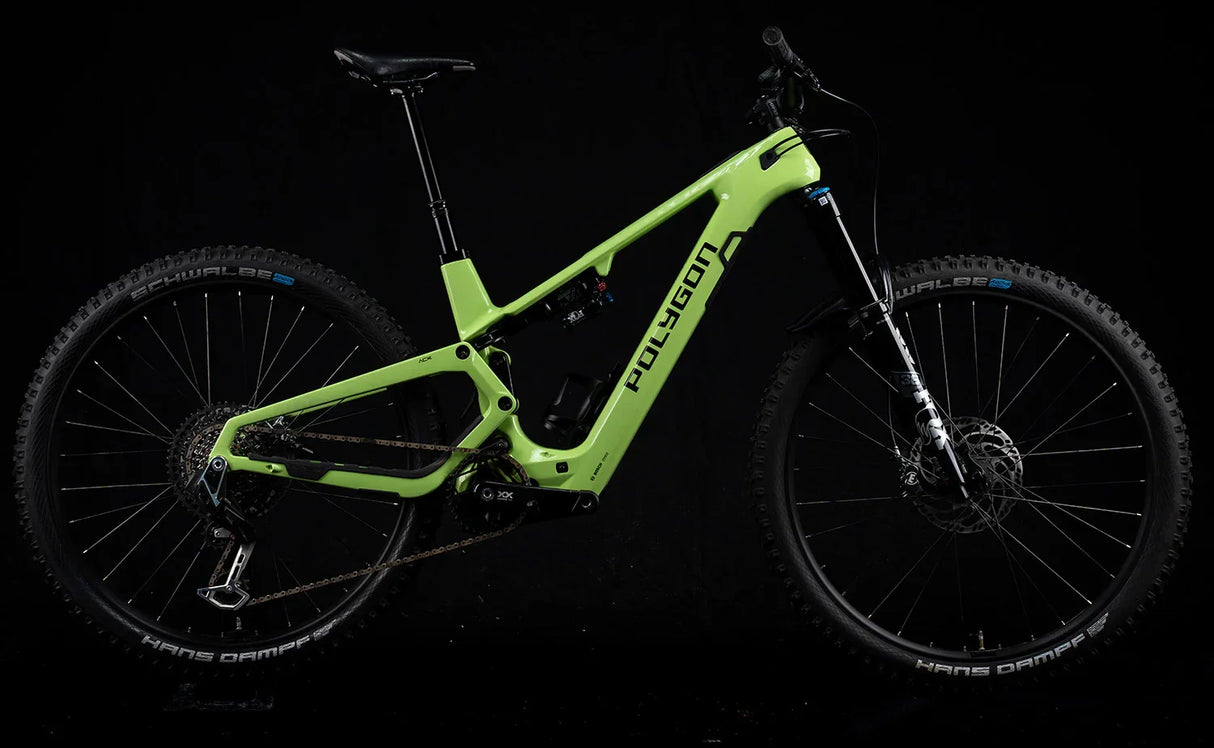

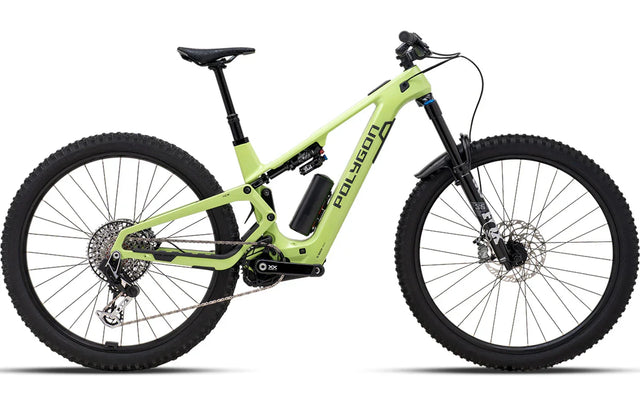

Polygon Collosus TLE 0 AXS
Polygon Collosus TLE 0 AXS - Klein ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Estimated Shipping Widget will be displayed here!
Reviews
Polygon Collosus TLE 0 AXS
Comes from the bloodline of a champion Collosus N, we give you another perspective to have more fun and tame the trails with the combination of our proven suspension platform; the IFS System (Independent Floating Suspension System), and the powerful 85 NM support, and Shimanos free shift that enables seamless shifting without the need to pedal; ensuring a controlled flow as you navigate descents and corners. Welcome to where climbs transform into fun and, of course, your descents triple.
Features
- 6-BAR INDEPENDANT FLOATING SUSPENSION
- FOX 38 FLOAT FACTORY
- FOX FLOAT X2 FACTORY
- SHIMANO XT GROUPSET
Specification
The specifications, colors, parts, and availability of the products can be subjects to alter without prior notification.
Frameset
Frameset ALX AM/ENDURO 160mm TRAVEL
Fork FOX 38 FLOAT FACTORY
Rear Shock FOX FLOAT X2 FACTORY
Frame Color METALLIC GREEN
Decal Color BROWN
Drivetrain
Shifter SHIMANO XT Di2 SW-M8150, 1x12-SPEED I-SPEC EV
Crank SHIMANO SM-CRE80-12-B 34T
Cassette SHIMANO XT CS-M8100 10-51T MICROSPLINE
Rear Derailleur SHIMANO XT Di2 RD-M8150
Chain KMC E12 FOR 12-SPEED
Pedal ALLOY FLAT W/ REPLACEABLE PIN
Cockpit
Saddle XTEND
Seatpost FOX TRANSFER FACTORY SERIES 150mm (S, M) / 175mm (L, XL) TRAVEL, DxL: 30.9x418mm (S, M) / 475mm (L, XL)
Handlebar RACE FACE AFFECT R 35, W: 780mm, BB: 35mm, R/D: 20mm, B: 8degree
Handlestem RACE FACE AFFECT R 35, EXT:40mm, BB: 35mm, R/D: 0mm
Headset FSA NO.57E W/ SEALED BEARING
Wheel & Tire
Wheel Set XL2 TUBELESS READY
Tire SCHWALBE MAGIC MARY EVO 29"x2.60" 622x65 SUPER GRAVITY TLE ADDIX SOFT
Rim ALLOY DOUBLE WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ TUBELESS TAPE
Hub F: SHIMANO TC500 15x110mm 32H CL / R: SHIMANO TC500 12x148mm 32H CL FOR MICROSPLINE
Spokes F: STAINLESS 14G NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE / R: STAINLESS 14G NDS:296mm DS:294mm W/ 12mm BRASS NIPPLE
Brake
Brake Lever SHIMANO XT BL-M8100
Brake Caliper SHIMANO XT M8120 HYDRAULIC DISC
Rotor F: SHIMANO RT-MT800 203 CL / R: SHIMANO RT-EM810 203 CL
Electric Parts
Motor SHIMANO DU-EP801 MID MOTOR 25kph / 20mph
Sensor SHIMANO EW-SS301 W/ 760mm CABLE
Battery SHIMANO BT-EN806 FOR DOWN TUBE INTEGRATED - 630Wh (36V, 14Ah)
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 400 | 410 | 420 | 430 |
| Seat Tube Angle (B) | 70 | 70 | 70 | 70 |
| Effective Seat Tube Angle (C) | 77 | 77 | 77 | 77 |
| Head Tube Length (D) | 100 | 105 | 110 | 120 |
| Head Tube Angle (E) | 64.5 | 64.5 | 64.5 | 64.5 |
| Effective Top Tube (F) | 594.56 | 615.6 | 636.65 | 658.73 |
| Bb Height (G) | 345 | 345 | 345 | 345 |
| Bb Offset (H) | 35 | 35 | 35 | 35 |
| Chainstay Length (I) | 435 | 435 | 435 | 435 |
| Wheelbase (J) | 1212.09 | 1234.25 | 1256.4 | 1280.7 |
| Frame Reach (K) | 450 | 470 | 490 | 510 |
| Frame Stack (L) | 626.16 | 630.68 | 635.19 | 644.22 |
| Standover Height (M) | 710 | 710 | 710 | 710 |
